BU91L-MDDTX3 (1990)
Toyota Dyna 200

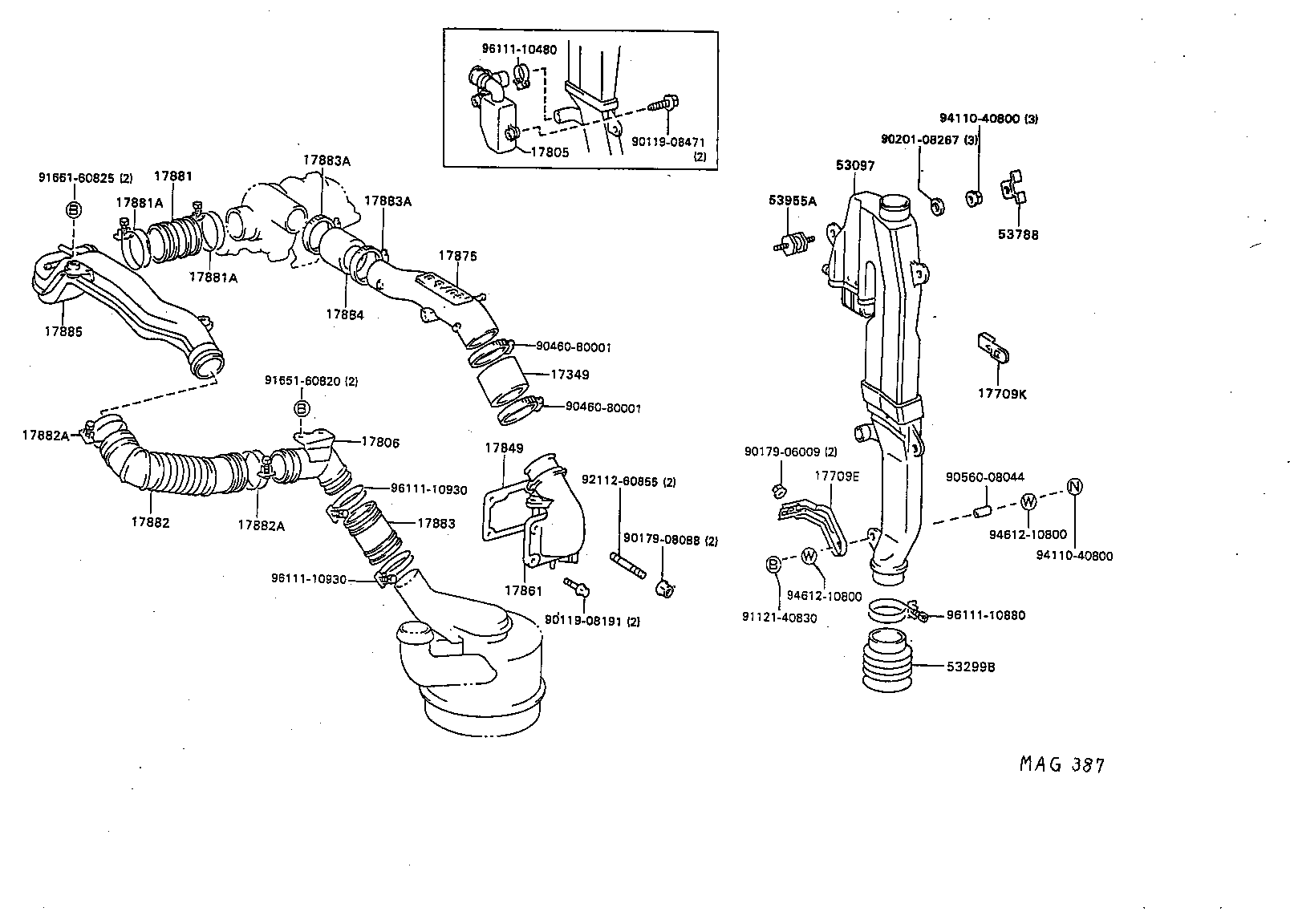

ILLUST NO. 2 OF 2(9004-9305)14BT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17349 - HOSE, INTAKE PIPE | ||||
| 17349-58020 |
14BT..BU91,96 |
1 | ||
| 17709E - BRACKET, AIR CLEANER INLET, NO.2 | ||||
| 53773-95401 |
14B#..BU88,91,96..T3..(CBU,IV3) |
1 | ||
| 17709K - BRACKET, AIR CLEANER INLET, NO.4 | ||||
| 53765-95402 |
14B#..BU88,91,96..T3..(CBU,IV3) |
1 | ||
| 17805 - CONNECTOR SUB-ASSY, INTAKE AIR | ||||
| 17805-95400 |
14BT..BU91,96 |
1 | ||
| 17806 - PIPE SUB-ASSY, AIR CLEANER, NO.2 | ||||
| 17886-58010 |
14BT..BU91,96 |
1 | ||
| 17806-58020 |
14B..BU88,9# |
1 | ||
| 17849 - GASKET, INTAKE AIR CONNECTOR | ||||
| 17849-58010 |
14BT..BU91,96 |
1 | ||
| 17861 - CONNECTOR, INTAKE AIR | ||||
| 17861-58010 |
14BT..BU91,96 |
1 | ||
| 17875 - PIPE, INTAKE AIR CONNECTOR | ||||
| 17113-58030 |
14BT..BU91,96 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-58060 |
14BT..BU91,96 |
1 | ||
| 17881-58150 |
14B..BU88,9# |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10800 |
14BT..BU91,96 |
2 | ||
| 96111-10900 |
14B..BU66..TS;11B,14B..BU65,67,88,9#;11B,14B..BU61,66,87..ARL,GHD INTAKE MANIFOLD SIDE |
1 | ||
| 96111-10750 |
14B..BU66..TS;11B,14B..BU65,67,88,9#;11B,14B..BU61,66,87..ARL,GHD PIPE SIDE |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10800 |
14BT..BU91,96 |
2 | ||
| 96111-10900 |
14B..BU66..TS;11B,14B..BU65,67,88,9#;11B,14B..BU61,66,87..ARL,GHD INTAKE MANIFOLD SIDE |
1 | ||
| 96111-10750 |
14B..BU66..TS;11B,14B..BU65,67,88,9#;11B,14B..BU61,66,87..ARL,GHD PIPE SIDE |
1 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17882-58120 |
14BT..BU91,96 |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10930 |
14BT..BU91,96 |
2 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10930 |
14BT..BU91,96 |
2 | ||
| 17883 - HOSE, AIR CLEANER, NO.3 | ||||
| 17883-58050 |
14BT..BU91,96 |
1 | ||
| 17883-58040 |
14B..BU88,9# |
1 | ||
| 17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3) | ||||
| 96111-10750 |
14B..BU88,9# PIPE SIDE |
1 | ||
| 90460-65004 |
14BT..BU91,96 |
2 | ||
| 96111-10930 |
14B..BU88,9# AIR CLEANER SIDE |
1 | ||
| 17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3) | ||||
| 96111-10750 |
14B..BU88,9# PIPE SIDE |
1 | ||
| 90460-65004 |
14BT..BU91,96 |
2 | ||
| 96111-10930 |
14B..BU88,9# AIR CLEANER SIDE |
1 | ||
| 17884 - HOSE, AIR CLEANER, NO.4 | ||||
| 17341-58020 |
14BT..BU91,96 |
1 | ||
| 17885 - PIPE, AIR CLEANER | ||||
| 17805-58100 |
14BT..BU91,96 |
1 | ||
| 17805-58110 |
14BT..BU91,96 |
1 | ||
| 53097 - INLET SUB-ASSY | ||||
| 53097-95428 |
BU91,96..TD |
1 | ||
| 53097-95418 |
BU88,91,96..T3..(CBU,IV3) |
1 | ||
| 53097-37080 |
BU91,96..TD |
1 | ||
| 53299B - DUCT, COOL AIR INTAKE | ||||
| 53299-95401 |
BU88..LHD;BU91,96..GEN;BU88..RHD..CBU |
1 | ||
| 53788 - BRACKET, AIR CLEANER INLET, NO.6 | ||||
| 53788-95400 |
BU88,91,96..T3..(CBU,IV3) |
1 | ||
| 53955A - CUSHION, AIR CLEANER INLET NO.1 | ||||
| 53955-95402 |
BU88,91,96..T3..(CBU,IV3) |
3 | ||
| Common parts | ||||
| 90119-08191 | ||||
| 90119-08471 | ||||
| 90179-06009 | ||||
| 90179-08088 | ||||
| 90201-08267 | ||||
| 90460-80001 | ||||
| 90560-08044 | ||||
| 91121-40830 | ||||
| 91651-60820 | ||||
| 91661-60825 | ||||
| 92112-60855 | ||||
| 94110-40800 | ||||
| 94612-10800 | ||||
| 96111-10480 | ||||
| 96111-10880 | ||||
| 96111-10930 | ||||
