BU91L-MDDTX3 (1990)

Toyota Dyna 200

Production Apr 1990 - May 1993
Engine 14BT
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9004-9305)14BT

Click highlighted areas on diagram

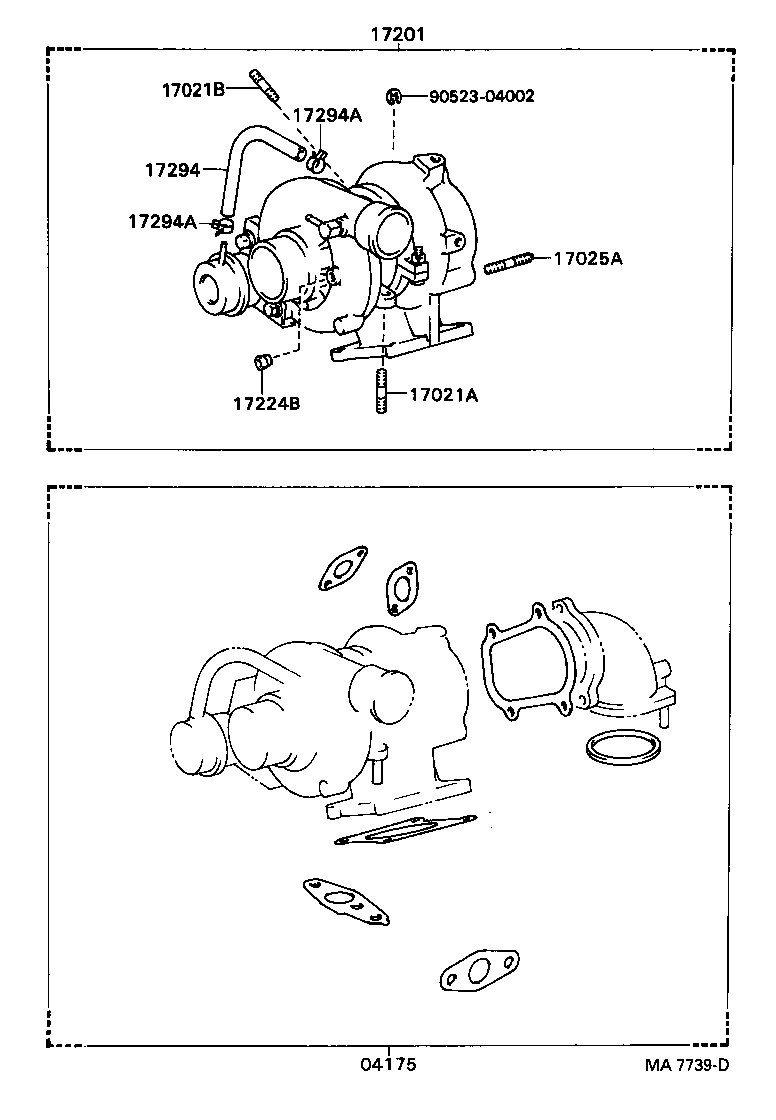

diagram 04175 17021A 17021B 17025A 17201 17224B 17294 17294A 17294A 9052304002
Part # Description Qty Price
04175 - GASKET KIT, TURBOCHARGER
04175-58020

14BT..BU91,96

 1
17021A - BOLT, STUD(FOR BEARING HOUSING)
90116-08158

14BT..BU91,96

 2
17021B - BOLT, STUD
90116-06048

14BT..BU91,96

 2
17025A - BOLT, STUD(FOR TURBINE HOUSING)
90116-10125

14BT..BU91,96

 4
17201 - TURBOCHARGER SUB-ASSY
17201-58020

14BT..BU91,96

 1
17224B - PLUG, TAPER SCREW
90344-51014

14BT..BU91,96

 1
17294 - HOSE, ACTUATOR
90445-12219

14BT..BU91,96

 1
17294A - CLIP(FOR ACTUATOR HOSE)
96132-41100

14BT..BU91,96

 2
17294A - CLIP(FOR ACTUATOR HOSE)
96132-41100

14BT..BU91,96

 2
Common parts
90523-04002

(9004-9305)14BT

Click highlighted areas on diagram

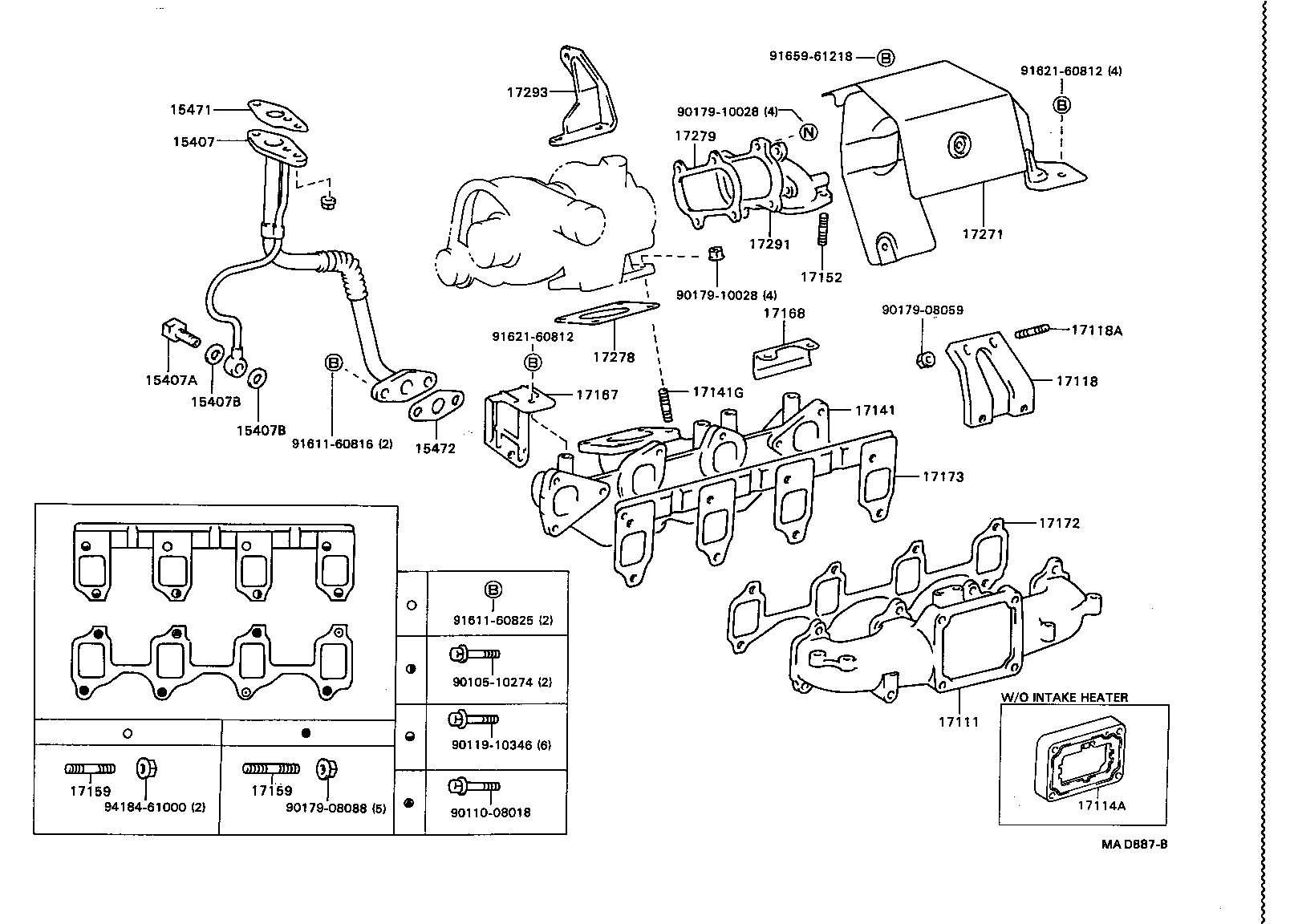

diagram 15407 15407A 15407B 15407B 15471 15472 17111 17114A 17118 17118A 17141 17141G 17152 17159 17159 17167 17168 17172 17173 17271 17278 17279 17291 17293 9010510274 9011008018 9011910346 9017908059 9017908088 9017910028 9017910028 9161160816 9161160825 9162160812 9162160812 9165961218 9418461000
Part # Description Qty Price
15407 - PIPE SUB-ASSY, TURBO OIL INLET
15407-58020

14BT..BU91,96

 1
15407A - BOLT, UNION(FOR TURBO OIL INLET PIPE)
90401-12028

14BT..BU91,96

 1
15407B - GASKET(FOR TURBO OIL INLET PIPE)
90430-12025

14BT..BU91,96

 2
15407B - GASKET(FOR TURBO OIL INLET PIPE)
90430-12025

14BT..BU91,96

 2
15471 - GASKET, TURBO OIL INLET
15471-58010

14BT..BU91,96

 1
15472 - GASKET, TURBO OIL OUTLET, NO.1
15472-58011

14BT..BU91,96

 1
17111 - MANIFOLD, INTAKE
17111-56190

11B,14B#..BU61,65,66,67,84,87,88,9#

 1
17114A - FLANGE, INTAKE
17114-58010

11B,14B#..BU61,65,66,67,84,87,88,9#

 1
17118 - STAY, MANIFOLD
17118-58020

14BT..BU91,96

 1
17118A - BOLT, STUD(FOR MANIFOLD STAY)
90116-08128

14BT..BU91,96

 2
17141 - MANIFOLD, EXHAUST
17141-58020

14BT..BU91,96

 1
17141-56060

B,11B,14B..BU6#,70,8#,9#

 1
17141G - BOLT, STUD(FOR TURBOCHARGER)
90116-10093

14BT..BU91,96

 4
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10087

B,11B,14B#..BU6#,70,8#,9#

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-10147

B,11B,14B..BU6#,70,8#,9#

EXHAUST MANIFOLD

 2
92132-60825

B,11B,14B..BU6#,70,8#,9#

INTAKE MANIFOLD

 5
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-10147

B,11B,14B..BU6#,70,8#,9#

EXHAUST MANIFOLD

 2
92132-60825

B,11B,14B..BU6#,70,8#,9#

INTAKE MANIFOLD

 5
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-56050

11B,14B..BU61,65,88,91..GEN,SA;B,11B,14B..BU60,66,67,70,83,84,87,94,96..5F

 1
17167-58020

14BT..BU91,96

 1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-56010

B,11B,14B#..BU6#,70,8#,9#

 1
17172 - GASKET, MANIFOLD TO CYLINDER HEAD
17171-56010

B,11B,14B#..BU6#,70,8#,9#

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-58020

14BT..BU91,96

 1
17173-56040

B,11B,14B..BU6#,70,8#,9#

 1
17271 - INSULATOR, TURBO, NO.1
17271-58030

14BT..BU91,96

 1
17278 - GASKET, TURBO TO EXHAUST MANIFOLD
17278-58020

14BT..BU91,96

 1
17279 - GASKET, TURBINE OUTLET ELBOW
17279-58020

14BT..BU91,96

 1
17291 - ELBOW, TURBINE OUTLET
17291-58020

14BT..BU91,96

 1
17293 - STAY, TURBOCHARGER
17293-58010

14BT..BU91,96

 1
Common parts
90105-10274
90110-08018
90119-10346
90179-08059
90179-08088
90179-10028
91611-60816
91611-60825
91621-60812
91659-61218
94184-61000
