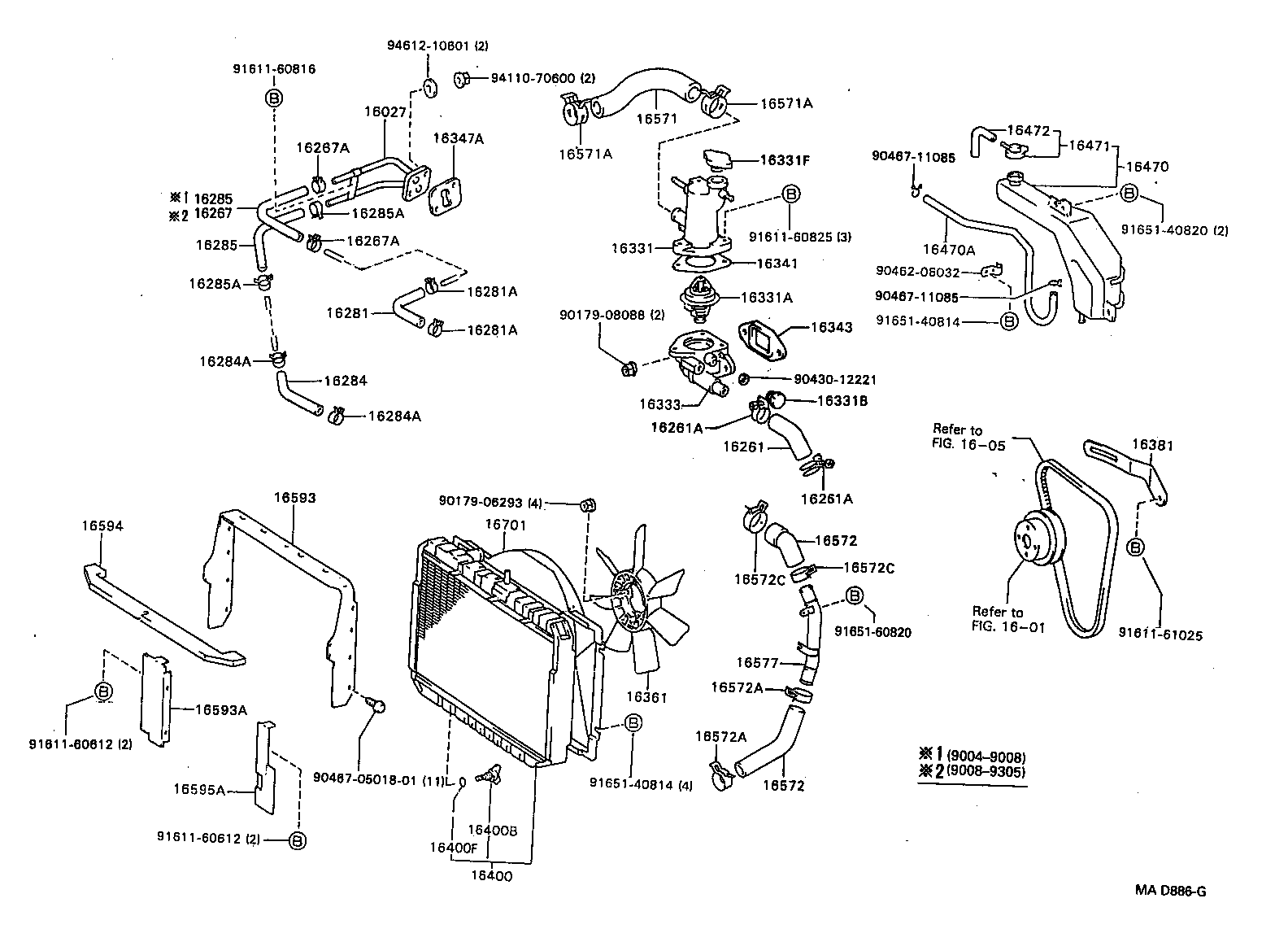

BU91L-MDDTX3 (1990)
Toyota Dyna 200
(9004-9305)14BT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16027 - PIPE SUB-ASSY, TURBO WATER, NO.1 | ||||
| 16027-58010 |
14BT..BU91,96 |
1 | ||
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-56012 |
B,11B,14B#..BU6#,70,8#,9# |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-28004 |
B,11B,14B..BU6#,70,8#,9# |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-28004 |
B,11B,14B..BU6#,70,8#,9# |
2 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-58012 |
14BT..BU91,96 |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96132-31000 |
14BT..BU91,96 |
2 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96132-31000 |
14BT..BU91,96 |
2 | ||
| 16281 - HOSE, WATER BY-PASS, NO.4 | ||||
| 16281-58011 |
14BT..BU91,96 |
1 | ||
| 16281-58030 |
14BT..BU91,96 |
1 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 96132-31000 |
14BT..BU91,96 |
2 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 96132-31000 |
14BT..BU91,96 |
2 | ||
| 16284 - HOSE, TURBO WATER, NO.1 | ||||
| 16284-58020 |
14BT..BU91,96 |
1 | ||
| 16284-58030 |
14BT..BU91,96 |
1 | ||
| 16284-58032 |
14BT..BU91,96 |
1 | ||
| 16284A - CLIP(FOR TURBO WATER HOSE NO.1) | ||||
| 96132-31000 |
14BT..BU91,96 |
2 | ||
| 16284A - CLIP(FOR TURBO WATER HOSE NO.1) | ||||
| 96132-31000 |
14BT..BU91,96 |
2 | ||
| 16285 - HOSE, TURBO WATER, NO.2 | ||||
| 16285-58010 |
14BT..BU91,96 |
1 | ||
| 16285-58010 |
14BT..BU91,96 |
2 | ||
| 16285 - HOSE, TURBO WATER, NO.2 | ||||
| 16285-58010 |
14BT..BU91,96 |
1 | ||
| 16285-58010 |
14BT..BU91,96 |
2 | ||
| 16285A - CLIP(FOR TURBO WATER HOSE NO.2) | ||||
| 96132-31000 |
14BT..BU91,96 |
2 | ||
| 16285A - CLIP(FOR TURBO WATER HOSE NO.2) | ||||
| 96132-31000 |
14BT..BU91,96 |
2 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-58060 |
14BT..BU91,96 |
1 | ||
| 16331-56020 |
14B..BU88,9# |
1 | ||
| 16331-58061 |
14BT..BU91,96 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03077 |
B,11B,14B#..BU60,61,65,66,70,8#,9# *WAX 82-95 |
1 | ||
| 16331B - PLUG(FOR WATER OUTLET) | ||||
| 90341-12006 |
B,11B,14B..BU6#,70,8#,9# |
1 | ||
| 16331F - CAP SUB-ASSY(FOR WATER OUTLET) | ||||
| 16401-71010 |
14BT..BU91,96;B,11B,14B..BU6#,70,83,84,87 |
1 | ||
| 16333 - HOUSING, WATER OUTLET | ||||
| 16333-56070 |
B,11B,14B..BU6#,70,8#,9# |
1 | ||
| 16333-58040 |
14BT..BU91,96 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-56030 |
B,11B,14B#..BU6#,70,8#,9# |
1 | ||
| 16347A - GASKET(FOR TURBO WATER PIPE) | ||||
| 16347-58010 |
14BT..BU91,96 |
1 | ||
| 16361 - FAN | ||||
| 16361-56070 |
14B..BU67;14BT..BU91,96;11B..BU61..IV1;11B,14B..BU61,65,66,87..ARL,GHD |
1 | ||
| 16361-56030 |
14B..BU88,9#..GEN,SA OD=380 |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-56060 |
B..BU60..TW1..GEN;B,14B..BU60,83,88,91..LHD..WT CHINA SPEC |
1 | ||
| 16381-56070 |
11B..BU65..CBU;B,11B,14B#..BU60,61,66,67,70,8#,9# |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-58370 |
14BT..BU91,96 |
1 | ||
| 16400-58111 |
14B..BU88,91,96..(ARL,GEN)..(CBU,IV3) |
1 | ||
| 16400-58371 |
14BT..BU91,96 |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-24051 |
11B..BU61..ARL;11B..BU61..IV1;B,11B,14B..BU60,65,70,83,87,88,91,96..CBU,IV3 |
1 | ||
| 16417-24200 |
14BT..BU91,96 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-24051 |
14B..BU88..CBU,IV3;B,11B,14B..BU6#,70,83,84,87,91,96 |
1 | ||
| 16418-24200 |
14BT..BU91,96 |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-58020 |
14B#..BU88,9# |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12146 |
14BT..BU91,96 |
1 | ||
| 90445-12143 |
14B..BU88,9# L=620 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-56070 |
14B#..BU88,9# |
1 | ||
| 16472 - HOSE, BREATHER | ||||
| 16472-58010 |
14B#..BU88,9# |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-58030 |
14B#..BU88,9# |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-42001 |
B,11B,14B#..BU6#,70,8#,9# |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-42001 |
B,11B,14B#..BU6#,70,8#,9# |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-56090 |
B,11B,14B#..BU6#,70,8#,9# WATER PUMP SIDE |
1 | ||
| 16573-58020 |
14B#..BU88,9# RADIATOR SIDE |
1 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-56090 |
B,11B,14B#..BU6#,70,8#,9# WATER PUMP SIDE |
1 | ||
| 16573-58020 |
14B#..BU88,9# RADIATOR SIDE |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10510 |
B,11B,14B#..BU6#,70,8#,9# |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10510 |
B,11B,14B#..BU6#,70,8#,9# |
2 | ||
| 16572C - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.2) | ||||
| 96111-10510 |
B,11B,14B#..BU6#,70,8#,9# PIPE SIDE |
1 | ||
| 96111-10570 |
B,11B,14B#..BU6#,70,8#,9# WATER PUMP SIDE |
1 | ||
| 16572C - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.2) | ||||
| 96111-10510 |
B,11B,14B#..BU6#,70,8#,9# PIPE SIDE |
1 | ||
| 96111-10570 |
B,11B,14B#..BU6#,70,8#,9# WATER PUMP SIDE |
1 | ||
| 16577 - PIPE, RADIATOR, NO.7 | ||||
| 16577-56050 |
B,11B,14B#..BU6#,70,8#,9# |
1 | ||
| 16593 - GUIDE, RADIATOR AIR, NO.1 | ||||
| 16593-58050 |
14B#..BU88,9# |
1 | ||
| 16593A - GUIDE, RADIATOR AIR, NO.1 RH | ||||
| 16593-58060 |
14B#..BU88,9# |
1 | ||
| 16594 - GUIDE, RADIATOR AIR, NO.2 | ||||
| 16594-58030 |
14B#..BU88,9# |
1 | ||
| 16595A - GUIDE, RADIATOR AIR, NO.1 LH | ||||
| 16595-58040 |
14B#..BU88,9# |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16701-58051 |
14BT..BU91,96 |
1 | ||
| 16701-58040 |
14B..BU88,9# |
1 | ||
| 16701-58050 |
14BT..BU91,96 |
1 | ||
| 16701-58052 |
14BT..BU91,96 |
1 | ||
| Common parts | ||||
| 90179-06293 | ||||
| 90179-08088 | ||||
| 90430-12221 | ||||
| 90462-08032 | ||||
| 90467-0501801 | ||||
| 90467-11085 | ||||
| 91611-60612 | ||||
| 91611-60816 | ||||
| 91611-60825 | ||||
| 91611-61025 | ||||
| 91651-40814 | ||||
| 91651-40820 | ||||
| 91651-60820 | ||||
| 94110-70600 | ||||
| 94612-10601 | ||||
| Linked diagrams | ||||
| 1601 | ||||
| 1605 | ||||
