BU91L-MDDT (1988)

Toyota Dyna 200

Production Aug 1988 - May 1995
Engine 14B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )BU8#,9# ; (8808- )BU66..TB..GEN

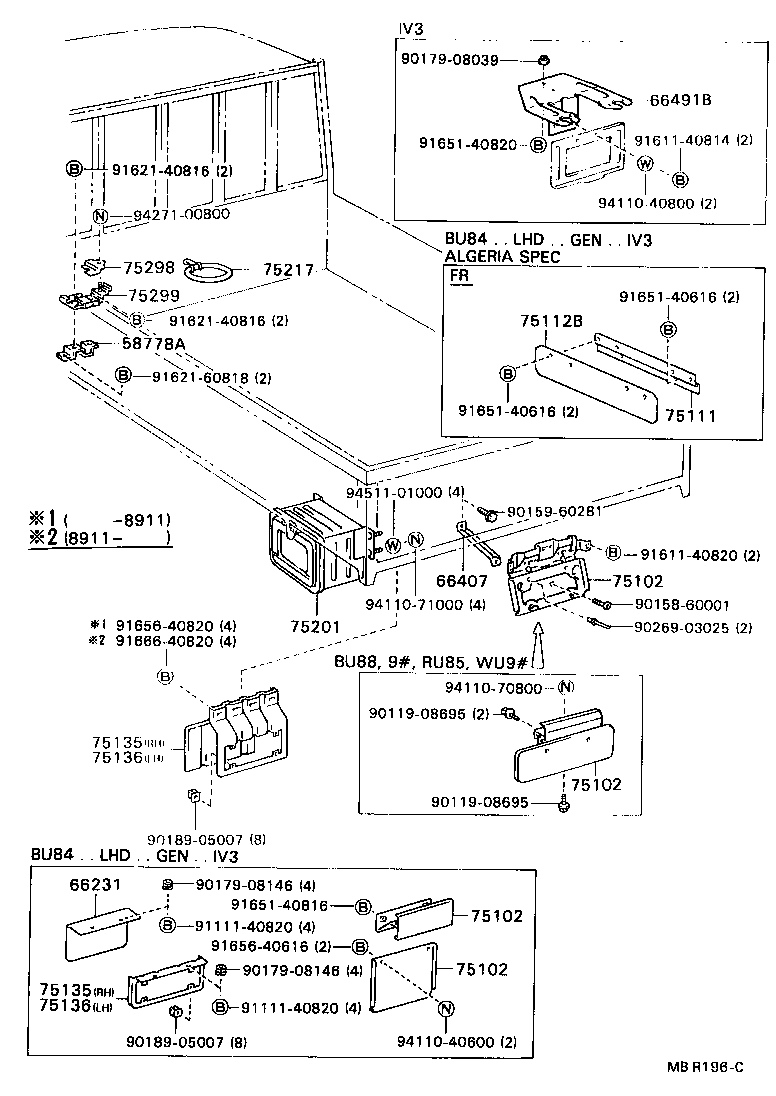

Click highlighted areas on diagram

diagram 58778A 66231 66407 66491B 75102 75102 75102 75102 75111 75112B 75135 75135 75136 75136 75201 75217 75298 75299 9011908695 9011908695 9015860001 9015960281 9017908039 9017908146 9017908146 9018905007 9018905007 9026903025 9111140820 9111140820 9161140814 9161140820 9162140816 9162140816 9162160818 9165140616 9165140616 9165140816 9165140820 9165640616 9165640820 9166640820 9411040600 9411040800 9411070800 9411071000 9427100800 9451101000
Part # Description Qty Price
75102 - BRACKET SUB-ASSY, REAR LICENSE PLATE
66490-92802

BU88,9#

 1
75102 - BRACKET SUB-ASSY, REAR LICENSE PLATE
66490-92802

BU88,9#

 1
75102 - BRACKET SUB-ASSY, REAR LICENSE PLATE
66490-92802

BU88,9#

 1
75102 - BRACKET SUB-ASSY, REAR LICENSE PLATE
66490-92802

BU88,9#

 1
75135 - BRACKET, COMBINATION REAR LAMP, RH
75105-92700

BU88,91,96..CBU

 1
75135 - BRACKET, COMBINATION REAR LAMP, RH
75105-92700

BU88,91,96..CBU

 1
75136 - BRACKET, COMBINATION REAR LAMP, LH
75105-92700

BU88,91,96..CBU

 1
75136 - BRACKET, COMBINATION REAR LAMP, LH
75105-92700

BU88,91,96..CBU

 1
75201 - BOX SUB-ASSY, TOOL W/STAY
75210-92804

BU8#,91,96..DSL..(GEN,GHD,SA)..(CBU,IV3)

 1
75217 - BAND, TOOL BAG
58705-95A01

BU6#,8#,9#

 1
75298 - PLATE, JACK HOLDER
75298-95401

BU91,96

 1
75299 - BASE, JACK HOLDER
75209-95405

BU91,96

 1
Common parts
90119-08695
90158-60001
90159-60281
90179-08039
90179-08146
90189-05007
90269-03025
91111-40820
91611-40814
91611-40820
91621-40816
91621-60818
91651-40616
91651-40816
91651-40820
91656-40616
91656-40820
91666-40820
94110-40600
94110-40800
94110-70800
94110-71000
94271-00800
94511-01000
