BU88R-MDDHT3 (1988)

Toyota Dyna 200

Production Aug 1988 - Mar 1997
Engine 14B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

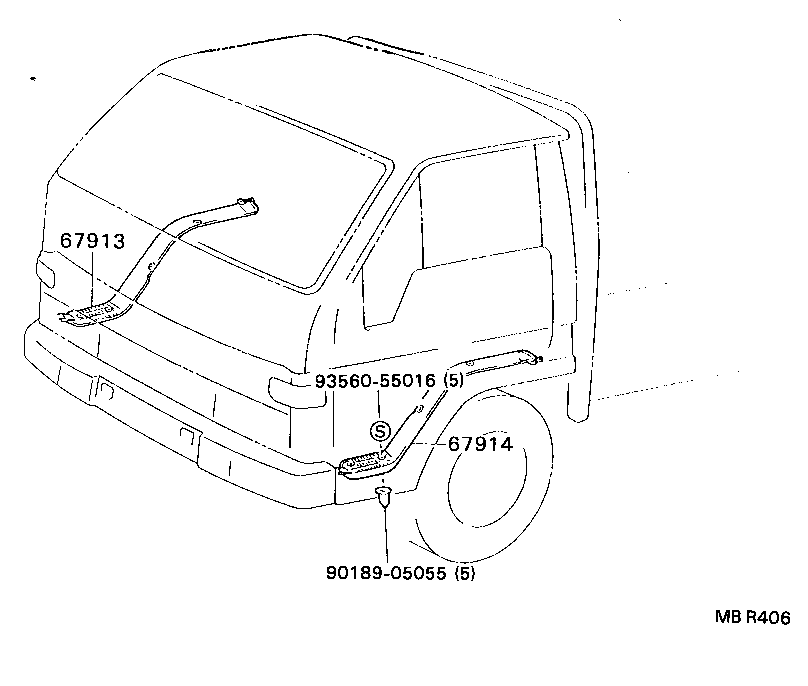

ILLUST NO. 1 OF 2(8808- )

Click highlighted areas on diagram

diagram 67913 67914 9018905055 9356055016
Part # Description Qty Price
67913 - PLATE, FRONT DOOR SCUFF, RH
67913-9540306

BU6#,70,8#,9#

BROWN,TRIM4#

 1
67913-95403B0

BU6#,70,8#,9#

GRAY,TRIM1#

 1
67914 - PLATE, FRONT DOOR SCUFF, LH
67914-95403B0

BU6#,70,8#,9#

GRAY,TRIM1#

 1
67914-9540306

BU6#,70,8#,9#

BROWN,TRIM4#

 1
Common parts
90189-05055
93560-55016

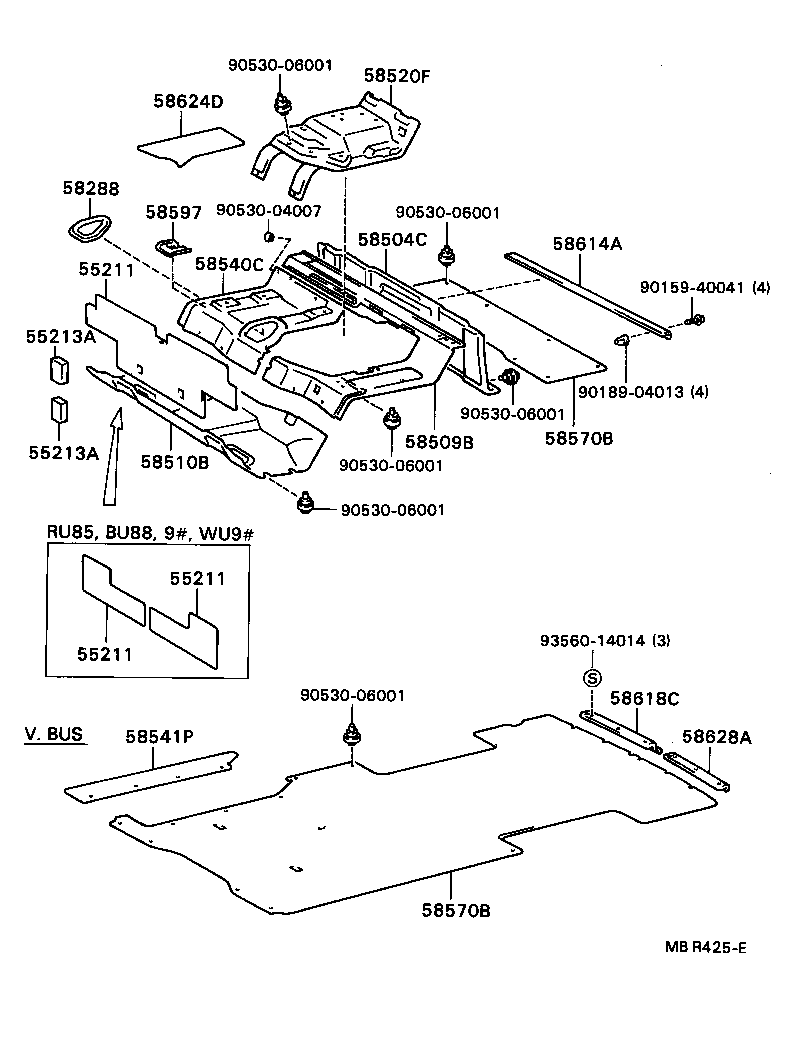

ILLUST NO. 2 OF 2(8808- )

Click highlighted areas on diagram

diagram 55211 55211 55211 55213A 55213A 58288 58504C 58509B 58510B 58520F 58540C 58541P 58570B 58570B 58597 58614A 58618C 58624D 58628A 9015940041 9018904013 9053004007 9053006001 9053006001 9053006001 9053006001 9053006001 9053006001 9356014014
Part # Description Qty Price
55211 - SILENCER, FRONT PANEL
55211-95405

BU88,9#

 2
55211 - SILENCER, FRONT PANEL
55211-95405

BU88,9#

 2
55211 - SILENCER, FRONT PANEL
55211-95405

BU88,9#

 2
58288 - SEAL, SHIFT LEVER BOOT
58288-95400

BU60,61,65,66,8#,9#..RHD

 1
58510B - MAT, FRONT FLOOR, FRONT
58510-95B3206

BU88,91,96..RHD..GEN..(CBU,IV3)

W(PTO SEPARATE TYPE),BROWN,TRIM4#

 1
58510-95B3606

BU88,9#..RHD..(GEN,SA)

BROWN,TRIM4#

 1
58510-95B36B0

BU88,9#..RHD..(GEN,SA)

GRAY,TRIM1#

 1
58510-95B32B0

BU88,91,96..RHD..GEN..(CBU,IV3)

W(PTO SEPARATE TYPE),GRAY,TRIM1#

 1
58597 - PLATE, SEAT TRACK SET
58597-95400

BU66..T3..TB..GEN;BU60,61,65,70,8#,9#..GEN,GHD,SA

 1
58624D - PAD, CENTER FLOOR SILENCER
58624-9540306

BU60,61,65,8#,9#..RHD..(GEN,GHD,SA)

BROWN,TRIM4#

 1
58624-95402B0

BU60,61,65,8#,9#..RHD..(GEN,GHD,SA)

GRAY,TRIM1#

 1
Common parts
90159-40041
90189-04013
90530-04007
90530-06001
93560-14014
