BU88R-MDDHT1 (1988)

Toyota Dyna 200

Production Aug 1988 - Mar 1997
Engine 14B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

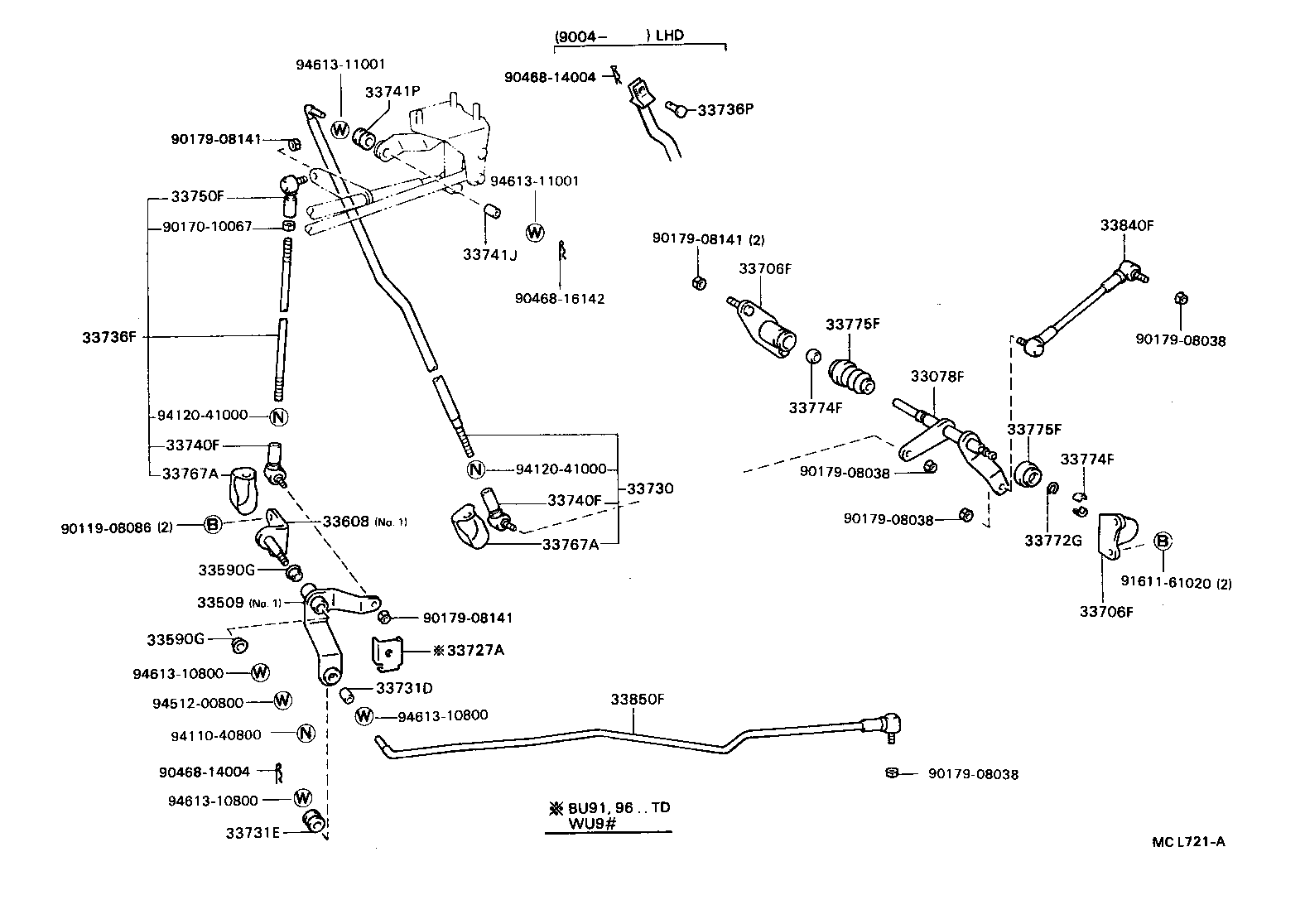

ILLUST NO. 2 OF 2(8808- )BU88,9#

Click highlighted areas on diagram

diagram 33078F 33509 33590G 33590G 33608 33706F 33706F 33727A 33730 33731D 33731E 33736F 33736P 33740F 33740F 33741J 33741P 33750F 33767A 33767A 33772G 33774F 33774F 33775F 33775F 33840F 33850F 9011908086 9017010067 9017908038 9017908038 9017908038 9017908038 9017908141 9017908141 9017908141 9046814004 9046814004 9046816142 9161161020 9411040800 9412041000 9412041000 9451200800 9461310800 9461310800 9461310800 9461311001 9461311001
Part # Description Qty Price
33078F - SHAFT SUB-ASSY, CROSS, NO.2(FOR FLOOR SHIFT)
33078-36240

BU88,9#..ARL,GEN

 1
33509 - CRANK SUB-ASSY, SELECTING BELL, NO.1
33509-36010

BU88,9#

 1
33590G - BUSH (FOR SELECTING BELL CRANK)
90386-13007

BU6#,70,8#,9#..5F

 2
33590G - BUSH (FOR SELECTING BELL CRANK)
90386-13007

BU6#,70,8#,9#..5F

 2
33608 - SUPPORT SUB-ASSY, SELECTING BELLCRANK
33608-36010

BU88,9#..ARL,GEN

 1
33608-36010

BU88,9#

 1
33706F - SUPPORT SUB-ASSY, CROSS SHAFT, NO.2 (FOR FLOOR SHIFT)
33706-36040

BU88,9#

TRANSMISSION SIDE

 1
33706-36040

BU91,96..SA;BU88,94..IV1

TRANSMISSION SIDE

 1
33706-36040

BU88,94..IV1;BU91,96..ARL,SA

TRANSMISSION SIDE

 1
33706-36030

BU88,9#

FRAME SIDE

 1
33706F - SUPPORT SUB-ASSY, CROSS SHAFT, NO.2 (FOR FLOOR SHIFT)
33706-36040

BU88,9#

TRANSMISSION SIDE

 1
33706-36040

BU91,96..SA;BU88,94..IV1

TRANSMISSION SIDE

 1
33706-36040

BU88,94..IV1;BU91,96..ARL,SA

TRANSMISSION SIDE

 1
33706-36030

BU88,9#

FRAME SIDE

 1
33730 - ROD ASSY, GEAR SHIFTING, NO.2 (FOR FLOOR SHIFT)
33730-36220

BU88,9#

 1
33730-36220

BU88,9#..RHD

 1
33731D - BUSH (FOR GEAR SELECTING ROD)
90389-08005

BU88,9#

 1
33731E - GROMMET (FOR GEAR SELECTING ROD)
90480-17014

BU88,9#

 1
33736F - ROD, GEAR SELECTING, NO.2(FOR FLOOR SHIFT)
33790-36430

BU88,9#

 1
33790-36430

BU88,9#..DSL..(ARL,GEN)

 1
33740F - END ASSY, CONNECTING ROD, NO.1(FOR FLOOR SHIFT)
33740-36050

BU6#,70,8#,9#..5F

GEAR SELECTING SIDE

 1
33740-36060

BU88,9#..ARL,GEN

GEAR SHIFTING SIDE

 1
33740F - END ASSY, CONNECTING ROD, NO.1(FOR FLOOR SHIFT)
33740-36050

BU6#,70,8#,9#..5F

GEAR SELECTING SIDE

 1
33740-36060

BU88,9#..ARL,GEN

GEAR SHIFTING SIDE

 1
33741J - BUSH, NO.2 (FOR SHIFTING OR SELECTING ROD)
90387-10063

BU88,9#..RHD

 1
90387-10063

BU88,9#

 1
33741P - GROMMET, NO.2 (FOR SHIFTING OR SELECTING ROD)
90480-17254

BU88,9#..RHD

 1
90480-17254

BU88,9#

 1
33750F - END, CONNECTING ROD, NO.2 (FOR FLOOR SHIFT)
33750-36030

BU6#,70,8#,9#..5F

 1
33767A - INSULATOR, CONNECTING ROD HEAT (FOR FLOOR SHIFT)
33767-36010

BU88,9#..ARL,GEN

 1
33767A - INSULATOR, CONNECTING ROD HEAT (FOR FLOOR SHIFT)
33767-36010

BU88,9#..ARL,GEN

 1
33772G - RING, SNAP (FOR CROSS SAFT SUPPORT BUSH)
96151-01600

BU6#,70,8#,9#..5F

 1
33774F - BUSH, CROSS SHAFT SUPPORT, NO.2 (FOR FLOOR SHIFT)
33772-20010

BU6#,70,8#,9#..5F

LH

 2
33772-35011

BU88,9#

RH

 1
33774F - BUSH, CROSS SHAFT SUPPORT, NO.2 (FOR FLOOR SHIFT)
33772-20010

BU6#,70,8#,9#..5F

LH

 2
33772-35011

BU88,9#

RH

 1
33775F - COVER, CROSS SHAFT DUST, NO.1 (FOR FLOOR SHIFT)
33775-20020

BU6#,70,8#,9#..5F

CROSS SHAFT NO.2,LH

 1
33775-35010

BU88,9#

CROSS SHAFT NO.2,RH

 1
33775F - COVER, CROSS SHAFT DUST, NO.1 (FOR FLOOR SHIFT)
33775-20020

BU6#,70,8#,9#..5F

CROSS SHAFT NO.2,LH

 1
33775-35010

BU88,9#

CROSS SHAFT NO.2,RH

 1
33840F - ROD ASSY, GEAR SHIFTING, NO.3
33840-36350

BU91..DSL..GEN;BU88,94,96..DSL..(ARL,GEN)

 1
33850F - ROD ASSY, GEAR SELECTING, NO.3
33850-36250

BU91..GEN;BU88,94,96..ARL,GEN

 1
Common parts
90119-08086
90170-10067
90179-08038
90179-08141
90468-14004
90468-16142
91611-61020
94110-40800
94120-41000
94512-00800
94613-10800
94613-11001

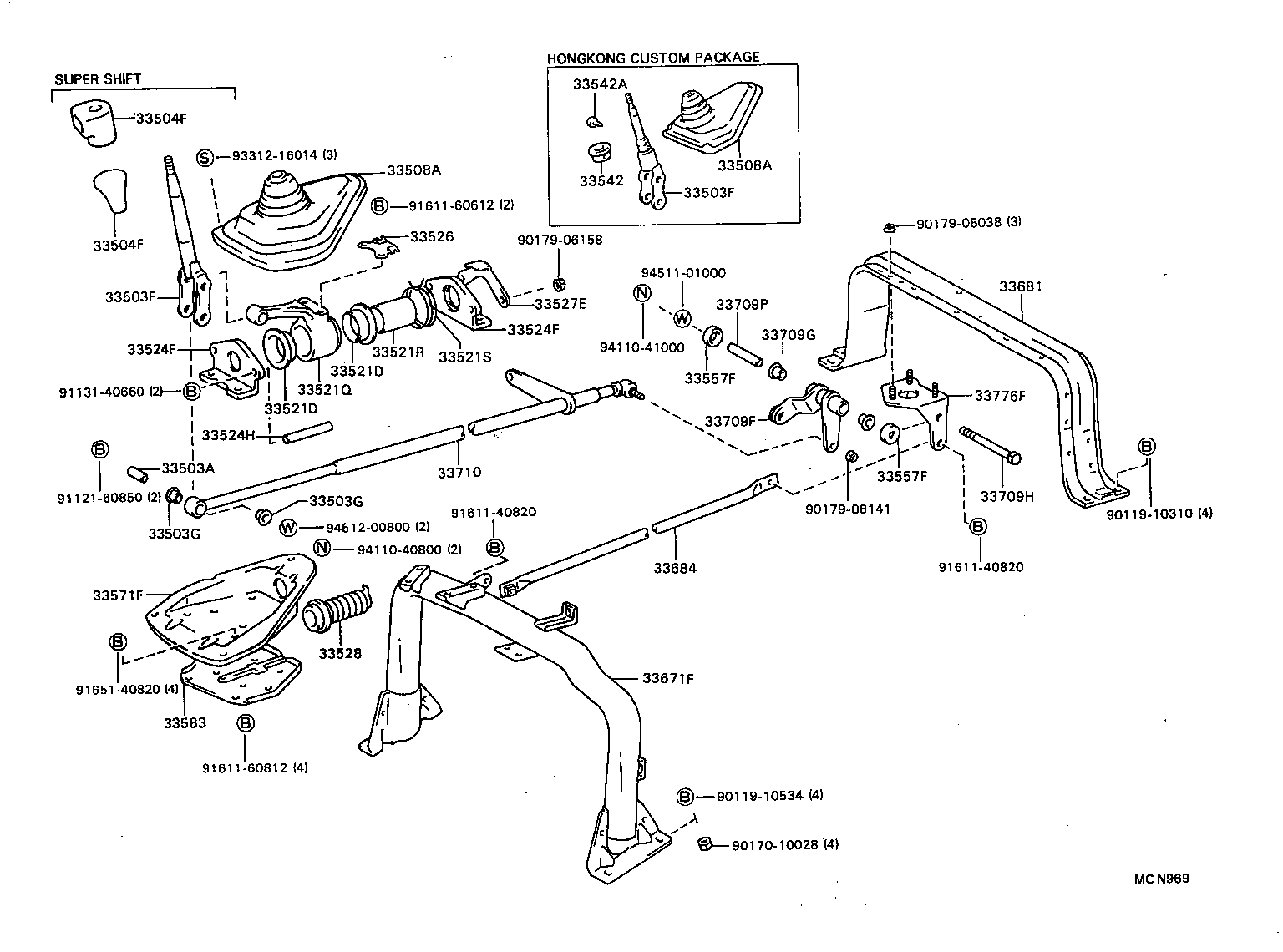

ILLUST NO. 1 OF 2(8808- )BU88,9#..RHD

Click highlighted areas on diagram

diagram 33503A 33503F 33503F 33503G 33503G 33504F 33504F 33508A 33508A 33521D 33521D 33521Q 33521R 33521S 33524F 33524F 33524H 33526 33527E 33528 33542 33542A 33557F 33557F 33571F 33583 33671F 33681 33684 33709F 33709G 33709H 33709P 33710 33776F 9011910310 9011910534 9017010028 9017906158 9017908038 9017908141 9112160850 9113140660 9161140820 9161140820 9161160612 9161160812 9165140820 9331216014 9411040800 9411041000 9451101000 9451200800
Part # Description Qty Price
33503A - COLLAR(FOR SHIFT LEVER)
90387-08065

BU6#,70,8#,9#

 2
90387-08009

BU6#,70,8#,9#..5F

 2
33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)
33503-36060

BU91..GEN,SA;BU6#,70,8#,94,96..5F

 1
33503-36061

BU91..GEN,SA;BU66..T3..TB;BU60,61,65,70,8#,94,96

 1
33503-36060

BU91..GEN,SA;BU66..T3..TB;BU60,61,65,70,8#,94,96

 1
33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)
33503-36060

BU91..GEN,SA;BU6#,70,8#,94,96..5F

 1
33503-36061

BU91..GEN,SA;BU66..T3..TB;BU60,61,65,70,8#,94,96

 1
33503-36060

BU91..GEN,SA;BU66..T3..TB;BU60,61,65,70,8#,94,96

 1
33503G - BUSH(FOR SHIFT LEVER)
90389-11006

BU6#,70,8#,9#..5F

 4
33503G - BUSH(FOR SHIFT LEVER)
90389-11006

BU6#,70,8#,9#..5F

 4
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-3605006

BU91..GEN,SA;BU6#,70,8#,94,96..5F

BROWN,TRIM4#

 1
33504-36051B0

BU91..GEN,SA;BU6#,70,8#,94,96

GRAY,TRIM1#

 1
33504-36050B0

BU91..GEN,SA;BU6#,70,8#,94,96..5F

GRAY,TRIM1#

 1
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-3605006

BU91..GEN,SA;BU6#,70,8#,94,96..5F

BROWN,TRIM4#

 1
33504-36051B0

BU91..GEN,SA;BU6#,70,8#,94,96

GRAY,TRIM1#

 1
33504-36050B0

BU91..GEN,SA;BU6#,70,8#,94,96..5F

GRAY,TRIM1#

 1
33508A - BOOT SUB-ASSY, DUST (FOR FLOOR 3HIFT)
33508-36010

BU91..RHD..(GEN,SA);BU60,61,65,66,8#,94,96..RHD..5F

 1
33508A - BOOT SUB-ASSY, DUST (FOR FLOOR 3HIFT)
33508-36010

BU91..RHD..(GEN,SA);BU60,61,65,66,8#,94,96..RHD..5F

 1
33521D - BUSH (FOR SHIFT LEVER HOUSING)
90389-38004

BU6#,70,8#,9#..5F

 2
33521D - BUSH (FOR SHIFT LEVER HOUSING)
90389-38004

BU6#,70,8#,9#..5F

 2
33521Q - HOUSING, SHIFT LEVER (FOR FLOOR SHIFT)
33521-36051

BU6#,70,8#,9#

 1
33521-36050

BU6#,70,8#,9#..5F

 1
33521R - COLLAR (FOR SHIFT LEVER HOUSING)
90387-34001

BU6#,70,8#,9#..5F

 1
33521S - SPRING (FOR SHIFT LEVER HOUSING)
90508-26067

BU88,9#..RHD

 1
33524F - BRACKET, CONTROL LEVER HOUSING SUPPORT (FOR FLOOR SHIFT
33524-36030

BU6#,70,8#,9#..5F

 2
33524F - BRACKET, CONTROL LEVER HOUSING SUPPORT (FOR FLOOR SHIFT
33524-36030

BU6#,70,8#,9#..5F

 2
33524H - COLLER (FOR CONTROL LEVER HOUSING SUPPORT BRACKET)
90387-06026

BU6#,70,8#,9#..5F

 2
33526 - PLATE, SHIFT LEVER SUPPORT, NO.1
33526-36030

BU88,9#

 1
33527E - PLATE, SHIFT LEVER SUPPORT, NO.2
33527-36130

BU6#,70,8#,9#..5F

 1
33528 - COVER, CONTROL SHAFT
33528-36020

BU6#,70,8#,9#..5F

 1
33557F - COVER, CONTROL BELLCRANK DUST (FOR FLOOR SHIFT)
33557-36020

BU60,61,65,66,8#,9#..RHD..5F

 2
33557F - COVER, CONTROL BELLCRANK DUST (FOR FLOOR SHIFT)
33557-36020

BU60,61,65,66,8#,9#..RHD..5F

 2
33571F - BRACKET, CONTROL SHAFT, LOWER NO.2
33571-36090

BU91..RHD..(GEN,SA);BU60,61,65,66,8#,94,96..RHD..5F

 1
33583 - BRACKET, CONTROL SHAFT, LOWER NO.2
33583-36050

BU6#,8#,9#..RHD

 1
33583-36050

BU60,61,65,66,8#,9#..RHD..5F

 1
33671F - SUPPORT, CONTROL ROD, NO.1
33607-36080

BU88,9#..RHD

 1
33681 - MEMBER, CONTROL ROD, REAR
33681-36011

BU60,61,66,70,8#,9#

 1
33684 - ROD, CONTROL MEMBER BRACE
33684-36030

BU88,9#

 1
33709F - SHAFT SUB-ASSY, CROSS, NO.1 (FOR FLOOR SHIFT)
33709-36310

BU88,9#..RHD

 1
33709G - BUSH (FOR CROSS SHAFT, NO.1
90386-13007

BU60,61,65,66,8#,9#..RHD..5F

 2
33709H - BOLT, HEXAGON (FOR CROSS SHAFT)
90101-10117

BU88,9#..RHD

 1
33709P - COLLAR (FOR CROSS SHAFT)
90387-10064

BU88,9#..RHD

 1
33710 - ROD ASSY, GEAR SHIFTING, NO.1
33710-36210

BU88,9#..RHD

 1
33710-36211

BU88,9#..RHD

 1
33776F - BRACKET, CROSS SHAFT, NO.1 (FOR FLOOR SHIFT)
33776-36190

BU88,9#..RHD

 1
Common parts
90119-10310
90119-10534
90170-10028
90179-06158
90179-08038
90179-08141
91121-60850
91131-40660
91611-40820
91611-60612
91611-60812
91651-40820
93312-16014
94110-40800
94110-41000
94511-01000
94512-00800
