BU88R-MDDHT1 (1988)
Toyota Dyna 200
ILLUST NO. 1 OF 4(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 19529 - CLAMP | ||||
| 19529-56010 |
14B..BU91,96..ARL,GEN;B,11B,14B..BU6#,70,8#,94 |
1 | ||
| 19529-56020 |
14B#..BU88,9#..ARL,GEN |
1 | ||
| 23301A - CAP ASSY, FUEL FILTER | ||||
| 23301-58080 |
14B#..BU88,9#..ARL,GEN |
1 | ||
| 23301-58170 |
14B..BU88,94..IV1 |
1 | ||
| 23303 - ELEMENT SUB-ASSY, FUEL FILTER | ||||
| 23303-56040 |
11B..BU65..CBU;14B#..BU91,96..ARL,GEN;11B,14B..BU61,66,67,84,87,88,94 |
1 | ||
| 23303-56040 |
14B#..BU91,96..ARL,GEN;11B,14B..BU61,65,66,67,84,87,88,94 |
1 | ||
| 23322 - PLUG, DRAIN(FOR FUEL FILTER) | ||||
| 23322-64020 |
11B..BU65..CBU;14B#..BU91,96..ARL,GEN;11B,14B..BU61,66,67,84,87,88,94 |
1 | ||
| 23322-64020 |
14B#..BU91,96..ARL,GEN;11B,14B..BU61,65,66,67,84,87,88,94 |
1 | ||
| 23322-64010 |
14B..BU91,96..ARL,GEN;B,11B,14B..BU6#,70,8#,94 |
1 | ||
| 23322A - RING, O(FOR DRAIN PLUG) | ||||
| 23344-54010 |
14B#..BU91,96..ARL,GEN;B,11B,14B..BU6#,70,8#,94 |
1 | ||
| 23338 - GASKET(FOR WARNING SWITCH) | ||||
| 23344-64010 |
14B#..BU91,96..ARL,GEN;B,11B,14B..BU6#,70,8#,94 |
1 | ||
| 23921 - SUPPORT, FUEL FILTER | ||||
| 23921-58050 |
14B..BU88,9#..ARL,GEN |
1 | ||
| 23921-58110 |
14B..BU88,94..IV1 PREFILTER SIDE |
1 | ||
| 23921-58051 |
14B..BU88,9#..ARL,GEN |
1 | ||
| 23921-58100 |
14B#..BU88,9#..ARL,GEN |
1 | ||
| Common parts | ||||
| 90179-08141 | ||||
| 90560-09041 | ||||
| 91621-60825 | ||||
| 91651-60835 | ||||
| 91651-60860 | ||||
| Linked diagrams | ||||
| 7751 | ||||
| 8401 | ||||

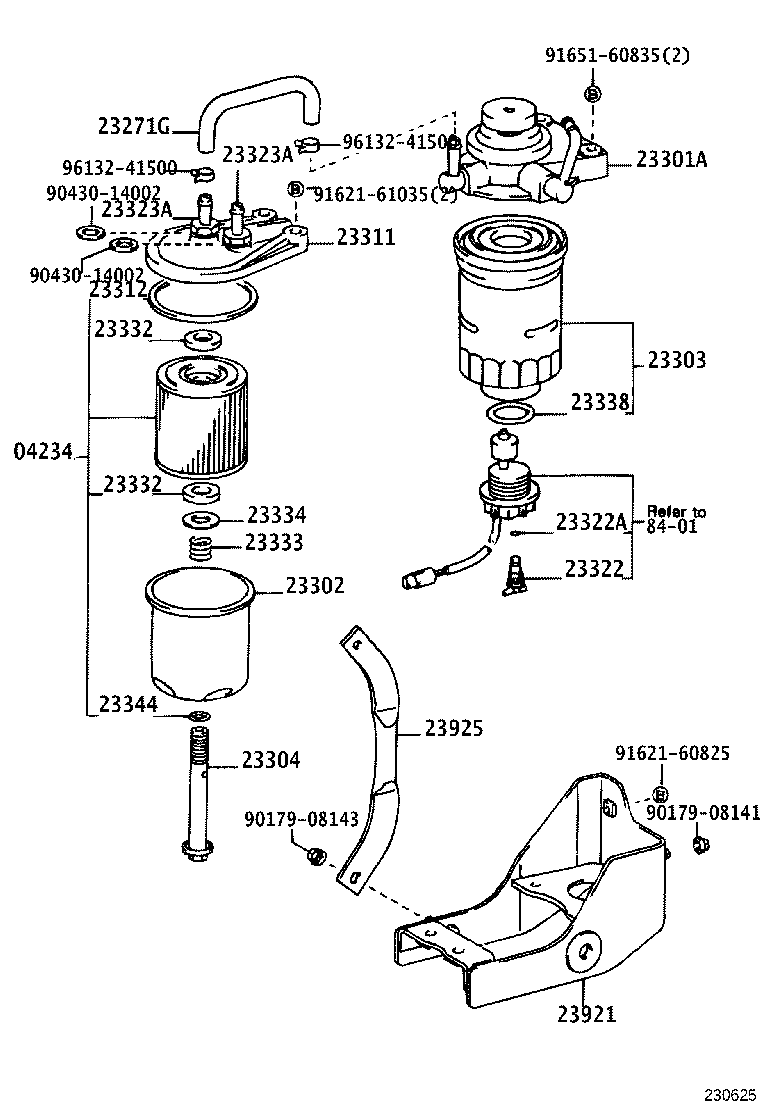

ILLUST NO. 3 OF 4(9304- )11B,14B
W/DOUBLE FILTER(STD CAB)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04234 - ELEMENT KIT, FUEL FILTER | ||||
| 04234-68010 |
14B..BU87;11B,14B..BU61,88,94..IV1 |
1 | ||
| 23271G - HOSE, FUEL | ||||
| 95332-10040 |
14B..BU88,94..IV1 |
1 | ||
| 23301A - CAP ASSY, FUEL FILTER | ||||
| 23301-58080 |
14B#..BU88,9#..ARL,GEN |
1 | ||
| 23301-58170 |
14B..BU88,94..IV1 |
1 | ||
| 23302 - BODY SUB-ASSY, FUEL FILTER, LOWER | ||||
| 23302-17010 |
14B..BU87;11B,14B..BU61,88,94..IV1 |
1 | ||
| 23303 - ELEMENT SUB-ASSY, FUEL FILTER | ||||
| 23303-56040 |
11B..BU65..CBU;14B#..BU91,96..ARL,GEN;11B,14B..BU61,66,67,84,87,88,94 |
1 | ||
| 23303-56040 |
14B#..BU91,96..ARL,GEN;11B,14B..BU61,65,66,67,84,87,88,94 |
1 | ||
| 23304 - BAIL SUB-ASSY, FILTER BOWL | ||||
| 23304-56010 |
14B..BU87;11B,14B..BU61,88,94..IV1 |
1 | ||
| 23311 - BODY, FUEL FILTER UPPER | ||||
| 23311-56010 |
14B..BU87;11B,14B..BU61,88,94..IV1 |
1 | ||
| 23312 - GASKET, FILTER BOWL | ||||
| 23312-68010 |
14B..BU87;11B,14B..BU61,88,94..IV1 |
1 | ||
| 23322 - PLUG, DRAIN(FOR FUEL FILTER) | ||||
| 23322-64020 |
11B..BU65..CBU;14B#..BU91,96..ARL,GEN;11B,14B..BU61,66,67,84,87,88,94 |
1 | ||
| 23322-64020 |
14B#..BU91,96..ARL,GEN;11B,14B..BU61,65,66,67,84,87,88,94 |
1 | ||
| 23322-64010 |
14B..BU91,96..ARL,GEN;B,11B,14B..BU6#,70,8#,94 |
1 | ||
| 23322A - RING, O(FOR DRAIN PLUG) | ||||
| 23344-54010 |
14B#..BU91,96..ARL,GEN;B,11B,14B..BU6#,70,8#,94 |
1 | ||
| 23323A - UNION | ||||
| 23323-58010 |
14B..BU88,94..IV1 |
1 | ||
| 23323A - UNION | ||||
| 23323-58010 |
14B..BU88,94..IV1 |
1 | ||
| 23332 - GASKET, ELEMENT(FOR FUEL FILTER) | ||||
| 23332-68010 |
14B..BU87;11B,14B..BU61,88,94..IV1 |
2 | ||
| 23332 - GASKET, ELEMENT(FOR FUEL FILTER) | ||||
| 23332-68010 |
14B..BU87;11B,14B..BU61,88,94..IV1 |
2 | ||
| 23333 - SPRING, FILTER ELEMENT SET | ||||
| 23333-48012 |
14B..BU87;11B,14B..BU61,88,94..IV1 |
1 | ||
| 23334 - PLATE, SPRING(FOR FILTER ELEMENT) | ||||
| 23334-46010 |
14B..BU87;11B,14B..BU61,88,94..IV1 |
1 | ||
| 23338 - GASKET(FOR WARNING SWITCH) | ||||
| 23344-64010 |
14B#..BU91,96..ARL,GEN;B,11B,14B..BU6#,70,8#,94 |
1 | ||
| 23344 - GASKET, CLAMPING NUT(FOR FUEL FILTER) | ||||
| 23344-68010 |
14B..BU87;11B,14B..BU61,88,94..IV1 |
1 | ||
| 23921 - SUPPORT, FUEL FILTER | ||||
| 23921-58050 |
14B..BU88,9#..ARL,GEN |
1 | ||
| 23921-58110 |
14B..BU88,94..IV1 PREFILTER SIDE |
1 | ||
| 23921-58051 |
14B..BU88,9#..ARL,GEN |
1 | ||
| 23921-58100 |
14B#..BU88,9#..ARL,GEN |
1 | ||
| Common parts | ||||
| 90179-08141 | ||||
| 90179-08143 | ||||
| 90430-14002 | ||||
| 91621-60825 | ||||
| 91621-61035 | ||||
| 91651-60835 | ||||
| 96132-41500 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 2 OF 4(8808- )14B
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23338 - GASKET(FOR WARNING SWITCH) | ||||
| 23344-64010 |
14B#..BU91,96..ARL,GEN;B,11B,14B..BU6#,70,8#,94 |
1 | ||
| Common parts | ||||
| 90179-08141 | ||||
| 91621-80825 | ||||
| Linked diagrams | ||||
| 8401 | ||||

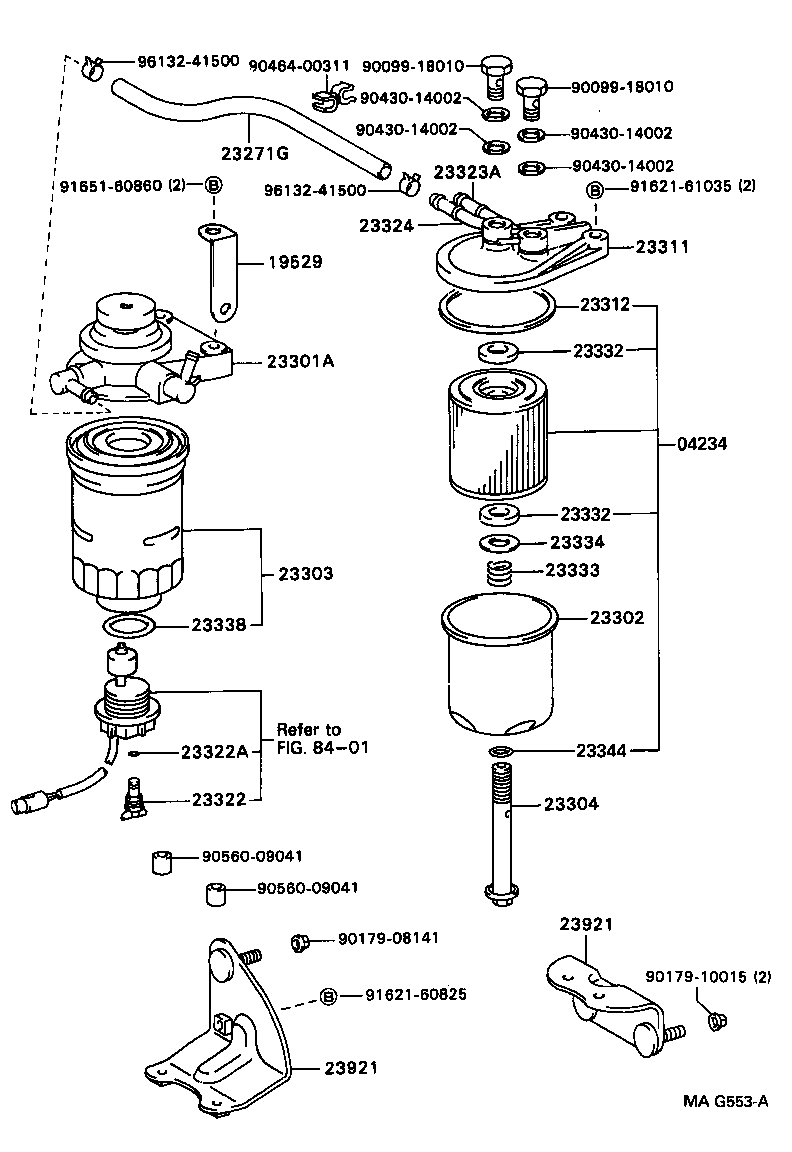

ILLUST NO. 4 OF 4(9304- )14B
W/DOUBLE FILTER(STD CAB)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04234 - ELEMENT KIT, FUEL FILTER | ||||
| 04234-68010 |
14B..BU87;11B,14B..BU61,88,94..IV1 |
1 | ||
| 19529 - CLAMP | ||||
| 19529-56010 |
14B..BU91,96..ARL,GEN;B,11B,14B..BU6#,70,8#,94 |
1 | ||
| 19529-56020 |
14B#..BU88,9#..ARL,GEN |
1 | ||
| 23271G - HOSE, FUEL | ||||
| 95332-10040 |
14B..BU88,94..IV1 |
1 | ||
| 23301A - CAP ASSY, FUEL FILTER | ||||
| 23301-58080 |
14B#..BU88,9#..ARL,GEN |
1 | ||
| 23301-58170 |
14B..BU88,94..IV1 |
1 | ||
| 23302 - BODY SUB-ASSY, FUEL FILTER, LOWER | ||||
| 23302-17010 |
14B..BU87;11B,14B..BU61,88,94..IV1 |
1 | ||
| 23303 - ELEMENT SUB-ASSY, FUEL FILTER | ||||
| 23303-56040 |
11B..BU65..CBU;14B#..BU91,96..ARL,GEN;11B,14B..BU61,66,67,84,87,88,94 |
1 | ||
| 23303-56040 |
14B#..BU91,96..ARL,GEN;11B,14B..BU61,65,66,67,84,87,88,94 |
1 | ||
| 23304 - BAIL SUB-ASSY, FILTER BOWL | ||||
| 23304-56010 |
14B..BU87;11B,14B..BU61,88,94..IV1 |
1 | ||
| 23311 - BODY, FUEL FILTER UPPER | ||||
| 23311-56010 |
14B..BU87;11B,14B..BU61,88,94..IV1 |
1 | ||
| 23312 - GASKET, FILTER BOWL | ||||
| 23312-68010 |
14B..BU87;11B,14B..BU61,88,94..IV1 |
1 | ||
| 23322 - PLUG, DRAIN(FOR FUEL FILTER) | ||||
| 23322-64020 |
11B..BU65..CBU;14B#..BU91,96..ARL,GEN;11B,14B..BU61,66,67,84,87,88,94 |
1 | ||
| 23322-64020 |
14B#..BU91,96..ARL,GEN;11B,14B..BU61,65,66,67,84,87,88,94 |
1 | ||
| 23322-64010 |
14B..BU91,96..ARL,GEN;B,11B,14B..BU6#,70,8#,94 |
1 | ||
| 23322A - RING, O(FOR DRAIN PLUG) | ||||
| 23344-54010 |
14B#..BU91,96..ARL,GEN;B,11B,14B..BU6#,70,8#,94 |
1 | ||
| 23323A - UNION | ||||
| 23323-58010 |
14B..BU88,94..IV1 |
1 | ||
| 23324 - NIPPLE UNION(FOR FUEL FILTER) | ||||
| 23324-58010 |
14B..BU88,94..IV1 |
1 | ||
| 23332 - GASKET, ELEMENT(FOR FUEL FILTER) | ||||
| 23332-68010 |
14B..BU87;11B,14B..BU61,88,94..IV1 |
2 | ||
| 23332 - GASKET, ELEMENT(FOR FUEL FILTER) | ||||
| 23332-68010 |
14B..BU87;11B,14B..BU61,88,94..IV1 |
2 | ||
| 23333 - SPRING, FILTER ELEMENT SET | ||||
| 23333-48012 |
14B..BU87;11B,14B..BU61,88,94..IV1 |
1 | ||
| 23334 - PLATE, SPRING(FOR FILTER ELEMENT) | ||||
| 23334-46010 |
14B..BU87;11B,14B..BU61,88,94..IV1 |
1 | ||
| 23338 - GASKET(FOR WARNING SWITCH) | ||||
| 23344-64010 |
14B#..BU91,96..ARL,GEN;B,11B,14B..BU6#,70,8#,94 |
1 | ||
| 23344 - GASKET, CLAMPING NUT(FOR FUEL FILTER) | ||||
| 23344-68010 |
14B..BU87;11B,14B..BU61,88,94..IV1 |
1 | ||
| 23921 - SUPPORT, FUEL FILTER | ||||
| 23921-58050 |
14B..BU88,9#..ARL,GEN |
1 | ||
| 23921-58110 |
14B..BU88,94..IV1 PREFILTER SIDE |
1 | ||
| 23921-58051 |
14B..BU88,9#..ARL,GEN |
1 | ||
| 23921-58100 |
14B#..BU88,9#..ARL,GEN |
1 | ||
| 23921 - SUPPORT, FUEL FILTER | ||||
| 23921-58050 |
14B..BU88,9#..ARL,GEN |
1 | ||
| 23921-58110 |
14B..BU88,94..IV1 PREFILTER SIDE |
1 | ||
| 23921-58051 |
14B..BU88,9#..ARL,GEN |
1 | ||
| 23921-58100 |
14B#..BU88,9#..ARL,GEN |
1 | ||
| Common parts | ||||
| 90099-18010 | ||||
| 90179-08141 | ||||
| 90179-10015 | ||||
| 90430-14002 | ||||
| 90464-00311 | ||||
| 90560-09041 | ||||
| 91621-60825 | ||||
| 91621-61035 | ||||
| 91651-60860 | ||||
| 96132-41500 | ||||
| Linked diagrams | ||||
| 8401 | ||||
