BU88R-MDDHT (1988)

Toyota Dyna 200

Production Aug 1988 - May 1995
Engine 14B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

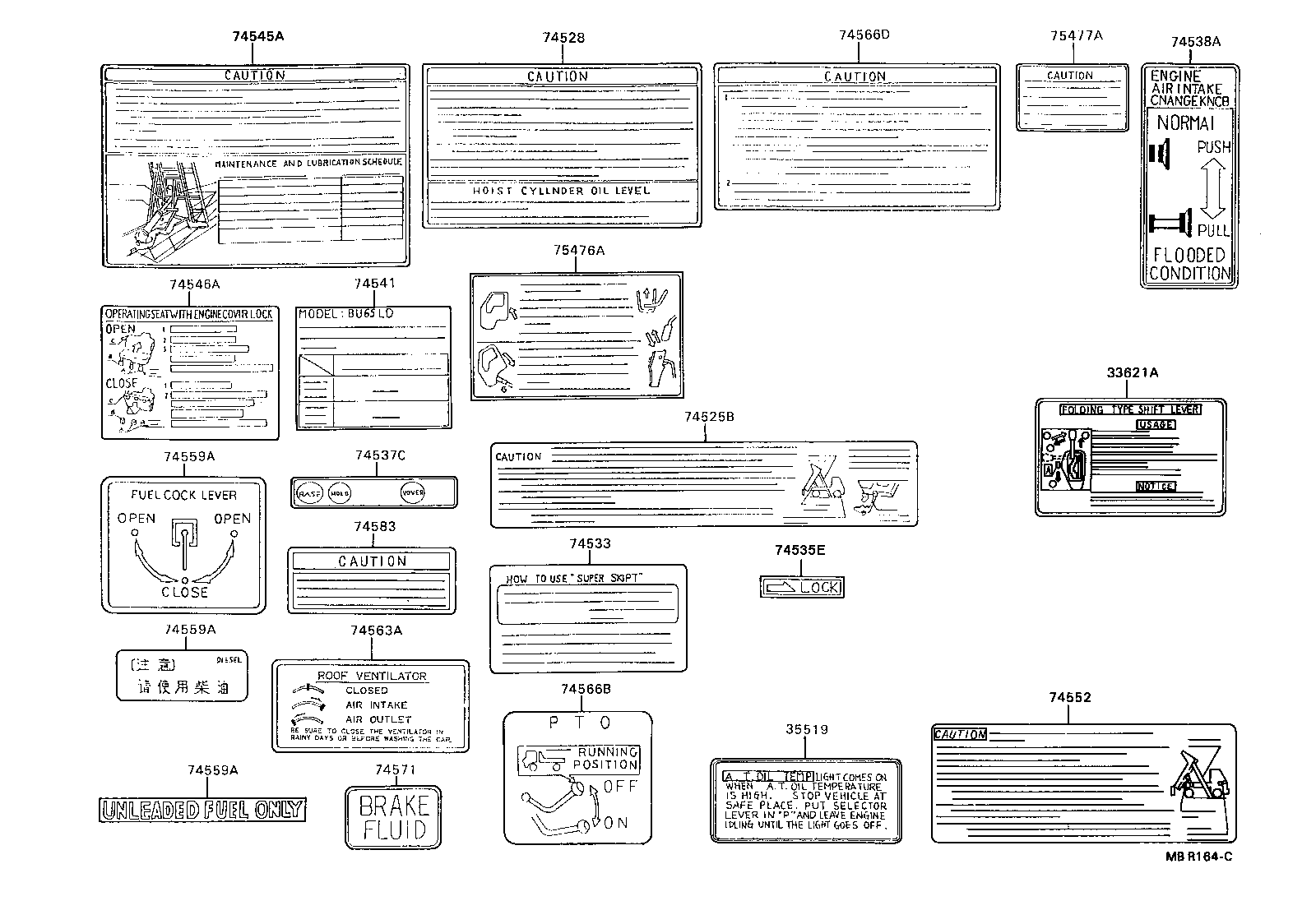

Click highlighted areas on diagram

diagram 33621A 35519 74525B 74528 74533 74535E 74537C 74538A 74541 74545A 74546A 74552 74559A 74559A 74559A 74563A 74566B 74566D 74571 74583 75476A 75477A
Part # Description Qty Price
74559A - PLATE, FUEL CAUTION
74559-36020

BU84;BU91..TD;BU96..GEN;BU83,88,91..RHD..(GEN,GHD)..(CBU,IV3)

 1
74559A - PLATE, FUEL CAUTION
74559-36020

BU84;BU91..TD;BU96..GEN;BU83,88,91..RHD..(GEN,GHD)..(CBU,IV3)

 1
74559A - PLATE, FUEL CAUTION
74559-36020

BU84;BU91..TD;BU96..GEN;BU83,88,91..RHD..(GEN,GHD)..(CBU,IV3)

 1
74563A - LABEL, ROOF VENTILATOR INFORMATION
74563-95402

BU88..ARL;BU88..LHD;BU65,88..RHD..CBU;BU60,61,66,70,83,84,87,91,96..DSL..(CBU,IV3)

 1
74563-95402

BU88..ARL;BU88..LHD;BU66..T3..TB;BU65,88..RHD..CBU;BU60,61,70,83,84,87,91,96..CBU,IV3

 1
74563-95402

BU88..ARL;BU65,88..CBU;BU60,61,66,70,83,84,87,91,96..DSL..(CBU,IV3)

 1
74566B - PLATE, POWER TAKE OFF CAUTION
74566-93106

BU60,61,8#,91,96..RHD..WT..(ARL,GEN,GHD)..(CBU,IV3)

 1
74566-93106

BU88,91..RHD..(ARL,GEN)..(CBU,IV3);BU60,61,83,84,87,96..RHD..WT..(GEN,GHD)

 1
74571 - PLATE, BRAKE FLUID CAUTION
47287-36010

BU6#,70,8#,9#

 1
75476A - PLATE, TILT OPERATIONAL CAUTION
75476-95421

BU88,91,96..T3..(CBU,IV3)

 1
75477A - PLATE, TILT OPERATIONAL CAUTION, NO.2
75477-95408

BU65..CBU;BU60,88..T3..(CBU,IV3);BU61,66,67,83,84,91,96..CBU,IV3

 1
