BU88R-MDDHT (1988)

Toyota Dyna 200

Production Aug 1988 - May 1995
Engine 14B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 3 OF 3(8808- )

Click highlighted areas on diagram

diagram 04477 47910 47920 47920A 47920A 47920B 47920C 47920C 47931 47933 47935 47935A 47935B 47935B 47935C 47936 47937 9011908703 9017908141 9017908146 9017908146 9020123360 9020123360 9020123360 9113150840 9113150840 9161160816 9411041000 9414140800 9451200800 9451201000 9538102020
Part # Description Qty Price
Common parts
90119-08703
90179-08141
90179-08146
90201-23360
91131-50840
91611-60816
94110-41000
94141-40800
94512-00800
94512-01000
95381-02020

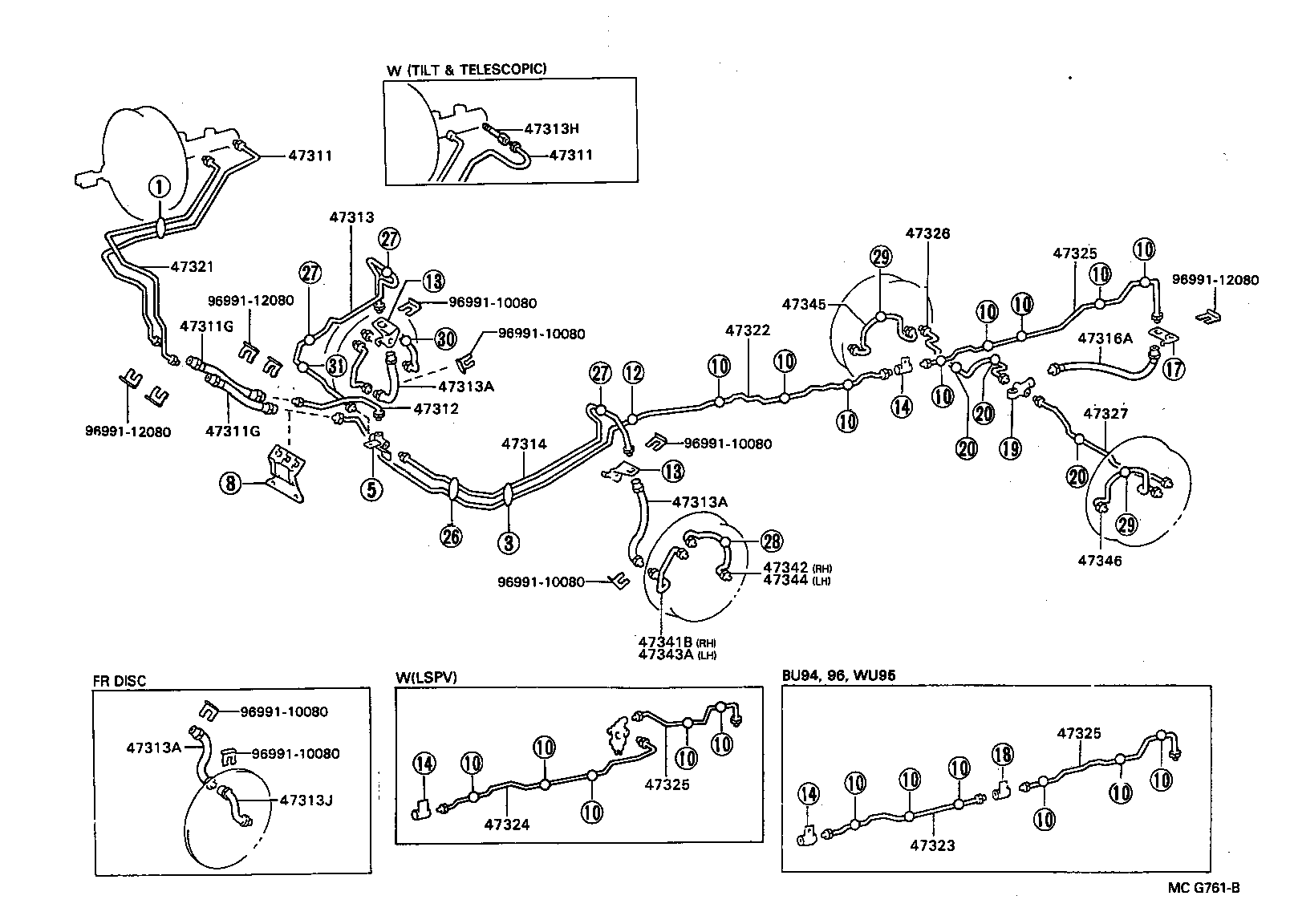

ILLUST NO. 1 OF 3(8808- )BU88,9#..RHD

Click highlighted areas on diagram

diagram 47311 47311 47311G 47311G 47312 47313 47313A 47313A 47313A 47313H 47313J 47314 47316A 47321 47322 47323 47324 47325 47325 47325 47326 47327 47341B 47342 47343A 47344 47345 47346 9699110080 9699110080 9699110080 9699110080 9699110080 9699110080 9699112080 9699112080 9699112080
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-36450

BU88,91,96..RHD..GEN..(CBU,IV3)

W(TILT & TELESCOPIC STEERING)

 1
47311-36300

BU88,9#..RHD..(GEN,SA)

 1
47311 - TUBE, FRONT BRAKE, NO.1
47311-36450

BU88,91,96..RHD..GEN..(CBU,IV3)

W(TILT & TELESCOPIC STEERING)

 1
47311-36300

BU88,9#..RHD..(GEN,SA)

 1
47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE)
96932-34305

BU88,9#

 2
90947-02519

BU88..CBU,IV3

W(FR DISC BRAKE RR AUTO ADJUSTER)

 2
47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE)
96932-34305

BU88,9#

 2
90947-02519

BU88..CBU,IV3

W(FR DISC BRAKE RR AUTO ADJUSTER)

 2
47312 - TUBE, FRONT BRAKE, NO.2
47312-36230

BU88,9#..RHD

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-36200

BU88,9#

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02567

BU88..CBU,IV3

W(FR DISC BRAKE RR AUTO ADJUSTER)

 2
90947-02566

BU88,94

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02567

BU88..CBU,IV3

W(FR DISC BRAKE RR AUTO ADJUSTER)

 2
90947-02566

BU88,94

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02567

BU88..CBU,IV3

W(FR DISC BRAKE RR AUTO ADJUSTER)

 2
90947-02566

BU88,94

 2
47313H - WAY, NO.3(FOR FRONT BRAKE TUBE)
90404-12007

BU60,61,66,67,70,83,84,87..ARL,GEN,GHD;BU65,88,91,96..RHD..(ARL,GEN)..(CBU,IV3)

 1
90404-12007

BU91..ARL;BU91..RHD..CBU;BU65,88..RHD..(CBU,IV3);BU60,61,66,67,70,83,84,87..ARL,GEN,GHD

 1
47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT)
90947-02521

BU65..ARL;BU66..T3..TB..WT;BU60,61,83,84,88..WT..(ARL,GEN)..(CBU,IV3)

 2
47314 - TUBE, FRONT BRAKE, NO.4
47314-36280

BU88,9#

 1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02518

BU88..CBU,IV3

W(FR DISC BRAKE RR AUTO ADJUSTER)

 1
96912-34105

BU88,9#

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-36200

BU88,9#..RHD

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-36280

BU88,9#..RHD

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-36130

BU88,91..ARL,GEN

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-36130

BU88,91..ARL,GEN

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-36130

BU88,91..ARL,GEN

 1
47326 - TUBE, REAR BRAKE, NO.6
47326-36150

BU83,87..GHD;BU66,88,94..(T3,TW1)..TB..5F..WT

 1
47327 - TUBE, REAR BRAKE, NO.7
47327-36180

BU83,87..GHD;BU66,88,94..(T3,TW1)..TB..5F..WT

 1
47341B - TUBE, WHEEL CYLINDER, FRONT RH NO.1
47341-36090

BU66..T3..WT;BU60,61,65,67,8#,94..WT

 1
47342 - TUBE, WHEEL CYLINDER, FRONT RH NO.2
47342-36030

BU66..T3..WT;BU60,61,65,67,8#,94..WT

 1
47343A - TUBE, WHEEL CYLINDER, FRONT LH NO.1
47343-36090

BU66..T3..WT;BU60,61,65,67,8#,94..WT

 1
47344 - TUBE, WHEEL CYLINDER, FRONT LH NO.2
47342-36030

BU66..T3..WT;BU60,61,65,67,8#,94..WT

 1
47345 - TUBE, WHEEL CYLINDER, REAR RH
47345-36040

BU66..T3..WT;BU60,61,65,67,8#,94..WT

 1
47346 - TUBE, WHEEL CYLINDER, REAR LH
47345-36040

BU66..T3..WT;BU60,61,65,67,8#,94..WT

 1
Common parts
96991-10080
96991-12080

ILLUST NO. 2 OF 3(8808- )

Click highlighted areas on diagram

diagram 47311B 47311B 47321D 47322B 47323A 47351 47351 47352 47352 47353B 47354B 47354B 47381 9011908042 9011908086 9011908086 9011908086 9011908086 9011908086 9011908086 9011908276 9011908276 9017008204 9017008204 9017008204 9017008204 9017008204 9017008204 9017010082 9017908141 9017908141 9020110282 9046108779 9046110616 9048008343 9094901157 9094901159 9094901160 9094901164 9094901164 9094901165 9094901188 9111271030 9161160812 9161160816 9161160816 9161160820 9161540814 9161560825 9161561040
Part # Description Qty Price
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90413-12006

BU88,9#

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90413-12006

BU88,9#

 1
47321D - WAY, NO.1(FOR REAR BRAKE TUBE)
90412-12014

BU6#,70,8#,9#

 1
47323A - WAY, NO.3(FOR REAR BRAKE TUBE)
90413-10100

BU83,87..GHD;BU66,88,9#..(T3,TW1)..TB..5F..WT

 1
47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH)
47351-36170

BU88,9#

 1
47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH)
47351-36170

BU88,9#

 1
47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH)
47352-36160

BU88,9#

 1
47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH)
47352-36160

BU88,9#

 1
47353B - BRACKET, FLEXIBLE HOSE, NO.3
47353-36141

BU88,9#;BU66..T2

 1
47354B - BRACKET, FLEXIBLE HOSE, NO.4
47354-36060

BU88,9#

 1
47354B - BRACKET, FLEXIBLE HOSE, NO.4
47354-36060

BU88,9#

 1
47381 - BRACKET, BRAKE TUBE CLAMP NO.1
47381-36050

BU88,9#

 2
Common parts
90119-08042
90119-08086
90119-08276
90170-08204
90170-10082
90179-08141
90201-10282
90461-08779
90461-10616
90480-08343
90949-01157
90949-01159
90949-01160
90949-01164
90949-01165
90949-01188
91112-71030
91611-60812
91611-60816
91611-60820
91615-40814
91615-60825
91615-61040

ILLUST NO. 2 OF 3(8808- )

Click highlighted areas on diagram

diagram 47381 47381 9011908086 9011908086 9011908086 9011908086 9011908086 9011908086 9017008204 9017008204 9046106112 9046106112 9046108602 9046206017 9094901005 9094901006 9094901034 9094901035 9094901164 9094901165 9094901190 9165160614 9165160614 9165160614 9165160614 9165160614 9165160614 9165160614
Part # Description Qty Price
47381 - BRACKET, BRAKE TUBE CLAMP NO.1
47381-36050

BU88,9#

 2
47381 - BRACKET, BRAKE TUBE CLAMP NO.1
47381-36050

BU88,9#

 2
Common parts
90119-08086
90170-08204
90461-06112
90461-08602
90462-06017
90949-01005
90949-01006
90949-01034
90949-01035
90949-01164
90949-01165
90949-01190
91651-60614
