BU88R-MDDHT (1988)

Toyota Dyna 200

Production Aug 1988 - May 1995
Engine 14B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

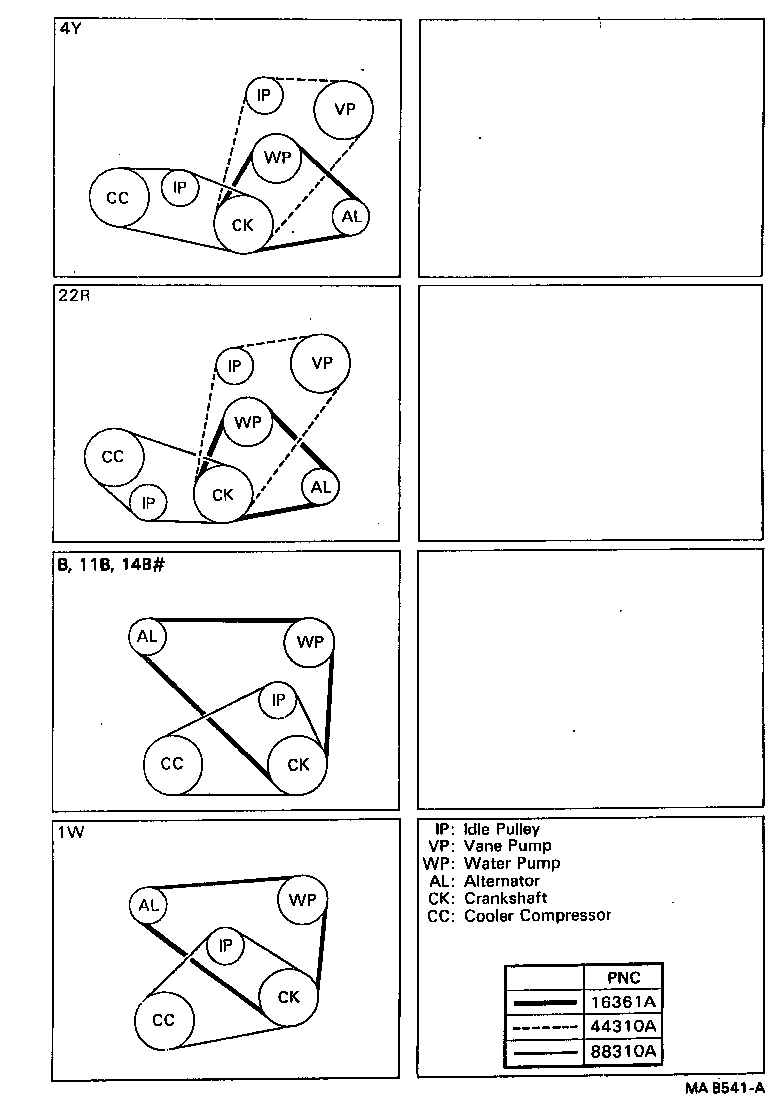

Click highlighted areas on diagram

diagram 16361A 44310A 88310A
Part # Description Qty Price
16361A - BELT, V(FOR FAN & ALTERNATOR)
90916-02210

B,11B,14B..BU6#,70,8#,9#

 1
90916-02210

14B..BU66,87,88,9#

 1
88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
99332-01040

BU91..TD;BU60..T3..ST;BU66,96..ARL,GEN;BU61,70,84,87,94..GEN,GHD,SA;BU60,65,83,88,91..RHD..WT..(ARL,GEN,GHD)

L=1040

 1
99332-11040

BU65,88..RHD..GEN..(CBU,IV3);BU60,61,83,84..RHD..WT..GEN..IV3

L=1040,W(HEATER)

 1
99332-11040

BU65,88..RHD..GEN..(CBU,IV3);BU60,61,83,84,91..RHD..WT..GEN..IV3

L=1040,W(HEATER)

 1
99332-01040

BU65,88..RHD..GEN..(CBU,IV3);BU60,61,83,84,91..RHD..WT..GEN..IV3

L=1040,W(HEATER) & AIR CONDITIONER(DEALER OPT)

 1
