Toyota Dyna 200 BU88 STEERING COLUMN & SHAFT

Manufacturers Home
Toyota
GR
DYNA 200
BU88L-MDDHT3 (1988)
4501 - STEERING COLUMN & SHAFT

BU88L-MDDHT3 (1988)

Toyota Dyna 200

Production Aug 1988 - May 1995

Engine 14B

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(8808- )

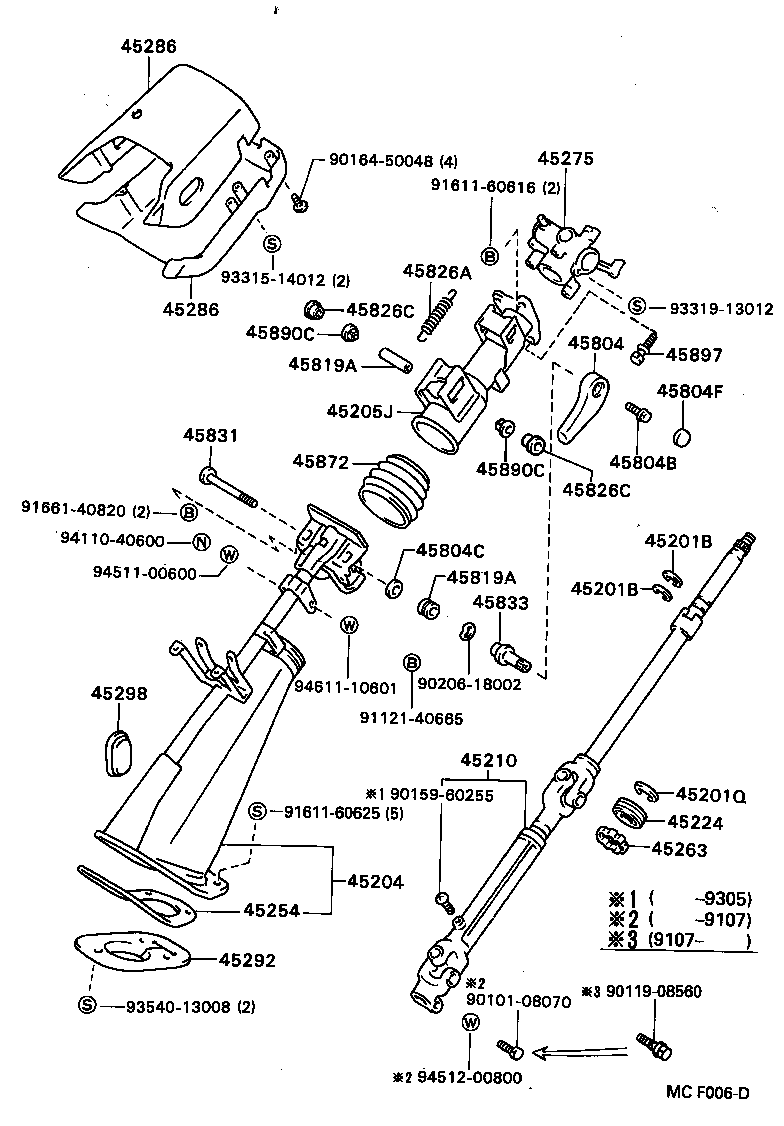

Click highlighted areas on diagram

Part #	Description	Period	Qty
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17042	BU6#,70,8#,9# T=1.20,LWR	08/1988 - 03/1997	2
90520-17269	BU6#,70,8#,9# T=1.20,UPR	08/1988 - 03/1997	1
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17042	BU6#,70,8#,9# T=1.20,LWR	08/1988 - 03/1997	2
90520-17269	BU6#,70,8#,9# T=1.20,UPR	08/1988 - 03/1997	1
45201Q - RING(FOR STEERING COLUMN RING)
96152-00300	BU6#,70,8#,9#	08/1988 - 03/1997	1
45204 - TUBE ASSY, STEERING COLUMN, LOWER
45204-36070	BU88,91,96..LHD..DSL W(TILT & TELESCOPIC STEERING)	08/1988 - 09/1993	1
45204-36071	BU88,91,96..LHD W(TILT & TELESCOPIC STEERING)	09/1993 - 02/1994	1
45204-36170	BU88,91,96..LHD..DSL	08/1988 - 02/1994	1
45204-36072	BU88,91,96..LHD W(TILT & TELESCOPIC STEERING)	02/1994 - 05/1995	1
45204-36171	BU88,91,96..LHD	02/1994 - 05/1995	1
45205J - TUBE SUB-ASSY, STEERING COLUMN, UPPER
45205-36180	BU65..GEN..CBU;BU88..GEN..(CBU,IV3);BU60,61,66,67,70,83,84,87,91,96..DSL..(GEN,GHD) W(TILT & TELESCOPIC STEERING)	08/1988 - 12/1991	1
45205-36180	BU96..LHD..DSL;BU65,91..GEN..CBU;BU91..LHD..DSL..IV3;BU88..GEN..(CBU,IV3);BU60,61,66,67,70,83,84,87..GEN,GHD W(TILT & TELESCOPIC STEERING)	12/1991 - 05/1993	1
45205-36190	BU6#,70,8#,9#..DSL..(GEN,GHD,SA)	08/1988 - 05/1993	1
45210 - SHAFT ASSY, STEERING MAIN
45210-36050	BU88,91,96..CBU,IV3	08/1988 - 03/1997	1
45224 - BLOCK, BEARING(FOR STEERING FLEXIBLE COUPLING)
45225-26010	BU6#,70,8#,9# L=16	08/1988 - 03/1997	1
45254 - SHIELD, STEERING COLUMN HOLE
45254-36080	BU88,91,96..LHD	08/1988 - 05/1995	1
45263 - RING, STEERING COLUMN, NO.1
45263-32010	BU6#,70,8#,9#	08/1988 - 03/1997	1
45275 - BRACKET, STEERING COLUMN, UPPER
45307-36150	BU6#,70,8#,9#	08/1988 - 09/1991	1
45307-36151	BU6#,70,8#,9#	09/1991 - 05/1993	1
45286 - COVER, STEERING COLUMN
45286-3680006	BU60,61,66,67,70,83,84,88,91,96..LHD..DSL W(TILT & TELESCOPIC),BROWN,TRIM4#,UPR	08/1988 - 09/1991	1
45286-36780B0	BU6#,70,83,84,88,91,96..LHD..DSL GRAY,TRIM1#,UPR	09/1991 - 05/1993	1
45287-3634006	BU6#,70,83,84,88,91,96..LHD BROWN,TRIM4#,LWR	08/1988 - 09/1991	1
45286-3678006	BU6#,70,83,84,88,91,96..LHD..DSL BROWN,TRIM4#,UPR	08/1988 - 09/1991	1
45286-36780B0	BU66..T3..TB..GEN;BU60,61,65,70,83,84,88,91,96..LHD GRAY,TRIM1#,UPR	05/1993 - 05/1995	1
45286-36800B0	BU60,61,66,67,70,83,84,88,91,96..LHD..DSL W(TILT & TELESCOPIC),GRAY,TRIM1#,UPR	09/1991 - 05/1993	1
45287-36340B0	BU6#,70,83,84,88,91,96..LHD GRAY,TRIM1#,LWR	09/1991 - 05/1995	1
45286-36800B0	BU66..T3..TB..GEN;BU60,61,70,83,84,88,91,96..LHD W(TILT & TELESCOPIC),GRAY,TRIM1#,UPR	05/1993 - 05/1995	1
45286 - COVER, STEERING COLUMN
45286-3680006	BU60,61,66,67,70,83,84,88,91,96..LHD..DSL W(TILT & TELESCOPIC),BROWN,TRIM4#,UPR	08/1988 - 09/1991	1
45286-36780B0	BU6#,70,83,84,88,91,96..LHD..DSL GRAY,TRIM1#,UPR	09/1991 - 05/1993	1
45287-3634006	BU6#,70,83,84,88,91,96..LHD BROWN,TRIM4#,LWR	08/1988 - 09/1991	1
45286-3678006	BU6#,70,83,84,88,91,96..LHD..DSL BROWN,TRIM4#,UPR	08/1988 - 09/1991	1
45286-36780B0	BU66..T3..TB..GEN;BU60,61,65,70,83,84,88,91,96..LHD GRAY,TRIM1#,UPR	05/1993 - 05/1995	1
45286-36800B0	BU60,61,66,67,70,83,84,88,91,96..LHD..DSL W(TILT & TELESCOPIC),GRAY,TRIM1#,UPR	09/1991 - 05/1993	1
45287-36340B0	BU6#,70,83,84,88,91,96..LHD GRAY,TRIM1#,LWR	09/1991 - 05/1995	1
45286-36800B0	BU66..T3..TB..GEN;BU60,61,70,83,84,88,91,96..LHD W(TILT & TELESCOPIC),GRAY,TRIM1#,UPR	05/1993 - 05/1995	1
45292 - SEAL, MAIN SHAFT LOWER DUST
45292-36040	BU6#,70,83,84,88,91,96..LHD	08/1988 - 05/1995	1
45298 - PLUG, STEERING COLUMN COVER
45298-36020	BU6#,70,8#,9#	08/1988 - 02/1994	1
45872 - COVER, STEERING COLUMN TUBE
45872-36020	BU65..GEN..CBU;BU88..GEN..(CBU,IV3);BU60,61,66,67,70,83,84,87,91,96..DSL..(GEN,GHD) W(TILT & TELESCOPIC STEERING)	08/1988 - 12/1991	1
45872-36030	BU6#,70,8#,9#..DSL..(GEN,GHD,SA)	08/1988 - 05/1993	1
45872-36020	BU96..LHD..DSL;BU65,91..GEN..CBU;BU91..LHD..DSL..IV3;BU88..GEN..(CBU,IV3);BU60,61,66,67,70,83,84,87..GEN,GHD W(TILT & TELESCOPIC STEERING)	12/1991 - 05/1993	1
Common parts
90119-08560
90159-60255
90164-50048
91611-60616
91661-40820
91661-60625
93315-14012
93319-13012
93540-13008
94180-40800

(8808- )

Click highlighted areas on diagram

TILT STEERING

Part #	Description	Period	Qty
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17042	BU6#,70,8#,9# T=1.20,LWR	08/1988 - 03/1997	2
90520-17269	BU6#,70,8#,9# T=1.20,UPR	08/1988 - 03/1997	1
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17042	BU6#,70,8#,9# T=1.20,LWR	08/1988 - 03/1997	2
90520-17269	BU6#,70,8#,9# T=1.20,UPR	08/1988 - 03/1997	1
45201Q - RING(FOR STEERING COLUMN RING)
96152-00300	BU6#,70,8#,9#	08/1988 - 03/1997	1
45204 - TUBE ASSY, STEERING COLUMN, LOWER
45204-36070	BU88,91,96..LHD..DSL W(TILT & TELESCOPIC STEERING)	08/1988 - 09/1993	1
45204-36071	BU88,91,96..LHD W(TILT & TELESCOPIC STEERING)	09/1993 - 02/1994	1
45204-36170	BU88,91,96..LHD..DSL	08/1988 - 02/1994	1
45204-36072	BU88,91,96..LHD W(TILT & TELESCOPIC STEERING)	02/1994 - 05/1995	1
45204-36171	BU88,91,96..LHD	02/1994 - 05/1995	1
45205J - TUBE SUB-ASSY, STEERING COLUMN, UPPER
45205-36180	BU65..GEN..CBU;BU88..GEN..(CBU,IV3);BU60,61,66,67,70,83,84,87,91,96..DSL..(GEN,GHD) W(TILT & TELESCOPIC STEERING)	08/1988 - 12/1991	1
45205-36180	BU96..LHD..DSL;BU65,91..GEN..CBU;BU91..LHD..DSL..IV3;BU88..GEN..(CBU,IV3);BU60,61,66,67,70,83,84,87..GEN,GHD W(TILT & TELESCOPIC STEERING)	12/1991 - 05/1993	1
45205-36190	BU6#,70,8#,9#..DSL..(GEN,GHD,SA)	08/1988 - 05/1993	1
45210 - SHAFT ASSY, STEERING MAIN
45210-36050	BU88,91,96..CBU,IV3	08/1988 - 03/1997	1
45224 - BLOCK, BEARING(FOR STEERING FLEXIBLE COUPLING)
45225-26010	BU6#,70,8#,9# L=16	08/1988 - 03/1997	1
45254 - SHIELD, STEERING COLUMN HOLE
45254-36080	BU88,91,96..LHD	08/1988 - 05/1995	1
45263 - RING, STEERING COLUMN, NO.1
45263-32010	BU6#,70,8#,9#	08/1988 - 03/1997	1
45275 - BRACKET, STEERING COLUMN, UPPER
45307-36150	BU6#,70,8#,9#	08/1988 - 09/1991	1
45307-36151	BU6#,70,8#,9#	09/1991 - 05/1993	1
45286 - COVER, STEERING COLUMN
45286-3680006	BU60,61,66,67,70,83,84,88,91,96..LHD..DSL W(TILT & TELESCOPIC),BROWN,TRIM4#,UPR	08/1988 - 09/1991	1
45286-36780B0	BU6#,70,83,84,88,91,96..LHD..DSL GRAY,TRIM1#,UPR	09/1991 - 05/1993	1
45287-3634006	BU6#,70,83,84,88,91,96..LHD BROWN,TRIM4#,LWR	08/1988 - 09/1991	1
45286-3678006	BU6#,70,83,84,88,91,96..LHD..DSL BROWN,TRIM4#,UPR	08/1988 - 09/1991	1
45286-36780B0	BU66..T3..TB..GEN;BU60,61,65,70,83,84,88,91,96..LHD GRAY,TRIM1#,UPR	05/1993 - 05/1995	1
45286-36800B0	BU60,61,66,67,70,83,84,88,91,96..LHD..DSL W(TILT & TELESCOPIC),GRAY,TRIM1#,UPR	09/1991 - 05/1993	1
45287-36340B0	BU6#,70,83,84,88,91,96..LHD GRAY,TRIM1#,LWR	09/1991 - 05/1995	1
45286-36800B0	BU66..T3..TB..GEN;BU60,61,70,83,84,88,91,96..LHD W(TILT & TELESCOPIC),GRAY,TRIM1#,UPR	05/1993 - 05/1995	1
45286 - COVER, STEERING COLUMN
45286-3680006	BU60,61,66,67,70,83,84,88,91,96..LHD..DSL W(TILT & TELESCOPIC),BROWN,TRIM4#,UPR	08/1988 - 09/1991	1
45286-36780B0	BU6#,70,83,84,88,91,96..LHD..DSL GRAY,TRIM1#,UPR	09/1991 - 05/1993	1
45287-3634006	BU6#,70,83,84,88,91,96..LHD BROWN,TRIM4#,LWR	08/1988 - 09/1991	1
45286-3678006	BU6#,70,83,84,88,91,96..LHD..DSL BROWN,TRIM4#,UPR	08/1988 - 09/1991	1
45286-36780B0	BU66..T3..TB..GEN;BU60,61,65,70,83,84,88,91,96..LHD GRAY,TRIM1#,UPR	05/1993 - 05/1995	1
45286-36800B0	BU60,61,66,67,70,83,84,88,91,96..LHD..DSL W(TILT & TELESCOPIC),GRAY,TRIM1#,UPR	09/1991 - 05/1993	1
45287-36340B0	BU6#,70,83,84,88,91,96..LHD GRAY,TRIM1#,LWR	09/1991 - 05/1995	1
45286-36800B0	BU66..T3..TB..GEN;BU60,61,70,83,84,88,91,96..LHD W(TILT & TELESCOPIC),GRAY,TRIM1#,UPR	05/1993 - 05/1995	1
45292 - SEAL, MAIN SHAFT LOWER DUST
45292-36040	BU6#,70,83,84,88,91,96..LHD	08/1988 - 05/1995	1
45298 - PLUG, STEERING COLUMN COVER
45298-36020	BU6#,70,8#,9#	08/1988 - 02/1994	1
45804 - LEVER SUB-ASSY, STEERING TILT
45804-3601006	BU65..CBU;BU88..CBU,IV3;BU60,61,66,67,70,83,84,87,91,96..ARL,GEN,GHD BROWN,TRIM4#	08/1988 - 09/1991	1
45804-36010B0	BU65..CBU;BU88..CBU,IV3;BU60,61,66,67,70,83,84,87,91,96..ARL,GEN,GHD GRAY,TRIM1#	09/1991 - 12/1991	1
45804B - BOLT(FOR STEERING TILT LEVER)
90105-10204	BU65..CBU;BU88..CBU,IV3;BU60,61,66,67,70,83,84,87,91,96..ARL,GEN,GHD	08/1988 - 12/1991	1
45804C - WASHER, PLATE(FOR STEERING TILT LEVER)
90201-10489	BU65..CBU;BU88..CBU,IV3;BU60,61,66,67,70,83,84,87,91,96..ARL,GEN,GHD	08/1988 - 12/1991	1
45804F - PLUG(FOR STEERING TILT LEVER)
90339-2800106	BU65..CBU;BU88..CBU,IV3;BU60,61,66,67,70,83,84,87,91,96..ARL,GEN,GHD BROWN,TRIM4#	08/1988 - 09/1991	1
90339-28001B0	BU65..CBU;BU88..CBU,IV3;BU60,61,66,67,70,83,84,87,91,96..ARL,GEN,GHD GRAY,TRIM1#	09/1991 - 12/1991	1
45819A - COLLAR(FOR TILT LEVER RETAINER)
90386-19004	BU65..CBU;BU88..CBU,IV3;BU60,61,66,67,70,83,84,87,91,96..ARL,GEN,GHD L=14	08/1988 - 12/1991	1
90387-06037	BU65..CBU;BU88..CBU,IV3;BU60,61,66,67,70,83,84,87,91,96..ARL,GEN,GHD L=47.5	08/1988 - 12/1991	1
45819A - COLLAR(FOR TILT LEVER RETAINER)
90386-19004	BU65..CBU;BU88..CBU,IV3;BU60,61,66,67,70,83,84,87,91,96..ARL,GEN,GHD L=14	08/1988 - 12/1991	1
90387-06037	BU65..CBU;BU88..CBU,IV3;BU60,61,66,67,70,83,84,87,91,96..ARL,GEN,GHD L=47.5	08/1988 - 12/1991	1
45826A - SPRING, TENSION(FOR STEERING TILT LEVER)
90507-18018	BU65..CBU;BU88..CBU,IV3;BU60,61,66,67,70,83,84,87,91,96..ARL,GEN,GHD	08/1988 - 12/1991	1
45826C - BUSH(FOR STEERING TILT LEVER)
90386-10024	BU65..CBU;BU88..CBU,IV3;BU60,61,66,67,70,83,84,87,91,96..ARL,GEN,GHD	08/1988 - 12/1991	2
45826C - BUSH(FOR STEERING TILT LEVER)
90386-10024	BU65..CBU;BU88..CBU,IV3;BU60,61,66,67,70,83,84,87,91,96..ARL,GEN,GHD	08/1988 - 12/1991	2
45831 - BOLT, TILT LEVER LOCK, NO.1
45831-36010	BU65..CBU;BU88..CBU,IV3;BU60,61,66,67,70,83,84,87,91,96..ARL,GEN,GHD	08/1988 - 12/1991	1
45833 - NUT, TILT STEERING ADJUSTING, NO.1
45833-36010	BU65..CBU;BU88..CBU,IV3;BU60,61,66,67,70,83,84,87,91,96..ARL,GEN,GHD	08/1988 - 12/1991	1
45872 - COVER, STEERING COLUMN TUBE
45872-36020	BU65..GEN..CBU;BU88..GEN..(CBU,IV3);BU60,61,66,67,70,83,84,87,91,96..DSL..(GEN,GHD) W(TILT & TELESCOPIC STEERING)	08/1988 - 12/1991	1
45872-36030	BU6#,70,8#,9#..DSL..(GEN,GHD,SA)	08/1988 - 05/1993	1
45872-36020	BU96..LHD..DSL;BU65,91..GEN..CBU;BU91..LHD..DSL..IV3;BU88..GEN..(CBU,IV3);BU60,61,66,67,70,83,84,87..GEN,GHD W(TILT & TELESCOPIC STEERING)	12/1991 - 05/1993	1
45890C - COLLAR(FOR TILT STEERING PAWL)
90389-12009	BU65..CBU;BU88..CBU,IV3;BU60,61,66,67,70,83,84,87,91,96..ARL,GEN,GHD OD=20	08/1988 - 12/1991	2
45890C - COLLAR(FOR TILT STEERING PAWL)
90389-12009	BU65..CBU;BU88..CBU,IV3;BU60,61,66,67,70,83,84,87,91,96..ARL,GEN,GHD OD=20	08/1988 - 12/1991	2
Common parts
90101-08070
90119-08560
90159-60255
90164-50048
90206-18002
91121-40665
91611-60616
91611-60625
91661-40820
93315-14012
93319-13012
93540-13008
94110-40600
94511-00600
94512-00800
94611-10601

BU88L-MDDHT3 (1988)

(8808- )

(8808- )
