BU88L-MDDHT (1988)
Toyota Dyna 200

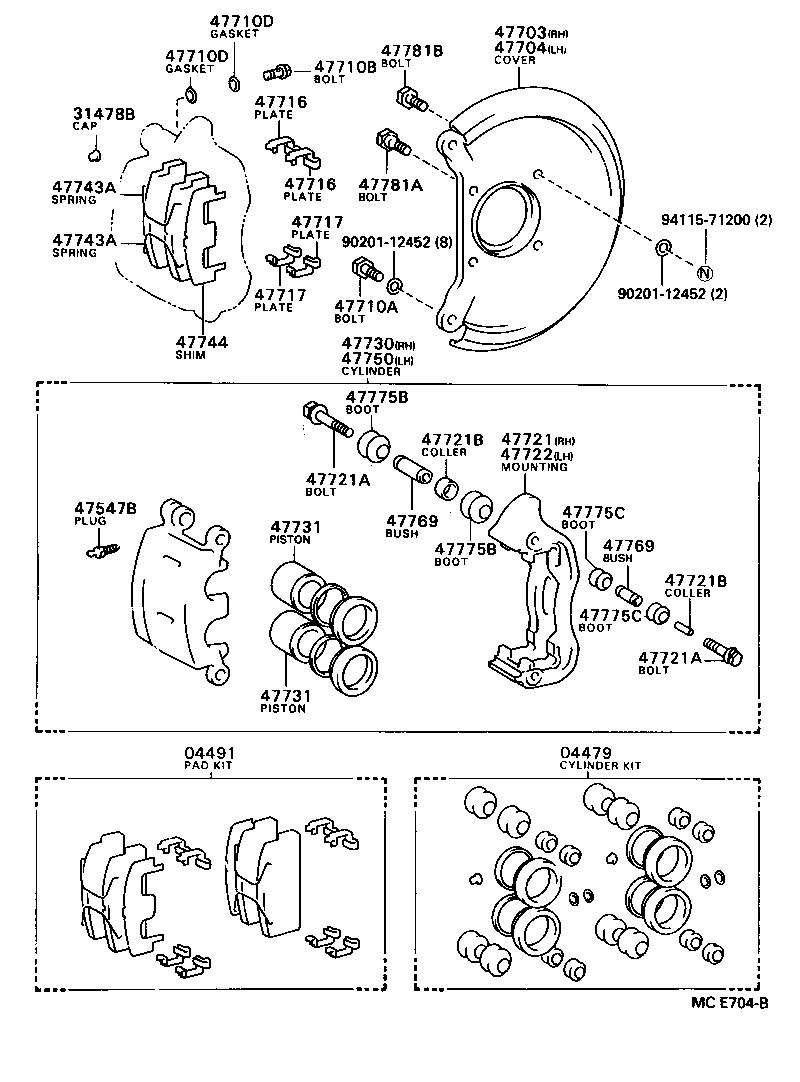

ILLUST NO. 1 OF 2(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04479 - CYLINDER KIT, DISC BRAKE, FRONT | ||||
| 04479-36010 |
BU65..ARL;BU66..T3..TB..WT;BU60,61,83,84,88..WT..(ARL,GEN)..(CBU,IV3) |
1 | ||
| 04491 - PAD KIT, DISC BRAKE, FRONT | ||||
| 04491-36030 |
BU65..ARL;BU66..T3..TB..WT;BU60,61,83,84,88..WT..(ARL,GEN)..(CBU,IV3) |
1 | ||
| 04491-36010 |
BU65..ARL;BU60,61,66,83,84,88..WT..(ARL,GEN)..(CBU,IV3) |
1 | ||
| 31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE) | ||||
| 31478-30010 |
BU65..ARL;BU66..T3..TB..WT;BU60,61,83,84,88..WT..(ARL,GEN)..(CBU,IV3) |
2 | ||
| 47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE) | ||||
| 47547-12010 |
BU65..ARL;BU66..T3..TB..WT;BU60,61,83,84,88..WT..(ARL,GEN)..(CBU,IV3) |
2 | ||
| 47703 - COVER SUB-ASSY, DISC BRAKE DUST, FRONT RH | ||||
| 47703-36020 |
BU65..ARL;BU66..T3..TB..WT;BU60,61,83,84,88..WT..(ARL,GEN)..(CBU,IV3) |
1 | ||
| 47704 - COVER SUB-ASSY, DISC BRAKE DUST, FRONT LH | ||||
| 47704-36020 |
BU65..ARL;BU66..T3..TB..WT;BU60,61,83,84,88..WT..(ARL,GEN)..(CBU,IV3) |
1 | ||
| 47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER) | ||||
| 90101-12070 |
BU65..ARL;BU66..T3..TB..WT;BU60,61,83,84,88..WT..(ARL,GEN)..(CBU,IV3) *12-1.25PX29-25 |
4 | ||
| 47710B - BOLT, UNION(FOR FRONT DISC BRAKE CALIPER) | ||||
| 90401-10015 |
BU65..ARL;BU66..T3..TB..WT;BU60,61,83,84,88..WT..(ARL,GEN)..(CBU,IV3) |
2 | ||
| 47710D - GASKET(FOR FRONT DISC BRAKE CALIPER UNION) | ||||
| 90430-10035 |
BU65..ARL;BU66..T3..TB..WT;BU60,61,83,84,88..WT..(ARL,GEN)..(CBU,IV3) |
4 | ||
| 47710D - GASKET(FOR FRONT DISC BRAKE CALIPER UNION) | ||||
| 90430-10035 |
BU65..ARL;BU66..T3..TB..WT;BU60,61,83,84,88..WT..(ARL,GEN)..(CBU,IV3) |
4 | ||
| 47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47716-36010 |
BU65..ARL;BU66..T3..TB..WT;BU60,61,83,84,88..WT..(ARL,GEN)..(CBU,IV3) |
4 | ||
| 47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47716-36010 |
BU65..ARL;BU66..T3..TB..WT;BU60,61,83,84,88..WT..(ARL,GEN)..(CBU,IV3) |
4 | ||
| 47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47717-36010 |
BU65..ARL;BU66..T3..TB..WT;BU60,61,83,84,88..WT..(ARL,GEN)..(CBU,IV3) |
4 | ||
| 47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47717-36010 |
BU65..ARL;BU66..T3..TB..WT;BU60,61,83,84,88..WT..(ARL,GEN)..(CBU,IV3) |
4 | ||
| 47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH | ||||
| 47721-36020 |
BU65..ARL;BU60,61,66,83,84,88..WT..(ARL,GEN)..(CBU,IV3) |
1 | ||
| 47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING) | ||||
| 90119-12030 |
BU65..ARL;BU66..T3..TB..WT;BU60,61,83,84,88..WT..(ARL,GEN)..(CBU,IV3) *12-1.25PX81-30 |
4 | ||
| 90119-08297 |
BU65..ARL;BU66..T3..TB..WT;BU60,61,83,84,88..WT..(ARL,GEN)..(CBU,IV3) *8-1.25PX49-30 |
4 | ||
| 47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING) | ||||
| 90119-12030 |
BU65..ARL;BU66..T3..TB..WT;BU60,61,83,84,88..WT..(ARL,GEN)..(CBU,IV3) *12-1.25PX81-30 |
4 | ||
| 90119-08297 |
BU65..ARL;BU66..T3..TB..WT;BU60,61,83,84,88..WT..(ARL,GEN)..(CBU,IV3) *8-1.25PX49-30 |
4 | ||
| 47721B - COLLAR(FOR FRONT DISC BRAKE CYLINDER MOUNTING) | ||||
| 90387-14005 |
BU65..ARL;BU66..T3..TB..WT;BU60,61,83,84,88..WT..(ARL,GEN)..(CBU,IV3) OUTER |
4 | ||
| 90387-20003 |
BU65..ARL;BU66..T3..TB..WT;BU60,61,83,84,88..WT..(ARL,GEN)..(CBU,IV3) INNER |
4 | ||
| 47721B - COLLAR(FOR FRONT DISC BRAKE CYLINDER MOUNTING) | ||||
| 90387-14005 |
BU65..ARL;BU66..T3..TB..WT;BU60,61,83,84,88..WT..(ARL,GEN)..(CBU,IV3) OUTER |
4 | ||
| 90387-20003 |
BU65..ARL;BU66..T3..TB..WT;BU60,61,83,84,88..WT..(ARL,GEN)..(CBU,IV3) INNER |
4 | ||
| 47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH | ||||
| 47722-36020 |
BU65..ARL;BU60,61,66,83,84,88..WT..(ARL,GEN)..(CBU,IV3) |
1 | ||
| 47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH | ||||
| 47730-36022 |
BU65..ARL;BU60,61,66,83,84,88..WT..(ARL,GEN)..(CBU,IV3) |
1 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-36010 |
BU65..ARL;BU66..T3..TB..WT;BU60,61,83,84,88..WT..(ARL,GEN)..(CBU,IV3) |
4 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-36010 |
BU65..ARL;BU66..T3..TB..WT;BU60,61,83,84,88..WT..(ARL,GEN)..(CBU,IV3) |
4 | ||
| 47743A - SPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE) | ||||
| 47743-36010 |
BU65..ARL;BU66..T3..TB..WT;BU60,61,83,84,88..WT..(ARL,GEN)..(CBU,IV3) |
4 | ||
| 47743A - SPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE) | ||||
| 47743-36010 |
BU65..ARL;BU66..T3..TB..WT;BU60,61,83,84,88..WT..(ARL,GEN)..(CBU,IV3) |
4 | ||
| 47744 - SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47744-36011 |
BU65..ARL;BU66..T3..TB..WT;BU60,61,83,84,88..WT..(ARL,GEN)..(CBU,IV3) |
2 | ||
| 47750 - CYLINDER ASSY, DISC BRAKE, LH | ||||
| 47750-36022 |
BU65..ARL;BU60,61,66,83,84,88..WT..(ARL,GEN)..(CBU,IV3) |
1 | ||
| 47769 - BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47769-36020 |
BU65..ARL;BU66..T3..TB..WT;BU60,61,83,84,88..WT..(ARL,GEN)..(CBU,IV3) OUTER |
4 | ||
| 47769-36010 |
BU65..ARL;BU66..T3..TB..WT;BU60,61,83,84,88..WT..(ARL,GEN)..(CBU,IV3) INNER |
4 | ||
| 47769 - BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47769-36020 |
BU65..ARL;BU66..T3..TB..WT;BU60,61,83,84,88..WT..(ARL,GEN)..(CBU,IV3) OUTER |
4 | ||
| 47769-36010 |
BU65..ARL;BU66..T3..TB..WT;BU60,61,83,84,88..WT..(ARL,GEN)..(CBU,IV3) INNER |
4 | ||
| 47775B - BOOT, BUSH DUST, NO.1 | ||||
| 47775-36030 |
BU65..ARL;BU66..T3..TB..WT;BU60,61,83,84,88..WT..(ARL,GEN)..(CBU,IV3) |
8 | ||
| 47775B - BOOT, BUSH DUST, NO.1 | ||||
| 47775-36030 |
BU65..ARL;BU66..T3..TB..WT;BU60,61,83,84,88..WT..(ARL,GEN)..(CBU,IV3) |
8 | ||
| 47775C - BOOT, BUSH DUST, NO.2 | ||||
| 47775-36010 |
BU65..ARL;BU66..T3..TB..WT;BU60,61,83,84,88..WT..(ARL,GEN)..(CBU,IV3) |
8 | ||
| 47775C - BOOT, BUSH DUST, NO.2 | ||||
| 47775-36010 |
BU65..ARL;BU66..T3..TB..WT;BU60,61,83,84,88..WT..(ARL,GEN)..(CBU,IV3) |
8 | ||
| 47781A - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING) | ||||
| 90101-12080 |
BU65..ARL;BU66..T3..TB..WT;BU60,61,83,84,88..WT..(ARL,GEN)..(CBU,IV3) |
4 | ||
| 47781B - BOLT(FOR DUST COVER SETTING) | ||||
| 90101-12089 |
BU65..ARL;BU66..T3..TB..WT;BU60,61,83,84,88..WT..(ARL,GEN)..(CBU,IV3) *12-1.25PX40-20 |
4 | ||
| Common parts | ||||
| 90201-12452 | ||||
| 94115-71200 | ||||
ILLUST NO. 2 OF 2(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04465 - PAD KIT, DISC BRAKE, FRONT | ||||
| 04465-36050 |
BU65..ARL;BU60,61,66,83,84,88..WT..(ARL,GEN)..(CBU,IV3) MARK AISIN T536 |
1 | ||
| 04945 - SHIM KIT, ANTI SQUEAL, FRONT | ||||
| 04945-40040 |
BU65..ARL;BU66..T3..TB..WT;BU60,61,83,84,88..WT..(ARL,GEN)..(CBU,IV3) |
1 | ||
| 04947 - FITTING KIT, DISC BRAKE, FRONT | ||||
| 04947-36010 |
BU65..ARL;BU66..T3..TB..WT;BU60,61,83,84,88..WT..(ARL,GEN)..(CBU,IV3) |
1 | ||
