BU88L-MDDHT (1988)

Toyota Dyna 200

Production Aug 1988 - May 1995
Engine 14B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

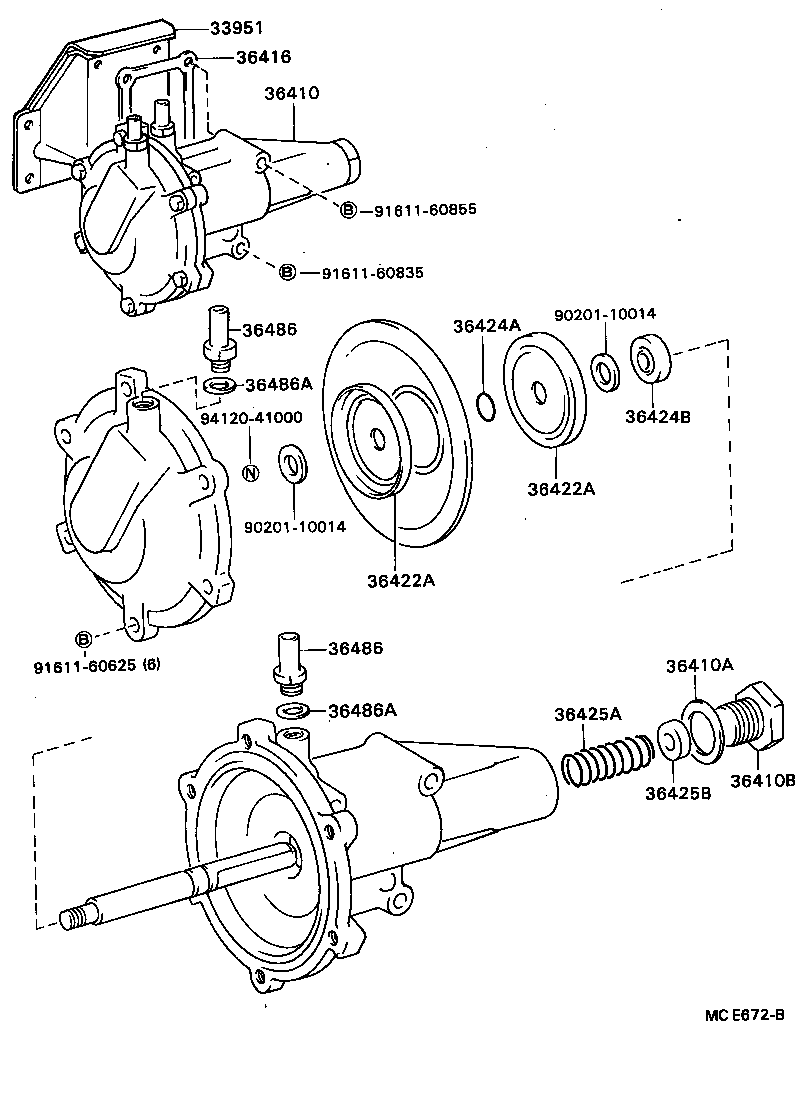

Click highlighted areas on diagram

diagram 33951 36410 36410A 36410B 36416 36422A 36422A 36424A 36424B 36425A 36425B 36486 36486 36486A 36486A 9020110014 9020110014 9161160625 9161160835 9161160855 9412041000
Part # Description Qty Price
Common parts
90201-10014
91611-60625
91611-60835
91611-60855
94120-41000
