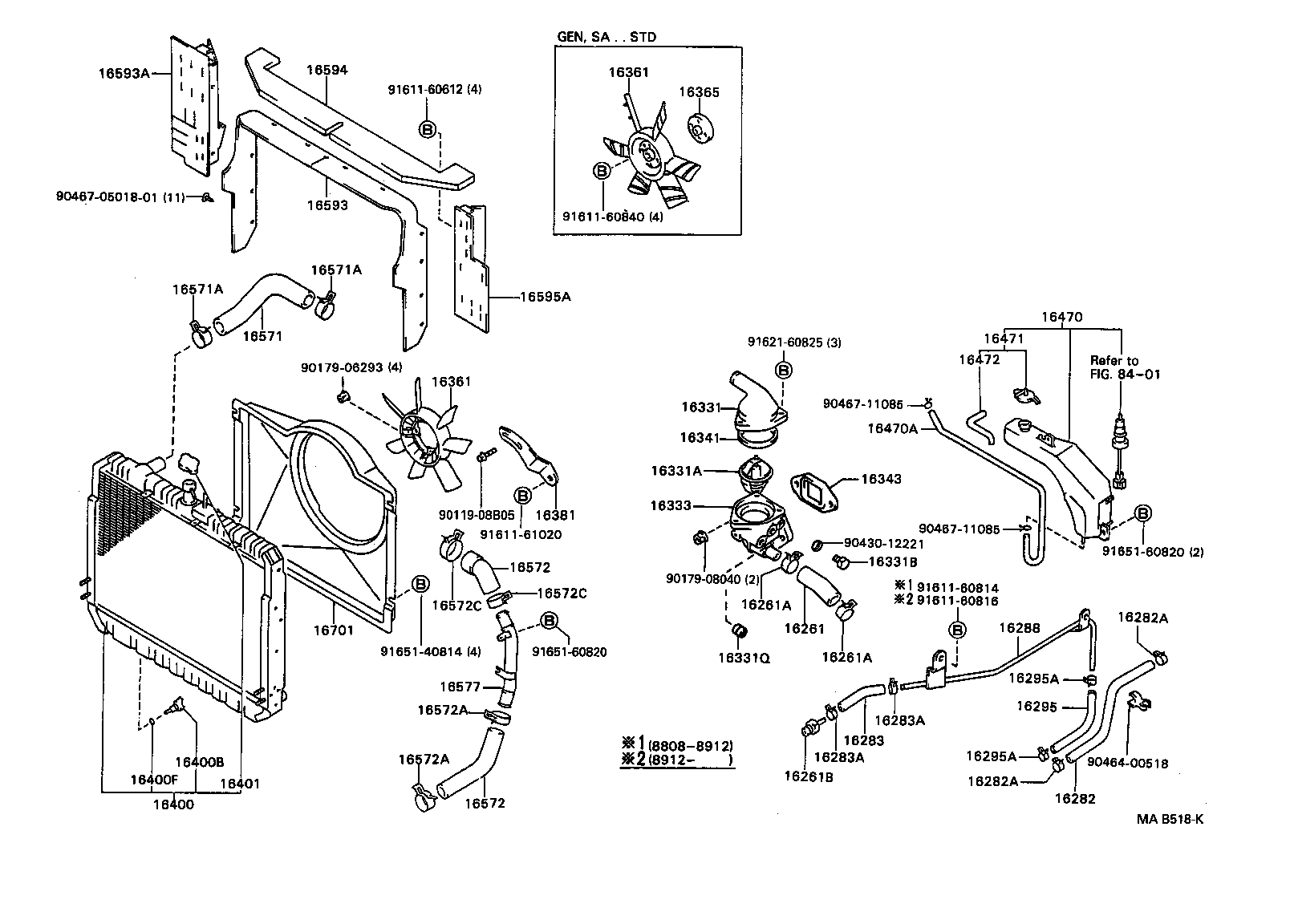

BU88L-MDDHT (1988)
Toyota Dyna 200
(8808- )14B..BU88,9#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-56012 |
B,11B,14B#..BU6#,70,8#,9# |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-28004 |
B,11B,14B..BU6#,70,8#,9# |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-28004 |
B,11B,14B..BU6#,70,8#,9# |
2 | ||
| 16261B - UNION(FOR WATER BY-PASS HOSE) | ||||
| 90404-52028 |
14B..BU88,91..LHD |
1 | ||
| 16282 - HOSE, WATER BY-PASS, NO.5 | ||||
| 16282-56010 |
14B..BU88,91..LHD |
1 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 90467-15004 |
14B..BU88,91..LHD |
2 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 90467-15004 |
14B..BU88,91..LHD |
2 | ||
| 16283 - HOSE, WATER BY-PASS, NO.6 | ||||
| 16283-56010 |
14B..BU88,91..LHD |
1 | ||
| 16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6) | ||||
| 90467-15004 |
14B..BU88,91..LHD |
2 | ||
| 16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6) | ||||
| 90467-15004 |
14B..BU88,91..LHD |
2 | ||
| 16288 - PIPE, WATER BY-PASS, NO.4 | ||||
| 16288-56010 |
14B..BU88,91..LHD |
1 | ||
| 16295 - HOSE, WATER BY-PASS, NO.7 | ||||
| 16295-56010 |
14B..BU88,91..LHD |
1 | ||
| 16295A - CLIP(FOR WATER BY-PASS HOSE NO.7) | ||||
| 90467-15004 |
14B..BU88,91..LHD |
2 | ||
| 16295A - CLIP(FOR WATER BY-PASS HOSE NO.7) | ||||
| 90467-15004 |
14B..BU88,91..LHD |
2 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-56020 |
14B..BU88,9# |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03077 |
B,11B,14B#..BU60,61,65,66,70,8#,9# *WAX 82-95 |
1 | ||
| 90916-03077 |
B,11B,14B#..BU6#,70,8#,9# *WAX 82-95 |
1 | ||
| 16331B - PLUG(FOR WATER OUTLET) | ||||
| 90341-12006 |
B,11B,14B..BU6#,70,8#,9# |
1 | ||
| 90341-12006 |
14B..BU88..CBU,IV3;11B,14B#..BU61,65,66,84,87,91,96 |
1 | ||
| 16331Q - PLUG(FOR WATER OUTLET) | ||||
| 90345-54005 |
11B..BU65..GEN..CBU;14B..BU66..T3..TB..GEN;B,11B,14B..BU60,61,67,70,8#,9#..GEN,GHD |
1 | ||
| 16333 - HOUSING, WATER OUTLET | ||||
| 16333-56070 |
B,11B,14B..BU6#,70,8#,9# |
1 | ||
| 16333-56071 |
B,11B,14B..BU6#,70,8#,9# |
1 | ||
| 16333-56072 |
B,11B,14B..BU6#,70,8#,9# |
1 | ||
| 16333-56072 |
B,11B,14B#..BU6#,70,8#,9# |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-56030 |
B,11B,14B#..BU6#,70,8#,9# |
1 | ||
| 16343 - GASKET, WATER OUTLET HOUSING | ||||
| 16343-56022 |
B,11B,14B#..BU6#,70,8#,9# |
1 | ||
| 16343-56021 |
B,11B,14B..BU6#,70,8#,9# |
1 | ||
| 16361 - FAN | ||||
| 16361-56030 |
14B..BU88,9#..GEN,SA OD=380 |
1 | ||
| 16361 - FAN | ||||
| 16361-56030 |
14B..BU88,9#..GEN,SA OD=380 |
1 | ||
| 16365 - SPACER, FAN | ||||
| 16365-56021 |
11B..BU61..GEN..(CBU,IV3);11B,14B..BU65,88,91..GEN,SA;B,11B,14B..BU60,66,70,83,84,94,96..5F |
1 | ||
| 16365-56021 |
11B..BU61..GEN..(CBU,IV3);11B,14B..BU65,88,91..GEN,SA;B,11B,14B..BU60,70,83,84,94,96 |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-56060 |
B..BU60..TW1..GEN;B,14B..BU60,83,88,91..LHD..WT CHINA SPEC |
1 | ||
| 16381-56070 |
11B..BU65..CBU;B,11B,14B#..BU60,61,66,67,70,8#,9# |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-58111 |
14B..BU88,91,96..(ARL,GEN)..(CBU,IV3) |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-24051 |
11B..BU61..IV1;11B,14B..BU61,66..ARL;11B,14B..BU65,88,91..CBU,IV3;B,14B..BU60,70,83,87,96..GEN,GHD,SA |
1 | ||
| 16417-24051 |
11B..BU61..ARL;11B..BU61..IV1;B,11B,14B..BU60,65,70,83,87,88,91,96..CBU,IV3 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-24051 |
14B..BU88..CBU,IV3;B,11B,14B..BU6#,70,83,84,87,91,96 |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-71010 |
14B..BU88,9# |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-58020 |
14B#..BU88,9# |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12143 |
14B..BU88,9# L=620 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-56070 |
14B#..BU88,9# |
1 | ||
| 16472 - HOSE, BREATHER | ||||
| 16472-58010 |
14B#..BU88,9# |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-58030 |
14B#..BU88,9# |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-42001 |
B,11B,14B#..BU6#,70,8#,9# |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-42001 |
B,11B,14B#..BU6#,70,8#,9# |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-56090 |
B,11B,14B#..BU6#,70,8#,9# WATER PUMP SIDE |
1 | ||
| 16572-56091 |
B,11B,14B#..BU6#,70,8#,9# WATER PUMP SIDE |
1 | ||
| 16573-58020 |
14B#..BU88,9# RADIATOR SIDE |
1 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-56090 |
B,11B,14B#..BU6#,70,8#,9# WATER PUMP SIDE |
1 | ||
| 16572-56091 |
B,11B,14B#..BU6#,70,8#,9# WATER PUMP SIDE |
1 | ||
| 16573-58020 |
14B#..BU88,9# RADIATOR SIDE |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10510 |
B,11B,14B#..BU6#,70,8#,9# |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10510 |
B,11B,14B#..BU6#,70,8#,9# |
2 | ||
| 16572C - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.2) | ||||
| 96111-10510 |
B,11B,14B#..BU6#,70,8#,9# PIPE SIDE |
1 | ||
| 96111-10570 |
B,11B,14B#..BU6#,70,8#,9# WATER PUMP SIDE |
1 | ||
| 16572C - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.2) | ||||
| 96111-10510 |
B,11B,14B#..BU6#,70,8#,9# PIPE SIDE |
1 | ||
| 96111-10570 |
B,11B,14B#..BU6#,70,8#,9# WATER PUMP SIDE |
1 | ||
| 16577 - PIPE, RADIATOR, NO.7 | ||||
| 16577-56050 |
B,11B,14B#..BU6#,70,8#,9# |
1 | ||
| 16593 - GUIDE, RADIATOR AIR, NO.1 | ||||
| 16593-58050 |
14B#..BU88,9# |
1 | ||
| 16593A - GUIDE, RADIATOR AIR, NO.1 RH | ||||
| 16593-58060 |
14B#..BU88,9# |
1 | ||
| 16594 - GUIDE, RADIATOR AIR, NO.2 | ||||
| 16594-58030 |
14B#..BU88,9# |
1 | ||
| 16595A - GUIDE, RADIATOR AIR, NO.1 LH | ||||
| 16595-58040 |
14B#..BU88,9# |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16701-58040 |
14B..BU88,9# |
1 | ||
| Common parts | ||||
| 90119-08B05 | ||||
| 90179-06293 | ||||
| 90179-08040 | ||||
| 90430-12221 | ||||
| 90464-00518 | ||||
| 90467-0501801 | ||||
| 90467-11085 | ||||
| 91611-60612 | ||||
| 91611-60814 | ||||
| 91611-60816 | ||||
| 91611-60840 | ||||
| 91611-61020 | ||||
| 91621-60825 | ||||
| 91651-40814 | ||||
| 91651-60820 | ||||
| Linked diagrams | ||||
| 8401 | ||||
