BU87R-MDDTY3 (1988)

Toyota Dyna 200

Production Aug 1988 - May 1995
Engine 14B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )BU60,66,88..T2,T3 ; (8808- )BU61,65,67,83,84,87,9#..WT

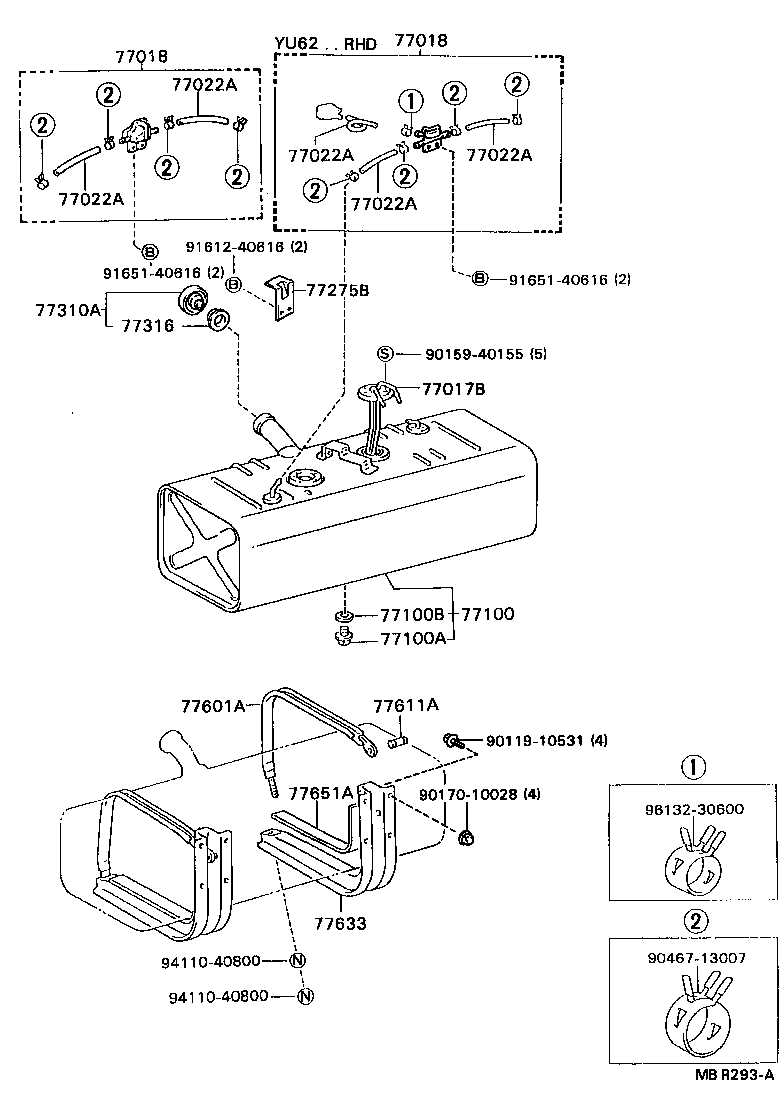

Click highlighted areas on diagram

diagram 77017B 77018 77018 77022A 77022A 77022A 77022A 77022A 77100 77100A 77100B 77275B 77310A 77316 77601A 77611A 77633 77651A 9011910531 9015940155 9017010028 9046713007 9161240616 9165140616 9165140616 9411040800 9411040800 9613230600
Part # Description Qty Price
77017B - TUBE SUB-ASSY, FUEL TANK VENT
77017-36330

BU61..IV1;BU61,65,67,8#,94..WT;BU60,66,91,96..T3..(ARL,GEN)

 1
77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE
77018-36230

BU60,88,91..T3..(GEN,SA);BU61,65,66,67,83,84,87,94,96

 2
77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE
77018-36230

BU60,88,91..T3..(GEN,SA);BU61,65,66,67,83,84,87,94,96

 2
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95333-08030

BU60,88,91..T3..(GEN,SA);BU61,65,66,67,83,84,87,94,96

*H,L=300

 2
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95333-08030

BU60,88,91..T3..(GEN,SA);BU61,65,66,67,83,84,87,94,96

*H,L=300

 2
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95333-08030

BU60,88,91..T3..(GEN,SA);BU61,65,66,67,83,84,87,94,96

*H,L=300

 2
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95333-08030

BU60,88,91..T3..(GEN,SA);BU61,65,66,67,83,84,87,94,96

*H,L=300

 2
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95333-08030

BU60,88,91..T3..(GEN,SA);BU61,65,66,67,83,84,87,94,96

*H,L=300

 2
77100A - PLUG(FOR FUEL TANK)
90105-12116

BU88,91..GEN,SA;BU6#,70,83,84,87,94,96

 1
77100B - GASKET(FOR FUEL TANK)
90430-12245

BU6#,70,8#,9#

 1
77310A - CAP ASSY, FUEL TANK
77310-55080

BU65..CBU;BU66..T3..TB;BU60,61,70,8#,9#..DSL

 1
77316 - GASKET, FUEL TANK CAP
77316-27010

BU65..CBU;BU66..T3..TB;BU60,61,70,8#,9#..DSL

 1
77601A - BAND SUB-ASSY, FUEL TANK, NO.1
77601-36140

BU60,61,66,8#,91,96..T3..(GEN,GHD,SA)..(CBU,IV3)

 2
77611A - PIN (FOR FUEL TANK BAND)
77629-36010

BU60..T3;BU61,65,66,67,8#,9#

 2
77633 - STAY, FUEL TANK
77633-36090

BU60,61,66,8#,91,96..T3..(GEN,GHD,SA)..(CBU,IV3)

 2
77651A - CUSHION, FUEL TANK, NO.1
77651-36100

BU61..IV1;BU60,66..T3;BU61,67,8#,9#..WT

 2
Common parts
90119-10531
90159-40155
90170-10028
90467-13007
91612-40616
91651-40616
94110-40800
96132-30600

(8808- )BU60,61,66,70,83,84,87

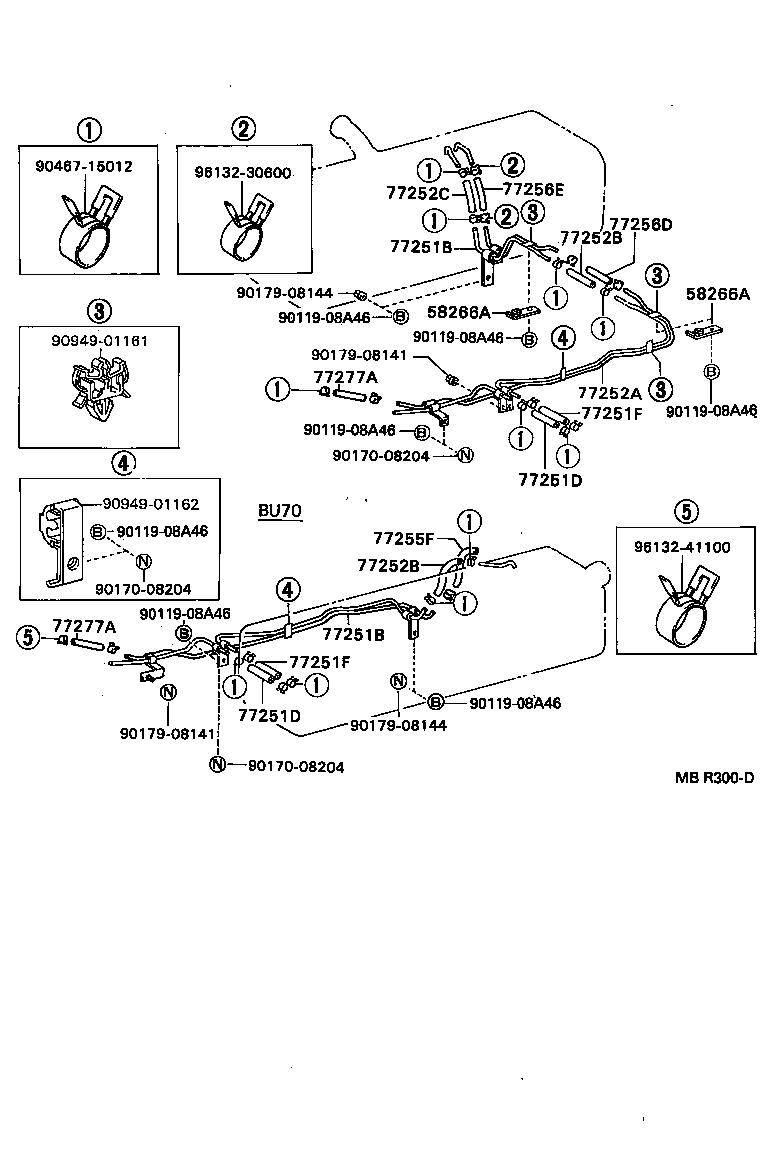

Click highlighted areas on diagram

diagram 58266A 58266A 77251B 77251B 77251D 77251D 77251F 77251F 77252A 77252B 77252B 77252C 77255F 77256D 77256E 77277A 77277A 9011908A46 9011908A46 9011908A46 9011908A46 9011908A46 9011908A46 9011908A46 9017008204 9017008204 9017008204 9017908141 9017908141 9017908144 9017908144 9046715012 9094901161 9094901162 9613230600 9613241100
Part # Description Qty Price
58266A - BRACKET, FUEL TUBE CLAMP
58266-36200

BU60,61,66,83,84,87

 2
58266A - BRACKET, FUEL TUBE CLAMP
58266-36200

BU60,61,66,83,84,87

 2
77251B - TUBE, FUEL MAIN
77205-36480

BU60,61,66,83,84,87

 1
77205-36481

BU60,61,66,83,84,87

 1
77251B - TUBE, FUEL MAIN
77205-36480

BU60,61,66,83,84,87

 1
77205-36481

BU60,61,66,83,84,87

 1
77251D - HOSE, FUEL, NO.2(FOR FUEL MAIN TUBE)
77259-36050

BU60,61,66,70,83,84,87

 1
77259-36100

BU87;BU61..IV1

L=229

 1
77259-36051

BU60,61,66,70,83,84,87

 1
77259-36051

BU60,61,66,70,83,84,87,94;BU88,91,96..(ARL,GEN)..(CBU,IV3)

 1
77251D - HOSE, FUEL, NO.2(FOR FUEL MAIN TUBE)
77259-36050

BU60,61,66,70,83,84,87

 1
77259-36100

BU87;BU61..IV1

L=229

 1
77259-36051

BU60,61,66,70,83,84,87

 1
77259-36051

BU60,61,66,70,83,84,87,94;BU88,91,96..(ARL,GEN)..(CBU,IV3)

 1
77251F - HOSE, FUEL
95332-10014

BU60,61,66,70,83,84,87

*H,L=140

 1
95332-10020

BU91,96..ARL,GEN;BU60,61,66,70,8#,94

*H,L=200

 1
77259-36051

BU87;BU61,94..IV1

 1
77251F - HOSE, FUEL
95332-10014

BU60,61,66,70,83,84,87

*H,L=140

 1
95332-10020

BU91,96..ARL,GEN;BU60,61,66,70,8#,94

*H,L=200

 1
77259-36051

BU87;BU61,94..IV1

 1
77252A - TUBE, FUEL MAIN, NO.2
77206-36320

BU60,61,66,83,84,87

 1
77206-36490

BU60,61,66,83,84,87

 1
77252B - HOSE, FUEL, NO.1 (FOR FUEL MAIN NO.2 TUBE)
95332-10014

BU60,61,66,70,83,84,87

*H,L=140

 1
77252B - HOSE, FUEL, NO.1 (FOR FUEL MAIN NO.2 TUBE)
95332-10014

BU60,61,66,70,83,84,87

*H,L=140

 1
77252C - HOSE, FUEL, NO.2(FOR FUEL MAIN NO.2 TUBE)
95332-10040

BU61..IV1;BU60,61,66,83,84,87..T3..(GEN,GHD,SA)

 1
77256D - HOSE, FUEL, NO.1 (FOR FUEL RETURN NO.2 TUBE)
95333-06020

BU88,91..GEN;BU6#,83,84,87

 1
77256E - HOSE, FUEL, NO.2 (FOR FUEL RETURN NO.2 TUBE)
95333-06040

BU61..IV1;BU60,61,66,83,84,87..T3..(GEN,GHD,SA)

 1
77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
23273-56010

BU6#,70,8#,94;BU91,96..ARL,GEN

L=220

 1
77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
23273-56010

BU6#,70,8#,94;BU91,96..ARL,GEN

L=220

 1
Common parts
90119-08A46
90170-08204
90179-08141
90179-08144
90467-15012
90949-01161
90949-01162
96132-30600
96132-41100
