BU87R-MDDTY3 (1988)

Toyota Dyna 200

Production Aug 1988 - May 1995
Engine 14B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )BU6#,8#,94

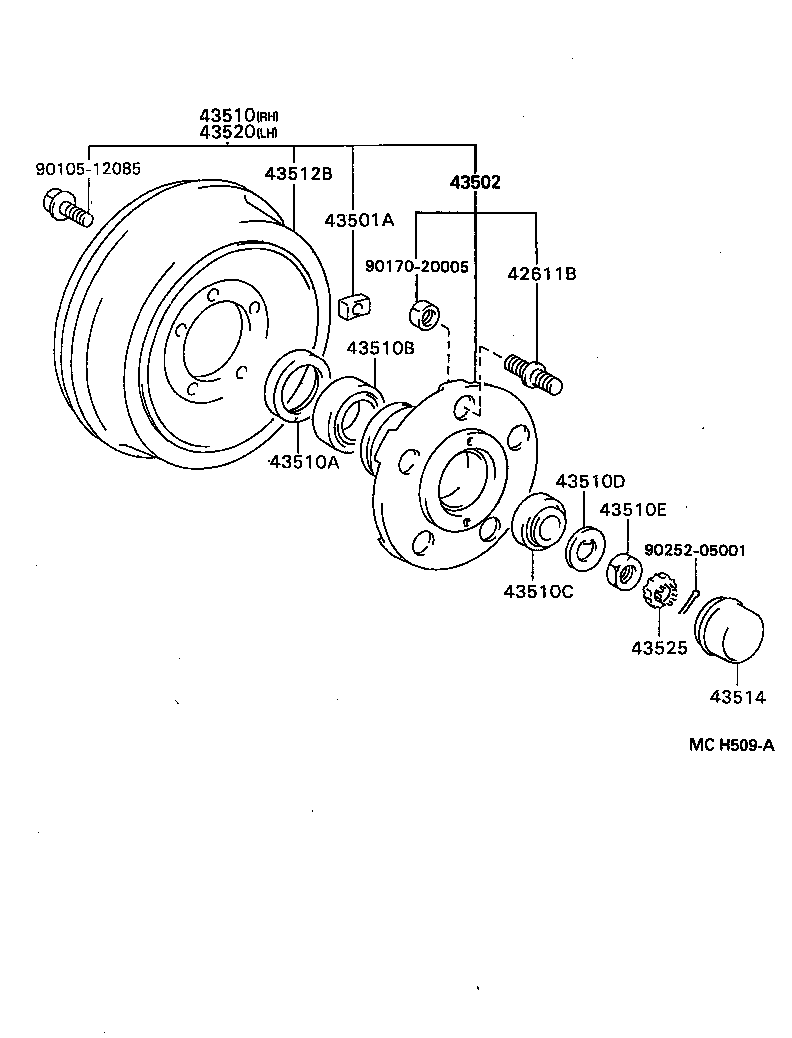

Click highlighted areas on diagram

diagram 42611B 43501A 43502 43510 43510A 43510B 43510C 43510D 43510E 43512B 43514 43520 43525 9010512085 9017020005 9025205001
Part # Description Qty Price
42611B - BOLT, HUB (FOR FRONT AXLE)
90942-02046

BU66..T3..WT;BU60,61,65,67,8#..WT..(CBU,IV3)

LH

 5
90942-02045

BU66..T3..WT;BU60,61,65,67,8#..WT..(CBU,IV3)

RH

 5
43501A - PIECE, BALANCE (FOR FRONT BRAKE DRUM)
90937-01122

BU66..T3..WT;BU60,61,65,67,8#,9#..WT

60G

 1
43502 - HUB SUB-ASSY, FRONT AXLE
43502-36010

BU66..T3..WT;BU60,61,65,67,8#..WT..(CBU,IV3)

LH

 1
43501-36010

BU66..T3..WT;BU60,61,65,67,8#..WT..(CBU,IV3)

RH

 1
43510 - HUB AND BRAKE DRUM ASSY, FRONT AXLE, RH
43510-36131

BU66..T3..WT;BU60,61,65,67,8#..WT..(CBU,IV3)

 1
43510A - SEAL, OIL (FOR FRONT AXLE HUB)
90311-68001

BU6#,70,8#,94

 2
43510B - BEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)
90368-42045

BU6#,70,8#,94

 2
43510C - BEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)
90368-28001

BU6#,70,8#,94

 2
43510D - WASHER, CLAW (FOR STEERING KNUCKLE WASHER)
90214-27001

BU6#,70,8#,94

 2
43510E - NUT (FOR STEERING KNUCKLE)
90170-26001

BU6#,70,8#,94

 2
43512B - DRUM, BRAKE
43512-36101

BU66..T3..WT;BU60,61,65,67,8#,94..WT

 2
43514 - CAP, FRONT HUB GREASE
43514-36030

BU6#,70,8#,94

 2
43520 - HUB AND BRAKE DRUM ASSY, FRONT AXLE, LH
43520-36131

BU66..T3..WT;BU60,61,65,67,8#..WT..(CBU,IV3)

 1
43525 - CAP, FRONT WHEEL ADJUSTING LOCK
43525-36010

BU6#,70,8#,94

 2
Common parts
90105-12085
90170-20005
90252-05001
