BU86R-MDPDT3 (1987)
Toyota Dyna 200
(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44653D - WASHER, EXHAUST VALVE COVER | ||||
| 44653-55010 |
BU65..GEN..CBU;BU61,62,81,85,86..(T3,TW1)..(GEN,GHD)..(CBU,IV3) |
7 | ||
| 44653D - WASHER, EXHAUST VALVE COVER | ||||
| 44653-55010 |
BU65..GEN..CBU;BU61,62,81,85,86..(T3,TW1)..(GEN,GHD)..(CBU,IV3) |
7 | ||
| 44653D - WASHER, EXHAUST VALVE COVER | ||||
| 44653-55010 |
BU65..GEN..CBU;BU61,62,81,85,86..(T3,TW1)..(GEN,GHD)..(CBU,IV3) |
7 | ||
| 44653D - WASHER, EXHAUST VALVE COVER | ||||
| 44653-55010 |
BU65..GEN..CBU;BU61,62,81,85,86..(T3,TW1)..(GEN,GHD)..(CBU,IV3) |
7 | ||
| 44736 - BRACKET, AIR CLEANER | ||||
| 44736-36011 |
BU62..GEN;BU60,61,80,81,85,86..WT..(GEN,GHD)..(CBU,IV3) |
1 | ||
| 46710 - VALVE ASSY, EXHAUST BRAKE | ||||
| 46710-36090 |
BU65..GEN..CBU;BU61,62,81,85,86..(T3,TW1)..(GEN,GHD)..(CBU,IV3) |
1 | ||
| 46711 - COVER, EXHAUST VALVE | ||||
| 46711-36010 |
BU62..GEN;BU65..GEN..CBU;BU60,61,80,81,85,86..WT..(GEN,GHD)..(CBU,IV3) |
1 | ||
| 46712A - COVER, EXHAUST BRAKE BRACKET | ||||
| 46712-36060 |
BU62..GEN;BU65..GEN..CBU;BU60,61,80,81,85,86..WT..(GEN,GHD)..(CBU,IV3) |
1 | ||
| 46713 - BRACKET, EXHAUST VALVE | ||||
| 46713-36060 |
BU62..GEN;BU65..GEN..CBU;BU60,61,80,81,85,86..WT..(GEN,GHD)..(CBU,IV3) |
1 | ||
| 46714 - LEVER, EXHAUST VALVE | ||||
| 46714-36010 |
BU62..GEN;BU65..GEN..CBU;BU60,61,80,81,85,86..WT..(GEN,GHD)..(CBU,IV3) |
1 | ||
| 46715 - BUSH, EXHAUST VALVE, NO.1 | ||||
| 46715-36010 |
BU62..GEN;BU65..GEN..CBU;BU60,61,80,81,85,86..WT..(GEN,GHD)..(CBU,IV3) L=16.0,L=16 |
1 | ||
| 46715-36060 |
BU62..GEN;BU65..GEN..CBU;BU60,61,80,81,85,86..WT..(GEN,GHD)..(CBU,IV3) L=20.5,L=20.5 |
1 | ||
| 46715 - BUSH, EXHAUST VALVE, NO.1 | ||||
| 46715-36010 |
BU62..GEN;BU65..GEN..CBU;BU60,61,80,81,85,86..WT..(GEN,GHD)..(CBU,IV3) L=16.0,L=16 |
1 | ||
| 46715-36060 |
BU62..GEN;BU65..GEN..CBU;BU60,61,80,81,85,86..WT..(GEN,GHD)..(CBU,IV3) L=20.5,L=20.5 |
1 | ||
| 46717A - RING, EXHAUST VALVE SEAL, NO.1 | ||||
| 46717-36010 |
BU62..GEN;BU65..GEN..CBU;BU60,61,80,81,85,86..WT..(GEN,GHD)..(CBU,IV3) |
2 | ||
| 46717A - RING, EXHAUST VALVE SEAL, NO.1 | ||||
| 46717-36010 |
BU62..GEN;BU65..GEN..CBU;BU60,61,80,81,85,86..WT..(GEN,GHD)..(CBU,IV3) |
2 | ||
| 46718 - RING, EXHAUST VALVE SEAL, NO.2 | ||||
| 46718-36010 |
BU62..GEN;BU65..GEN..CBU;BU60,61,80,81,85,86..WT..(GEN,GHD)..(CBU,IV3) |
2 | ||
| 46718 - RING, EXHAUST VALVE SEAL, NO.2 | ||||
| 46718-36010 |
BU62..GEN;BU65..GEN..CBU;BU60,61,80,81,85,86..WT..(GEN,GHD)..(CBU,IV3) |
2 | ||
| 46740 - CLEANER ASSY, EXHAUST RETARDER | ||||
| 46740-36011 |
BU62..GEN;BU60,61,80,81,85,86..WT..(GEN,GHD)..(CBU,IV3) |
1 | ||
| 46740A - BOLT, UNION(FOR EXHAUST BRAKE CLEANER ASSY) | ||||
| 90401-12097 |
BU62..GEN;BU65..GEN..CBU;BU60,61,80,81,85,86..WT..(GEN,GHD)..(CBU,IV3) |
1 | ||
| 46740B - GASKET(FOR EXHAUST BRAKE CLEANER ASSY) | ||||
| 90430-12247 |
BU62..GEN;BU65..GEN..CBU;BU60,61,80,81,85,86..WT..(GEN,GHD)..(CBU,IV3) |
2 | ||
| 46744 - CLEVIS, EXHAUST BRAKE ROD CLEVIS | ||||
| 46744-25010 |
BU62..GEN;BU65..GEN..CBU;BU60,61,80,81,85,86..WT..(GEN,GHD)..(CBU,IV3) |
1 | ||
| 46759 - GASKET, EXHAUST RETARDER | ||||
| 46759-36010 |
BU62..GEN;BU65..GEN..CBU;BU60,61,80,81,85,86..WT..(GEN,GHD)..(CBU,IV3) W(EXHAUST BRAKE) |
2 | ||
| 46759 - GASKET, EXHAUST RETARDER | ||||
| 46759-36010 |
BU62..GEN;BU65..GEN..CBU;BU60,61,80,81,85,86..WT..(GEN,GHD)..(CBU,IV3) W(EXHAUST BRAKE) |
2 | ||
| 46760A - CHAMBER ASSY, EXHAUST BRAKE | ||||
| 46760-36091 |
BU62..GEN;BU65..GEN..CBU;BU60,61,80,81,85,86..WT..(GEN,GHD)..(CBU,IV3) |
1 | ||
| 46765 - PIN, VACUUM CYLINDER CLEVIS | ||||
| 46765-36010 |
BU62..GEN;BU65..GEN..CBU;BU60,61,80,81,85,86..WT..(GEN,GHD)..(CBU,IV3) |
1 | ||
| 46766 - PIN, VACUUM CYLINDER CLEVIS SNAP | ||||
| 46766-36010 |
BU62..GEN;BU65..GEN..CBU;BU60,61,80,81,85,86..WT..(GEN,GHD)..(CBU,IV3) |
1 | ||
| 46778A - BEARING, EXHAUST BRAKE CHAMBER ROD | ||||
| 46778-36060 |
BU62..GEN;BU65..GEN..CBU;BU60,61,80,81,85,86..WT..(GEN,GHD)..(CBU,IV3) |
1 | ||
| 46781 - INSULATOR, EXHAUST BRAKE CHAMBER, NO.1 | ||||
| 46781-36060 |
BU62..GEN;BU65..GEN..CBU;BU60,61,80,81,85,86..WT..(GEN,GHD)..(CBU,IV3) |
1 | ||
| 46791 - BOLT, EXHAUST VALVE COVER | ||||
| 46791-36010 |
BU62..GEN;BU65..GEN..CBU;BU60,61,80,81,85,86..WT..(GEN,GHD)..(CBU,IV3) |
4 | ||
| 46791 - BOLT, EXHAUST VALVE COVER | ||||
| 46791-36010 |
BU62..GEN;BU65..GEN..CBU;BU60,61,80,81,85,86..WT..(GEN,GHD)..(CBU,IV3) |
4 | ||
| 46792 - BOLT, EXHAUST VALVE STOPPER | ||||
| 46792-36010 |
BU62..GEN;BU65..GEN..CBU;BU60,61,80,81,85,86..WT..(GEN,GHD)..(CBU,IV3) |
2 | ||
| 46793 - BOLT, EXHAUST VALVE LINK COVER | ||||
| 46793-36010 |
BU62..GEN;BU65..GEN..CBU;BU60,61,80,81,85,86..WT..(GEN,GHD)..(CBU,IV3) |
2 | ||
| 46793 - BOLT, EXHAUST VALVE LINK COVER | ||||
| 46793-36010 |
BU62..GEN;BU65..GEN..CBU;BU60,61,80,81,85,86..WT..(GEN,GHD)..(CBU,IV3) |
2 | ||
| 46795 - NUT, EXHAUST VALVE BRACKET | ||||
| 46795-36010 |
BU62..GEN;BU65..GEN..CBU;BU60,61,80,81,85,86..WT..(GEN,GHD)..(CBU,IV3) |
2 | ||
| Common parts | ||||
| 90119-08486 | ||||
| 91611-60865 | ||||
| 94120-40800 | ||||
| 94181-10800 | ||||

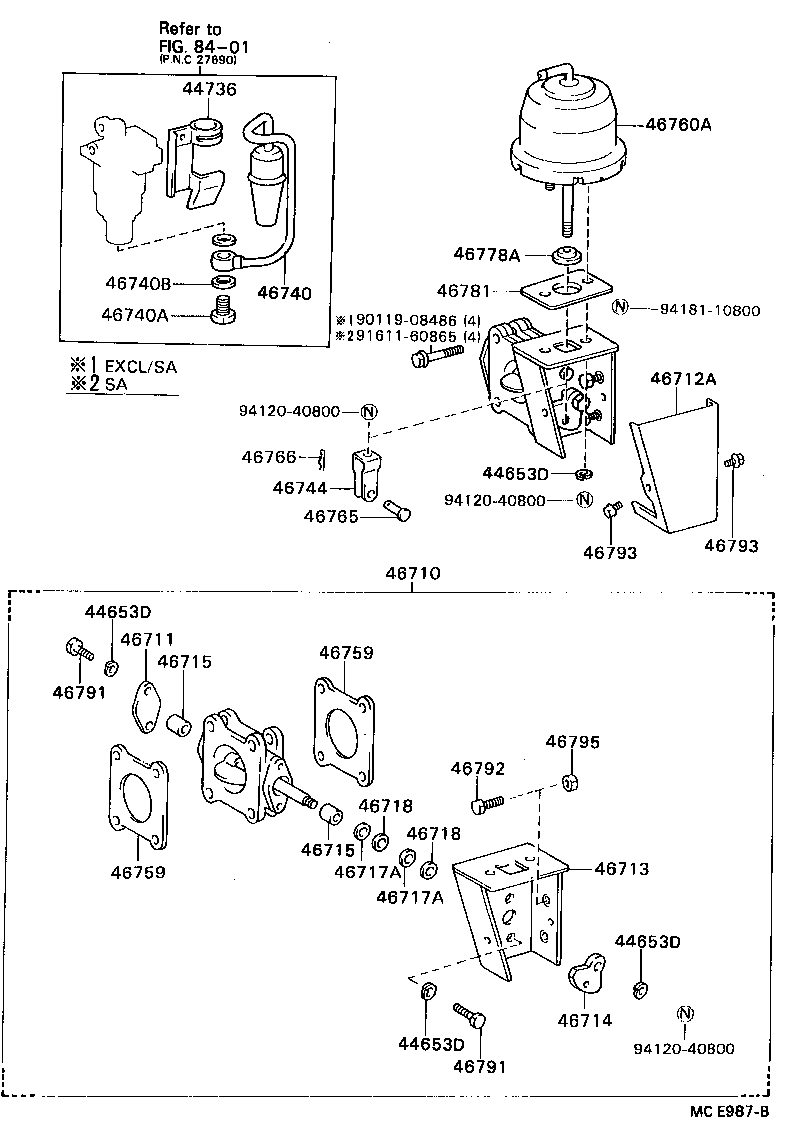

| Linked diagrams | ||||
| 8401 | ||||
