BU86R-MDPDT (1987)

Toyota Dyna 200

Production Aug 1987 - Aug 1988
Engine 11B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

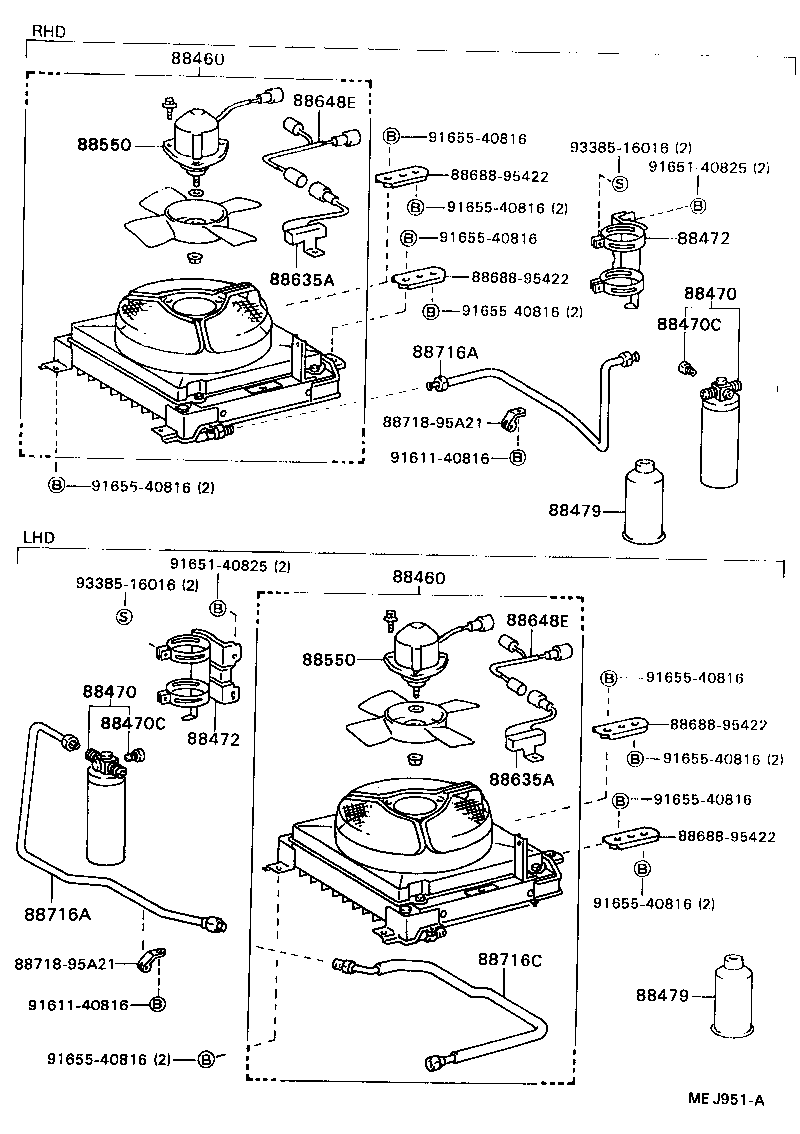

ILLUST NO. 1 OF 2(8708- )BU85,86,93

Click highlighted areas on diagram

diagram 88460 88460 88470 88470 88470C 88470C 88472 88472 88479 88479 88550 88550 88635A 88635A 88648E 88648E 8868895422 8868895422 8868895422 8868895422 88716A 88716A 88716C 8871895A21 8871895A21 9161140816 9161140816 9165140825 9165140825 9165540816 9165540816 9165540816 9165540816 9165540816 9165540816 9165540816 9165540816 9165540816 9165540816 9338516016 9338516016
Part # Description Qty Price
88460 - CONDENSER ASSY, COOLER
88460-95408

BU86

 1
88460-95408

BU86

 1
88460 - CONDENSER ASSY, COOLER
88460-95408

BU86

 1
88460-95408

BU86

 1
88470 - RECEIVER & DRYER ASSY, COOLER
88471-95400

BU70,86

 1
88471-95400

BU70,86

 1
88470 - RECEIVER & DRYER ASSY, COOLER
88471-95400

BU70,86

 1
88471-95400

BU70,86

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-95406

BU86

 1
88472-95406

BU86

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-95406

BU86

 1
88472-95406

BU86

 1
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02001

BU85..IV1;BU61..ST..IV3;BU80,81,85..LHD;BU80,81..GHD,SA;BU62,70,82,86..5F;BU60,61..LHD..IV3;BU80,81..RHD..GEN..CBU;BU60,61..GEN..(CBU,IV1)

400G

 2
90986-02001

BU85..IV1;BU61..ST..IV3;BU80,81,85..LHD;BU80,81..GHD,SA;BU60,61..LHD..IV3;BU62,70,82,86,93..5F;BU80,81..RHD..GEN..CBU;BU60,61..GEN..(CBU,IV1)

400G

 2
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02001

BU85..IV1;BU61..ST..IV3;BU80,81,85..LHD;BU80,81..GHD,SA;BU62,70,82,86..5F;BU60,61..LHD..IV3;BU80,81..RHD..GEN..CBU;BU60,61..GEN..(CBU,IV1)

400G

 2
90986-02001

BU85..IV1;BU61..ST..IV3;BU80,81,85..LHD;BU80,81..GHD,SA;BU60,61..LHD..IV3;BU62,70,82,86,93..5F;BU80,81..RHD..GEN..CBU;BU60,61..GEN..(CBU,IV1)

400G

 2
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
87104-95406

BU70,86

FR HEATER,W(AIR CONDITIONER)

 1
87104-95406

BU70,86

 1
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
87104-95406

BU70,86

FR HEATER,W(AIR CONDITIONER)

 1
87104-95406

BU70,86

 1
88635A - RESISTOR, BLOWER (FOR COOLER CONDENSER MOTOR)
87138-95410

BU70,86

W(AIR CONDITIONER)

 1
87138-95410

BU70,86

 1
88635A - RESISTOR, BLOWER (FOR COOLER CONDENSER MOTOR)
87138-95410

BU70,86

W(AIR CONDITIONER)

 1
87138-95410

BU70,86

 1
88648E - WIRING, COOLER
88648-95419

BU70,86

 1
88648-95419

BU70,86

 1
88648E - WIRING, COOLER
88648-95419

BU70,86

 1
88648-95419

BU70,86

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-95410

BU86

 1
88716-95410

BU86

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-95410

BU86

 1
88716-95410

BU86

 1
Common parts
88688-95422
88718-95A21
91611-40816
91651-40825
91655-40816
93385-16016

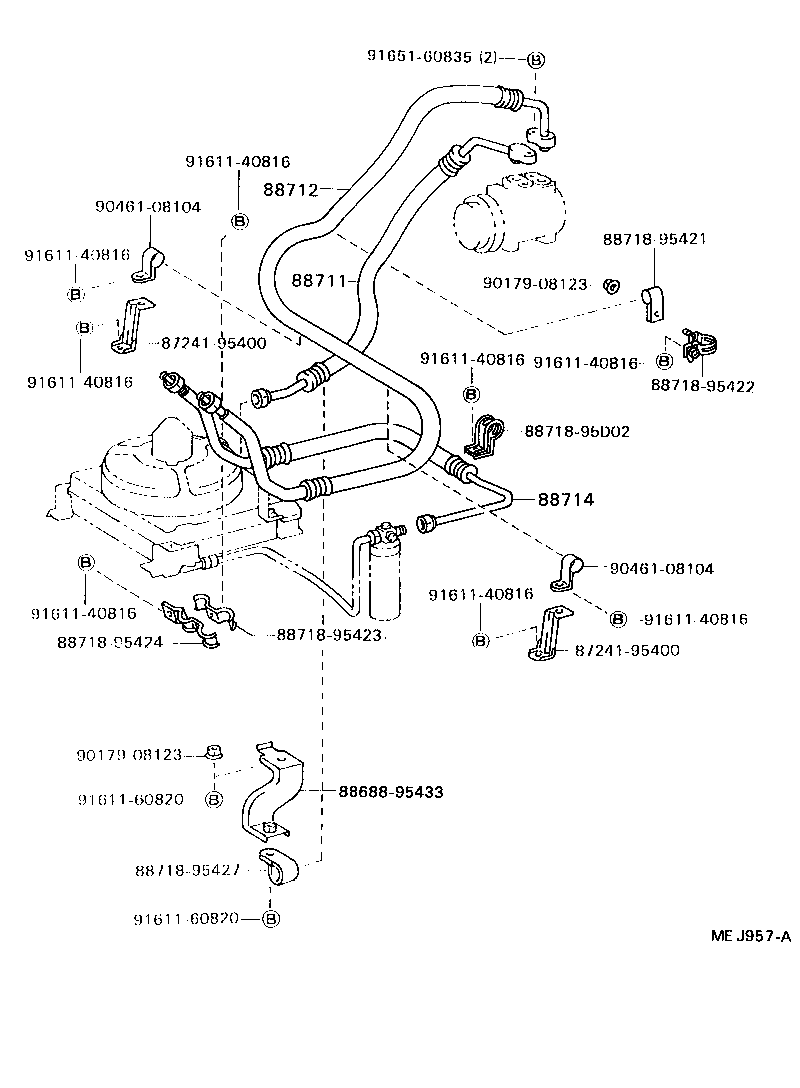

ILLUST NO. 2 OF 2(8708- )BU85,86,93..RHD

Click highlighted areas on diagram

diagram 8724195400 8724195400 8868895433 88711 88712 88714 8871895421 8871895422 8871895424 8871895424 8871895427 8871895D02 9017908123 9017908123 9046108104 9046108104 9161140816 9161140816 9161140816 9161140816 9161140816 9161140816 9161140816 9161140816 9161160820 9161160820 9165160835
Part # Description Qty Price
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-95423

BU86

 1
88711-95423

BU86

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-95417

BU86

 1
88712-95417

BU86

 1
88714 - HOSE, COOLER REFRIGERANT LIQUID, NO.1
88721-95409

BU86

 1
88721-95409

BU86

 1
Common parts
87241-95400
88688-95433
88718-95421
88718-95422
88718-95424
88718-95427
88718-95D02
90179-08123
90461-08104
91611-40816
91611-60820
91651-60835
