BU86R-MDPDT (1987)

Toyota Dyna 200

Production Aug 1987 - Aug 1988
Engine 11B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

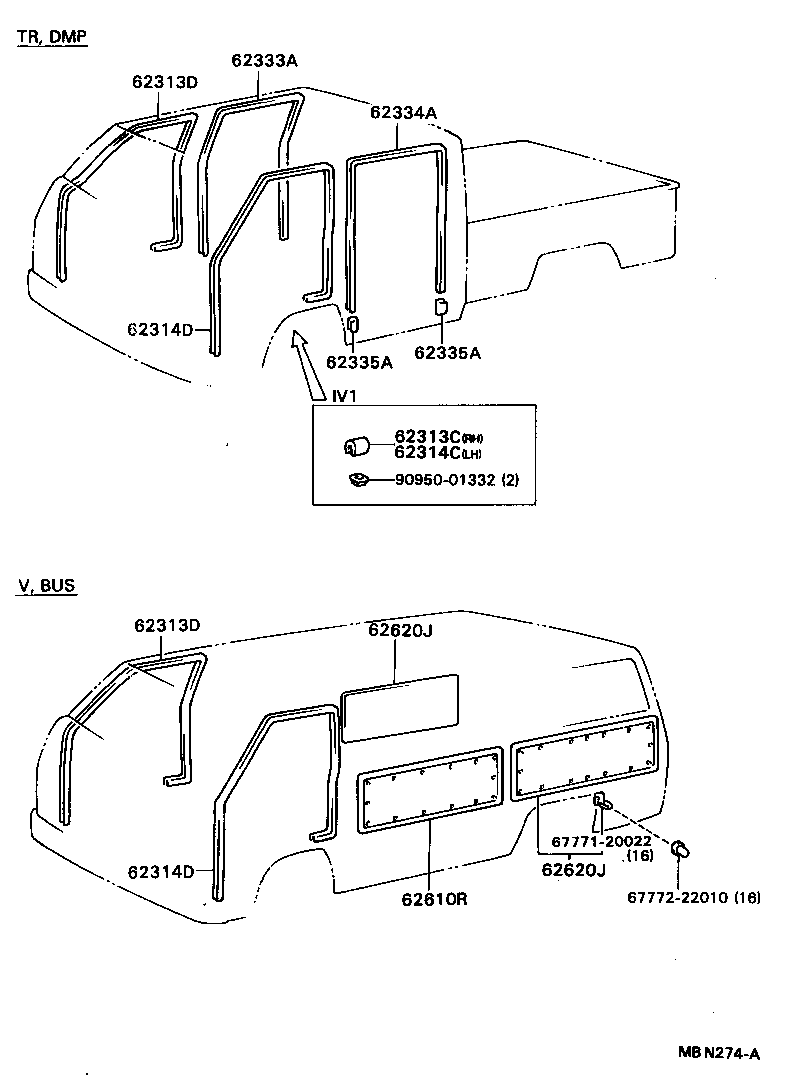

Click highlighted areas on diagram

diagram 62313C 62313D 62313D 62314C 62314D 62314D 62333A 62334A 62335A 62335A 62610R 62620J 62620J 6777120022 6777222010 9095001332
Part # Description Qty Price
62313D - TRIM, FRONT DOOR OPENING, RH
62313-9540406

BU6#,70,8#..CBU,IV3

BROWN,TRIM4#

 1
62313D - TRIM, FRONT DOOR OPENING, RH
62313-9540406

BU6#,70,8#..CBU,IV3

BROWN,TRIM4#

 1
62314D - TRIM, FRONT DOOR OPENING, LH
62313-9540406

BU6#,70,8#..CBU,IV3

BROWN,TRIM4#

 1
62314D - TRIM, FRONT DOOR OPENING, LH
62313-9540406

BU6#,70,8#..CBU,IV3

BROWN,TRIM4#

 1
62333A - TRIM, REAR DOOR OPENING, RH
62333-9540006

BU60,85,86..TW1

BROWN,TRIM4#

 1
62334A - TRIM, REAR DOOR OPENING, LH
62333-9540006

BU60,85,86..TW1

BROWN,TRIM4#

 1
62335A - COVER, REAR DOOR OPENING TRIM
62335-9260006

BU60,85,86..TW1

BROWN,TRIM4#

 4
62335A - COVER, REAR DOOR OPENING TRIM
62335-9260006

BU60,85,86..TW1

BROWN,TRIM4#

 4
Common parts
67771-20022
67772-22010
90950-01332
