BU84R-MDDTN3 (1988)

Toyota Dyna 200

Production Aug 1988 - May 1995
Engine 11B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )BU6#,70,83,84,87

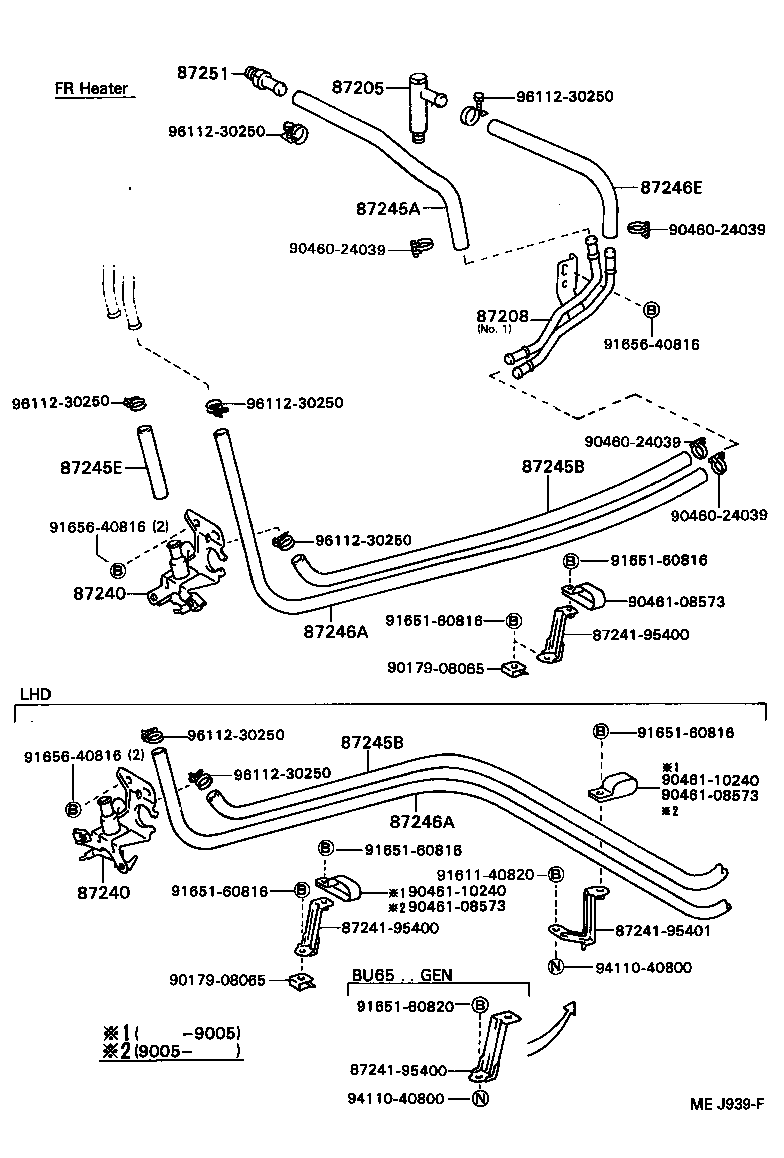

Click highlighted areas on diagram

diagram 87205 87208 87240 87240 8724195400 8724195400 8724195400 8724195401 87245A 87245B 87245B 87245E 87246A 87246A 87246E 87251 9017908065 9017908065 9046024039 9046024039 9046024039 9046024039 9046108573 9046108573 9046108573 9046110240 9046110240 9161140820 9165160816 9165160816 9165160816 9165160816 9165160816 9165160820 9165640816 9165640816 9165640816 9411040800 9411040800 9611230250 9611230250 9611230250 9611230250 9611230250 9611230250 9611230250
Part # Description Qty Price
87205 - JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALV
87251-95400

BU6#,70,8#,94;BU91,96..ARL,GEN

 1
87251-95400

BU96..LHD;BU91..ARL;BU91..CBU;BU6#,70,8#,94;BU91..LHD..IV3

 1
87208 - PIPE SUB-ASSY, HEATER WATER
87208-95409

BU65,67..IV3;BU60,61,66,83,84,87..RHD

NO.1

 1
87208-95409

BU60,65..RHD;BU60..LHD..T3;BU61,66,70,83,84,87

 1
87240 - VALVE ASSY, HEATER WATER
87240-95409

BU60,61,65,66,8#,9#..RHD

 1
87240 - VALVE ASSY, HEATER WATER
87240-95409

BU60,61,65,66,8#,9#..RHD

 1
87245A - HOSE, HEATER WATER, INLET A
99556-30300

BU6#,70,83,84,87

L=300

 1
87245B - HOSE, HEATER WATER, INLET B
99556-30680

BU60,61,65,66,83,84,87..RHD

*H,L=680

 1
87245B - HOSE, HEATER WATER, INLET B
99556-30680

BU60,61,65,66,83,84,87..RHD

*H,L=680

 1
87245E - HOSE, HEATER WATER, INLET E
99556-30135

BU6#,70,8#,9#

*H,L=135

 1
99556-30135

BU91..CBU;BU96..LHD;BU6#,70,8#,94;BU91..LHD..IV3;BU91,96..ARL,SA

*H,L=135

 1
87246A - HOSE, HEATER WATER, OUTLET A
99556-30980

BU60,61,65,66,83,84,87..RHD

*H,L=980

 1
87246A - HOSE, HEATER WATER, OUTLET A
99556-30980

BU60,61,65,66,83,84,87..RHD

*H,L=980

 1
87246E - HOSE, HEATER WATER, OUTLET E
99556-30300

BU6#,70,83,84,87

L=300

 1
87251 - JOINT OR UNION, WATER HOSE THROUGH
87251-30200

BU60..RHD;BU91..ARL;BU91..CBU;BU91..LHD..IV3;BU60,96..LHD..T3;BU61,65,66,67,70,8#,94

 1
87251-20160

BU60..RHD;BU60..LHD..T3;BU91,96..ARL,GEN;BU61,65,66,67,70,8#,94

 1
87251-30200

BU60..RHD;BU60..LHD..T3;BU91,96..ARL,GEN;BU61,65,66,67,70,8#,94

 1
Common parts
87241-95400
87241-95401
90179-08065
90460-24039
90461-08573
90461-10240
91611-40820
91651-60816
91651-60820
91656-40816
94110-40800
96112-30250
