BU84L-MDDT (1988)

Toyota Dyna 200

Production Aug 1988 - May 1995
Engine 11B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )B,11B,14B

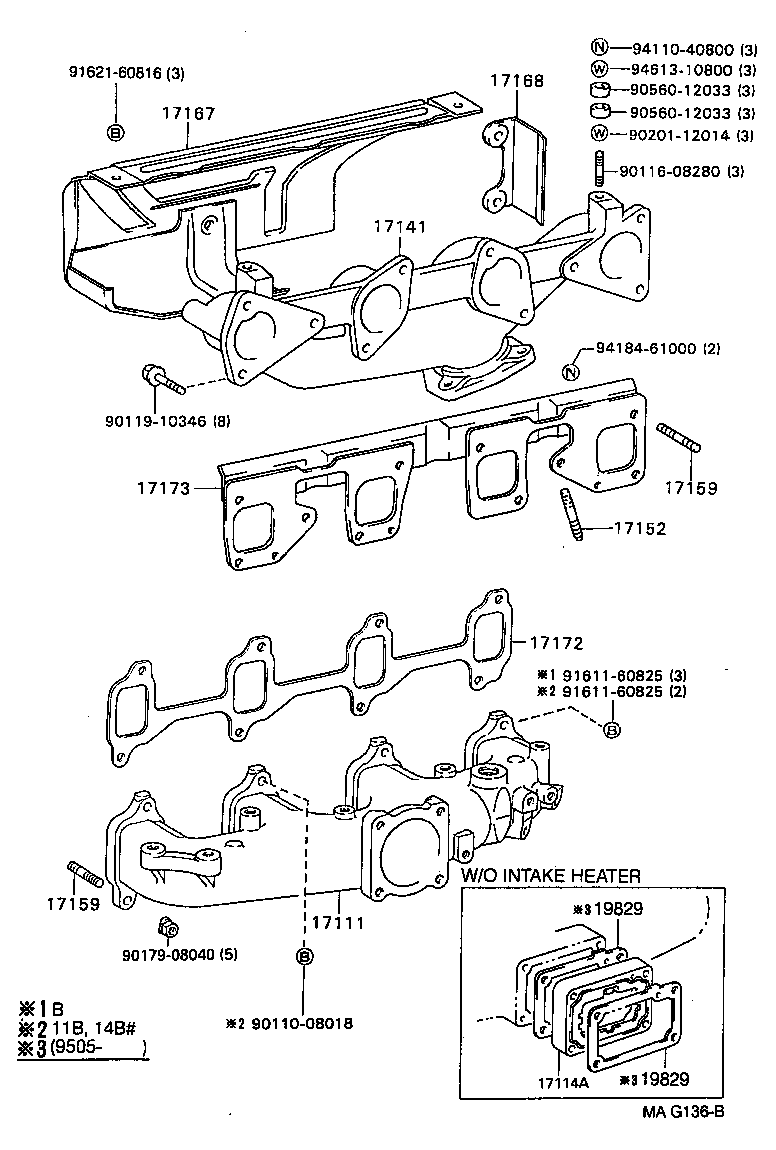

Click highlighted areas on diagram

diagram 17111 17114A 17141 17152 17159 17159 17167 17168 17172 17173 19829 19829 9011008018 9011608280 9011910346 9017908040 9020112014 9056012033 9056012033 9161160825 9161160825 9162160816 9411040800 9418461000 9461310800
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17111-56190

11B,14B#..BU61,65,66,67,84,87,88,9#

 1
17114A - FLANGE, INTAKE
17114-58010

11B,14B#..BU61,65,66,67,84,87,88,9#

 1
17141 - MANIFOLD, EXHAUST
17141-56060

B,11B,14B..BU6#,70,8#,9#

 1
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10087

B,11B,14B#..BU6#,70,8#,9#

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-10147

B,11B,14B..BU6#,70,8#,9#

EXHAUST MANIFOLD

 2
90116-10098

B,11B,14B#..BU6#,70,8#,9#

EXHAUST MANIFOLD

 2
92132-60825

B,11B,14B..BU6#,70,8#,9#

INTAKE MANIFOLD

 5
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-10147

B,11B,14B..BU6#,70,8#,9#

EXHAUST MANIFOLD

 2
90116-10098

B,11B,14B#..BU6#,70,8#,9#

EXHAUST MANIFOLD

 2
92132-60825

B,11B,14B..BU6#,70,8#,9#

INTAKE MANIFOLD

 5
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-56050

11B,14B..BU61,65,88,91..GEN,SA;B,11B,14B..BU60,66,67,70,83,84,87,94,96..5F

 1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-56010

B,11B,14B#..BU6#,70,8#,9#

 1
17172 - GASKET, MANIFOLD TO CYLINDER HEAD
17171-56010

B,11B,14B#..BU6#,70,8#,9#

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-56040

B,11B,14B..BU6#,70,8#,9#

 1
Common parts
90110-08018
90116-08280
90119-10346
90179-08040
90201-12014
90560-12033
91611-60825
91621-60816
94110-40800
94184-61000
94613-10800
