BU83R-MDDTY (1988)
Toyota Dyna 200
Production
Aug 1988
-
May 1995
Engine
B
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8808- )BU60,83..RHD

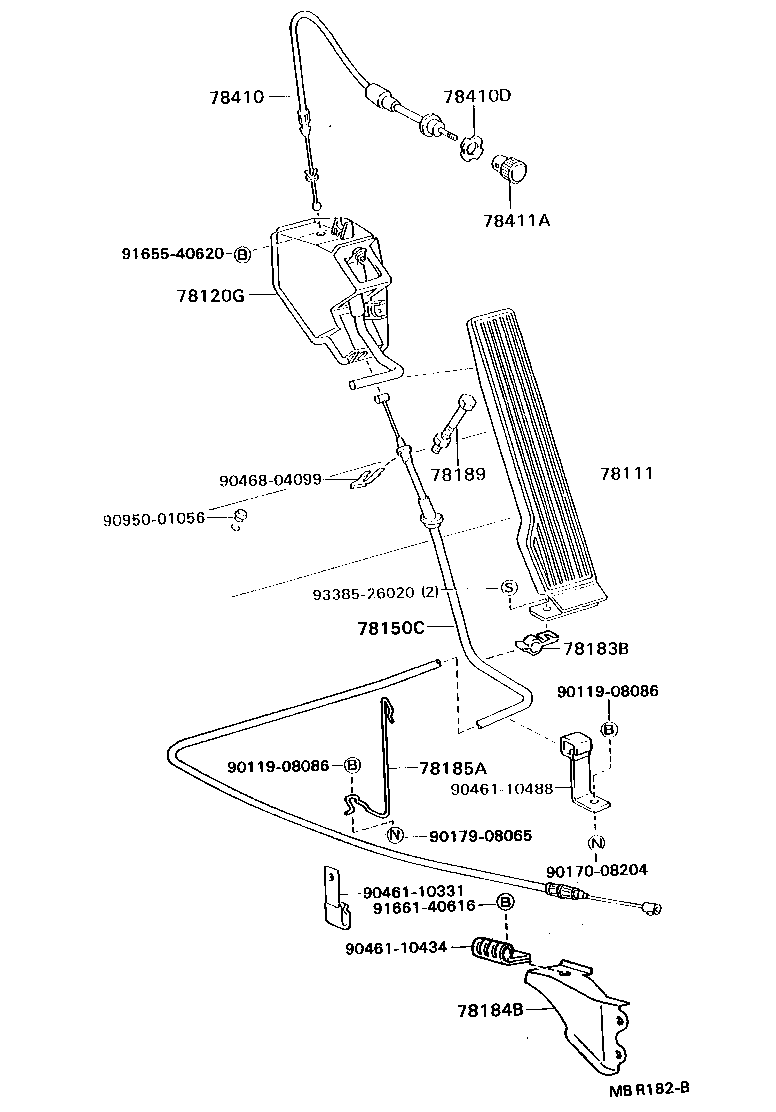

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78111 - PEDAL, ACCELERATOR | ||||
| 78110-95410 |
BU60,61,65,66,8#,9#..RHD |
1 | ||
| 78120G - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78202-95400 |
BU60,61,65,66,83,84,87..RHD |
1 | ||
| 78150C - WIRE ASSY, ACCELERATOR FLEXIBLE | ||||
| 78150-95483 |
BU60,83..RHD |
1 | ||
| 78150-37050 |
BU60,83..RHD |
1 | ||
| 78183B - CLAMP, ACCELERATOR CONTROL CABLE | ||||
| 78183-95406 |
BU60,83..RHD |
1 | ||
| 78184B - BRACKET, ACCELERATOR CONTROL CABLE | ||||
| 78184-90B02 |
BU60,70,83 |
1 | ||
| 78185A - CLAMP, ACCELERATOR CONTROL CABLE, NO.2 | ||||
| 78169-95407 |
BU60,83..RHD |
1 | ||
| 78189 - BOLT, ACCELERATOR PEDAL STOPPER | ||||
| 78208-95404 |
BU60,61,65,66,83,84,87..RHD |
1 | ||
| 78410 - CABLE ASSY, THROTTLE CONTROL | ||||
| 78404-95011 |
BU60,61,65,66,8#,9#..RHD |
1 | ||
| 78410D - NUT, THROTTLE | ||||
| 78314-95010 |
BU6#,70,8#,9# |
1 | ||
| 78411A - KNOB, THROTTLE CONTROL CABLE | ||||
| 78411-22010 |
BU6#,70,8#,9# |
1 | ||
| Common parts | ||||
| 90119-08086 | ||||
| 90170-08204 | ||||
| 90179-08065 | ||||
| 90461-10331 | ||||
| 90461-10434 | ||||
| 90461-10488 | ||||
| 90468-04099 | ||||
| 90950-01056 | ||||
| 91655-40620 | ||||
| 91661-40616 | ||||
| 93385-26020 | ||||
