BU83R-MDDTY (1988)

Toyota Dyna 200

Production Aug 1988 - May 1995
Engine B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )BU60,61,66,83,84,87..RHD

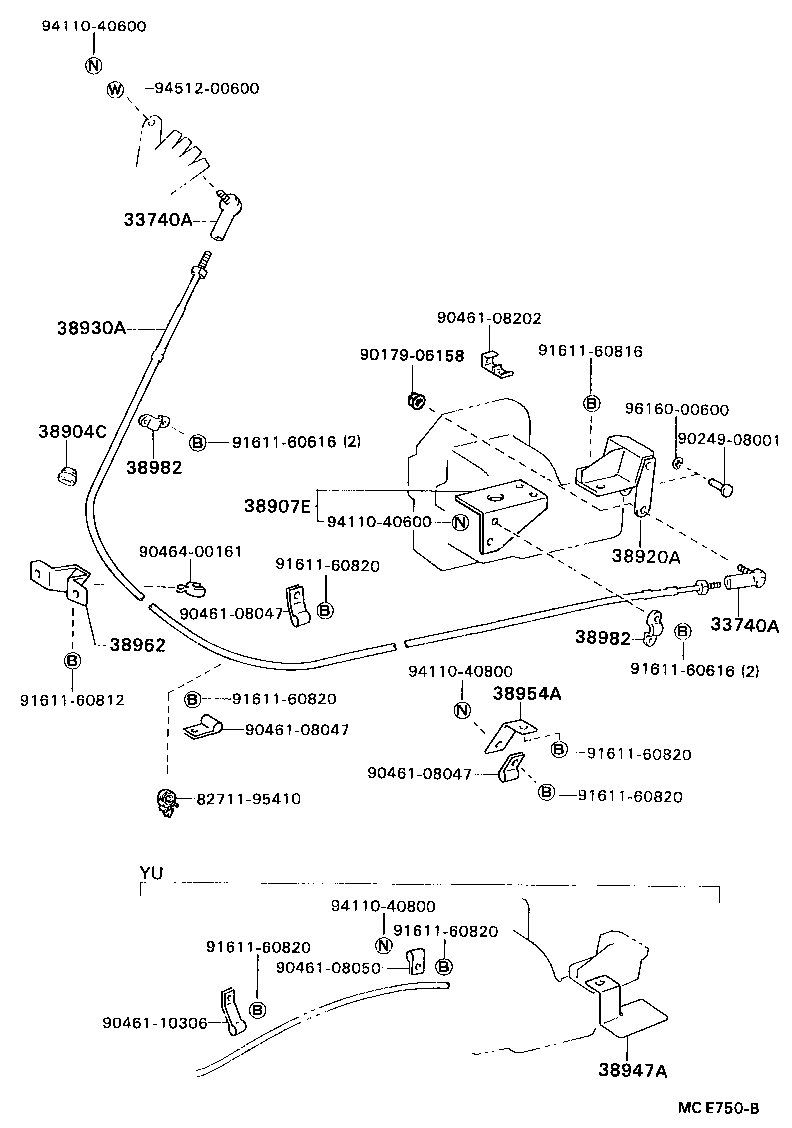

Click highlighted areas on diagram

diagram 33740A 33740A 38904C 38907E 38920A 38930A 38947A 38954A 38962 38982 38982 8271195410 9017906158 9024908001 9046108047 9046108047 9046108047 9046108050 9046108202 9046110306 9046400161 9161160616 9161160616 9161160812 9161160816 9161160820 9161160820 9161160820 9161160820 9161160820 9161160820 9411040600 9411040600 9411040800 9411040800 9451200600 9616000600
Part # Description Qty Price
33740A - END ASSY, PUSH-PULL CONTROL CABLE
33740-96301

BU6#,8#,91,96..5F..WT..(ARL,GEN,GHD)..(CBU,IV3)

 2
33740-96301

BU65..IV3;BU66..T3..TB..WT..GEN;BU60,61,67,8#,91,96..WT..(ARL,GEN,GHD)..(CBU,IV3)

 2
33740A - END ASSY, PUSH-PULL CONTROL CABLE
33740-96301

BU6#,8#,91,96..5F..WT..(ARL,GEN,GHD)..(CBU,IV3)

 2
33740-96301

BU65..IV3;BU66..T3..TB..WT..GEN;BU60,61,67,8#,91,96..WT..(ARL,GEN,GHD)..(CBU,IV3)

 2
38904C - GROMMET, PUSH PULL CABLE
90480-22013

BU6#,83,84,87..5F..WT..(ARL,GEN,GHD);BU88,91,96..RHD..(ARL,GEN)..(CBU,IV3)

 1
90480-22013

BU65..GEN;BU66..T3..TB..WT..GEN;BU88,91,96..RHD..(ARL,GEN)..(CBU,IV3);BU60,61,67,83,84,87..WT..(ARL,GEN,GHD)

 1
38907E - STAY SUB-ASSY, POWER TEKE-OFF CONTROL
38907-93116

BU66..T3..TB..WT..GEN;BU60,61,83,84,87..WT..(ARL,GEN,GHD);BU88,91,96..RHD..(ARL,GEN)..(CBU,IV3)

 1
38920A - LEVER ASSY, POWER TAKE-OFF CONTROL, NO.1
38920-93108

BU66..T3..TB..WT..GEN;BU60,61,83,84,87..WT..(ARL,GEN,GHD);BU88,91,96..RHD..(ARL,GEN)..(CBU,IV3)

 1
38930A - CABLE ASSY, PUSH PULL
38930-93118

BU60,61,66,83,84,87..RHD..WT..(ARL,GEN,GHD)

 1
38930-93118

BU60,61,83,84,87..RHD..WT..(ARL,GEN,GHD)

 1
38954A - BRACKET, CONTROL CABLE, NO.4
38954-93104

BU66..T3..TB..WT;BU60,61,83,84,87..WT..(GEN,GHD)

 1
38954-93104

BU66..T3..TB..WT..GEN;BU60,61,83,84,87..WT..(ARL,GEN,GHD)

 1
38962 - BRACKET, CABLE CLAMP, NO.2
38962-96303

BU60,61,65,83,84,87..RHD..WT..(GEN,GHD)

 1
38982 - CLAMP, PUSH PULL CABLE, NO.1
38982-96302

BU6#,8#,91,96..5F..WT..(ARL,GEN,GHD)..(CBU,IV3)

 2
38982-96302

BU65..IV3;BU66..T3..TB..WT..GEN;BU60,61,67,8#,91,96..WT..(ARL,GEN,GHD)..(CBU,IV3)

 2
38982 - CLAMP, PUSH PULL CABLE, NO.1
38982-96302

BU6#,8#,91,96..5F..WT..(ARL,GEN,GHD)..(CBU,IV3)

 2
38982-96302

BU65..IV3;BU66..T3..TB..WT..GEN;BU60,61,67,8#,91,96..WT..(ARL,GEN,GHD)..(CBU,IV3)

 2
Common parts
82711-95410
90179-06158
90249-08001
90461-08047
90461-08050
90461-08202
90461-10306
90464-00161
91611-60616
91611-60812
91611-60816
91611-60820
94110-40600
94110-40800
94512-00600
96160-00600
