BU83L-MDDT (1988)

Toyota Dyna 200

Production Aug 1988 - May 1995
Engine B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

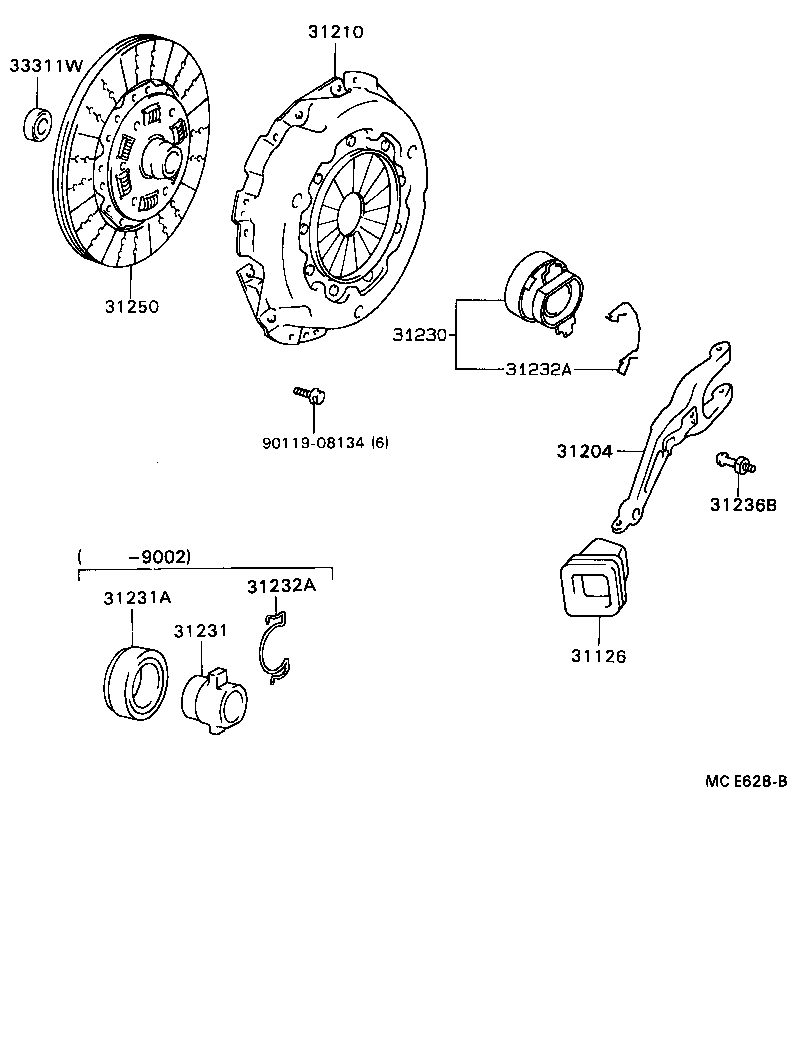

Click highlighted areas on diagram

diagram 31126 31204 31210 31230 31231 31231A 31232A 31232A 31236B 31250 33311W 9011908134
Part # Description Qty Price
31126 - BOOT, CLUTCH RELEASE FORK
31126-36080

BU88..IV1;BU6#,70,83,84,87,94

 1
31126-20060

BU91,96..GEN;BU6#,70,8#,94..5F

 1
31126-20060

BU88..IV1;BU6#,70,83,84,87,94..5F

 1
31204 - FORK SUB-ASSY, CLUTCH RELEASE
31204-35031

BU91,96..GEN;BU6#,70,8#,94..5F

 1
31204-35031

BU88..IV1;BU6#,70,83,84,87,94..5F

 1
31210 - COVER ASSY, CLUTCH
31210-36140

BU60,61,65,70,83,84

 1
31210-36160

BU60,61,65,70,83,84

 1
31230 - BEARING ASSY, CLUTCH RELEASE
31230-36150

BU91,96..GEN;BU6#,70,8#,94..5F

 1
31231 - HUB, CLUTCH RELEASE BEARING
31231-36120

BU91,96..GEN;BU6#,70,8#,94..5F

 1
31231A - BEARING, BALL(FOR CLUTCH RELEASE HUB)
90363-45013

BU6#,70,8#,9#..5F

 1
31232A - CLIP, RELEASE BEARING HUB
31232-36010

BU91,96..GEN;BU6#,70,8#,94..5F

 1
31232-35010

BU91,96..GEN;BU6#,70,8#,94..5F

 1
31232A - CLIP, RELEASE BEARING HUB
31232-36010

BU91,96..GEN;BU6#,70,8#,94..5F

 1
31232-35010

BU91,96..GEN;BU6#,70,8#,94..5F

 1
31236B - SUPPORT, RELEASE FORK
31236-35030

BU91..GEN,SA;BU6#,70,8#,94,96..5F

 1
31236-35030

BU88..IV1;BU91,96..SA;BU6#,70,83,84,87,94..5F

 1
31250 - DISC ASSY, CLUTCH
31250-36411

BU91..GEN;BU6#,70,83,84,87..5F;BU88,96..(ARL,GEN)..(CBU,IV3)

 1
31250-36410

BU91..GEN;BU6#,70,83,84,87..5F;BU88,96..(ARL,GEN)..(CBU,IV3)

 1
33311W - BEARING (FOR INPUT SHAFT)
90363-12002

BU6#,70,8#,9#..5F

 1
Common parts
90119-08134
