BU82R-MDDTY3 (1987)

Toyota Dyna 200

Production Aug 1987 - Aug 1988
Engine 13B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )BU60,85..T3 ; (8708- )BU61,62,65,80,81,82,93

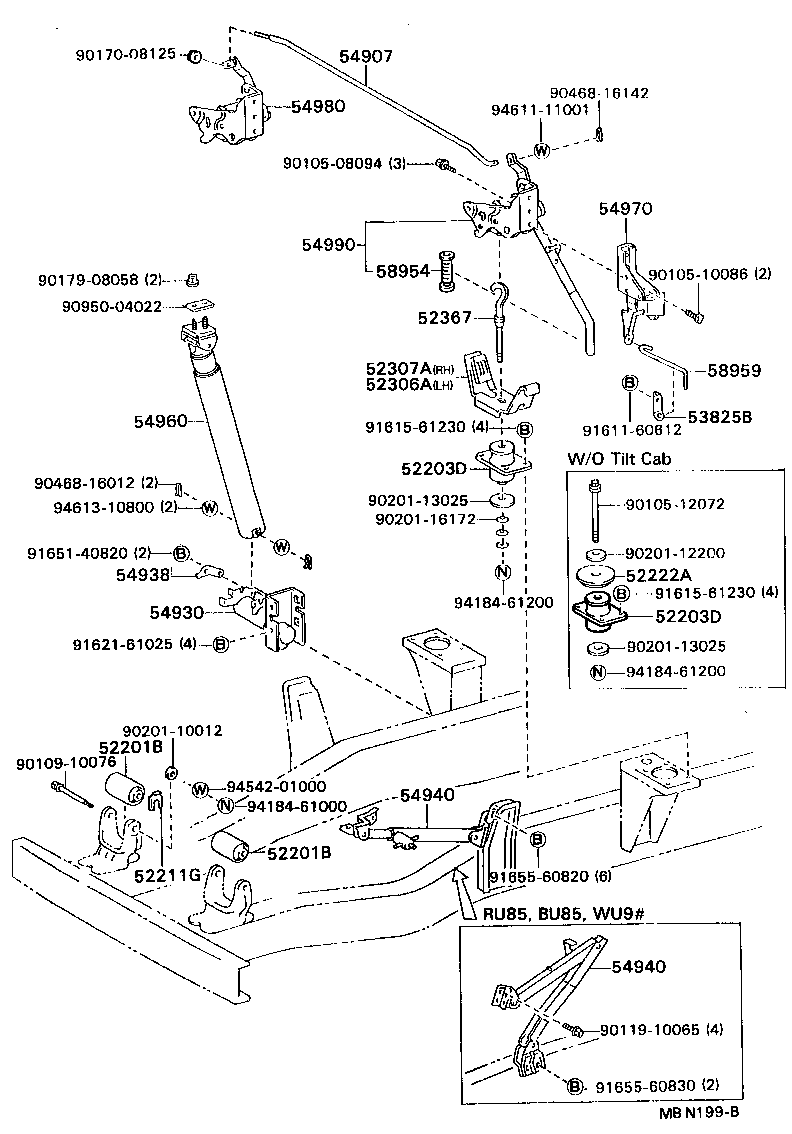

Click highlighted areas on diagram

diagram 52201B 52201B 52203D 52203D 52211G 52222A 52306A 52307A 52367 53825B 54907 54930 54938 54940 54940 54960 54970 54980 54990 58954 58959 9010508094 9010510086 9010512072 9010910076 9011910065 9017008125 9017908058 9020110012 9020112200 9020113025 9020113025 9020116172 9046816012 9046816142 9095004022 9161160612 9161561230 9161561230 9162161025 9165140820 9165560820 9165560830 9418461000 9418461200 9418461200 9454201000 9461111001 9461310800
Part # Description Qty Price
52201B - CUSHION SUB-ASSY, CAB FRONT MOUNTING
52201-36040

BU6#,70,80,81,82

 2
52201B - CUSHION SUB-ASSY, CAB FRONT MOUNTING
52201-36040

BU6#,70,80,81,82

 2
52203D - CUSHION SUB-ASSY, CAB MOUNTING, NO.2 UPPER
52203-36050

BU6#,70,8#

NO. 1

 2
52203-36050

BU6#,70,8#,93

NO. 1

 2
52203D - CUSHION SUB-ASSY, CAB MOUNTING, NO.2 UPPER
52203-36050

BU6#,70,8#

NO. 1

 2
52203-36050

BU6#,70,8#,93

NO. 1

 2
52211G - SPACER, CAB FRONT MOUNTING
52211-36020

BU6#,70,8#,93

 1
52211-36020

BU6#,70,8#

 1
52222A - SPACER, CAB REAR MOUNTING, UPPER
52222-36030

BU61..GEN;BU85..TW1;BU85..IV1;BU65..GEN..CBU;BU60,62,70,80,81,82..5F..(ARL,GEN,GHD)

 2
52222-36030

BU61..GEN;BU85..TW1;BU85..IV1;BU65..GEN..CBU;BU60,62,70,80,81,82,93..5F..(ARL,GEN,GHD)

 2
Common parts
90105-08094
90105-10086
90105-12072
90109-10076
90119-10065
90170-08125
90179-08058
90201-10012
90201-12200
90201-13025
90201-16172
90468-16012
90468-16142
90950-04022
91611-60612
91615-61230
91621-61025
91651-40820
91655-60820
91655-60830
94184-61000
94184-61200
94542-01000
94611-11001
94613-10800
