BU82R-MDDTY3 (1987)
Toyota Dyna 200
ILLUST NO. 1 OF 2(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04443 - BOOSTER KIT, BRAKE | ||||
| 04443-36101 |
BU62,82,85..RHD |
1 | ||
| 04443-36101 |
BU62,82,85,93..RHD |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-36371 |
BU62,82,85..RHD |
1 | ||
| 44610-36371 |
BU62,82,85,93..RHD |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-60040 |
BU6#,70,8#,93 |
1 | ||
| 44730-60040 |
BU6#,70,8# |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||
ILLUST NO. 1 OF 2(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04443 - BOOSTER KIT, BRAKE | ||||
| 04443-36101 |
BU62,82,85..RHD |
1 | ||
| 04443-36101 |
BU62,82,85,93..RHD |
1 | ||
| 44605 - PLATE & SEAL SUB-ASSY, BOOSTER | ||||
| 44605-36220 |
BU62,82,85..WT |
1 | ||
| 44605-36220 |
BU62,82,85,93..WT |
1 | ||
| 44608 - PUSH ROD SUB-ASSY, BOOSTER | ||||
| 44608-25150 |
BU62,82,85,93..WT |
1 | ||
| 44608-25150 |
BU62,82,85..WT |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-36371 |
BU62,82,85..RHD |
1 | ||
| 44610-36371 |
BU62,82,85,93..RHD |
1 | ||
| 44633 - KEY, BOOSTER VALVE PLUNGER | ||||
| 44633-28130 |
BU62,82,85..WT |
1 | ||
| 44633-28130 |
BU62,82,85,93..WT |
1 | ||
| 44637A - PLATE, BOOSTER DIAPHRAGM | ||||
| 44637-25150 |
BU62,82,85,93..WT |
1 | ||
| 44637-25150 |
BU62,82,85..WT |
1 | ||
| 44645 - RETAINER, BOOSTER PUSH ROD SEAL | ||||
| 44645-36220 |
BU62,82,85,93..WT |
1 | ||
| 44645-36220 |
BU62,82,85..WT |
1 | ||
| 44647A - ROD, BOOSTER PISTON | ||||
| 44647-25150 |
BU62,82,85,93..WT |
1 | ||
| 44647-25150 |
BU62,82,85..WT |
1 | ||
| 44673A - BODY, BOOSTER VALVE | ||||
| 44673-25150 |
BU62,82,85..WT |
1 | ||
| 44673-25150 |
BU62,82,85,93..WT |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||
| 90179-08146 | ||||

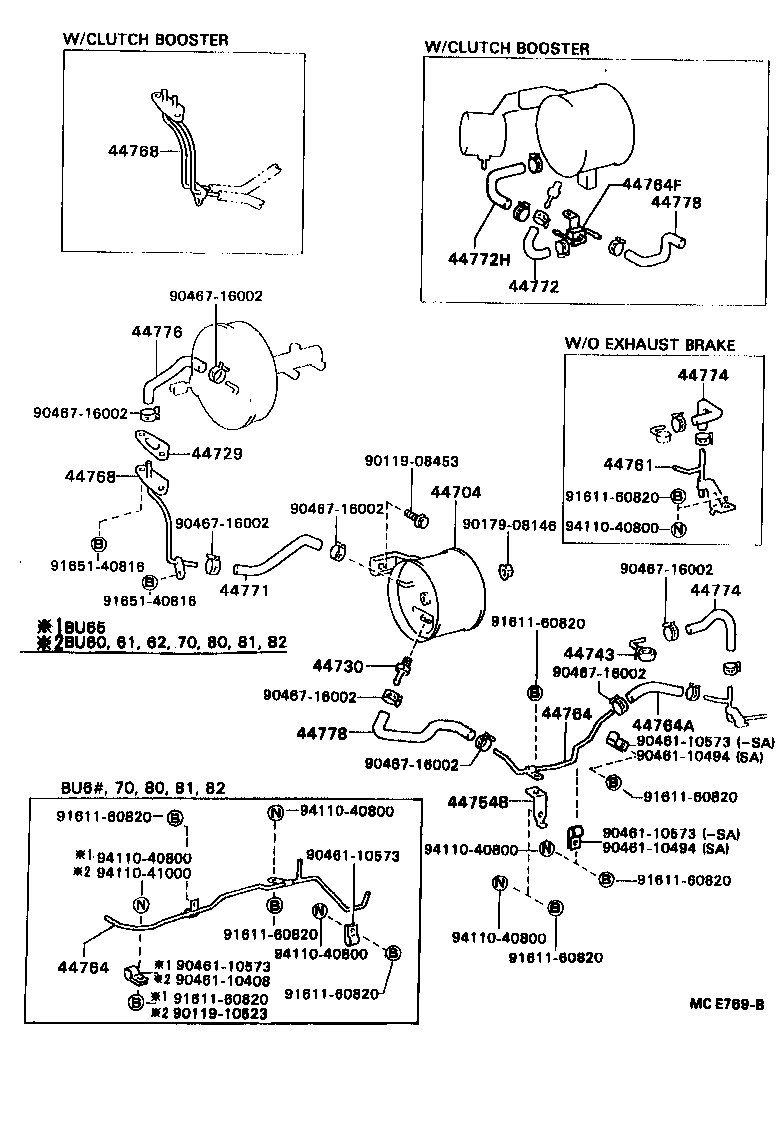

ILLUST NO. 2 OF 2(8708- )BU6#,8#..RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44704 - RESERVOIR SUB-ASSY, VACUUM | ||||
| 44704-36160 |
BU6#,8#..RHD |
1 | ||
| 44704-36160 |
BU6#,8#,93..RHD |
1 | ||
| 44729 - GASKET, VACUUM TUBE | ||||
| 44729-36020 |
BU6#,70,8#,93 |
1 | ||
| 44729-36020 |
BU6#,70,8# |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-60040 |
BU6#,70,8#,93 |
1 | ||
| 44730-60040 |
BU6#,70,8# |
1 | ||
| 44743 - UNION(FOR VACUUM PUMP) | ||||
| 90405-09111 |
BU6#,70,8#,93 |
1 | ||
| 90405-09111 |
BU6#,70,8# |
1 | ||
| 44764 - TUBE, BOOSTER VACUUM | ||||
| 44764-36370 |
BU60,61,62,80,81,82..RHD..(ARL,GEN,GHD) |
1 | ||
| 44764 - TUBE, BOOSTER VACUUM | ||||
| 44764-36370 |
BU60,61,62,80,81,82..RHD..(ARL,GEN,GHD) |
1 | ||
| 44768 - TUBE, BOOSTER VACUUM | ||||
| 44768-36020 |
BU60,61,65,8#,93..RHD..(GEN,GHD,SA) |
1 | ||
| 44768-36020 |
BU60,61,65,8#..RHD..(GEN,GHD,SA) |
1 | ||
| 44768 - TUBE, BOOSTER VACUUM | ||||
| 44768-36020 |
BU60,61,65,8#,93..RHD..(GEN,GHD,SA) |
1 | ||
| 44768-36020 |
BU60,61,65,8#..RHD..(GEN,GHD,SA) |
1 | ||
| 44771 - HOSE, VACUUM TUBE CONNECTOR | ||||
| 44771-36060 |
BU6#,8#..RHD |
1 | ||
| 44771-36060 |
BU6#,8#,93..RHD |
1 | ||
| 44774 - HOSE, UNION TO CONNECTOR TUBE | ||||
| 44774-36090 |
BU6#,70,80,81,82 |
1 | ||
| 44774 - HOSE, UNION TO CONNECTOR TUBE | ||||
| 44774-36090 |
BU6#,70,80,81,82 |
1 | ||
| 44776 - HOSE, BRAKE BOOSTER | ||||
| 44776-36030 |
BU6#,80,81,82..RHD |
1 | ||
| 44778 - HOSE, CONNECTOR TO CHECK VALVE | ||||
| 44778-36010 |
BU6#,8#..RHD |
1 | ||
| 44778-36010 |
BU6#,8#,93..RHD |
1 | ||
| 44778 - HOSE, CONNECTOR TO CHECK VALVE | ||||
| 44778-36010 |
BU6#,8#..RHD |
1 | ||
| 44778-36010 |
BU6#,8#,93..RHD |
1 | ||
| Common parts | ||||
| 90119-08453 | ||||
| 90119-10523 | ||||
| 90179-08146 | ||||
| 90461-10408 | ||||
| 90461-10494 | ||||
| 90461-10573 | ||||
| 90467-16002 | ||||
| 91611-60820 | ||||
| 91651-40816 | ||||
| 94110-40800 | ||||
| 94110-41000 | ||||
