BU82R-MDDTY3 (1987)

Toyota Dyna 200

Production Aug 1987 - Aug 1988
Engine 13B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

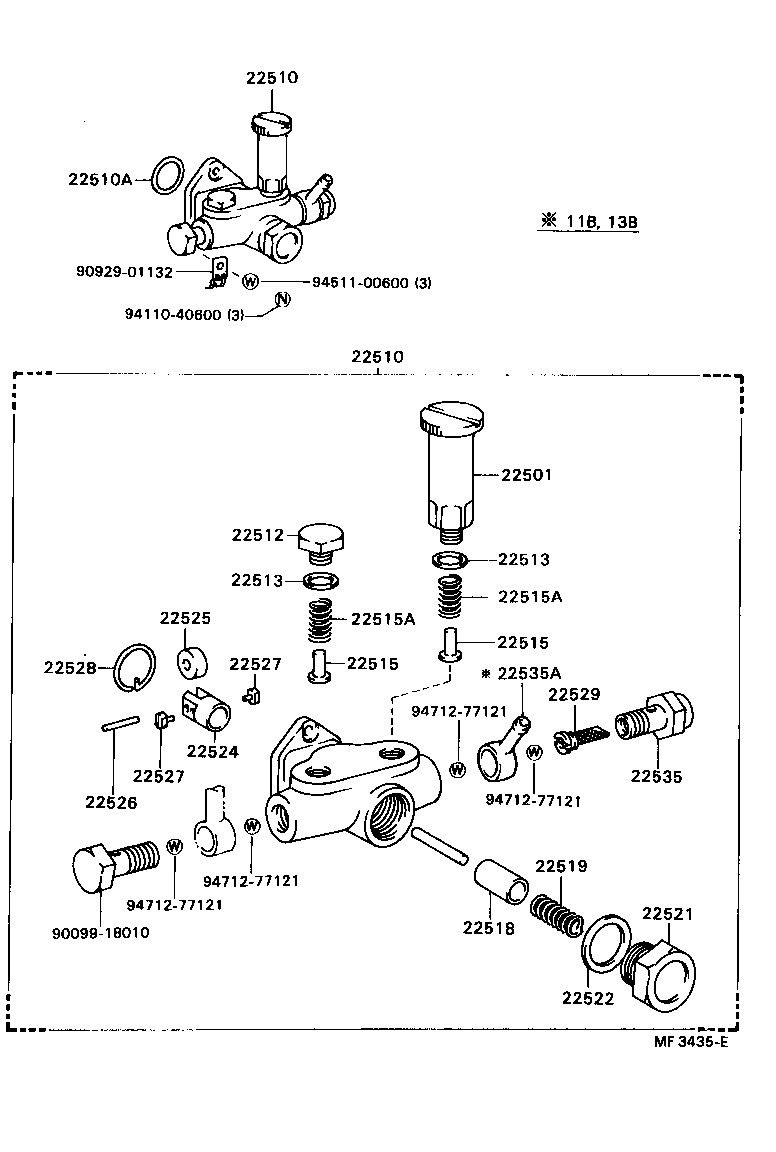

Click highlighted areas on diagram

diagram 22501 22510 22510 22510A 22512 22513 22513 22515 22515 22515A 22515A 22518 22519 22521 22522 22524 22525 22526 22527 22527 22528 22529 22535 22535A 9009918010 9092901132 9411040600 9451100600 9471277121 9471277121 9471277121 9471277121
Part # Description Qty Price
22501 - PUMP SUB-ASSY, PRIMING
22501-77021

B,11B,13B..BU6#,70,8#,93

 1
22501-77021

B,11B,13B..BU6#,70,8#

 1
22510 - PUMP ASSY, FUEL FEED
22510-58230

13B..BU85;11B,13B..BU61,62,65,81,82,86..GEN,GHD,SA

 2
22510-58230

13B..BU85;11B,13B..BU61,62,65,81,82,86,93..GEN,GHD,SA

 2
22510 - PUMP ASSY, FUEL FEED
22510-58230

13B..BU85;11B,13B..BU61,62,65,81,82,86..GEN,GHD,SA

 2
22510-58230

13B..BU85;11B,13B..BU61,62,65,81,82,86,93..GEN,GHD,SA

 2
22510A - RING, O(FOR FUEL FEED PUMP)
90099-14015

B,11B,13B..BU6#,70,8#,93..GEN,GHD,SA

 1
90099-14015

B,11B,13B..BU6#,70,8#..GEN,GHD,SA

 1
22512 - PLUG, FEED PUMP CHECK VALVE CHAMBER
22512-77020

B,11B,13B..BU6#,70,8#

 1
22512-77020

B,11B,13B..BU6#,70,8#,93

 1
22513 - GASKET, CHECK VALVE CHAMBER PLUG
22513-77020

B,11B,13B..BU6#,70,8#

 2
22513-77020

B,11B,13B..BU6#,70,8#,93

 2
22513 - GASKET, CHECK VALVE CHAMBER PLUG
22513-77020

B,11B,13B..BU6#,70,8#

 2
22513-77020

B,11B,13B..BU6#,70,8#,93

 2
22515 - VALVE, FEED PUMP CHECK
22515-77021

B,11B,13B..BU6#,70,8#,93

 2
22515-77021

B,11B,13B..BU6#,70,8#

 2
22515 - VALVE, FEED PUMP CHECK
22515-77021

B,11B,13B..BU6#,70,8#,93

 2
22515-77021

B,11B,13B..BU6#,70,8#

 2
22515A - SPRING, FEED PUMP CHECK VALVE
90501-05141

B,11B,13B..BU6#,70,8#,93

 2
90501-05141

B,11B,13B..BU6#,70,8#

 2
22515A - SPRING, FEED PUMP CHECK VALVE
90501-05141

B,11B,13B..BU6#,70,8#,93

 2
90501-05141

B,11B,13B..BU6#,70,8#

 2
22518 - PISTON, FEED PUMP
22518-77020

B,11B,13B..BU6#,70,8#,93

BLUE

 1
22518-56012

B,11B,13B..BU6#,70,8#,93

GREEN

 1
22518-77020

B,11B,13B..BU6#,70,8#

BLUE

 1
22518-56012

B,11B,13B..BU6#,70,8#

GREEN

 1
22518-77020

11B,13B..BU61,62,65,81,82,85,86

BLUE

 2
22518-77020

11B,13B..BU61,62,65,81,82,85,86,93

BLUE

 2
22519 - SPRING, FEED PUMP PISTON
22519-48010

11B,13B..BU61,62,65,81,82,85,86,93

 1
22519-48010

11B,13B..BU61,62,65,81,82,85,86

 1
22521 - PLUG, FEED PUMP PISTON CHAMBER
22521-77021

11B,13B..BU61,62,65,81,82,85,86

 1
22521-77021

11B,13B..BU61,62,65,81,82,85,86,93

 1
22522 - GASKET, FEED PUMP PISTON PLUG
90099-01432

11B,13B..BU61,62,65,81,82,85,86

 1
90099-01432

11B,13B..BU61,62,65,81,82,85,86,93

 1
22524 - TAPPET, FEED PUMP
22524-77021

11B,13B..BU61,62,65,81,82,85,86,93

 2
22524-77021

11B,13B..BU61,62,65,81,82,85,86

 2
22525 - ROLLER, FEED PUMP TAPPET
22525-77020

11B,13B..BU61,62,65,81,82,85,86

 2
22525-77020

11B,13B..BU61,62,65,81,82,85,86,93

 2
22527 - BLOCK, FEED PUMP TAPPET SLIDING
22527-56010

B,11B,13B..BU6#,70,8#

 2
22527-56010

B,11B,13B..BU6#,70,8#,93

 2
22527 - BLOCK, FEED PUMP TAPPET SLIDING
22527-56010

B,11B,13B..BU6#,70,8#

 2
22527-56010

B,11B,13B..BU6#,70,8#,93

 2
22528 - RING, FEED PUMP TAPPET SNAP
22528-77020

11B,13B..BU61,62,65,81,82,85,86

 2
22528-77020

11B,13B..BU61,62,65,81,82,85,86,93

 2
22529 - FILTER, FUEL PUMP
22529-67010

11B,13B..BU61,62,65,81,82,85,86

 2
22529-67010

11B,13B..BU61,62,65,81,82,85,86,93

 2
22535 - SCREW, FUEL PIPE FOLLOW
22535-46010

11B,13B..BU61,62,65,81,82,85,86,93

 2
22535-46010

11B,13B..BU61,62,65,81,82,85,86

 2
22535A - NIPPLE(FOR FUEL FEED PUMP)
23323-56020

11B,13B..BU61,62,65,81,82,85,86

 1
23323-56020

11B,13B..BU61,62,65,81,82,85,86,93

 1
Common parts
90099-18010
90929-01132
94110-40600
94511-00600
94712-77121
