BU82R-MDDTY3 (1987)

Toyota Dyna 200

Production Aug 1987 - Aug 1988
Engine 13B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

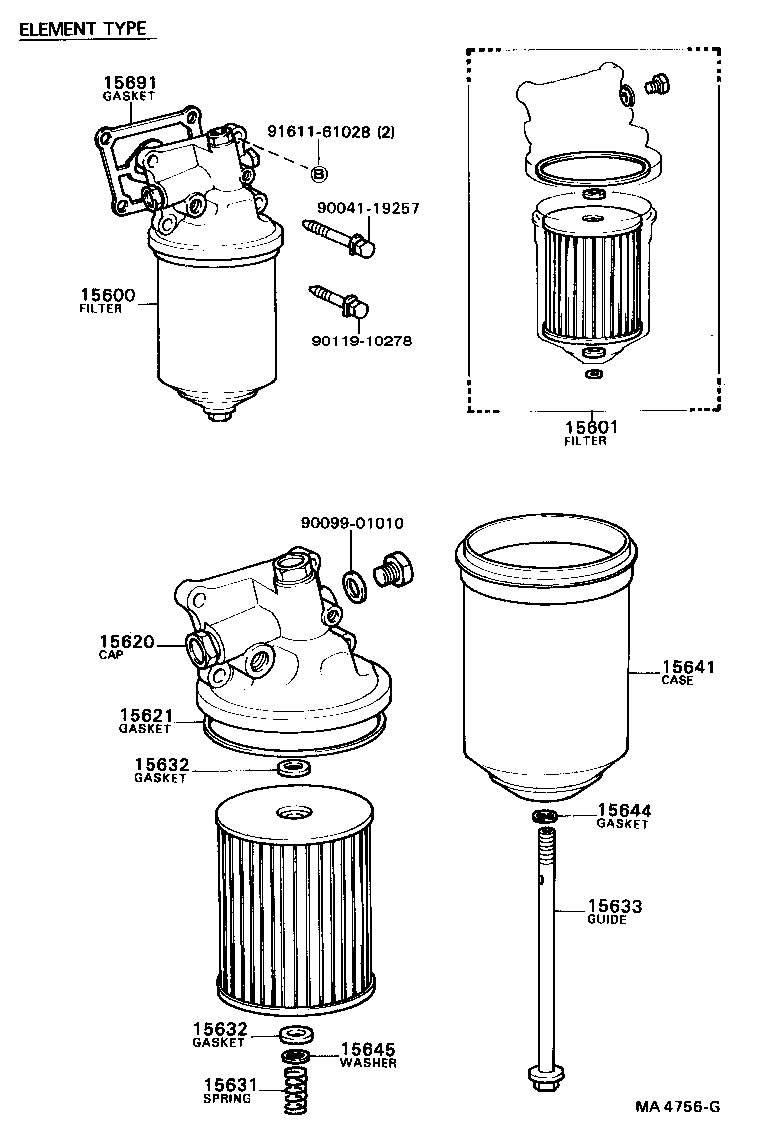

Click highlighted areas on diagram

diagram 15600 15601 15620 15621 15631 15632 15632 15633 15641 15644 15645 15691 9004119257 9009901010 9011910278 9161161028
Part # Description Qty Price
15601 - FILTER SUB-ASSY, OIL
15600-41010

B,11B,13B..BU6#,70,8#

 1
15600-41010

B,11B,13B..BU6#,70,8#,93

 1
15691 - GASKET, OIL FILTER
15691-56030

B,11B,13B..BU6#,70,8#

 1
15691-56030

B,11B,13B..BU6#,70,8#,93

 1
Common parts
90041-19257
90099-01010
90119-10278
91611-61028

(8708- )

Click highlighted areas on diagram

diagram 15601 15609 15691 9004119257 9011910278 9161161028
Part # Description Qty Price
15601 - FILTER SUB-ASSY, OIL
15600-41010

B,11B,13B..BU6#,70,8#

 1
15600-41010

B,11B,13B..BU6#,70,8#,93

 1
15609 - BRACKET SUB-ASSY, OIL FILTER
15609-56040

B,11B,13B..BU6#,70,8#

 1
15609-56040

B,11B,13B..BU6#,70,8#,93

 1
15691 - GASKET, OIL FILTER
15691-56030

B,11B,13B..BU6#,70,8#

 1
15691-56030

B,11B,13B..BU6#,70,8#,93

 1
Common parts
90041-19257
90119-10278
91611-61028
