BU81R-MDDTY3 (1987)

Toyota Dyna 200

Production Aug 1987 - Aug 1988
Engine 11B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )B,11B,13B..BU6#,80,81,82..WT

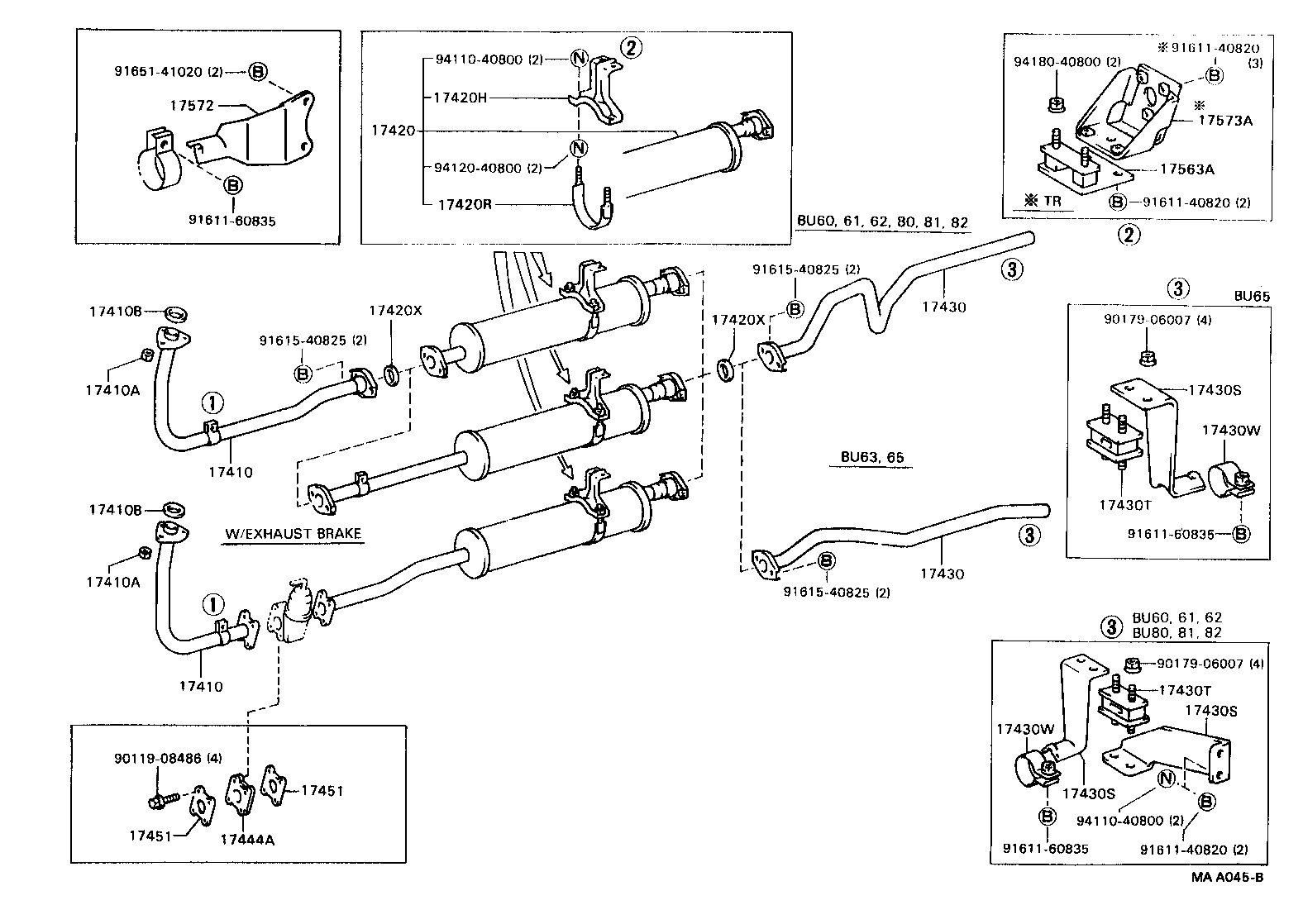

Click highlighted areas on diagram

diagram 17410 17410 17410A 17410A 17410B 17410B 17420 17420H 17420R 17420X 17420X 17430 17430 17430S 17430S 17430S 17430T 17430T 17430W 17430W 17444A 17451 17451 17563A 17572 17573A 9011908486 9017906007 9017906007 9161140820 9161140820 9161140820 9161160835 9161160835 9161160835 9161540825 9161540825 9161540825 9165141020 9411040800 9411040800 9412040800 9418040800
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-58050

13B..BU62..GEN;11B..BU65..GEN..CBU;B,11B..BU60,61,80,81..WT..(GEN,GHD)

W(EXHAUST BRAKE)

 1
17410-58070

B,11B,13B..BU60,61,62,70,80,81,82..GEN,GHD

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17410-58050

13B..BU62..GEN;11B..BU65..GEN..CBU;B,11B..BU60,61,80,81..WT..(GEN,GHD)

W(EXHAUST BRAKE)

 1
17410-58070

B,11B,13B..BU60,61,62,70,80,81,82..GEN,GHD

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

B,11B,13B..BU6#,70,8#

 3
90179-10070

B,11B,13B..BU6#,70,8#,93

 3
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

B,11B,13B..BU6#,70,8#

 3
90179-10070

B,11B,13B..BU6#,70,8#,93

 3
17410B - GASKET, EXHAUST PIPE
90917-06012

B,11B,13B..BU6#,70,8#,93

 1
90917-06012

B,11B,13B..BU6#,70,8#

 1
17410B - GASKET, EXHAUST PIPE
90917-06012

B,11B,13B..BU6#,70,8#,93

 1
90917-06012

B,11B,13B..BU6#,70,8#

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17420-58170

B,11B,13B..BU80,81,82..GEN,GHD

 1
17420-58180

B,11B..BU80,81..GEN,GHD

W(EXHAUST BRAKE)

 1
17420H - CLAMP NO.1, EXHAUST PIPE CENTER, CENTER
17576-56020

B,11B,13B..BU6#,70,80,81,82

 1
17420R - CLAMP NO.2, EXHAUST PIPE CENTER, CENTER
17504-56010

B,11B,13B..BU6#,70,80,81,82

 1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06008

13B..BU62..GEN;11B..BU65..GEN..CBU;B,11B..BU60,61,80,81..WT..(GEN,GHD)

W(EXHAUST BRAKE)

 1
90917-06008

B,11B,13B..BU6#,70,80,81,82..5F..(ARL,GEN,GHD)

 2
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06008

13B..BU62..GEN;11B..BU65..GEN..CBU;B,11B..BU60,61,80,81..WT..(GEN,GHD)

W(EXHAUST BRAKE)

 1
90917-06008

B,11B,13B..BU6#,70,80,81,82..5F..(ARL,GEN,GHD)

 2
17430 - PIPE ASSY, EXHAUST, TAIL
17430-58130

B,11B,13B..BU80,81,82

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-58130

B,11B,13B..BU80,81,82

 1
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17574-58040

13B..BU85..GEN;B,11B,13B..BU60,61,62,80,81,82,86,93..WT

BODY SIDE

 1
17574-58040

13B..BU85..GEN;B,11B,13B..BU60,61,62,80,81,82,86..WT

BODY SIDE

 1
17561-56010

13B..BU85..T3..ARL;B,11B,13B..BU60,61,62,70,80,81,82

PIPE SIDE

 1
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17574-58040

13B..BU85..GEN;B,11B,13B..BU60,61,62,80,81,82,86,93..WT

BODY SIDE

 1
17574-58040

13B..BU85..GEN;B,11B,13B..BU60,61,62,80,81,82,86..WT

BODY SIDE

 1
17561-56010

13B..BU85..T3..ARL;B,11B,13B..BU60,61,62,70,80,81,82

PIPE SIDE

 1
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17574-58040

13B..BU85..GEN;B,11B,13B..BU60,61,62,80,81,82,86,93..WT

BODY SIDE

 1
17574-58040

13B..BU85..GEN;B,11B,13B..BU60,61,62,80,81,82,86..WT

BODY SIDE

 1
17561-56010

13B..BU85..T3..ARL;B,11B,13B..BU60,61,62,70,80,81,82

PIPE SIDE

 1
17430T - CUSHION, EXHAUST TAIL PIPE (FOR REAR)
17567-61030

13B..BU85..T3;B,11B,13B..BU6#,70,80,81,82,86,93

 1
17567-61030

13B..BU85..T3;B,11B,13B..BU6#,70,80,81,82,86

 1
17430T - CUSHION, EXHAUST TAIL PIPE (FOR REAR)
17567-61030

13B..BU85..T3;B,11B,13B..BU6#,70,80,81,82,86,93

 1
17567-61030

13B..BU85..T3;B,11B,13B..BU6#,70,80,81,82,86

 1
17430W - CLAMP NO.2, EXHAUST TAIL PIPE (FOR REAR)
90461-32005

B,11B,13B..BU6#,70,80,81,82

 1
17430W - CLAMP NO.2, EXHAUST TAIL PIPE (FOR REAR)
90461-32005

B,11B,13B..BU6#,70,80,81,82

 1
17563A - SUPPORT, EXHAUST PIPE, NO.3
17563-58010

B,11B,13B..BU6#,70,80,81,82

 1
17572 - BRACKET, EXHAUST PIPE NO.1 SUPPORT
17571-58140

B,11B,13B..BU6#,70,80,81,82..5F

 1
17573A - BRACKET, EXHAUST PIPE SUPPORT, NO.3
17573-58040

B,11B,13B..BU60,61,62,80,81,82..WT

 1
Common parts
90119-08486
90179-06007
91611-40820
91611-60835
91615-40825
91651-41020
94110-40800
94120-40800
94180-40800
