BU81R-MDDT3 (1987)

Toyota Dyna 200

Production Aug 1987 - Aug 1988
Engine 11B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )BU80,81

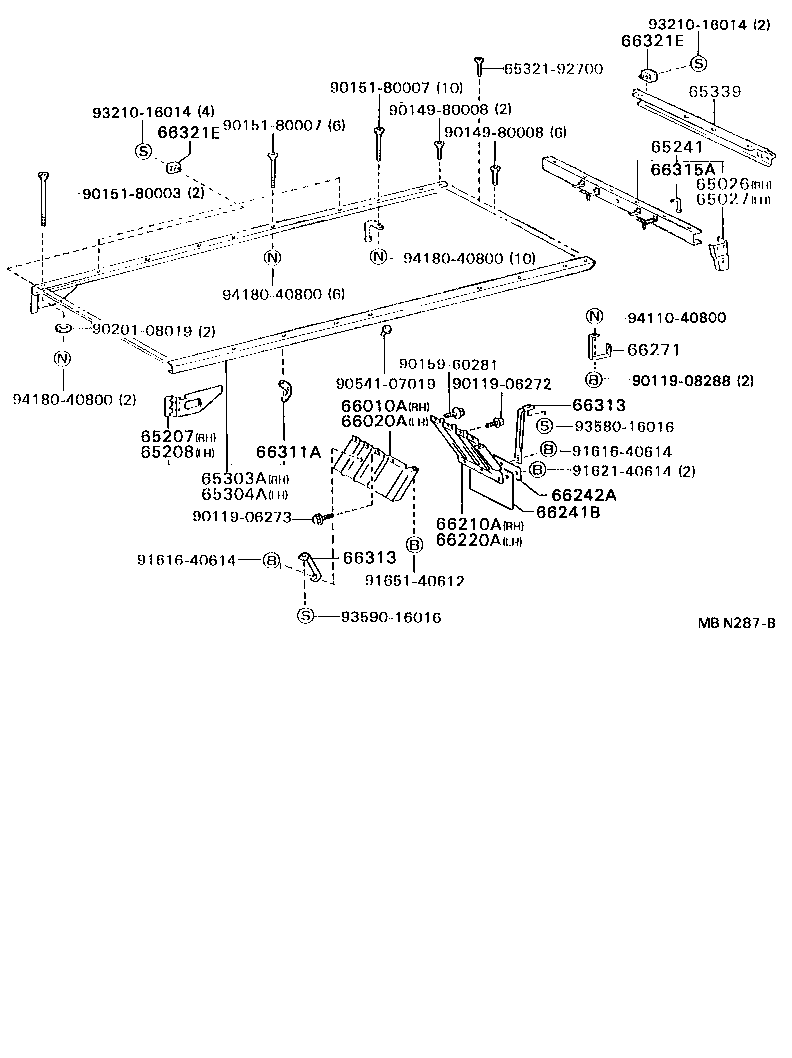

Click highlighted areas on diagram

diagram 65026 65027 65207 65208 65241 65303A 65304A 6532192700 65339 66010A 66020A 66210A 66220A 66241B 66242A 66271 66311A 66313 66313 66315A 66321E 66321E 9011906272 9011906273 9011908288 9014980008 9014980008 9015180003 9015180007 9015180007 9015960281 9020108019 9054107019 9161640614 9161640614 9162140614 9165140612 9321016014 9321016014 9358016016 9359016016 9411040800 9418040800 9418040800 9418040800
Part # Description Qty Price
65339 - FRAME, FLOOR, REAR
65339-92800

BU80,81,82

 1
66271 - STEP, REAR BODY
66271-92800

BU80,81

 1
Common parts
65321-92700
90119-06272
90119-06273
90119-08288
90149-80008
90151-80003
90151-80007
90159-60281
90201-08019
90541-07019
91616-40614
91621-40614
91651-40612
93210-16014
93580-16016
93590-16016
94110-40800
94180-40800
