BU81R-MDDT3 (1987)

Toyota Dyna 200

Production Aug 1987 - Aug 1988
Engine 11B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(8708- )BU85..RHD ; (8708- )BU6#,80,81,82,86

Click highlighted areas on diagram

diagram 38901D 38902B 38902C 38902C 38903A 38908A 38946A 9161160616 9161160816 9161160816 9161160825 9161160825 9411040800 9451200800 9461210800
Part # Description Qty Price
38901D - LEVER SUB-ASSY, VALVE CONTROL
38901-96315

BU60,61,8#..RHD..WT..(ARL,GEN,GHD)..(CBU,IV3)

 1
38902B - BRACKET SUB-ASSY, VALVE CONTROL LEVER
38902-96310

BU60,61,80,81,82..RHD..WT..(ARL,GEN,GHD)

 1
38902C - BUSH (FOR VALVE CONTROL LEVER)
90386-13007

BU85..RHD..(CBU,IV3);BU60,61,62,80,81,82,86..5F..WT..(ARL,GEN,GHD)

 2
38902C - BUSH (FOR VALVE CONTROL LEVER)
90386-13007

BU85..RHD..(CBU,IV3);BU60,61,62,80,81,82,86..5F..WT..(ARL,GEN,GHD)

 2
38908A - KNOB SUB-ASSY, CONTROL LEVER
38908-36010

BU60,61,8#..RHD..WT..(ARL,GEN,GHD)..(CBU,IV3)

 1
Common parts
91611-60616
91611-60816
91611-60825
94110-40800
94512-00800
94612-10800

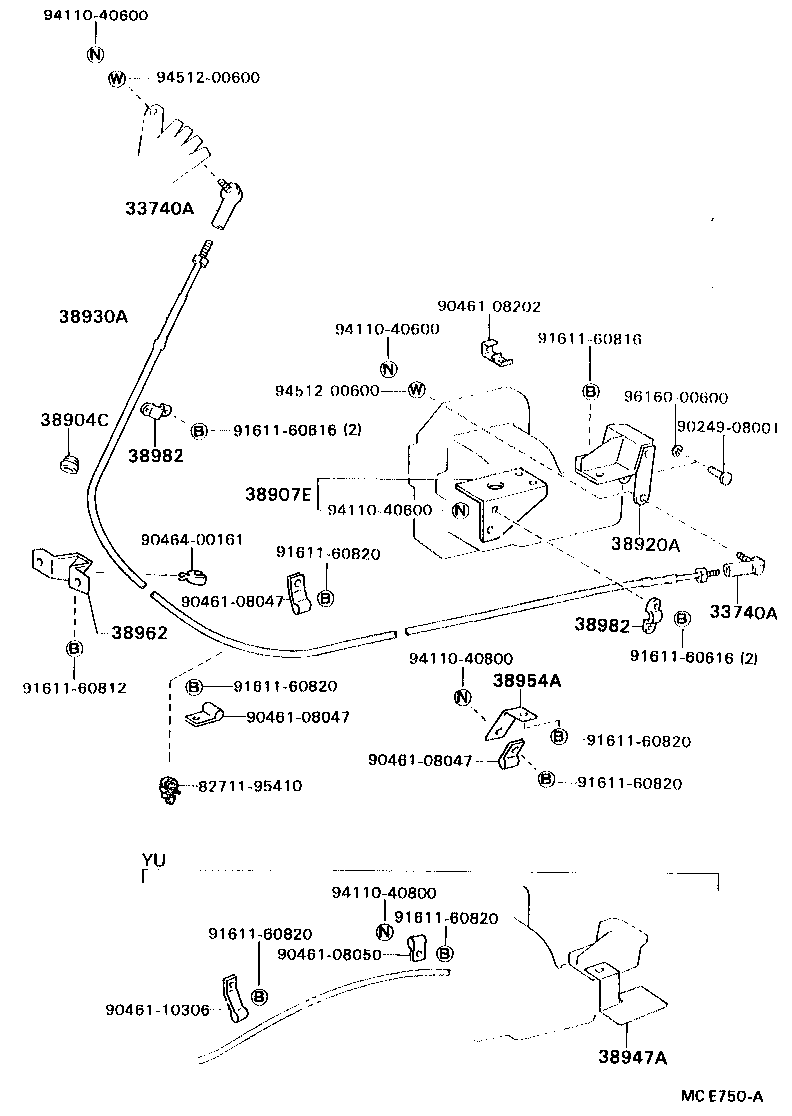

ILLUST NO. 2 OF 2(8708- )BU60,61,80,81,82..RHD

Click highlighted areas on diagram

diagram 33740A 33740A 38904C 38907E 38920A 38930A 38947A 38954A 38962 38982 38982 8271195410 9024908001 9046108047 9046108047 9046108047 9046108050 9046108202 9046110306 9046400161 9161160616 9161160616 9161160812 9161160816 9161160820 9161160820 9161160820 9161160820 9161160820 9161160820 9411040600 9411040600 9411040600 9411040800 9411040800 9451200600 9451200600 9616000600
Part # Description Qty Price
33740A - END ASSY, PUSH-PULL CONTROL CABLE
33740-96301

BU60,61,62,8#..5F..WT..(ARL,GEN,GHD)..(CBU,IV3)

 2
33740A - END ASSY, PUSH-PULL CONTROL CABLE
33740-96301

BU60,61,62,8#..5F..WT..(ARL,GEN,GHD)..(CBU,IV3)

 2
38904C - GROMMET, PUSH PULL CABLE
90480-22013

BU85..RHD..(CBU,IV3);BU60,61,62,80,81,82,86..5F..WT..(ARL,GEN,GHD)

 1
38907E - STAY SUB-ASSY, POWER TEKE-OFF CONTROL
38907-93116

BU85..RHD..(CBU,IV3);BU60,61,62,80,81,82,86..5F..WT..(ARL,GEN,GHD)

 1
38920A - LEVER ASSY, POWER TAKE-OFF CONTROL, NO.1
38920-93108

BU85..RHD..(CBU,IV3);BU60,61,62,80,81,82,86..5F..WT..(ARL,GEN,GHD)

 1
38930A - CABLE ASSY, PUSH PULL
38930-93118

BU60,61,80,81,82..RHD..WT..(ARL,GEN,GHD)

 1
38954A - BRACKET, CONTROL CABLE, NO.4
38954-93104

BU60,61,62,80,81,82..5F..WT..(ARL,GEN,GHD)

 1
38962 - BRACKET, CABLE CLAMP, NO.2
38962-96303

BU60,61,80,81,82..RHD..WT..(GEN,GHD)

 1
38982 - CLAMP, PUSH PULL CABLE, NO.1
38982-96302

BU60,61,62,8#..5F..WT..(ARL,GEN,GHD)..(CBU,IV3)

 2
38982 - CLAMP, PUSH PULL CABLE, NO.1
38982-96302

BU60,61,62,8#..5F..WT..(ARL,GEN,GHD)..(CBU,IV3)

 2
Common parts
82711-95410
90249-08001
90461-08047
90461-08050
90461-08202
90461-10306
90464-00161
91611-60616
91611-60812
91611-60816
91611-60820
94110-40600
94110-40800
94512-00600
96160-00600

ILLUST NO. 1 OF 2(8708- )YU6#,81 ; (8708- )WU9#..RHD

Click highlighted areas on diagram

diagram 38901D 38902B 38902C 38902C 38903A 38908A 38946A 9161160616 9161160816 9161160816 9161160825 9161160825 9411040800 9451200800 9461210800
Part # Description Qty Price
38901D - LEVER SUB-ASSY, VALVE CONTROL
38901-96315

BU60,61,8#..RHD..WT..(ARL,GEN,GHD)..(CBU,IV3)

 1
38902B - BRACKET SUB-ASSY, VALVE CONTROL LEVER
38902-96310

BU60,61,80,81,82..RHD..WT..(ARL,GEN,GHD)

 1
38902C - BUSH (FOR VALVE CONTROL LEVER)
90386-13007

BU85..RHD..(CBU,IV3);BU60,61,62,80,81,82,86..5F..WT..(ARL,GEN,GHD)

 2
38902C - BUSH (FOR VALVE CONTROL LEVER)
90386-13007

BU85..RHD..(CBU,IV3);BU60,61,62,80,81,82,86..5F..WT..(ARL,GEN,GHD)

 2
38908A - KNOB SUB-ASSY, CONTROL LEVER
38908-36010

BU60,61,8#..RHD..WT..(ARL,GEN,GHD)..(CBU,IV3)

 1
Common parts
91611-60616
91611-60816
91611-60825
94110-40800
94512-00800
94612-10800

ILLUST NO. 2 OF 2(8708- )YU62,81..RHD

Click highlighted areas on diagram

diagram 33740A 33740A 38904C 38907E 38920A 38930A 38947A 38954A 38962 38982 38982 8271195410 9024908001 9046108047 9046108047 9046108047 9046108050 9046108202 9046110306 9046400161 9161160616 9161160616 9161160812 9161160816 9161160820 9161160820 9161160820 9161160820 9161160820 9161160820 9411040600 9411040600 9411040600 9411040800 9411040800 9451200600 9451200600 9616000600
Part # Description Qty Price
33740A - END ASSY, PUSH-PULL CONTROL CABLE
33740-96301

BU60,61,62,8#..5F..WT..(ARL,GEN,GHD)..(CBU,IV3)

 2
33740A - END ASSY, PUSH-PULL CONTROL CABLE
33740-96301

BU60,61,62,8#..5F..WT..(ARL,GEN,GHD)..(CBU,IV3)

 2
38904C - GROMMET, PUSH PULL CABLE
90480-22013

BU85..RHD..(CBU,IV3);BU60,61,62,80,81,82,86..5F..WT..(ARL,GEN,GHD)

 1
38907E - STAY SUB-ASSY, POWER TEKE-OFF CONTROL
38907-93116

BU85..RHD..(CBU,IV3);BU60,61,62,80,81,82,86..5F..WT..(ARL,GEN,GHD)

 1
38920A - LEVER ASSY, POWER TAKE-OFF CONTROL, NO.1
38920-93108

BU85..RHD..(CBU,IV3);BU60,61,62,80,81,82,86..5F..WT..(ARL,GEN,GHD)

 1
38930A - CABLE ASSY, PUSH PULL
38930-93118

BU60,61,80,81,82..RHD..WT..(ARL,GEN,GHD)

 1
38954A - BRACKET, CONTROL CABLE, NO.4
38954-93104

BU60,61,62,80,81,82..5F..WT..(ARL,GEN,GHD)

 1
38962 - BRACKET, CABLE CLAMP, NO.2
38962-96303

BU60,61,80,81,82..RHD..WT..(GEN,GHD)

 1
38982 - CLAMP, PUSH PULL CABLE, NO.1
38982-96302

BU60,61,62,8#..5F..WT..(ARL,GEN,GHD)..(CBU,IV3)

 2
38982 - CLAMP, PUSH PULL CABLE, NO.1
38982-96302

BU60,61,62,8#..5F..WT..(ARL,GEN,GHD)..(CBU,IV3)

 2
Common parts
82711-95410
90249-08001
90461-08047
90461-08050
90461-08202
90461-10306
90464-00161
91611-60616
91611-60812
91611-60816
91611-60820
94110-40600
94110-40800
94512-00600
96160-00600
