BU81R-MDDT (1987)
Toyota Dyna 200

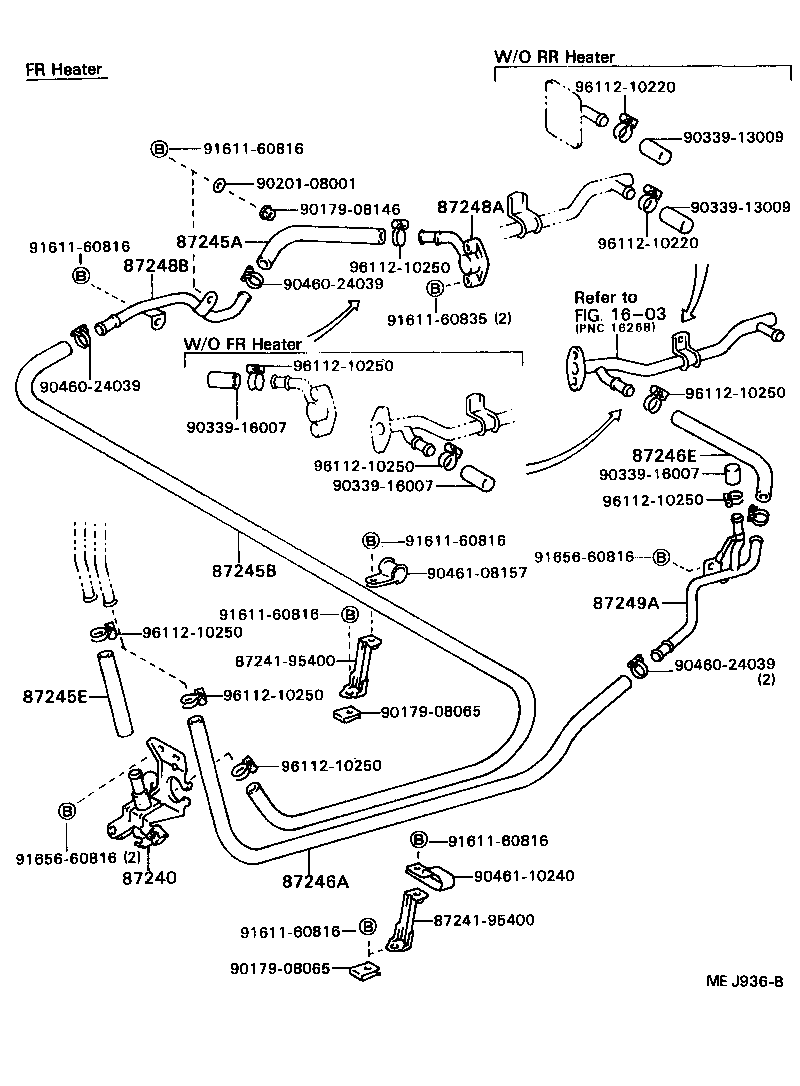

ILLUST NO. 1 OF 2(8708- )BU6#,70,80,81,82
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87205 - JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALV | ||||
| 87251-95400 |
BU60..ST..GEN;BU61,62,70,81,82,86..GEN,GHD;BU60,65,80,85..RHD..(GEN,GHD) |
1 | ||
| 87251-95400 |
BU60..ST..GEN;BU60,65,80,85..RHD..(GEN,GHD);BU61,62,70,81,82,86,93..GEN,GHD |
1 | ||
| 87208 - PIPE SUB-ASSY, HEATER WATER | ||||
| 87208-95409 |
BU60..ST..GEN;BU61,62,70,81,82..GEN,GHD;BU60,65,80..RHD..(GEN,GHD) NO.1 |
1 | ||
| 87240 - VALVE ASSY, HEATER WATER | ||||
| 87240-95407 |
BU60,61,65,80,81,82,85..RHD..(GEN,GHD) |
1 | ||
| 87240-95407 |
BU60,61,65,80,81,82,85,93..RHD..(GEN,GHD) |
1 | ||
| 87240 - VALVE ASSY, HEATER WATER | ||||
| 87240-95407 |
BU60,61,65,80,81,82,85..RHD..(GEN,GHD) |
1 | ||
| 87240-95407 |
BU60,61,65,80,81,82,85,93..RHD..(GEN,GHD) |
1 | ||
| 87245B - HOSE, HEATER WATER, INLET B | ||||
| 99556-30680 |
BU60,61,65,80,81,82..RHD..(GEN,GHD) *H,L=680 |
1 | ||
| 99556-30980 |
BU60,61,65,80,81,82..RHD..(GEN,GHD) *H,L=980 |
1 | ||
| 87245B - HOSE, HEATER WATER, INLET B | ||||
| 99556-30680 |
BU60,61,65,80,81,82..RHD..(GEN,GHD) *H,L=680 |
1 | ||
| 99556-30980 |
BU60,61,65,80,81,82..RHD..(GEN,GHD) *H,L=980 |
1 | ||
| 87245E - HOSE, HEATER WATER, INLET E | ||||
| 99556-30100 |
BU60..ST..GEN;BU61,62,70,81,82..GEN,GHD;BU60,65,80,85..RHD..(GEN,GHD) *H,L=60 |
1 | ||
| 99556-30100 |
BU60..ST..GEN;BU61,62,70,81,82,93..GEN,GHD;BU60,65,80,85..RHD..(GEN,GHD) *H,L=60 |
1 | ||
| 87246E - HOSE, HEATER WATER, OUTLET E | ||||
| 99556-30300 |
BU60..ST..GEN;BU61,62,70,81,82..GEN,GHD;BU60,65,80..RHD..(GEN,GHD) L=300 |
1 | ||
| 87251 - JOINT OR UNION, WATER HOSE THROUGH | ||||
| 87251-30200 |
BU60..ST..GEN;BU61,62,70,81,82,86..GEN,GHD;BU60,65,80,85..RHD..(GEN,GHD) FRONT |
1 | ||
| 87251-30200 |
BU60..ST..GEN;BU60,65,80,85..RHD..(GEN,GHD);BU61,62,70,81,82,86,93..GEN,GHD FRONT |
1 | ||
| Common parts | ||||
| 87241-95400 | ||||
| 87241-95401 | ||||
| 90179-08065 | ||||
| 90460-24039 | ||||
| 90461-10240 | ||||
| 91611-40820 | ||||
| 91611-60816 | ||||
| 91611-60820 | ||||
| 91656-40816 | ||||
| 94110-40800 | ||||
| 96112-10250 | ||||
ILLUST NO. 1 OF 2(8708- )YU62,81..RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 87241-95400 | ||||
| 90179-08065 | ||||
| 90179-08146 | ||||
| 90201-08001 | ||||
| 90339-13009 | ||||
| 90339-16007 | ||||
| 90460-24039 | ||||
| 90461-08157 | ||||
| 90461-10240 | ||||
| 91611-60816 | ||||
| 91611-60835 | ||||
| 91656-60816 | ||||
| 96112-10220 | ||||
| 96112-10250 | ||||
| Linked diagrams | ||||
| 1603 | ||||
