BU81L-MDDT (1987)

Toyota Dyna 200

Production Aug 1987 - Aug 1988
Engine 11B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

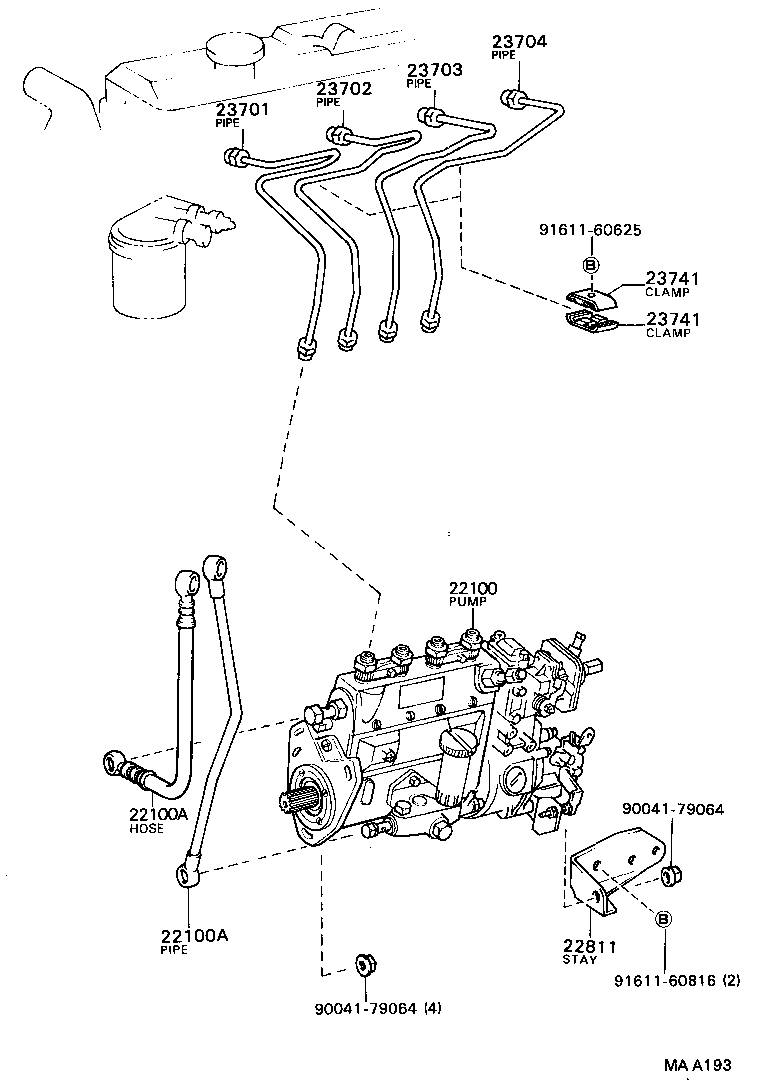

(8708- )11B,13B

Click highlighted areas on diagram

diagram 22100 22100A 22100A 22811 23701 23702 23703 23704 23741 23741 9004179064 9004179064 9161160625 9161160816
Part # Description Qty Price
22100 - PUMP ASSY, INJECTION OR SUPPLY
22100-56260

11B..BU65..GEN..CBU;11B..BU61,81,86..(GEN,GHD)..(CBU,IV3)

W(HAC)

 1
22100-56241

11B..BU61,65,81,86..GEN,GHD

 1
22100-56271

11B..BU65..GEN..CBU;11B..BU61,81,86..(GEN,GHD)..(CBU,IV3)

W(HAC) & W(TACHOMETER)

 1
22100-56252

11B..BU65..GEN..CBU;11B..BU61,81,86..(GEN,GHD)..(CBU,IV3)

W(TACHOMETER)

 1
22100A - HOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)
23801-56060

B,11B,13B..BU6#,70,8#

PIPE L=300

 1
23802-56040

B,11B,13B..BU6#,70,8#

HOSE L=210

 1
23801-56060

B,11B,13B..BU6#,70,8#,93

PIPE L=300

 1
23802-56040

B,11B,13B..BU6#,70,8#,93

HOSE L=210

 1
22100A - HOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)
23801-56060

B,11B,13B..BU6#,70,8#

PIPE L=300

 1
23802-56040

B,11B,13B..BU6#,70,8#

HOSE L=210

 1
23801-56060

B,11B,13B..BU6#,70,8#,93

PIPE L=300

 1
23802-56040

B,11B,13B..BU6#,70,8#,93

HOSE L=210

 1
22811 - STAY, INJECTION PUMP, NO.1
22811-56040

11B,13B..BU61,62,65,81,82,85,86

 1
22811-56040

11B,13B..BU61,62,65,81,82,85,86,93

 1
23701 - PIPE SUB-ASSY, INJECTION, NO.1
23701-56060

11B,13B..BU61,62,65,81,82,85,86

 1
23701-56060

11B,13B..BU61,62,65,81,82,85,86,93

 1
23702 - PIPE SUB-ASSY, INJECTION, NO.2
23702-56060

11B,13B..BU61,62,65,81,82,85,86,93

 1
23702-56060

11B,13B..BU61,62,65,81,82,85,86

 1
23703 - PIPE SUB-ASSY, INJECTION, NO.3
23703-56060

11B,13B..BU61,62,65,81,82,85,86

 1
23703-56060

11B,13B..BU61,62,65,81,82,85,86,93

 1
23704 - PIPE SUB-ASSY, INJECTION, NO.4
23704-56060

11B,13B..BU61,62,65,81,82,85,86,93

 1
23704-56060

11B,13B..BU61,62,65,81,82,85,86

 1
23741 - CLAMP, INJECTION PIPE, NO.1
23741-56010

B,11B,13B..BU6#,70,8#,93

 4
23741-56010

B,11B,13B..BU6#,70,8#

 4
23741 - CLAMP, INJECTION PIPE, NO.1
23741-56010

B,11B,13B..BU6#,70,8#,93

 4
23741-56010

B,11B,13B..BU6#,70,8#

 4
Common parts
90041-79064
91611-60625
91611-60816

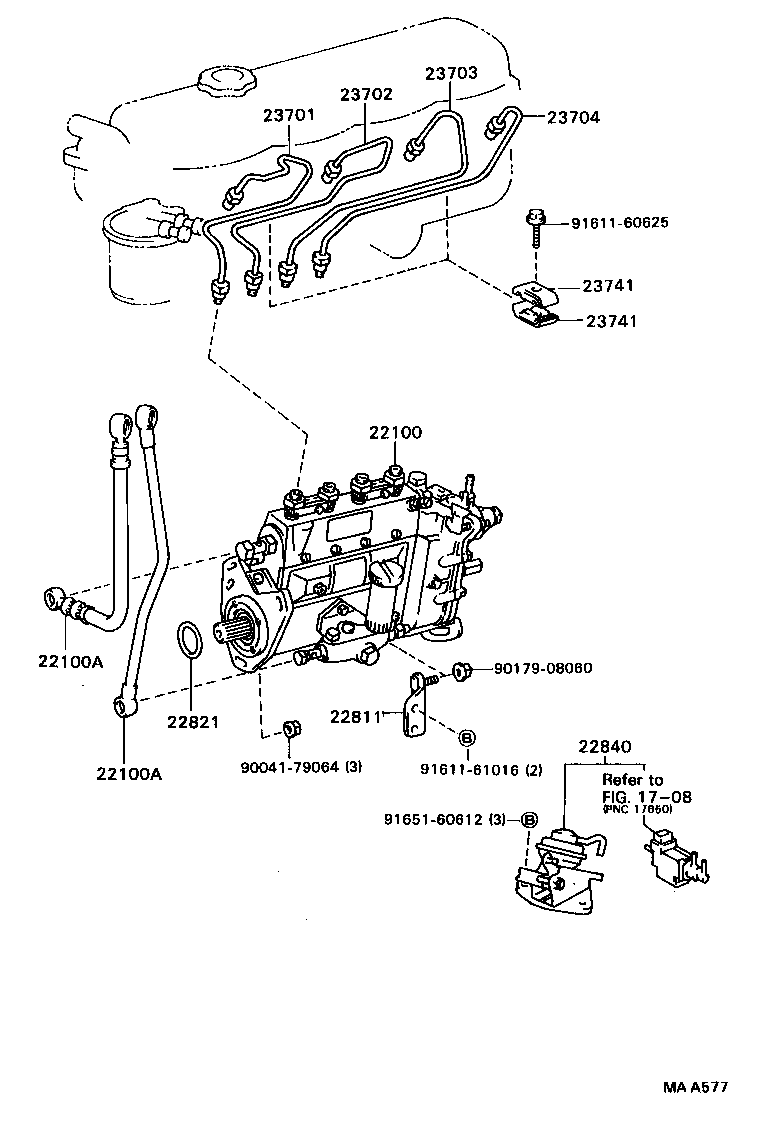

(8708- )B

Click highlighted areas on diagram

diagram 1708 22100 22100A 22100A 22811 22821 22840 23701 23702 23703 23704 23741 23741 9004179064 9017908060 9161160625 9161161016 9165160612
Part # Description Qty Price
22100 - PUMP ASSY, INJECTION OR SUPPLY
22100-56260

11B..BU65..GEN..CBU;11B..BU61,81,86..(GEN,GHD)..(CBU,IV3)

W(HAC)

 1
22100-56241

11B..BU61,65,81,86..GEN,GHD

 1
22100-56271

11B..BU65..GEN..CBU;11B..BU61,81,86..(GEN,GHD)..(CBU,IV3)

W(HAC) & W(TACHOMETER)

 1
22100-56252

11B..BU65..GEN..CBU;11B..BU61,81,86..(GEN,GHD)..(CBU,IV3)

W(TACHOMETER)

 1
22100A - HOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)
23801-56060

B,11B,13B..BU6#,70,8#

PIPE L=300

 1
23802-56040

B,11B,13B..BU6#,70,8#

HOSE L=210

 1
23801-56060

B,11B,13B..BU6#,70,8#,93

PIPE L=300

 1
23802-56040

B,11B,13B..BU6#,70,8#,93

HOSE L=210

 1
22100A - HOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)
23801-56060

B,11B,13B..BU6#,70,8#

PIPE L=300

 1
23802-56040

B,11B,13B..BU6#,70,8#

HOSE L=210

 1
23801-56060

B,11B,13B..BU6#,70,8#,93

PIPE L=300

 1
23802-56040

B,11B,13B..BU6#,70,8#,93

HOSE L=210

 1
22811 - STAY, INJECTION PUMP, NO.1
22811-56040

11B,13B..BU61,62,65,81,82,85,86

 1
22811-56040

11B,13B..BU61,62,65,81,82,85,86,93

 1
23701 - PIPE SUB-ASSY, INJECTION, NO.1
23701-56060

11B,13B..BU61,62,65,81,82,85,86

 1
23701-56060

11B,13B..BU61,62,65,81,82,85,86,93

 1
23702 - PIPE SUB-ASSY, INJECTION, NO.2
23702-56060

11B,13B..BU61,62,65,81,82,85,86,93

 1
23702-56060

11B,13B..BU61,62,65,81,82,85,86

 1
23703 - PIPE SUB-ASSY, INJECTION, NO.3
23703-56060

11B,13B..BU61,62,65,81,82,85,86

 1
23703-56060

11B,13B..BU61,62,65,81,82,85,86,93

 1
23704 - PIPE SUB-ASSY, INJECTION, NO.4
23704-56060

11B,13B..BU61,62,65,81,82,85,86,93

 1
23704-56060

11B,13B..BU61,62,65,81,82,85,86

 1
23741 - CLAMP, INJECTION PIPE, NO.1
23741-56010

B,11B,13B..BU6#,70,8#,93

 4
23741-56010

B,11B,13B..BU6#,70,8#

 4
23741 - CLAMP, INJECTION PIPE, NO.1
23741-56010

B,11B,13B..BU6#,70,8#,93

 4
23741-56010

B,11B,13B..BU6#,70,8#

 4
Common parts
90041-79064
90179-08060
91611-60625
91611-61016
91651-60612
Linked diagrams
1708
