BU80R-MDDTY (1987)

Toyota Dyna 200

Production Aug 1987 - Aug 1988
Engine B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

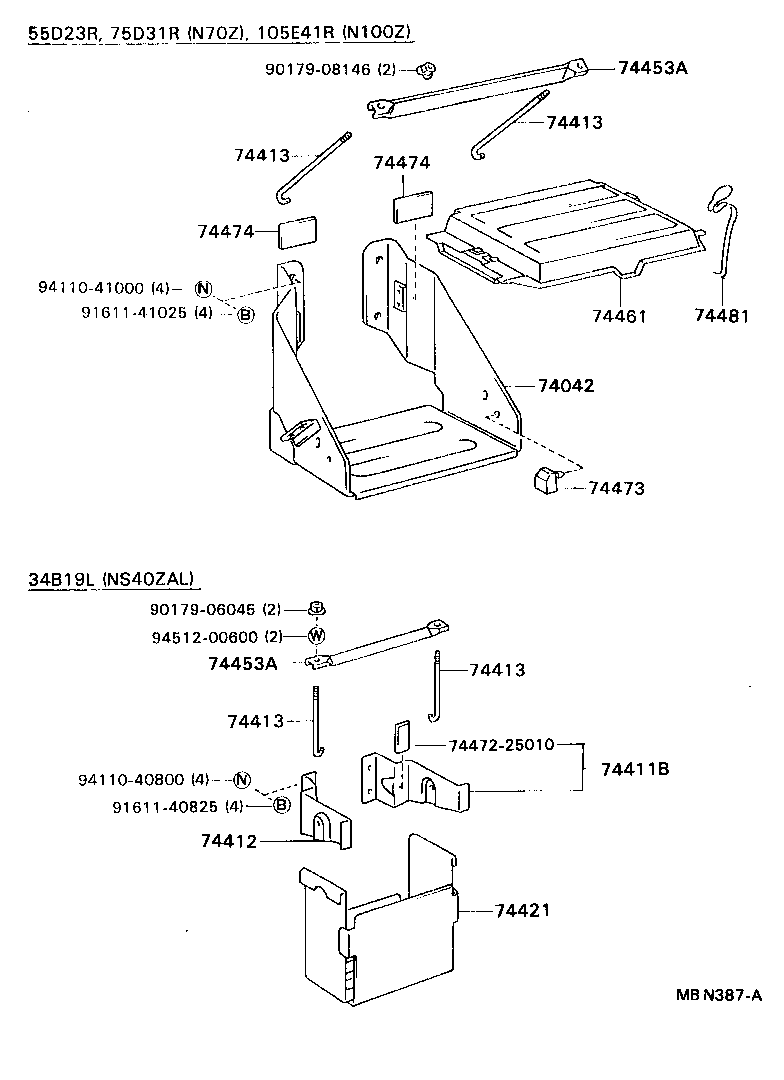

Click highlighted areas on diagram

diagram 74042 74411B 74412 74413 74413 74413 74413 74421 74453A 74453A 74461 7447225010 74473 74474 74474 74481 9017906045 9017908146 9161140825 9161141025 9411040800 9411041000 9451200600
Part # Description Qty Price
74042 - BRACKET SUB-ASSY, BATTERY
74042-36020

BU85..GEN;BU60,61,62,80,81,82,86

 1
74042-36041

BU85..GEN;BU60,61,62,80,81,82,86

W(BATTERY=105E41R X1)

 1
74042-36020

BU85..GEN;BU60,61,62,80,81,82,86,93

 1
74042-36041

BU85..GEN;BU60,61,62,80,81,82,86,93

W(BATTERY=105E41R X1)

 1
74413 - BOLT, BATTERY CLAMP
74451-36070

BU6#,70,8#

 2
74451-36070

BU6#,70,8#,93

 2
74413 - BOLT, BATTERY CLAMP
74451-36070

BU6#,70,8#

 2
74451-36070

BU6#,70,8#,93

 2
74413 - BOLT, BATTERY CLAMP
74451-36070

BU6#,70,8#

 2
74451-36070

BU6#,70,8#,93

 2
74413 - BOLT, BATTERY CLAMP
74451-36070

BU6#,70,8#

 2
74451-36070

BU6#,70,8#,93

 2
74453A - BAR, BATTERY SET PLATE
74453-36050

BU85..GEN;BU60,61,62,80,81,82,86

W(BATTERY=105E41R X1)

 1
74453-25100

BU65..CBU;BU85..GEN;BU60,61,62,80,81,82,86

 1
74453-25100

BU65..CBU;BU85..GEN;BU60,61,62,80,81,82,86,93

 1
74453-36050

BU85..GEN;BU60,61,62,80,81,82,86,93

W(BATTERY=105E41R X1)

 1
74453A - BAR, BATTERY SET PLATE
74453-36050

BU85..GEN;BU60,61,62,80,81,82,86

W(BATTERY=105E41R X1)

 1
74453-25100

BU65..CBU;BU85..GEN;BU60,61,62,80,81,82,86

 1
74453-25100

BU65..CBU;BU85..GEN;BU60,61,62,80,81,82,86,93

 1
74453-36050

BU85..GEN;BU60,61,62,80,81,82,86,93

W(BATTERY=105E41R X1)

 1
74474 - PAD, BATTERY
74475-36040

BU6#,70,8#,93

 2
74475-36040

BU6#,70,8#

 2
74474 - PAD, BATTERY
74475-36040

BU6#,70,8#,93

 2
74475-36040

BU6#,70,8#

 2
Common parts
74472-25010
90179-06045
90179-08146
91611-40825
91611-41025
94110-40800
94110-41000
94512-00600
