BU80R-MDDTY (1987)

Toyota Dyna 200

Production Aug 1987 - Aug 1988
Engine B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

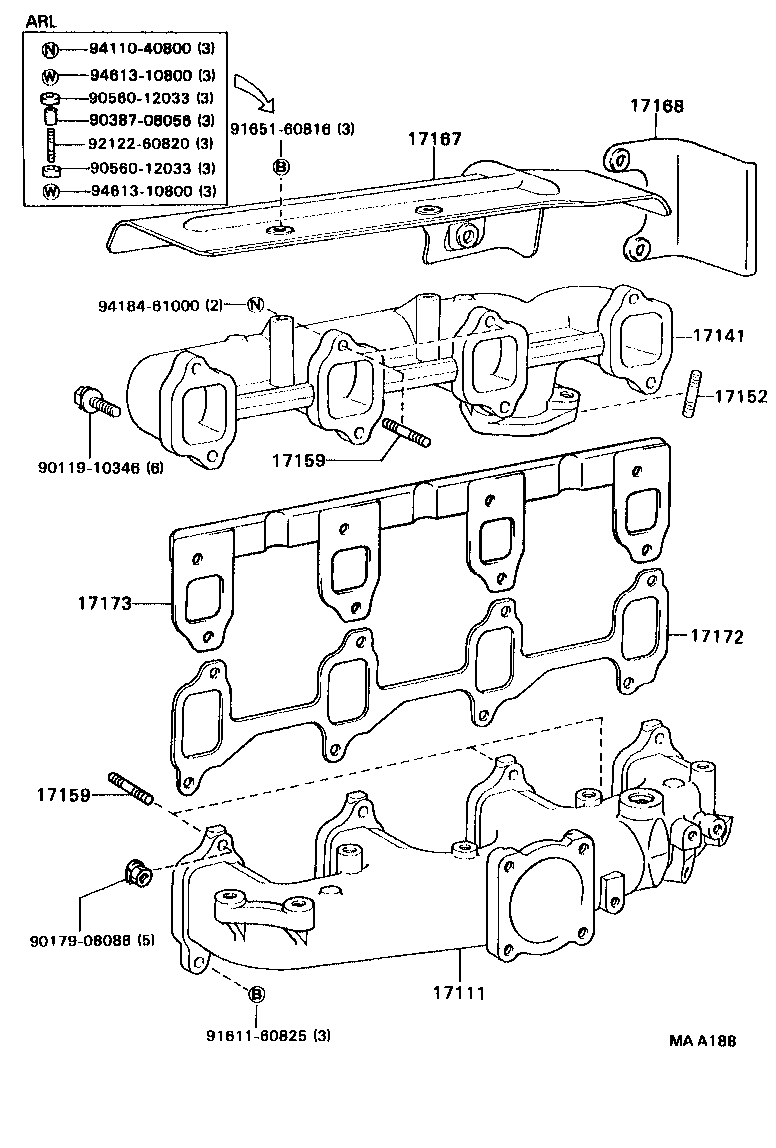

Click highlighted areas on diagram

diagram 17111 17141 17152 17159 17159 17167 17168 17172 17173 9011910346 9017908088 9038708056 9056012033 9056012033 9161160825 9165160816 9212260820 9411040800 9418461000 9461310800 9461310800
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17111-56140

B..BU60,70,80

 1
17141 - MANIFOLD, EXHAUST
17141-56050

B,11B,13B..BU6#,70,8#

 1
17141-56050

B,11B,13B..BU6#,70,8#,93

 1
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10087

B,11B,13B..BU6#,70,8#

 3
90116-10087

B,11B,13B..BU6#,70,8#,93

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-10098

B,11B,13B..BU6#,70,8#

EXHAUST MANIFOLD

 2
92132-60825

B,11B,13B..BU6#,70,8#,93

INTAKE MANIFOLD

 5
90116-10098

B,11B,13B..BU6#,70,8#,93

EXHAUST MANIFOLD

 2
92132-60825

B,11B,13B..BU6#,70,8#

INTAKE MANIFOLD

 5
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-10098

B,11B,13B..BU6#,70,8#

EXHAUST MANIFOLD

 2
92132-60825

B,11B,13B..BU6#,70,8#,93

INTAKE MANIFOLD

 5
90116-10098

B,11B,13B..BU6#,70,8#,93

EXHAUST MANIFOLD

 2
92132-60825

B,11B,13B..BU6#,70,8#

INTAKE MANIFOLD

 5
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-56023

11B,13B..BU61,65,85..GEN;B,11B,13B..BU60,62,70,80,81,82,86..5F

 1
17167-56023

11B,13B..BU61,65,85..GEN;B,11B,13B..BU60,62,70,80,81,82,86,93..5F

 1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-58030

B,11B,13B..BU6#,70,8#

 1
17168-58030

B,11B,13B..BU6#,70,8#,93

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-58010

B,11B,13B..BU6#,70,8#,93

 1
17173-58010

B,11B,13B..BU6#,70,8#

 1
Common parts
90119-10346
90179-08088
90387-08056
90560-12033
91611-60825
91651-60816
92122-60820
94110-40800
94184-61000
94613-10800
