BU80R-MDDT (1987)
Toyota Dyna 200
Production
Aug 1987
-
Aug 1988
Engine
B
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8708- )BU62,8#,93..5F

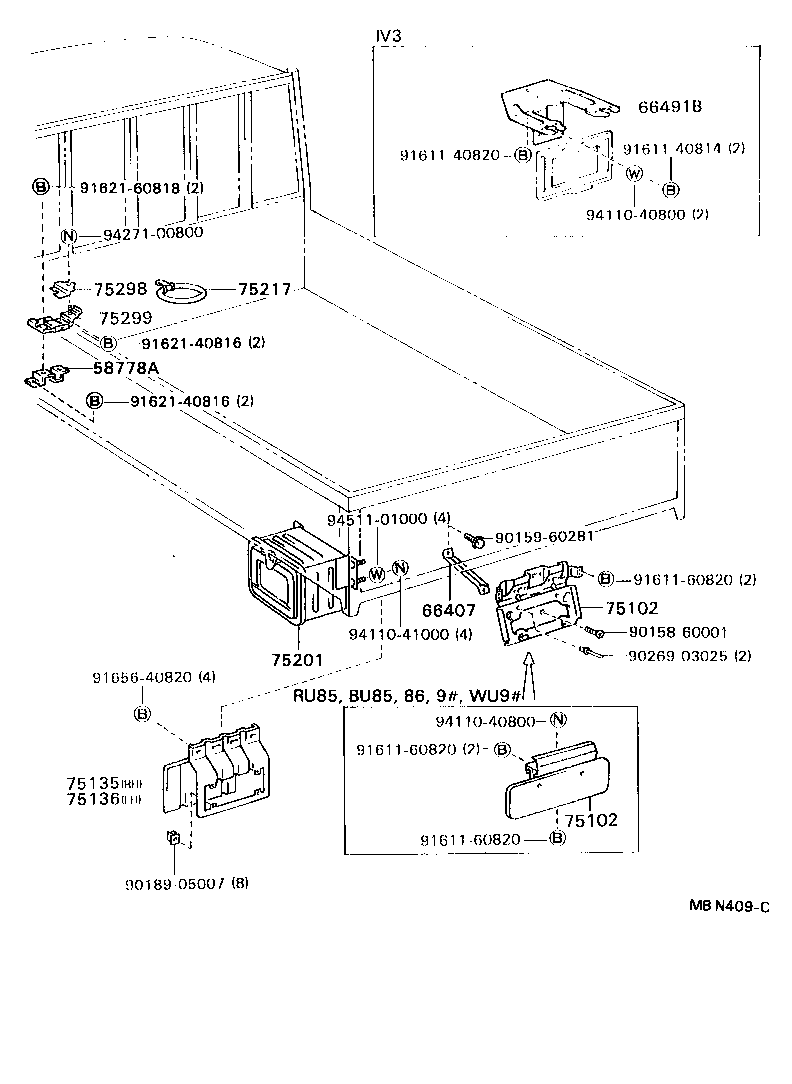

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 66407 - STAY SUB-ASSY, LICENSE PLATE BRACKET | ||||
| 66493-92802 |
BU80,81..CBU |
1 | ||
| 75102 - BRACKET SUB-ASSY, REAR LICENSE PLATE | ||||
| 75102-92801 |
BU80,81..CBU |
1 | ||
| 75102 - BRACKET SUB-ASSY, REAR LICENSE PLATE | ||||
| 75102-92801 |
BU80,81..CBU |
1 | ||
| 75135 - BRACKET, COMBINATION REAR LAMP, RH | ||||
| 75105-92802 |
BU80..GEN..CBU W(*STAC) |
1 | ||
| 75105-92700 |
BU80,81,85,86..CBU W(SCHNORKEL) |
1 | ||
| 75136 - BRACKET, COMBINATION REAR LAMP, LH | ||||
| 75105-92700 |
BU80,81,85,86..CBU W(SCHNORKEL) |
1 | ||
| 75106-92802 |
BU80..GEN..CBU W(*STAC) |
1 | ||
| 75201 - BOX SUB-ASSY, TOOL W/STAY | ||||
| 75210-92804 |
BU80,81,85..CBU |
1 | ||
| 75217 - BAND, TOOL BAG | ||||
| 58705-95A01 |
BU6#,8#,93 |
1 | ||
| 58705-95A01 |
BU6#,8# |
1 | ||
| 75298 - PLATE, JACK HOLDER | ||||
| 75298-95400 |
BU60..T3;BU61,62,65,70,80,81,82,85,93..GEN,GHD,SA |
1 | ||
| 75298-95400 |
BU60..T3;BU61,62,65,70,80,81,82,85..GEN,GHD,SA |
1 | ||
| 75299 - BASE, JACK HOLDER | ||||
| 75299-95400 |
BU6#,80,81,82..WT..(GEN,GHD,SA) |
1 | ||
| Common parts | ||||
| 90158-60001 | ||||
| 90159-60281 | ||||
| 90189-05007 | ||||
| 90269-03025 | ||||
| 91611-40814 | ||||
| 91611-40820 | ||||
| 91611-60820 | ||||
| 91621-40816 | ||||
| 91621-60818 | ||||
| 91656-40820 | ||||
| 94110-40800 | ||||
| 94110-41000 | ||||
| 94271-00800 | ||||
| 94511-01000 | ||||
