BU80L-MDDT3 (1987)
Toyota Dyna 200
ILLUST NO. 1 OF 3(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46101 - HANDLE SUB-ASSY, PARKING BRAKE CONTROL | ||||
| 46101-3619001 |
BU6#,70,80,81,85..LHD BLACK,TRIM4# |
1 | ||
| 46103 - GUIDE SUB-ASSY, PARKING BRAKE PLUNGER | ||||
| 46103-36150 |
BU6#,70,80,81,85..LHD |
1 | ||
| 46105 - BRACKET SUB-ASSY, PARKING BRAKE PLANGER OR PEDAL | ||||
| 46105-25020 |
BU6#,70,80,81..LHD |
1 | ||
| 46114 - PIN, PARKING BRAKE PLUNGER | ||||
| 46114-30010 |
BU85..RHD;BU6#,70,80,81,82,86 |
1 | ||
| 46114-30010 |
BU85..RHD;BU6#,70,80,81,82,86,93 |
1 | ||
| 46114A - PIN, PARKING BRAKE PLUNGER | ||||
| 46114-20010 |
BU6#,70,8#,93 |
1 | ||
| 46114-20010 |
BU6#,70,8# |
1 | ||
| 46117 - SLEEVE, PARKING BRAKE PLUNGER | ||||
| 46117-30020 |
BU6#,70,80,81,85..LHD |
1 | ||
| 46275 - PLATE, PARKING BRAKE RELEASE CAUTION | ||||
| 46275-26010 |
BU6#,70,8#,93 |
1 | ||
| 46275-26010 |
BU6#,70,8# |
1 | ||
| 46301 - LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE | ||||
| 46301-36070 |
BU6#,70,8#,93 |
1 | ||
| 46301-36070 |
BU6#,70,8# |
1 | ||
| 46301B - BUSH(FOR INTERMEDIATE LEVER) | ||||
| 90386-13007 |
BU6#,70,8#,93 |
2 | ||
| 90386-13007 |
BU6#,70,8# |
2 | ||
| 46301B - BUSH(FOR INTERMEDIATE LEVER) | ||||
| 90386-13007 |
BU6#,70,8#,93 |
2 | ||
| 90386-13007 |
BU6#,70,8# |
2 | ||
| 46301D - COLLAR(FOR INTERMEDIATE LEVER) | ||||
| 90387-10004 |
BU6#,70,8# |
1 | ||
| 90387-10004 |
BU6#,70,8#,93 |
1 | ||
| 46301E - PIN, W/HOLE(FOR INTERMEDIATE LEVER) | ||||
| 90240-08010 |
BU6#,70,8#,93 |
1 | ||
| 90240-08010 |
BU6#,70,8# |
1 | ||
| 46301F - SPRING, TORSION(FOR PARKING BRAKE INTERMEDIATE LEVER) | ||||
| 90508-35024 |
BU6#,70,8# |
1 | ||
| 90508-35024 |
BU6#,70,8#,93 |
1 | ||
| 46301G - BOLT(FOR INTERMEDIATE LEVER) | ||||
| 91111-71070 |
BU6#,70,8#,93 |
1 | ||
| 91111-71070 |
BU6#,70,8# |
1 | ||
| 46311 - PAWL, PARKING BRAKE | ||||
| 46311-26010 |
BU6#,70,8# |
1 | ||
| 46311-26010 |
BU6#,70,8#,93 |
1 | ||
| 46311A - SPRING(FOR PARKING BRAKE PAWL) | ||||
| 90508-08041 |
BU6#,70,8#,93 |
1 | ||
| 90508-08041 |
BU6#,70,8# |
1 | ||
| 46311B - PIN, PARKING BRAKE PAWL PIVOT | ||||
| 90249-05010 |
BU6#,70,8# |
1 | ||
| 90249-05010 |
BU6#,70,8#,93 |
1 | ||
| 46311D - WASHER, TYPE C(FOR PARKING BRAKE PAWL) | ||||
| 90213-03007 |
BU6#,70,8#,93 |
1 | ||
| 90213-03007 |
BU6#,70,8# |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-36121 |
BU6#,70,8#,93 |
1 | ||
| 46410-36350 |
BU6#,70,8#,93 |
1 | ||
| 46410-36121 |
BU6#,70,8# |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-36121 |
BU6#,70,8#,93 |
1 | ||
| 46410-36350 |
BU6#,70,8#,93 |
1 | ||
| 46410-36121 |
BU6#,70,8# |
1 | ||
| 46410D - PIN(FOR PARKING BRAKE FRONT CABLE) | ||||
| 90240-08094 |
BU6#,70,8# |
1 | ||
| 90240-08094 |
BU6#,70,8#,93 |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-36260 |
BU60,61,62,70,80,81..LHD |
1 | ||
| 46420E - GROMMET(FOR PARKING BRAKE CABLE CLAMP) | ||||
| 90480-25026 |
BU6#,70,8# |
1 | ||
| 90480-25026 |
BU6#,70,8#,93 |
1 | ||
| 46420F - SEAL, DUST(FOR PARKING BRAKE CABLE) | ||||
| 90303-10001 |
BU6#,70,8#,93 |
1 | ||
| 90303-10001 |
BU6#,70,8# |
1 | ||
| 46420G - SPRING(FOR PARKING CABLE INNER WIRE SET) | ||||
| 90501-14021 |
BU62..ST;BU62,65..RHD;BU60,61,70,80,81,86..ARL,GEN,GHD |
1 | ||
| 46420P - SPACER, PARKING BRAKE | ||||
| 90560-08002 |
BU6#,70,8#,93 |
1 | ||
| 90560-08002 |
BU6#,70,8# |
1 | ||
| 46420Q - RING, E(FOR PARKING BRAKE CABLE) | ||||
| 96160-00700 |
BU6#,70,8#,93 |
1 | ||
| 96160-00700 |
BU6#,70,8# |
1 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-36011 |
BU62..ST;BU60,61,70,80,81..ARL,GEN,GHD |
1 | ||
| 46481 - CONNECTOR, PARKING CABLE | ||||
| 46481-36012 |
BU6#,70,8# |
1 | ||
| 46481-36012 |
BU6#,70,8#,93 |
1 | ||
| Common parts | ||||
| 90179-08123 | ||||
| 90461-08225 | ||||
| 90468-08001 | ||||
| 91651-40814 | ||||
| 91651-40820 | ||||
| 94180-41000 | ||||
| 95381-02520 | ||||

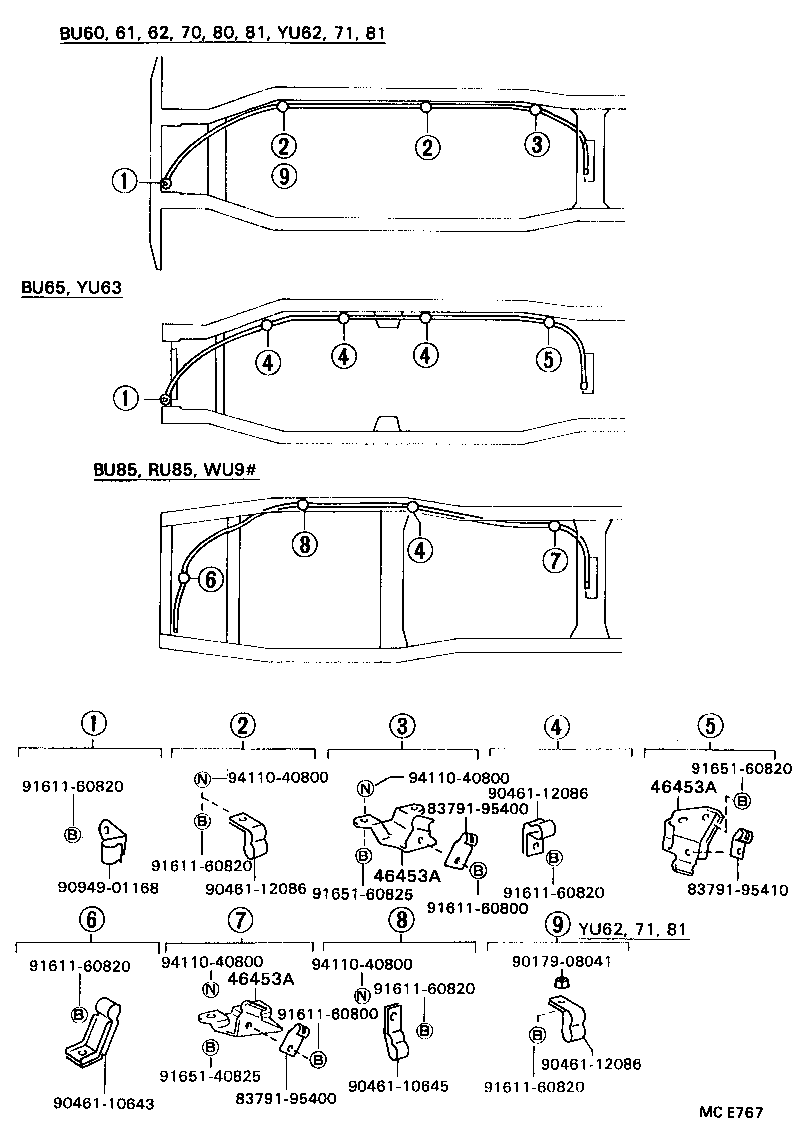

ILLUST NO. 2 OF 3(8708- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46453A - BRACKET, CABLE SUPPORT, NO.3 | ||||
| 46453-36010 |
BU60,61,62,70,80,81,82 |
1 | ||
| 46453A - BRACKET, CABLE SUPPORT, NO.3 | ||||
| 46453-36010 |
BU60,61,62,70,80,81,82 |
1 | ||
| 46453A - BRACKET, CABLE SUPPORT, NO.3 | ||||
| 46453-36010 |
BU60,61,62,70,80,81,82 |
1 | ||
| Common parts | ||||
| 83791-95400 | ||||
| 83791-95410 | ||||
| 90179-08041 | ||||
| 90461-10643 | ||||
| 90461-10645 | ||||
| 90461-12086 | ||||
| 90949-01168 | ||||
| 91611-60800 | ||||
| 91611-60820 | ||||
| 91651-40825 | ||||
| 91651-60820 | ||||
| 91651-60825 | ||||
| 94110-40800 | ||||
ILLUST NO. 3 OF 3(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46501 - DRUM SUB-ASSY, PARKING BRAKE | ||||
| 46501-36120 |
BU62..ST;BU65..CBU;BU60,61,70,80,81,86..ARL,GEN,GHD |
1 | ||
| 46501A - BOLT, SERRATION(FOR PARKING BRAKE DRUM) | ||||
| 90114-11124 |
BU6#,70,8# |
4 | ||
| 90114-11124 |
BU6#,70,8#,93 |
4 | ||
| 46503C - PLATE SUB-ASSY, PARKING BRAKE | ||||
| 46503-36022 |
BU62..ST;BU62,65..RHD;BU60,61,70,80,81,86..ARL,GEN,GHD |
1 | ||
| 46506A - ADJUSTER SUB-ASSY, PARKING BRAKE SHOE | ||||
| 46506-36020 |
BU62..ST;BU62,65..RHD;BU60,61,70,80,81,86..ARL,GEN,GHD |
1 | ||
| 46540 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.1 | ||||
| 46540-36010 |
BU62..ST;BU62,65..RHD;BU60,61,70,80,81,86..ARL,GEN,GHD |
2 | ||
| 46550 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2 | ||||
| 46550-36010 |
BU62..ST;BU62,65..RHD;BU60,61,70,80,81,86..ARL,GEN,GHD |
1 | ||
| 46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-18012 |
BU62..ST;BU62,65..RHD;BU60,61,70,80,81,86..ARL,GEN,GHD |
2 | ||
| 46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-18012 |
BU62..ST;BU62,65..RHD;BU60,61,70,80,81,86..ARL,GEN,GHD |
2 | ||
| 46550C - WASHER, TYPE C(FOR PARKING BRAKE SHOE) | ||||
| 90213-06002 |
BU62..ST;BU62,65..RHD;BU60,61,70,80,81,86..ARL,GEN,GHD |
3 | ||
| 46550C - WASHER, TYPE C(FOR PARKING BRAKE SHOE) | ||||
| 90213-06002 |
BU62..ST;BU62,65..RHD;BU60,61,70,80,81,86..ARL,GEN,GHD |
3 | ||
| 46550E - SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-14048 |
BU62..ST;BU62,65..RHD;BU60,61,70,80,81,86..ARL,GEN,GHD |
1 | ||
| 46555 - SPRING, BRAKE SHOE HOLD DOWN | ||||
| 46555-35010 |
BU62..ST;BU62,65..RHD;BU60,61,70,80,81,86..ARL,GEN,GHD |
2 | ||
| 46556 - PIN, SHOE HOLD DOWN SPRING | ||||
| 46556-35010 |
BU62..ST;BU62,65..RHD;BU60,61,70,80,81,86..ARL,GEN,GHD |
2 | ||
| 46577 - COVER, ADJUSTING CAM HOLE | ||||
| 46577-36010 |
BU6#,70,8#,93 |
1 | ||
| 46577-36010 |
BU6#,70,8# |
1 | ||
| 46601 - LEVER SUB-ASSY, PARKING BRAKE SHOE | ||||
| 46601-25011 |
BU62..ST;BU62,65..RHD;BU60,61,70,80,81,86..ARL,GEN,GHD |
1 | ||
| Common parts | ||||
| 90119-10338 | ||||
| 94613-11200 | ||||
ILLUST NO. 3 OF 3(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46501 - DRUM SUB-ASSY, PARKING BRAKE | ||||
| 46501-36120 |
BU62..ST;BU65..CBU;BU60,61,70,80,81,86..ARL,GEN,GHD |
1 | ||
| 46501A - BOLT, SERRATION(FOR PARKING BRAKE DRUM) | ||||
| 90114-11124 |
BU6#,70,8# |
4 | ||
| 90114-11124 |
BU6#,70,8#,93 |
4 | ||
| 46503C - PLATE SUB-ASSY, PARKING BRAKE | ||||
| 46503-36022 |
BU62..ST;BU62,65..RHD;BU60,61,70,80,81,86..ARL,GEN,GHD |
1 | ||
| 46506A - ADJUSTER SUB-ASSY, PARKING BRAKE SHOE | ||||
| 46506-36020 |
BU62..ST;BU62,65..RHD;BU60,61,70,80,81,86..ARL,GEN,GHD |
1 | ||
| 46540 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.1 | ||||
| 46540-36010 |
BU62..ST;BU62,65..RHD;BU60,61,70,80,81,86..ARL,GEN,GHD |
2 | ||
| 46550 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2 | ||||
| 46550-36010 |
BU62..ST;BU62,65..RHD;BU60,61,70,80,81,86..ARL,GEN,GHD |
1 | ||
| 46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-18012 |
BU62..ST;BU62,65..RHD;BU60,61,70,80,81,86..ARL,GEN,GHD |
2 | ||
| 46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-18012 |
BU62..ST;BU62,65..RHD;BU60,61,70,80,81,86..ARL,GEN,GHD |
2 | ||
| 46550C - WASHER, TYPE C(FOR PARKING BRAKE SHOE) | ||||
| 90213-06002 |
BU62..ST;BU62,65..RHD;BU60,61,70,80,81,86..ARL,GEN,GHD |
3 | ||
| 46550E - SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-14048 |
BU62..ST;BU62,65..RHD;BU60,61,70,80,81,86..ARL,GEN,GHD |
1 | ||
| 46555 - SPRING, BRAKE SHOE HOLD DOWN | ||||
| 46555-35010 |
BU62..ST;BU62,65..RHD;BU60,61,70,80,81,86..ARL,GEN,GHD |
2 | ||
| 46556 - PIN, SHOE HOLD DOWN SPRING | ||||
| 46556-35010 |
BU62..ST;BU62,65..RHD;BU60,61,70,80,81,86..ARL,GEN,GHD |
2 | ||
| 46577 - COVER, ADJUSTING CAM HOLE | ||||
| 46577-36010 |
BU6#,70,8#,93 |
1 | ||
| 46577-36010 |
BU6#,70,8# |
1 | ||
| 46601 - LEVER SUB-ASSY, PARKING BRAKE SHOE | ||||
| 46601-25011 |
BU62..ST;BU62,65..RHD;BU60,61,70,80,81,86..ARL,GEN,GHD |
1 | ||
| Common parts | ||||
| 90119-10338 | ||||
| 90119-10339 | ||||
| 94613-11200 | ||||
