BU80L-MDDT (1987)

Toyota Dyna 200

Production Aug 1987 - Aug 1988
Engine B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )BU60,70,80..LHD

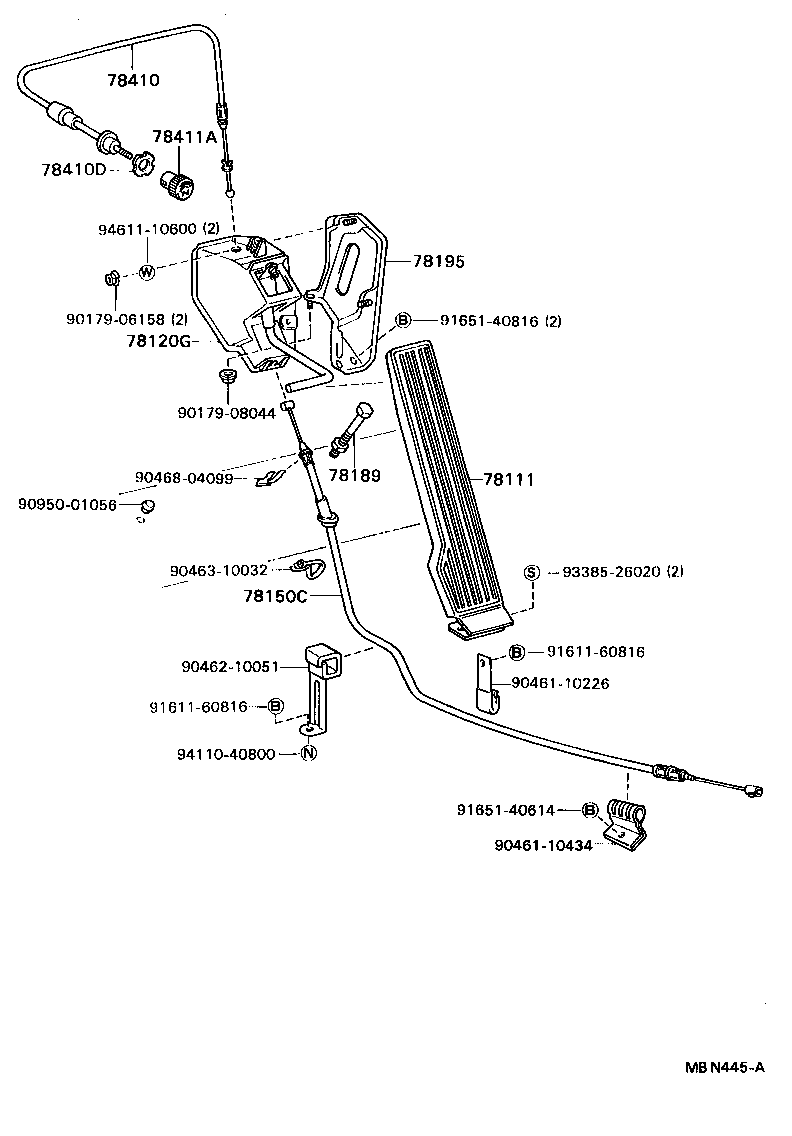

Click highlighted areas on diagram

diagram 78111 78120G 78150C 78189 78195 78410 78410D 78411A 9017906158 9017908044 9046110226 9046110434 9046210051 9046310032 9046804099 9095001056 9161160816 9161160816 9165140614 9165140816 9338526020 9411040800 9461110600
Part # Description Qty Price
78111 - PEDAL, ACCELERATOR
78110-95014

BU6#,70,80,81..LHD

 1
78120G - ROD ASSY, ACCELERATOR PEDAL
78202-95401

BU6#,70,80,81,85..LHD

 1
78150C - WIRE ASSY, ACCELERATOR FLEXIBLE
78150-95463

BU60,70,80..LHD

 1
78189 - BOLT, ACCELERATOR PEDAL STOPPER
78208-95402

BU6#,70,80,81..LHD

 1
78195 - BRACKET, ACCELERATOR LINK
78195-95401

BU6#,70,80,81,85..LHD

 1
78410 - CABLE ASSY, THROTTLE CONTROL
78404-95012

BU6#,70,80,81,85..LHD

 1
78410D - NUT, THROTTLE
78314-95010

BU6#,70,8#,93

 1
78411A - KNOB, THROTTLE CONTROL CABLE
78411-22010

BU6#,70,8#,93

 1
Common parts
90179-06158
90179-08044
90461-10226
90461-10434
90462-10051
90463-10032
90468-04099
90950-01056
91611-60816
91651-40614
91651-40816
93385-26020
94110-40800
94611-10600
