BU70LV-MD (1987)
Toyota Dyna 200
(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04477 - BUSH & BOOT KIT, LOAD SENSING SPRING | ||||
| 04477-26010 |
BU61,62,65..ARL;BU60,61,62,70..ST |
1 | ||
| 47910 - VALVE ASSY, LOAD SENSING PROPORTIONING | ||||
| 47910-36050 |
BU60,61,62,70..ST;BU61,62,65,81..ARL,SA |
1 | ||
| 47920 - SPRING ASSY, LOAD SENSING | ||||
| 47920-36080 |
BU60,61,62,70..ST |
1 | ||
| 47920A - COLLAR(FOR LOAD SENSING SPRING) | ||||
| 90387-08099 |
BU60,61,62,70..ST;BU61,62,65,81..ARL,SA |
2 | ||
| 47920A - COLLAR(FOR LOAD SENSING SPRING) | ||||
| 90387-08099 |
BU60,61,62,70..ST;BU61,62,65,81..ARL,SA |
2 | ||
| 47920B - CLIP(FOR LOAD SENSING VALVE BOOT) | ||||
| 90467-31110 |
BU60,61,62,70..ST;BU61,62,65,81..ARL,SA |
1 | ||
| 47920C - WASHER(FOR LOAD SENSING SPRING) | ||||
| 90202-10103 |
BU60,61,62,70..ST;BU61,62,65,81..ARL,SA |
2 | ||
| 47920C - WASHER(FOR LOAD SENSING SPRING) | ||||
| 90202-10103 |
BU60,61,62,70..ST;BU61,62,65,81..ARL,SA |
2 | ||
| 47931 - BRACKET, LOAD SENSING VALVE | ||||
| 47931-36090 |
BU60,61,62,70..ST |
1 | ||
| 47933 - BRACKET, LOAD SENSING SHACKLE, NO.1 | ||||
| 47933-36050 |
BU60,61,62,70..ST;BU61,62,81..ARL,SA |
1 | ||
| 47935 - SHACKLE, LOAD SENSING SPRING, NO.1 | ||||
| 47935-35010 |
BU60,61,62,70..ST;BU61,62,65,81..ARL,SA |
1 | ||
| 47935A - COLLAR(FOR LOAD SENSING SPRING SHACKLE) | ||||
| 90387-08099 |
BU60,61,62,70..ST;BU61,62,65,81..ARL,SA |
1 | ||
| 47935B - BUSH(FOR LOAD SENSING SPRING SHACKLE) | ||||
| 90385-10064 |
BU60,61,62,70..ST;BU61,62,65,81..ARL,SA |
2 | ||
| 47935B - BUSH(FOR LOAD SENSING SPRING SHACKLE) | ||||
| 90385-10064 |
BU60,61,62,70..ST;BU61,62,65,81..ARL,SA |
2 | ||
| 47935C - RETAINER(FOR LOAD SENSING SPRING SHACKLE) | ||||
| 90948-02033 |
BU60,61,62,70..ST;BU61,62,65,81..ARL,SA |
1 | ||
| 47936 - SHACKLE, LOAD SENSING SPRING, NO.2 | ||||
| 47936-35010 |
BU60,61,62,70..ST;BU61,62,65,81..ARL,SA |
1 | ||
| 47937 - PLATE, LOAD SENSING VALVE SET | ||||
| 47937-60010 |
BU60,61,62,70..ST;BU61,62,65,81..ARL,SA |
1 | ||
| Common parts | ||||
| 90179-08146 | ||||
| 90201-23360 | ||||
| 91131-50840 | ||||
| 91611-60816 | ||||
| 91651-40820 | ||||
| 94110-41000 | ||||
| 94141-40800 | ||||
| 94512-00800 | ||||
| 94512-01000 | ||||
| 95381-02020 | ||||

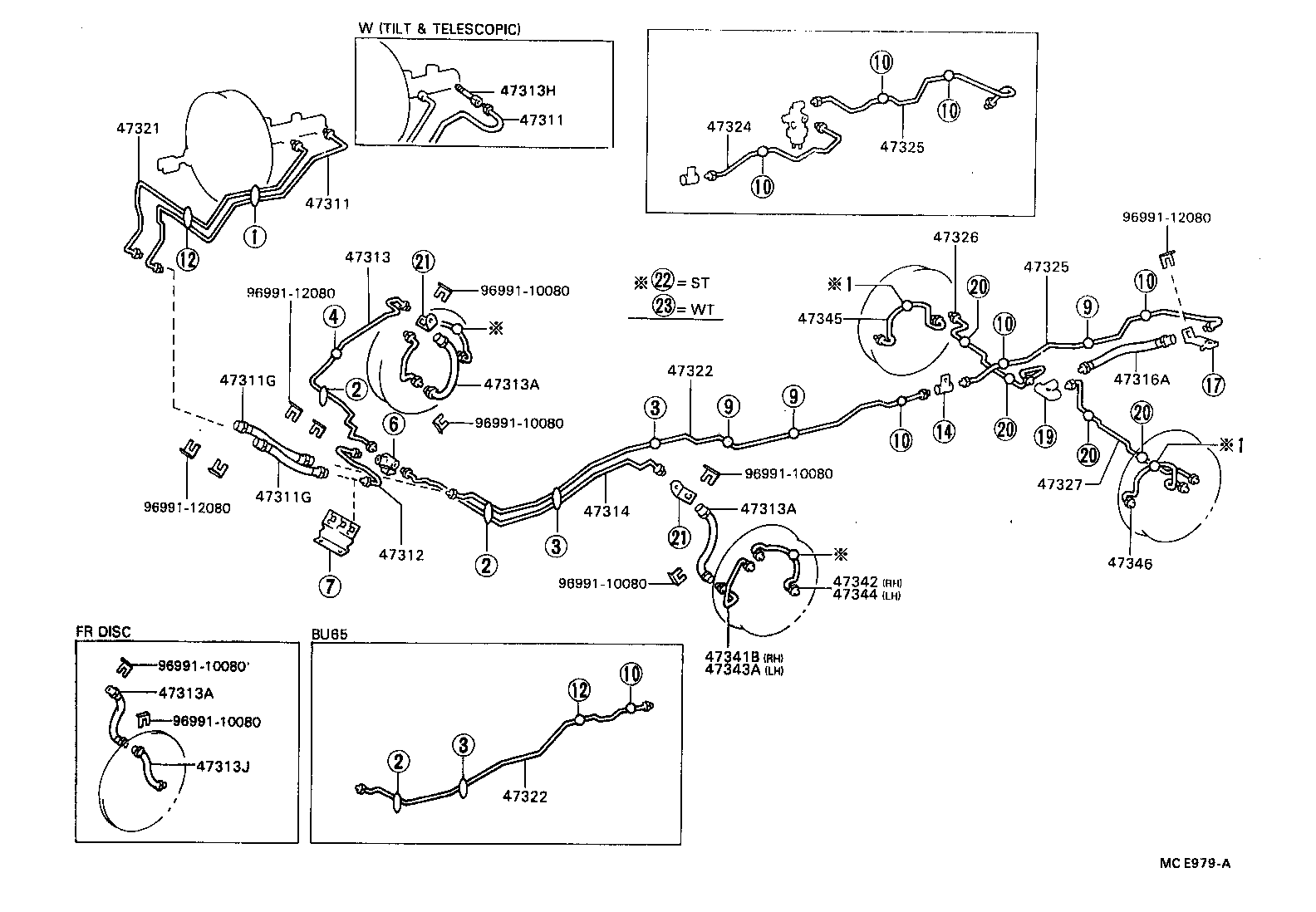

(8708- )BU60,61,65,70..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-36420 |
BU62..ST;BU60,61,70,80,81..LHD W(TILT & TELESCOPIC) |
1 | ||
| 47311-36330 |
BU62..ST;BU60,61,65,70,80,81..LHD |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-36420 |
BU62..ST;BU60,61,70,80,81..LHD W(TILT & TELESCOPIC) |
1 | ||
| 47311-36330 |
BU62..ST;BU60,61,65,70,80,81..LHD |
1 | ||
| 47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE) | ||||
| 96932-33705 |
BU6#,70,80,81,82 |
2 | ||
| 47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE) | ||||
| 96932-33705 |
BU6#,70,80,81,82 |
2 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-36250 |
BU6#,70,80,81,82 |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-36160 |
BU60,61,62,70,80,81,82 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02469 |
BU60,61,62,70..ST |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02469 |
BU60,61,62,70..ST |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02469 |
BU60,61,62,70..ST |
2 | ||
| 47313H - WAY, NO.3(FOR FRONT BRAKE TUBE) | ||||
| 90404-12007 |
BU65,85..RHD..GEN..(CBU,IV3);BU60,61,62,70,80,81,82,86..GEN,GHD |
1 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-36230 |
BU60,61,62,70,80,81,82 |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 96912-34005 |
BU60,61,62,70,80,81,82 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-36230 |
BU62..ST;BU60,61,65,70,80,81..LHD |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-36212 |
BU60,61,62,70,80,81..LHD |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-36212 |
BU60,61,62,70,80,81..LHD |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-36210 |
BU60,61,62,70..ST |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-36280 |
BU60,61,62,70..ST |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-36280 |
BU60,61,62,70..ST |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47329-36140 |
BU60,61,62,70..ST |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47327-36130 |
BU60,61,62,70..ST |
1 | ||
| 47341B - TUBE, WHEEL CYLINDER, FRONT RH NO.1 | ||||
| 47341-36070 |
BU60,61,62,70..ST |
1 | ||
| 47342 - TUBE, WHEEL CYLINDER, FRONT RH NO.2 | ||||
| 47342-36020 |
BU60,61,62,70..ST |
1 | ||
| 47343A - TUBE, WHEEL CYLINDER, FRONT LH NO.1 | ||||
| 47343-36070 |
BU60,61,62,70..ST |
1 | ||
| 47344 - TUBE, WHEEL CYLINDER, FRONT LH NO.2 | ||||
| 47342-36020 |
BU60,61,62,70..ST |
1 | ||
| 47345 - TUBE, WHEEL CYLINDER, REAR RH | ||||
| 47345-36011 |
BU60,61,62,70..ST |
1 | ||
| 47346 - TUBE, WHEEL CYLINDER, REAR LH | ||||
| 47345-36011 |
BU60,61,62,70..ST |
1 | ||
| Common parts | ||||
| 96991-10080 | ||||
| 96991-12080 | ||||
(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90413-12005 |
BU6#,70,80,81,82 |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90413-12005 |
BU6#,70,80,81,82 |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-12014 |
BU6#,70,8# |
1 | ||
| 90412-12014 |
BU6#,70,8#,93 |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-12014 |
BU6#,70,8# |
1 | ||
| 90412-12014 |
BU6#,70,8#,93 |
1 | ||
| 47323A - WAY, NO.3(FOR REAR BRAKE TUBE) | ||||
| 90413-10125 |
BU62..ST;BU62..ARL;BU60,61,70,80,81,86..ARL,GEN,SA |
1 | ||
| 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) | ||||
| 47351-36130 |
BU6#,70,80,81,82 |
2 | ||
| 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) | ||||
| 47351-36130 |
BU6#,70,80,81,82 |
2 | ||
| 47353B - BRACKET, FLEXIBLE HOSE, NO.3 | ||||
| 47353-36171 |
BU60,61,62,70,80,81,82 |
1 | ||
| 47354B - BRACKET, FLEXIBLE HOSE, NO.4 | ||||
| 47354-36080 |
BU6#,70,80,81..LHD |
1 | ||
| 47354B - BRACKET, FLEXIBLE HOSE, NO.4 | ||||
| 47354-36080 |
BU6#,70,80,81..LHD |
1 | ||
| 47381 - BRACKET, BRAKE TUBE CLAMP NO.1 | ||||
| 47381-36060 |
BU60,61,62,70,80,81,82 |
2 | ||
| Common parts | ||||
| 90170-10082 | ||||
| 90179-08146 | ||||
| 90201-10282 | ||||
| 90461-08779 | ||||
| 90461-10616 | ||||
| 90480-08343 | ||||
| 90949-01157 | ||||
| 90949-01159 | ||||
| 90949-01160 | ||||
| 90949-01164 | ||||
| 90949-01165 | ||||
| 90949-01188 | ||||
| 91112-71030 | ||||
| 91611-60812 | ||||
| 91611-60816 | ||||
| 91611-60820 | ||||
| 91611-60825 | ||||
| 91615-40814 | ||||
| 91615-60825 | ||||
| 91615-61040 | ||||
| 94110-40800 | ||||
| 94110-40820 | ||||
(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47381 - BRACKET, BRAKE TUBE CLAMP NO.1 | ||||
| 47381-36060 |
BU60,61,62,70,80,81,82 |
2 | ||
| 47381 - BRACKET, BRAKE TUBE CLAMP NO.1 | ||||
| 47381-36060 |
BU60,61,62,70,80,81,82 |
2 | ||
| Common parts | ||||
| 90461-06112 | ||||
| 90461-08602 | ||||
| 90462-06017 | ||||
| 90949-01005 | ||||
| 90949-01006 | ||||
| 90949-01034 | ||||
| 90949-01035 | ||||
| 90949-01164 | ||||
| 90949-01165 | ||||
| 90949-01190 | ||||
| 91611-60820 | ||||
| 91651-60614 | ||||
| 94110-40800 | ||||
(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90170-08006 | ||||
| 90201-08267 | ||||
| 90206-08001 | ||||
| 90468-16142 | ||||
| 91655-60816 | ||||
| 91655-60820 | ||||
| 94110-40800 | ||||
| 94110-51000 | ||||
| 94120-41000 | ||||
| 94531-01000 | ||||
| 96160-00800 | ||||
(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90413-12005 |
BU6#,70,80,81,82 |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90413-12005 |
BU6#,70,80,81,82 |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-12014 |
BU6#,70,8# |
1 | ||
| 90412-12014 |
BU6#,70,8#,93 |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-12014 |
BU6#,70,8# |
1 | ||
| 90412-12014 |
BU6#,70,8#,93 |
1 | ||
| 47323A - WAY, NO.3(FOR REAR BRAKE TUBE) | ||||
| 90413-10125 |
BU62..ST;BU62..ARL;BU60,61,70,80,81,86..ARL,GEN,SA |
1 | ||
| 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) | ||||
| 47351-36130 |
BU6#,70,80,81,82 |
2 | ||
| 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) | ||||
| 47351-36130 |
BU6#,70,80,81,82 |
2 | ||
| 47353B - BRACKET, FLEXIBLE HOSE, NO.3 | ||||
| 47353-36171 |
BU60,61,62,70,80,81,82 |
1 | ||
| 47354B - BRACKET, FLEXIBLE HOSE, NO.4 | ||||
| 47354-36080 |
BU6#,70,80,81..LHD |
1 | ||
| 47354B - BRACKET, FLEXIBLE HOSE, NO.4 | ||||
| 47354-36080 |
BU6#,70,80,81..LHD |
1 | ||
| 47381 - BRACKET, BRAKE TUBE CLAMP NO.1 | ||||
| 47381-36060 |
BU60,61,62,70,80,81,82 |
2 | ||
| Common parts | ||||
| 90170-10082 | ||||
| 90179-08146 | ||||
| 90201-10282 | ||||
| 90461-08779 | ||||
| 90461-10616 | ||||
| 90480-08343 | ||||
| 90949-01157 | ||||
| 90949-01159 | ||||
| 90949-01160 | ||||
| 90949-01164 | ||||
| 90949-01165 | ||||
| 90949-01188 | ||||
| 91112-71030 | ||||
| 91611-60812 | ||||
| 91611-60816 | ||||
| 91611-60820 | ||||
| 91611-60825 | ||||
| 91615-40814 | ||||
| 91615-60825 | ||||
| 91615-61040 | ||||
| 94110-40800 | ||||
| 94110-40820 | ||||
(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47381 - BRACKET, BRAKE TUBE CLAMP NO.1 | ||||
| 47381-36060 |
BU60,61,62,70,80,81,82 |
2 | ||
| 47381 - BRACKET, BRAKE TUBE CLAMP NO.1 | ||||
| 47381-36060 |
BU60,61,62,70,80,81,82 |
2 | ||
| Common parts | ||||
| 90461-06112 | ||||
| 90461-08602 | ||||
| 90462-06017 | ||||
| 90949-01005 | ||||
| 90949-01006 | ||||
| 90949-01034 | ||||
| 90949-01035 | ||||
| 90949-01164 | ||||
| 90949-01165 | ||||
| 90949-01190 | ||||
| 91611-60820 | ||||
| 91651-60614 | ||||
| 94110-40800 | ||||
