BU70LB-MD (1988)

Toyota Dyna 200

Production Aug 1988 - May 1995
Engine B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )BU60,61,66,70,83,84,87

Click highlighted areas on diagram

diagram 58266A 58266A 77251B 77251B 77251D 77251D 77251F 77251F 77252A 77252B 77252B 77252C 77255F 77256D 77256E 77277A 77277A 9011908A46 9011908A46 9011908A46 9011908A46 9011908A46 9011908A46 9011908A46 9017008204 9017008204 9017008204 9017908141 9017908141 9017908144 9017908144 9046715012 9094901161 9094901162 9613230600 9613241100
Part # Description Qty Price
77251B - TUBE, FUEL MAIN
77205-36490

BU70

 1
77205-36840

BU70

 1
77251B - TUBE, FUEL MAIN
77205-36490

BU70

 1
77205-36840

BU70

 1
77251D - HOSE, FUEL, NO.2(FOR FUEL MAIN TUBE)
77259-36050

BU60,61,66,70,83,84,87

 1
77259-36051

BU91,96..ARL,GEN;BU60,61,66,70,83,84,88..CBU,IV3

 1
77259-36170

BU60,61,66,70,83,84

 1
77259-36051

BU60,61,66,70,83,84,87

 1
77259-36051

BU60,61,66,70,83,84,87,94;BU88,91,96..(ARL,GEN)..(CBU,IV3)

 1
77251D - HOSE, FUEL, NO.2(FOR FUEL MAIN TUBE)
77259-36050

BU60,61,66,70,83,84,87

 1
77259-36051

BU91,96..ARL,GEN;BU60,61,66,70,83,84,88..CBU,IV3

 1
77259-36170

BU60,61,66,70,83,84

 1
77259-36051

BU60,61,66,70,83,84,87

 1
77259-36051

BU60,61,66,70,83,84,87,94;BU88,91,96..(ARL,GEN)..(CBU,IV3)

 1
77251F - HOSE, FUEL
95332-10014

BU60,61,66,70,83,84,87

*H,L=140

 1
95332-10014

BU60,61,66,70,83,84..CBU,IV3

*H,L=140

 1
95332-10020

BU91,96..ARL,GEN;BU60,61,66,70,8#,94

*H,L=200

 1
77251F - HOSE, FUEL
95332-10014

BU60,61,66,70,83,84,87

*H,L=140

 1
95332-10014

BU60,61,66,70,83,84..CBU,IV3

*H,L=140

 1
95332-10020

BU91,96..ARL,GEN;BU60,61,66,70,8#,94

*H,L=200

 1
77252B - HOSE, FUEL, NO.1 (FOR FUEL MAIN NO.2 TUBE)
95332-10014

BU60,61,66,70,83,84,87

*H,L=140

 1
77252B - HOSE, FUEL, NO.1 (FOR FUEL MAIN NO.2 TUBE)
95332-10014

BU60,61,66,70,83,84,87

*H,L=140

 1
77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE)
95333-06020

BU70

*H,L=200

 1
77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
23273-56010

BU6#,70,8#,94;BU91,96..ARL,GEN

L=220

 1
77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
23273-56010

BU6#,70,8#,94;BU91,96..ARL,GEN

L=220

 1
Common parts
90119-08A46
90170-08204
90179-08141
90179-08144
90467-15012
90949-01161
90949-01162
96132-30600
96132-41100

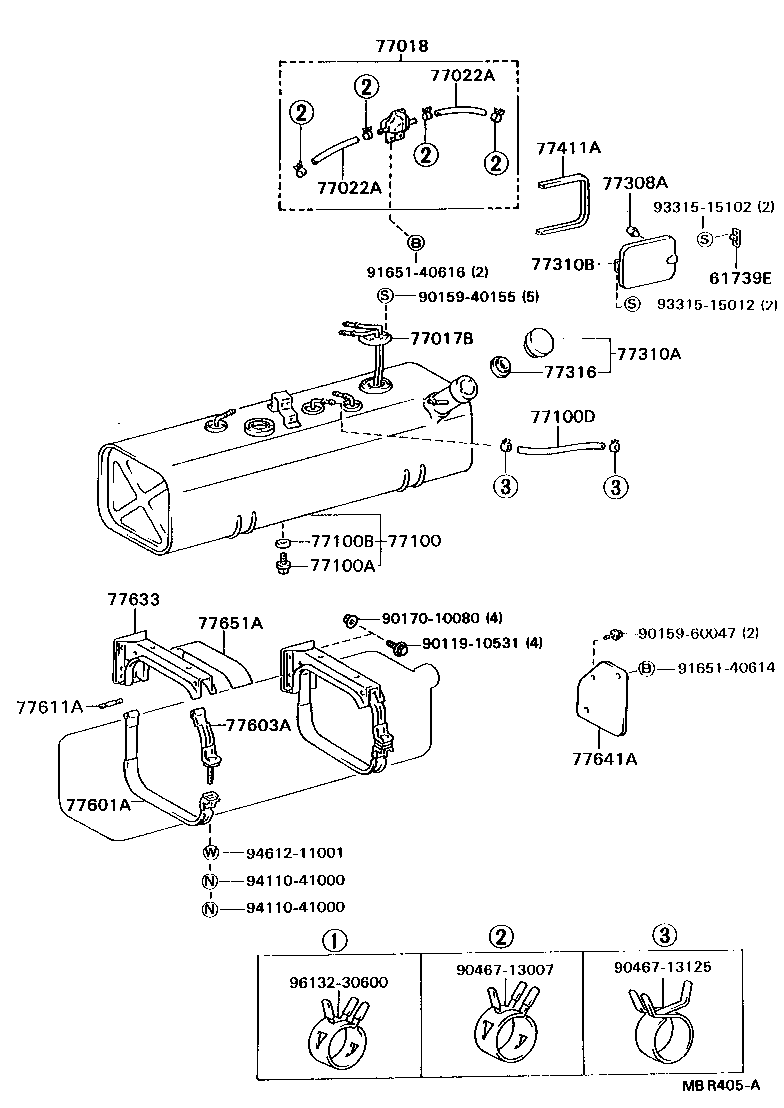

(8808- )BU70

Click highlighted areas on diagram

diagram 61739E 77017B 77018 77022A 77022A 77100 77100A 77100B 77100D 77308A 77310A 77310B 77316 77411A 77601A 77603A 77611A 77633 77641A 77651A 9011910531 9015940155 9015960047 9017010080 9046713007 9046713125 9165140614 9165140616 9331515012 9331515102 9411041000 9411041000 9461211001 9613230600
Part # Description Qty Price
61739E - STOPPER, FUEL INLET COVER
61739-92605

BU70

 1
77017B - TUBE SUB-ASSY, FUEL TANK VENT
77017-36360

BU70

 1
77017-36361

BU70

 1
77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE
77018-25110

BU70;BU60..TW1

 1
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95333-08020

BU70;BU60..TW1

L=200,ID=8

 2
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95333-08020

BU70;BU60..TW1

L=200,ID=8

 2
77100 - TANK ASSY, FUEL
77001-3B040

BU70

 1
77100A - PLUG(FOR FUEL TANK)
90105-12116

BU88,91..GEN,SA;BU6#,70,83,84,87,94,96

 1
77100B - GASKET(FOR FUEL TANK)
90430-12245

BU6#,70,8#,9#

 1
77100D - HOSE, FUEL, NO.1(FOR FUEL TANK)
95333-08040

BU70

L=400

 1
77308A - CUSHION(FOR FUEL INLET BOX COVER)
90541-05080

BU70

 2
77310A - CAP ASSY, FUEL TANK
77310-55080

BU65..CBU;BU66..T3..TB;BU60,61,70,8#,9#..DSL

 1
77310B - DOOR ASSY, FUEL INLET, RH
77310-92605

BU70

 1
77316 - GASKET, FUEL TANK CAP
77316-27010

BU65..CBU;BU66..T3..TB;BU60,61,70,8#,9#..DSL

 1
77411A - PROTECTOR, FUEL INLET BOX
77411-92605

BU70

 1
77601A - BAND SUB-ASSY, FUEL TANK, NO.1
77601-25090

BU70;BU60..TW1

 2
77603A - BAND SUB-ASSY, FUEL TANK, NO.2
77603-25010

BU70;BU60..TW1

 2
77611A - PIN (FOR FUEL TANK BAND)
77653-25010

BU70;BU60..TW1

 4
77633 - STAY, FUEL TANK
77501-25090

BU70;BU60..TW1

 2
77501-25091

BU70;BU60..TW1

 2
77641A - PROTECTOR, FUEL TANK, NO.1
77641-92600

BU70

 1
77651A - CUSHION, FUEL TANK, NO.1
77651-26040

BU70;BU60..TW1

 2
Common parts
90119-10531
90159-40155
90159-60047
90170-10080
90467-13007
90467-13125
91651-40614
91651-40616
93315-15012
93315-15102
94110-41000
94612-11001
96132-30600
