BU70LB-MD (1988)
Toyota Dyna 200
(8808- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58839A - COVER, CONSOLE BOX HOLE | ||||
| 58839-9540001 |
BU70..BUS BLACK,TRIM1#,TYPE A |
1 | ||
| 58839-9540101 |
BU70..BUS BLACK,TRIM1#,TYPE B |
1 | ||
| 58839A - COVER, CONSOLE BOX HOLE | ||||
| 58839-9540001 |
BU70..BUS BLACK,TRIM1#,TYPE A |
1 | ||
| 58839-9540101 |
BU70..BUS BLACK,TRIM1#,TYPE B |
1 | ||
| 58936A - BAND, ENGINE SERVICE HOLE COVER SUPPORT | ||||
| 58930-9570006 |
BU6#,70,8#,9# DARK BROWN,TRIM4# |
1 | ||
| 71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71012-95412 |
BU66..T3..TB..GEN;BU60,61,65,70,83,84,88,91,96..LHD |
1 | ||
| 71012-95412 |
BU6#,70,83,84,88,91,96..LHD |
1 | ||
| 71013S - FRAME SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71013-9541601 |
BU6#,70,83,84..LHD BLACK,TRIM1# |
1 | ||
| 71013-9541601 |
BU6#,70,83,84..LHD BLACK,TRIM4# |
1 | ||
| 71013-37010 |
BU70..BUS W(FABRIC SEAT & HEADREST) |
1 | ||
| 71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71014-95423 |
BU66..T3..TB..GEN;BU60,61,65,70,83,84,88,91,96..LHD..DSL |
1 | ||
| 71014-9541901 |
BU70..BUS W(FABRIC SEAT & HEADREST),BLACK,TRIM1# |
1 | ||
| 71014-95422 |
BU66..T3..TB..GEN;BU60,61,70,83,84,88,91,96..LHD..DSL W(HEADREST) |
1 | ||
| 71035S - COVER, FRONT SEAT BACK, CENTER | ||||
| 71095-37060B1 |
BU70..BUS GRAY,TRIM1# |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-95B0406 |
BU6#,70,83,84..LHD BROWN,TRIM4# |
1 | ||
| 71071-95B0506 |
BU60,61,66,70,83,84..LHD W(FABRIC SEAT & HEADREST),BROWN,TRIM4# |
1 | ||
| 71071-95B0606 |
BU70..BUS SAUDI ARABIA & GULF SPEC,BROWN,TRIM4# |
1 | ||
| 71071-95B0506 |
BU70,83,84..LHD;BU60,61..LHD..CBU;BU60..LHD..WT..IV3 W(FABRIC SEAT & HEADREST),BROWN,TRIM4# |
1 | ||
| 71071-95B0706 |
BU60..LHD..WT;BU60..TW1..GEN;BU84..LHD..CBU;BU70,83..LHD..(BUS,TR) (SAUDI ARABIA & GULF SPEC) & W(FABRIC SEAT & HEADREST),BROWN,TRIM4# |
1 | ||
| 71071-95B0506 |
BU60,61,66,70,83,84..LHD W(FABRIC SEAT & HEADREST),BROWN,TRIM4# |
1 | ||
| 71071-95B0406 |
BU60,61,65,66,70,83,84..LHD BROWN,TRIM4# |
1 | ||
| 71071-37060B1 |
BU60..LHD..WT;BU60..TW1..GEN;BU84..LHD..CBU;BU70,83..LHD..(BUS,TR) SAUDI ARABIA & GULF SPEC,GRAY,TRIM1# |
1 | ||
| 71071-37020B1 |
BU70..BUS W(FABRIC SEAT & HEADREST),GRAY,TRIM1# |
1 | ||
| 71071-37070B2 |
BU60..LHD..WT;BU60..TW1..GEN;BU84..LHD..CBU;BU70,83..LHD..(BUS,TR) SAUDI ARABIA & GULF SPEC & W(FABRIC SEAT & HEADREST),GRAY,TRIM1# |
1 | ||
| 71071-37040B1 |
BU66..T3..TB..GEN;BU60,61,65,70,83,84..LHD GRAY,TRIM1# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-95B0906 |
BU70;BU60..TW1..GEN BROWN,TRIM4# |
1 | ||
| 71072-95B1006 |
BU70..BUS SAUDI ARABIA & GULF SPEC,BROWN,TRIM4# |
1 | ||
| 71072-95B2006 |
BU70..BUS;BU60..TW1..GEN (SAUDI ARABIA & GULF SPEC) & W(FABRIC SEAT & HEADREST) OR W(FABRIC SEAT & HEADREST),BROWN,TRIM4# |
1 | ||
| 71072-37050B1 |
BU70..BUS;BU60..TW1..GEN SAUDI ARABIA & GULF SPEC,GRAY,TRIM1# |
1 | ||
| 71072-37040B1 |
BU70..BUS SAUDI ARABIA & GULF SPEC & W(FABRIC SEAT & HEADREST),GRAY,TRIM1# |
1 | ||
| 71072-37030B1 |
BU70;BU60..TW1..GEN GRAY,TRIM1# |
1 | ||
| 71072-37280B1 |
BU70..BUS W(FABRIC SEAT & HEADREST),GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-95B0306 |
BU6#,70,83,84..LHD BROWN,TRIM4# |
1 | ||
| 71073-95B0506 |
BU60..LHD..WT;BU60..TW1..GEN;BU84..LHD..CBU;BU70,83..LHD..(BUS,TR) (SAUDI ARABIA & GULF SPEC) & W(FABRIC SEAT & HEADREST) OR W(FABRIC SEAT & HEADREST),BROWN,TRIM4# |
1 | ||
| 71073-95B0306 |
BU60,61,65,66,70,83,84..LHD BROWN,TRIM4# |
1 | ||
| 71073-95B0406 |
BU70..BUS SAUDI ARABIA & GULF SPEC,BROWN,TRIM4# |
1 | ||
| 71073-37050B1 |
BU70..BUS SAUDI ARABIA & GULF SPEC & W(FABRIC SEAT & HEADREST),GRAY,TRIM1# |
1 | ||
| 71073-37060B1 |
BU60..LHD..WT;BU60..TW1..GEN;BU84..LHD..CBU;BU70,83..LHD..(BUS,TR) SAUDI ARABIA & GULF SPEC,GRAY,TRIM1# |
1 | ||
| 71073-37040B2 |
BU66..T3..TB..GEN;BU60,61,65,70,83,84..LHD GRAY,TRIM1# |
1 | ||
| 71073-37080B1 |
BU70..BUS W(FABRIC SEAT & HEADREST),GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-95B3506 |
BU70..BUS (SAUDI ARABIA & GULF SPEC) & W(HEADREST),BROWN,TRIM4# |
1 | ||
| 71074-95B3706 |
BU70..BUS SAUDI ARABIA & GULF SPEC,BROWN,TRIM4# |
1 | ||
| 71074-95B3606 |
BU70..BUS;BU60..TW1..GEN BROWN,TRIM4# |
1 | ||
| 71073-9548106 |
BU70..BUS;BU60..TW1..GEN W(HEADREST),BROWN,TRIM4# |
1 | ||
| 71074-95B6706 |
BU70..BUS;BU60..TW1..GEN (SAUDI ARABIA & GULF SPEC) & W(FABRIC SEAT & HEADREST) OR W(FABRIC SEAT & HEADREST),BROWN,TRIM4# |
1 | ||
| 71073-37010B1 |
BU70..BUS;BU60..TW1..GEN W(HEADREST),GRAY,TRIM1# |
1 | ||
| 71074-37030B1 |
BU70..BUS SAUDI ARABIA & GULF SPEC & W(FABRIC SEAT & HEADREST),GRAY,TRIM1# |
1 | ||
| 71074-37040B1 |
BU70..BUS;BU60..TW1..GEN SAUDI ARABIA & GULF SPEC,GRAY,TRIM1# |
1 | ||
| 71074-37340B1 |
BU70..BUS W(FABRIC SEAT & HEADREST),GRAY,TRIM1# |
1 | ||
| 71074-37020B1 |
BU70..BUS;BU60..TW1..GEN GRAY,TRIM1# |
1 | ||
| 71074-37050B1 |
BU70..BUS;BU60..TW1..GEN (SAUDI ARABIA & GULF SPEC) & W(HEADREST),GRAY,TRIM1# |
1 | ||
| 71305S - FRAME SUB-ASSY, CENTER SEAT BACK | ||||
| 71305-9540101 |
BU70..BUS BLACK,TRIM1# |
1 | ||
| 71319A - STRIKER, FRONT SEAT BACK | ||||
| 71319-95404 |
BU6#,70,83,84,87..CBU,IV3 |
1 | ||
| 71319-95404 |
BU70..BUS SAUDI ARABIA & GULF SPEC & W(FABRIC SEAT & HEADREST) |
1 | ||
| 71319-95403 |
BU70..BUS W(FABRIC SEAT & HEADREST) |
2 | ||
| 71319A - STRIKER, FRONT SEAT BACK | ||||
| 71319-95404 |
BU6#,70,83,84,87..CBU,IV3 |
1 | ||
| 71319-95404 |
BU70..BUS SAUDI ARABIA & GULF SPEC & W(FABRIC SEAT & HEADREST) |
1 | ||
| 71319-95403 |
BU70..BUS W(FABRIC SEAT & HEADREST) |
2 | ||
| 71350S - BACK ASSY, FRONT SEAT, CENTER | ||||
| 71350-37060B0 |
BU70..BUS ***,GRAY,TRIM1# |
1 | ||
| 71365S - PAD, CENTER SEAT BACK | ||||
| 71552-95408 |
BU70..BUS |
1 | ||
| 71373B - COVER, FRONT SEAT BACK LOCK | ||||
| 71373-9540006 |
BU6#,70,8#,91,96..CBU,IV3 BROWN,TRIM4# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-9546706 |
BU6#,70,83,84..LHD ***,BROWN,TRIM4# |
1 | ||
| 71410-9547106 |
BU60,61,66,70,83,84..LHD ***,W(FABRIC SEAT & HEADREST),BROWN,TRIM4# |
1 | ||
| 71410-9548306 |
BU60..LHD..WT;BU60..TW1..GEN;BU84..LHD..CBU;BU70,83..LHD..(BUS,TR) ***,(SAUDI ARABIA & GULF SPEC) & W(FABRIC SEAT & HEADREST),BROWN,TRIM4# |
1 | ||
| 71410-9547106 |
BU70,83,84..LHD;BU60,61..LHD..CBU;BU60..LHD..WT..IV3 ***,W(FABRIC SEAT & HEADREST),BROWN,TRIM4# |
1 | ||
| 71410-9546706 |
BU60,61,65,66,70,83,84..LHD ***,BROWN,TRIM4# |
1 | ||
| 71410-9547106 |
BU60,61,66,70,83,84..LHD ***,W(FABRIC SEAT & HEADREST),BROWN,TRIM4# |
1 | ||
| 71410-9548206 |
BU70..BUS ***,SAUDI ARABIA & GULF SPEC,BROWN,TRIM4# |
1 | ||
| 71410-37060B0 |
BU66..T3..TB..GEN;BU60,61,65,70,83,84..LHD ***,GRAY,TRIM1# |
1 | ||
| 71410-37080B0 |
BU60..LHD..WT;BU60..TW1..GEN;BU84..LHD..CBU;BU70,83..LHD..(BUS,TR) ***,SAUDI ARABIA & GULF SPEC,GRAY,TRIM1# |
1 | ||
| 71410-37040B0 |
BU70..BUS ***,W(FABRIC SEAT & HEADREST),GRAY,TRIM1# |
1 | ||
| 71410-37090B0 |
BU60..LHD..WT;BU60..TW1..GEN;BU84..LHD..CBU;BU70,83..LHD..(BUS,TR) ***,SAUDI ARABIA & GULF SPEC & W(FABRIC SEAT & HEADREST),GRAY,TRIM1# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-9548506 |
BU70;BU60..TW1..GEN ***,BROWN,TRIM4# |
1 | ||
| 71420-9548706 |
BU70..BUS ***,SAUDI ARABIA & GULF SPEC,BROWN,TRIM4# |
1 | ||
| 71420-95B1006 |
BU70..BUS;BU60..TW1..GEN ***,(SAUDI ARABIA & GULF SPEC) & W(FABRIC SEAT & HEADREST) OR W(FABRIC SEAT & HEADREST),BROWN,TRIM4# |
1 | ||
| 71420-37030B1 |
BU70;BU60..TW1..GEN ***,GRAY,TRIM1# |
1 | ||
| 71420-37290B0 |
BU70..BUS ***,W(FABRIC SEAT & HEADREST),GRAY,TRIM1# |
1 | ||
| 71420-37050B0 |
BU70..BUS;BU60..TW1..GEN ***,SAUDI ARABIA & GULF SPEC,GRAY,TRIM1# |
1 | ||
| 71420-37040B0 |
BU70..BUS ***,SAUDI ARABIA & GULF SPEC & W(FABRIC SEAT & HEADREST),GRAY,TRIM1# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-9547406 |
BU6#,70,83,84..LHD ***,BROWN,TRIM4# |
1 | ||
| 71430-9547506 |
BU70..BUS ***,SAUDI ARABIA & GULF SPEC,BROWN,TRIM4# |
1 | ||
| 71430-9547606 |
BU60..LHD..WT;BU60..TW1..GEN;BU84..LHD..CBU;BU70,83..LHD..(BUS,TR) ***,(SAUDI ARABIA & GULF SPEC) & W(FABRIC SEAT & HEADREST) OR W(FABRIC SEAT & HEADREST),BROWN,TRIM4# |
1 | ||
| 71430-9547406 |
BU60,61,65,66,70,83,84..LHD ***,BROWN,TRIM4# |
1 | ||
| 71430-37050B0 |
BU70..BUS ***,SAUDI ARABIA & GULF SPEC & W(FABRIC SEAT & HEADREST),GRAY,TRIM1# |
1 | ||
| 71430-37040B1 |
BU66..T3..TB..GEN;BU60,61,65,70,83,84..LHD ***,GRAY,TRIM1# |
1 | ||
| 71430-37060B0 |
BU60..LHD..WT;BU60..TW1..GEN;BU84..LHD..CBU;BU70,83..LHD..(BUS,TR) ***,SAUDI ARABIA & GULF SPEC,GRAY,TRIM1# |
1 | ||
| 71430-37080B0 |
BU70..BUS ***,W(FABRIC SEAT & HEADREST),GRAY,TRIM1# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-95B3006 |
BU70..BUS;BU60..TW1..GEN ***,(SAUDI ARABIA & GULF SPEC) & W(FABRIC SEAT & HEADREST) OR W(FABRIC SEAT & HEADREST),BROWN,TRIM4# |
1 | ||
| 71440-95B2906 |
BU70..BUS ***,(SAUDI ARABIA & GULF SPEC) & W(HEADREST),BROWN,TRIM4# |
1 | ||
| 71440-95B2806 |
BU70..BUS;BU60..TW1..GEN ***,W(HEADREST),BROWN,TRIM4# |
1 | ||
| 71440-95B3206 |
BU70..BUS ***,SAUDI ARABIA & GULF SPEC,BROWN,TRIM4# |
1 | ||
| 71440-95B3106 |
BU70..BUS;BU60..TW1..GEN ***,BROWN,TRIM4# |
1 | ||
| 71440-37050B0 |
BU70..BUS;BU60..TW1..GEN ***,SAUDI ARABIA & GULF SPEC,GRAY,TRIM1# |
1 | ||
| 71440-37040B0 |
BU70..BUS ***,SAUDI ARABIA & GULF SPEC & W(FABRIC SEAT & HEADREST),GRAY,TRIM1# |
1 | ||
| 71440-37030B0 |
BU70..BUS;BU60..TW1..GEN ***,W(HEADREST),GRAY,TRIM1# |
1 | ||
| 71440-37060B0 |
BU70..BUS;BU60..TW1..GEN ***,(SAUDI ARABIA & GULF SPEC) & W(HEADREST),GRAY,TRIM1# |
1 | ||
| 71440-37020B0 |
BU70..BUS;BU60..TW1..GEN ***,GRAY,TRIM1# |
1 | ||
| 71440-37360B0 |
BU70..BUS ***,W(FABRIC SEAT & HEADREST),GRAY,TRIM1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71501-95400 |
BU6#,70,83,84..LHD |
1 | ||
| 71501-95400 |
BU70..BUS SAUDI ARABIA & GULF SPEC & W(FABRIC SEAT & HEADREST) |
1 | ||
| 71511-95404 |
BU70..BUS W(FABRIC SEAT & HEADREST) |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71502-95402 |
BU70..BUS W(FABRIC SEAT & HEADREST) |
1 | ||
| 71511-95400 |
BU70..BUS SAUDI ARABIA & GULF SPEC & W(FABRIC SEAT & HEADREST) |
1 | ||
| 71511-95400 |
BU66..T3..TB..GEN;BU60,61,65,70,83,84,88,91,96..LHD |
1 | ||
| 71511-95400 |
BU6#,70,83,84,88,91,96..LHD |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71552-95403 |
BU6#,70,83,84..LHD |
1 | ||
| 71551-95404 |
BU70..BUS W(FABRIC SEAT & HEADREST) |
1 | ||
| 71552-95403 |
BU70..BUS SAUDI ARABIA & GULF SPEC & W(FABRIC SEAT & HEADREST) |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-95405 |
BU66..T3..TB..GEN;BU60,61,65,70,83,84,88,91,96..LHD..DSL |
1 | ||
| 71551-95404 |
BU66..T3..TB..GEN;BU60,61,70,83,84,88,91,96..LHD..DSL W(HEADREST) |
1 | ||
| 71552-95408 |
BU70..BUS W(FABRIC SEAT & HEADREST) |
1 | ||
| 71587 - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-95J00 |
BU88..TW1;BU67,70..BUS,DMP;BU91,96..RHD..(ARL,GEN)..IV3 |
2 | ||
| 71587-95J00 |
BU67,70..BUS,DMP;BU91,96..RHD..(ARL,GEN)..IV3 |
2 | ||
| 71587-95J00 |
BU66..TS;BU66..T2;BU67,70..BUS,DMP;BU91,96..RHD..GEN..IV3 |
2 | ||
| 71587-95J00 |
BU91..ARL;BU88..TW1;BU67,70..BUS,DMP |
2 | ||
| 71812C - COVER, RECLINING ADJUSTER, LH | ||||
| 71812-95400B0 |
BU6#,70,83,84,88,91,96..LHD GRAY,TRIM1# |
1 | ||
| 71812-9540006 |
BU6#,70,83,84,88,91,96..LHD BROWN,TRIM4# |
1 | ||
| 71812-95400B0 |
BU66..T3..TB..GEN;BU60,61,65,70,83,84,88,91,96..LHD GRAY,TRIM1# |
1 | ||
| 71816A - COVER, FRONT SEAT CUSHION HINGE, LH | ||||
| 71816-95J0016 |
BU6#,70,83,84,88,91,96..LHD BROWN,TRIM4# |
1 | ||
| 71816-95J00B0 |
BU6#,70,83,84,88,91,96..LHD GRAY,TRIM1# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-9260306 |
BU70;BU60..TW1 BROWN,TRIM4# |
1 | ||
| 71910-92603B0 |
BU70;BU60..TW1 GRAY,TRIM1# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-9260306 |
BU70;BU60..TW1 BROWN,TRIM4# |
1 | ||
| 71910-92603B0 |
BU70;BU60..TW1 GRAY,TRIM1# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-9260306 |
BU70;BU60..TW1 BROWN,TRIM4# |
1 | ||
| 71910-92603B0 |
BU70;BU60..TW1 GRAY,TRIM1# |
1 | ||
| 72090 - LOCK ASSY, FRONT SEAT BACK | ||||
| 72090-9540006 |
BU6#,70,8#,91,96..CBU,IV3 BROWN,TRIM4# |
1 | ||
| 72120 - TRACK ASSY, FRONT SEAT, OUTER LH | ||||
| 72120-95408 |
BU6#,70,83,84,88,91,96..LHD |
1 | ||
| 72120-95408 |
BU66..T3..TB..GEN;BU60,61,65,70,83,84,88,91,96..LHD |
1 | ||
| 72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH | ||||
| 72520-95402B0 |
BU6#,70,83,84,88,91,96..LHD GRAY,TRIM1# |
1 | ||
| 72520-95402B0 |
BU66..T3..TB..GEN;BU60,61,65,70,83,84,88,91,96..LHD GRAY,TRIM1# |
1 | ||
| 72520-9540206 |
BU6#,70,83,84,88,91,96..LHD BROWN,TRIM4# |
1 | ||
| 72750D - ADJUSTER ASSY, LUMBAR SUPPORT, RH | ||||
| 72750-37010 |
BU70..BUS;BU91,96..RHD..GEN..IV3 |
1 | ||
| 72750-37010 |
BU70..BUS |
1 | ||
| 72791 - LEVER, LUMBAR SUPPORT | ||||
| 72791-20030B0 |
BU70..BUS;BU91,96..RHD..GEN..IV3 GRAY,TRIM1# |
1 | ||
| 72791-20030B0 |
BU70..BUS GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90119-06214 | ||||
| 90119-06338 | ||||
| 90119-08079 | ||||
| 90119-08086 | ||||
| 90119-08469 | ||||
| 90119-10116 | ||||
| 90149-50039 | ||||
| 90168-40043 | ||||
| 90179-08039 | ||||
| 90183-04066 | ||||
| 90386-12018 | ||||
| 90468-18071 | ||||
| 90520-01002 | ||||
| 90523-08001 | ||||
| 90530-18003 | ||||
| 90530-24002 | ||||
| 90540-06006 | ||||
| 90540-14003 | ||||
| 91611-61020 | ||||
| 93560-55016 | ||||

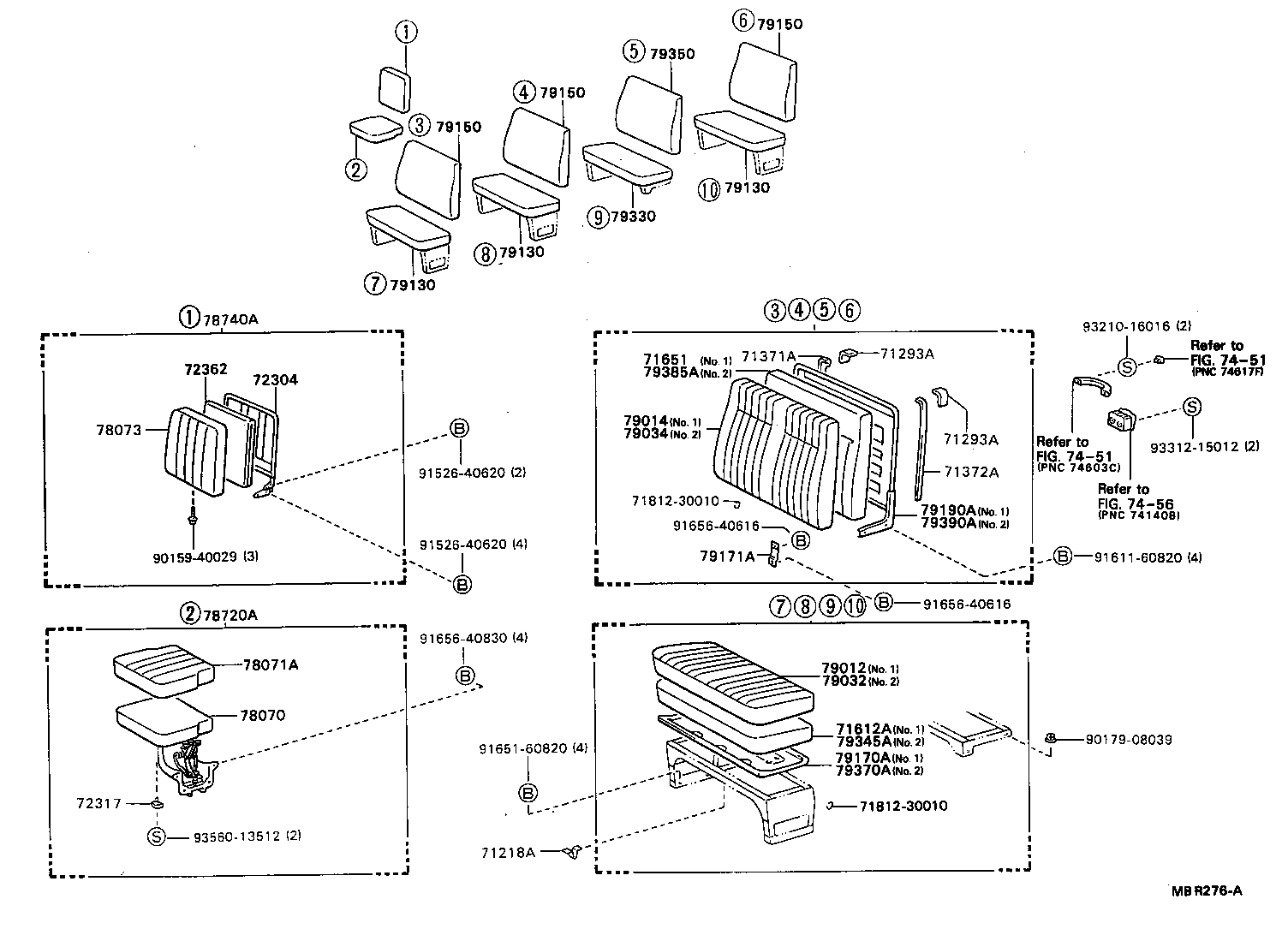

(8808- )BUS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71218A - SPRING, PASSENGER SEAT LOCK | ||||
| 71218-90502 |
BU70..BUS |
4 | ||
| 71293A - PLATE, REAR SEAT BACK, UPPER | ||||
| 71293-90500 |
BU70..BUS |
1 | ||
| 71293A - PLATE, REAR SEAT BACK, UPPER | ||||
| 71293-90500 |
BU70..BUS |
1 | ||
| 71371A - PAD, PASSENGER SEAT BACK SAFETY SIDE, RH | ||||
| 71371-90501 |
BU70..BUS |
4 | ||
| 71371-90501 |
BU70..BUS |
3 | ||
| 71372A - PAD, PASSENGER SEAT BACK SAFETY SIDE, LH | ||||
| 71372-90501 |
BU70..BUS |
4 | ||
| 71612A - PAD, REAR SEAT CUSHION, LH | ||||
| 71351-90740 |
BU70..BUS |
3 | ||
| 71651 - PAD, REAR NO.1 SEAT BACK | ||||
| 71361-90502 |
BU70..BUS |
3 | ||
| 72304 - FRAME SUB-ASSY, SUB SEAT BACK | ||||
| 72304-90518 |
BU70..BUS |
4 | ||
| 72317 - GROMMET, SUB SEAT CUSHION | ||||
| 72317-90500 |
BU70..BUS |
8 | ||
| 72362 - PAD, SUB-SEAT BACK | ||||
| 72362-90500 |
BU70..BUS |
4 | ||
| 78070 - FRAME ASSY, SUB SEAT | ||||
| 78070-92601 |
BU70..BUS |
4 | ||
| 78071A - COVER SUB-ASSY, SUB SEAT | ||||
| 78071-37020B1 |
BU70..BUS W(FABRIC SEAT),GRAY,TRIM1# |
4 | ||
| 78071-37010B0 |
BU70..BUS GRAY,TRIM1# |
4 | ||
| 78071-9260506 |
BU70..BUS W(FABRIC SEAT),BROWN,TRIM4# |
4 | ||
| 78071-9260306 |
BU70..BUS BROWN,TRIM4# |
4 | ||
| 78073 - COVER SUB-ASSY, SUB SEAT BACK, RH | ||||
| 78073-9260506 |
BU70..BUS W(FABRIC SEAT),BROWN,TRIM4# |
4 | ||
| 78073-37010B0 |
BU70..BUS GRAY,TRIM1# |
4 | ||
| 78073-9260306 |
BU70..BUS BROWN,TRIM4# |
4 | ||
| 78073-37020B0 |
BU70..BUS W(FABRIC SEAT),GRAY,TRIM1# |
4 | ||
| 78720A - CUSHION ASSY, SUB SEAT | ||||
| 78720-9260506 |
BU70..BUS ***,W(FABRIC SEAT),BROWN,TRIM4# |
4 | ||
| 78720-9260306 |
BU70..BUS ***,BROWN,TRIM4# |
4 | ||
| 78720-37010B0 |
BU70..BUS ***,GRAY,TRIM1# |
4 | ||
| 78720-37020B0 |
BU70..BUS ***,W(FABRIC SEAT),GRAY,TRIM1# |
4 | ||
| 78740A - BACK ASSY, SUB SEAT, RH | ||||
| 78740-9260306 |
BU70..BUS ***,BROWN,TRIM4# |
4 | ||
| 78740-9260506 |
BU70..BUS ***,W(FABRIC SEAT),BROWN,TRIM4# |
4 | ||
| 78740-37020B0 |
BU70..BUS ***,W(FABRIC SEAT),GRAY,TRIM1# |
4 | ||
| 78740-37010B0 |
BU70..BUS ***,GRAY,TRIM1# |
4 | ||
| 79012 - COVER SUB-ASSY, NO.1 SEAT CUSHION, LH | ||||
| 79011-37040B1 |
BU70..BUS GRAY,TRIM1# |
3 | ||
| 79011-9260806 |
BU70..BUS BROWN,TRIM4# |
3 | ||
| 79011-37050B1 |
BU70..BUS W(FABRIC SEAT),GRAY,TRIM1# |
3 | ||
| 79011-9261206 |
BU70..BUS W(FABRIC SEAT),BROWN,TRIM4# |
3 | ||
| 79014 - COVER SUB-ASSY, NO.1 SEAT BACK, LH | ||||
| 79013-37050B1 |
BU70..BUS W(FABRIC SEAT),GRAY,TRIM1# |
3 | ||
| 79013-9260806 |
BU70..BUS BROWN,TRIM4# |
3 | ||
| 79013-37040B1 |
BU70..BUS GRAY,TRIM1# |
3 | ||
| 79013-9261206 |
BU70..BUS W(FABRIC SEAT),BROWN,TRIM4# |
3 | ||
| 79032 - COVER SUB-ASSY, NO.3 SEAT CUSHION, LH | ||||
| 79011-9260806 |
BU70..BUS BROWN,TRIM4# |
1 | ||
| 79011-37050B1 |
BU70..BUS W(FABRIC SEAT),GRAY,TRIM1# |
1 | ||
| 79011-37040B1 |
BU70..BUS GRAY,TRIM1# |
1 | ||
| 79011-9261206 |
BU70..BUS W(FABRIC SEAT),BROWN,TRIM4# |
1 | ||
| 79034 - COVER SUB-ASSY, NO.3 SEAT BACK, LH | ||||
| 79013-9260806 |
BU70..BUS BROWN,TRIM4# |
1 | ||
| 79013-37040B1 |
BU70..BUS GRAY,TRIM1# |
1 | ||
| 79013-37050B1 |
BU70..BUS W(FABRIC SEAT),GRAY,TRIM1# |
1 | ||
| 79013-9261206 |
BU70..BUS W(FABRIC SEAT),BROWN,TRIM4# |
1 | ||
| 79130 - CUSHION ASSY, NO.1 SEAT, LH | ||||
| 79120-9261506 |
BU70..BUS ***,W(FABRIC SEAT),BROWN,TRIM4# |
3 | ||
| 79120-9261006 |
BU70..BUS ***,BROWN,TRIM4# |
3 | ||
| 79120-37040B0 |
BU70..BUS ***,W(FABRIC SEAT),GRAY,TRIM1# |
3 | ||
| 79120-37030B0 |
BU70..BUS ***,GRAY,TRIM1# |
3 | ||
| 79130 - CUSHION ASSY, NO.1 SEAT, LH | ||||
| 79120-9261506 |
BU70..BUS ***,W(FABRIC SEAT),BROWN,TRIM4# |
3 | ||
| 79120-9261006 |
BU70..BUS ***,BROWN,TRIM4# |
3 | ||
| 79120-37040B0 |
BU70..BUS ***,W(FABRIC SEAT),GRAY,TRIM1# |
3 | ||
| 79120-37030B0 |
BU70..BUS ***,GRAY,TRIM1# |
3 | ||
| 79130 - CUSHION ASSY, NO.1 SEAT, LH | ||||
| 79120-9261506 |
BU70..BUS ***,W(FABRIC SEAT),BROWN,TRIM4# |
3 | ||
| 79120-9261006 |
BU70..BUS ***,BROWN,TRIM4# |
3 | ||
| 79120-37040B0 |
BU70..BUS ***,W(FABRIC SEAT),GRAY,TRIM1# |
3 | ||
| 79120-37030B0 |
BU70..BUS ***,GRAY,TRIM1# |
3 | ||
| 79150 - BACK ASSY, NO.1 SEAT, LH | ||||
| 79140-37030B0 |
BU70..BUS ***,GRAY,TRIM1# |
3 | ||
| 79140-9261506 |
BU70..BUS ***,W(FABRIC SEAT),BROWN,TRIM4# |
3 | ||
| 79140-9261006 |
BU70..BUS ***,BROWN,TRIM4# |
3 | ||
| 79140-37040B0 |
BU70..BUS ***,W(FABRIC SEAT),GRAY,TRIM1# |
3 | ||
| 79150 - BACK ASSY, NO.1 SEAT, LH | ||||
| 79140-37030B0 |
BU70..BUS ***,GRAY,TRIM1# |
3 | ||
| 79140-9261506 |
BU70..BUS ***,W(FABRIC SEAT),BROWN,TRIM4# |
3 | ||
| 79140-9261006 |
BU70..BUS ***,BROWN,TRIM4# |
3 | ||
| 79140-37040B0 |
BU70..BUS ***,W(FABRIC SEAT),GRAY,TRIM1# |
3 | ||
| 79150 - BACK ASSY, NO.1 SEAT, LH | ||||
| 79140-37030B0 |
BU70..BUS ***,GRAY,TRIM1# |
3 | ||
| 79140-9261506 |
BU70..BUS ***,W(FABRIC SEAT),BROWN,TRIM4# |
3 | ||
| 79140-9261006 |
BU70..BUS ***,BROWN,TRIM4# |
3 | ||
| 79140-37040B0 |
BU70..BUS ***,W(FABRIC SEAT),GRAY,TRIM1# |
3 | ||
| 79170A - SPRING ASSY, NO.1 SEAT CUSUION, LH | ||||
| 71303-90504 |
BU70..BUS |
3 | ||
| 79171A - BRACKET, NO.1 SEAT | ||||
| 79171-92601 |
BU70..BUS |
4 | ||
| 79190A - SPRING ASSY, NO.1 SEAT BACK, LH | ||||
| 71302-90740 |
BU70..BUS |
3 | ||
| 79330 - CUSHION ASSY, NO.3 SEAT, LH | ||||
| 79120-9261006 |
BU70..BUS ***,BROWN,TRIM4# |
1 | ||
| 79120-37040B0 |
BU70..BUS ***,W(FABRIC SEAT),GRAY,TRIM1# |
1 | ||
| 79120-37030B0 |
BU70..BUS ***,GRAY,TRIM1# |
1 | ||
| 79120-9261506 |
BU70..BUS ***,W(FABRIC SEAT),BROWN,TRIM4# |
1 | ||
| 79345A - PAD, NO.3 SEAT CUSHION, LH | ||||
| 71351-90740 |
BU70..BUS |
1 | ||
| 79350 - BACK ASSY, NO.3 SEAT, LH | ||||
| 79240-9260906 |
BU70..BUS ***,BROWN,TRIM4# |
1 | ||
| 79240-9261406 |
BU70..BUS ***,W(FABRIC SEAT),BROWN,TRIM4# |
1 | ||
| 79240-37020B0 |
BU70..BUS ***,GRAY,TRIM1# |
1 | ||
| 79240-37030B0 |
BU70..BUS ***,W(FABRIC SEAT),GRAY,TRIM1# |
1 | ||
| 79370A - SPRING ASSY, NO.3 SEAT CUSHION, LH | ||||
| 71303-90504 |
BU70..BUS |
1 | ||
| 79385A - PAD, NO.3 SEAT BACK, LH | ||||
| 71361-90502 |
BU70..BUS |
1 | ||
| 79390A - SPRING ASSY, NO.3 SEAT BACK, LH | ||||
| 71402-90741 |
BU70..BUS |
1 | ||
| Common parts | ||||
| 71812-30010 | ||||
| 90159-40029 | ||||
| 90179-08039 | ||||
| 91526-40620 | ||||
| 91611-60820 | ||||
| 91651-60820 | ||||
| 91656-40616 | ||||
| 91656-40830 | ||||
| 93210-16016 | ||||
| 93312-15012 | ||||
| 93560-13512 | ||||
| Linked diagrams | ||||
| 7451 | ||||
| 7456 | ||||
(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 72120 - TRACK ASSY, FRONT SEAT, OUTER LH | ||||
| 72120-95408 |
BU6#,70,83,84,88,91,96..LHD |
1 | ||
| 72120-95408 |
BU66..T3..TB..GEN;BU60,61,65,70,83,84,88,91,96..LHD |
1 | ||
| Common parts | ||||
| 90105-08075 | ||||
| 90179-08039 | ||||
| 91611-60816 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
