BU70LB-MD (1988)

Toyota Dyna 200

Production Aug 1988 - May 1995
Engine B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )BU70

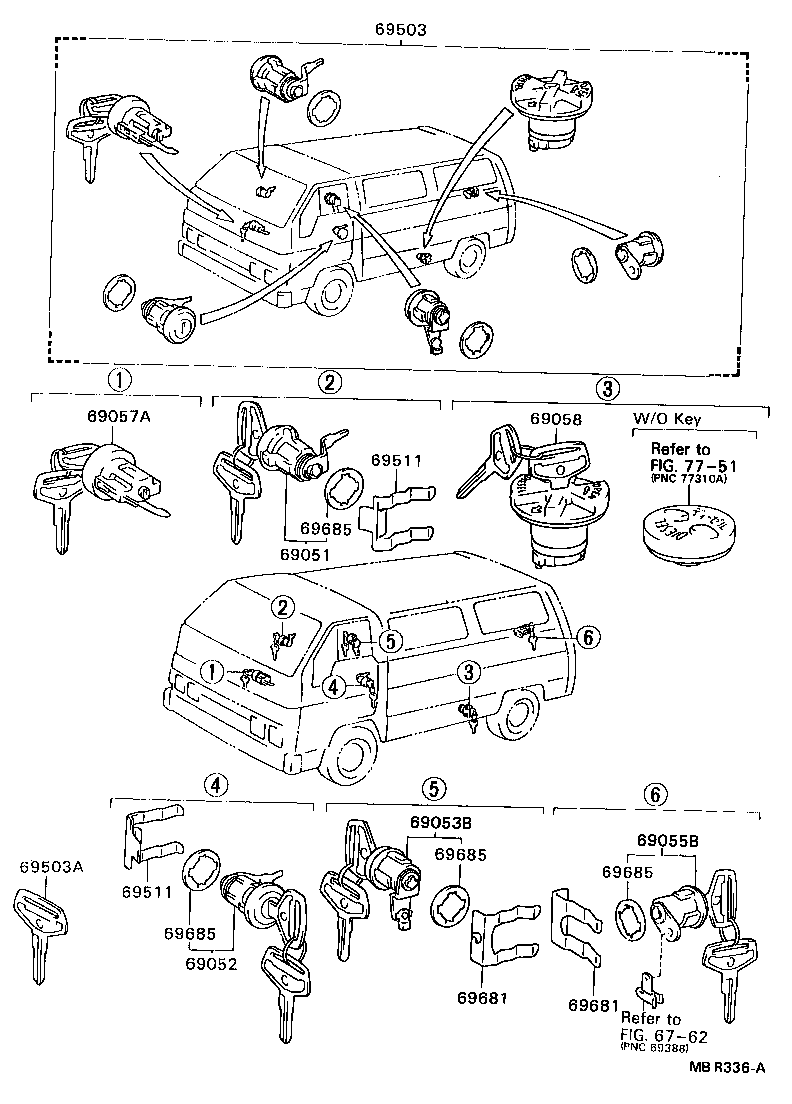

Click highlighted areas on diagram

diagram 6762 69051 69052 69053B 69055B 69057A 69058 69503 69503A 69511 69511 69681 69681 69685 69685 69685 69685 7751
Part # Description Qty Price
69051 - CYLINDER & KEY SET, DOOR LOCK, RH
69051-95403

BU88,94;BU6#,70,83,84,87,91,96..(ARL,GEN,GHD)..(CBU,IV3)

 1
69052 - CYLINDER & KEY SET, DOOR LOCK, LH
69052-95403

BU88,94;BU6#,70,83,84,87,91,96..(ARL,GEN,GHD)..(CBU,IV3)

 1
69053B - CYLINDER & KEY SET, SLIDE DOOR LOCK, RH
69053-92601

BU70

 1
69055B - CYLINDER & KEY SET, BACK DOOR LOCK
69055-92601

BU70

 1
69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK
69057-95413

BU60,70,83

 1
69058 - CYLINDER & KEY SET, FUEL FILLER LID
69058-95406

BU6#,70,8#,9#..ARL,GEN,GHD

 1
69503 - CYLINDER SET, LOCK
69503-92631

BU70

W(FUEL TANK CAP KEY)

 1
69503-92629

BU70

 1
69503A - KEY, BLANK
90999-00085

BU60,70,83

MASTER KEY

 1
90999-00129

BU6#,70,8#,9#..ARL,GEN,GHD

MASTER KEY,W(*68)

 1
69511 - RETAINER, FRONT DOOR LOCK CYLINDER
69511-95400

BU88,94;BU6#,70,83,84,87,91,96..CBU,IV3

 2
69511 - RETAINER, FRONT DOOR LOCK CYLINDER
69511-95400

BU88,94;BU6#,70,83,84,87,91,96..CBU,IV3

 2
69681 - CLAMP, DOOR LOCK CYLINDER & SLEEVE
69681-95402

BU70

 2
69681 - CLAMP, DOOR LOCK CYLINDER & SLEEVE
69681-95402

BU70

 2
69685 - PAD, LOCK CYLINDER
69513-12020

BU70

BACK DOOR & SIDE DOOR

 2
69513-32010

BU88,94;BU6#,70,83,84,87,91,96..CBU,IV3

 2
69685 - PAD, LOCK CYLINDER
69513-12020

BU70

BACK DOOR & SIDE DOOR

 2
69513-32010

BU88,94;BU6#,70,83,84,87,91,96..CBU,IV3

 2
69685 - PAD, LOCK CYLINDER
69513-12020

BU70

BACK DOOR & SIDE DOOR

 2
69513-32010

BU88,94;BU6#,70,83,84,87,91,96..CBU,IV3

 2
69685 - PAD, LOCK CYLINDER
69513-12020

BU70

BACK DOOR & SIDE DOOR

 2
69513-32010

BU88,94;BU6#,70,83,84,87,91,96..CBU,IV3

 2
Linked diagrams
6762
7751
