BU70LB-MD (1988)
Toyota Dyna 200
Production
Aug 1988
-
May 1995
Engine
B
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8808- )TW1 ; (8808- )BU70

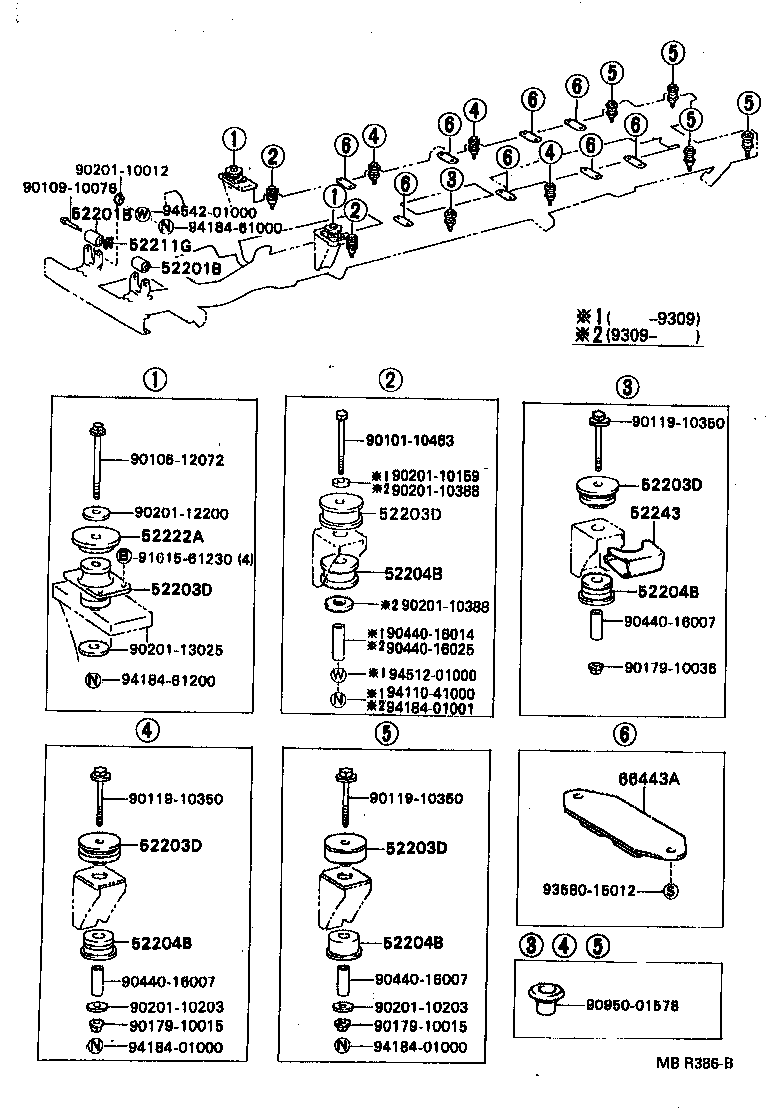

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52201B - CUSHION SUB-ASSY, CAB FRONT MOUNTING | ||||
| 52201-36040 |
BU6#,70,83,84,87 |
2 | ||
| 52201B - CUSHION SUB-ASSY, CAB FRONT MOUNTING | ||||
| 52201-36040 |
BU6#,70,83,84,87 |
2 | ||
| 52203D - CUSHION SUB-ASSY, CAB MOUNTING, NO.2 UPPER | ||||
| 52203-35050 |
BU70 NO.5 |
4 | ||
| 52203-36050 |
BU6#,70,8#,9# |
2 | ||
| 52203-36060 |
BU70 NO.3,4 |
4 | ||
| 52203D - CUSHION SUB-ASSY, CAB MOUNTING, NO.2 UPPER | ||||
| 52203-35050 |
BU70 NO.5 |
4 | ||
| 52203-36050 |
BU6#,70,8#,9# |
2 | ||
| 52203-36060 |
BU70 NO.3,4 |
4 | ||
| 52203D - CUSHION SUB-ASSY, CAB MOUNTING, NO.2 UPPER | ||||
| 52203-35050 |
BU70 NO.5 |
4 | ||
| 52203-36050 |
BU6#,70,8#,9# |
2 | ||
| 52203-36060 |
BU70 NO.3,4 |
4 | ||
| 52203D - CUSHION SUB-ASSY, CAB MOUNTING, NO.2 UPPER | ||||
| 52203-35050 |
BU70 NO.5 |
4 | ||
| 52203-36050 |
BU6#,70,8#,9# |
2 | ||
| 52203-36060 |
BU70 NO.3,4 |
4 | ||
| 52203D - CUSHION SUB-ASSY, CAB MOUNTING, NO.2 UPPER | ||||
| 52203-35050 |
BU70 NO.5 |
4 | ||
| 52203-36050 |
BU6#,70,8#,9# |
2 | ||
| 52203-36060 |
BU70 NO.3,4 |
4 | ||
| 52204B - CUSHION SUB-ASSY, CAB MOUNTING, NO.2 LOWER | ||||
| 52204-35050 |
BU70 NO.5 |
4 | ||
| 52204-36020 |
BU70 NO.3,4 |
4 | ||
| 52204B - CUSHION SUB-ASSY, CAB MOUNTING, NO.2 LOWER | ||||
| 52204-35050 |
BU70 NO.5 |
4 | ||
| 52204-36020 |
BU70 NO.3,4 |
4 | ||
| 52204B - CUSHION SUB-ASSY, CAB MOUNTING, NO.2 LOWER | ||||
| 52204-35050 |
BU70 NO.5 |
4 | ||
| 52204-36020 |
BU70 NO.3,4 |
4 | ||
| 52204B - CUSHION SUB-ASSY, CAB MOUNTING, NO.2 LOWER | ||||
| 52204-35050 |
BU70 NO.5 |
4 | ||
| 52204-36020 |
BU70 NO.3,4 |
4 | ||
| 52211G - SPACER, CAB FRONT MOUNTING | ||||
| 52211-36020 |
BU6#,70,8#,9# |
1 | ||
| 52222A - SPACER, CAB REAR MOUNTING, UPPER | ||||
| 52222-36030 |
BU61..GEN;BU88..TW1;BU88..IV1;BU65..GEN..CBU;BU60,66,70,83,84,87,94..5F..(ARL,GEN,GHD) |
2 | ||
| 52243 - SUPPORT, CAB MOUNTING CUSHION | ||||
| 52243-92600 |
BU70 |
1 | ||
| 66443A - CUSHION, REAR FLOOR SPACER | ||||
| 66443-92601 |
BU70 |
8 | ||
| Common parts | ||||
| 90101-10463 | ||||
| 90105-12072 | ||||
| 90109-10076 | ||||
| 90119-10350 | ||||
| 90179-10015 | ||||
| 90179-10036 | ||||
| 90201-10012 | ||||
| 90201-10159 | ||||
| 90201-10203 | ||||
| 90201-10388 | ||||
| 90201-12200 | ||||
| 90201-13025 | ||||
| 90440-16007 | ||||
| 90440-16014 | ||||
| 90440-16025 | ||||
| 90950-01578 | ||||
| 91615-61230 | ||||
| 93580-15012 | ||||
| 94110-41000 | ||||
| 94184-01000 | ||||
| 94184-01001 | ||||
| 94184-61000 | ||||
| 94184-61200 | ||||
| 94512-01000 | ||||
| 94542-01000 | ||||
