BU70LB-MD (1988)
Toyota Dyna 200
Production
Aug 1988
-
May 1995
Engine
B
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8808- )ST

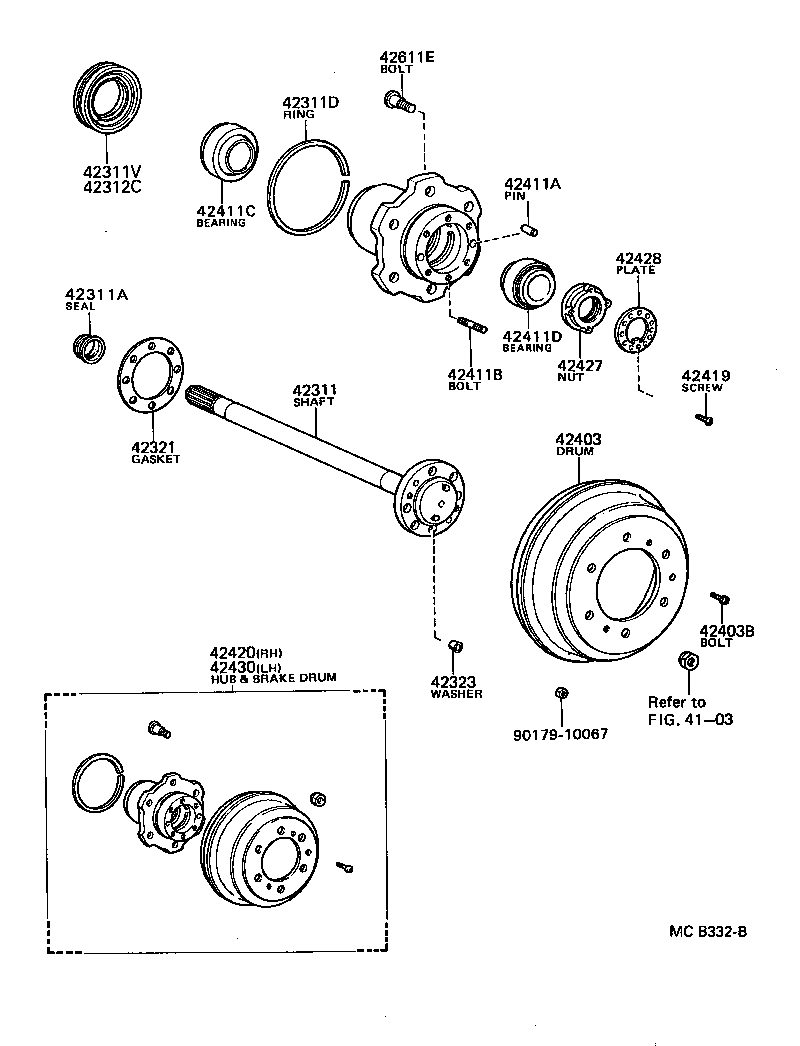

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42311 - SHAFT, REAR AXLE | ||||
| 42311-36051 |
BU66..TS;BU66..ST;BU66..4FC;BU60,61,70,83,84..ARL,GEN,SA |
2 | ||
| 42311A - SEAL, OIL (FOR REAR AXLE SHAFT) | ||||
| 90310-38033 |
BU66..TS;BU66..ST;BU66..T2;BU66..4FC;BU60,61,70,83,84..ARL,GEN,SA |
2 | ||
| 42311V - SEAL, OIL (FOR REAR AXLE SHAFT RH) | ||||
| 90311-75003 |
BU6#,70,8#,94 |
1 | ||
| 42312C - SEAL, OIL (FOR REAR AXLE SHAFT LH) | ||||
| 90311-75003 |
BU6#,70,8#,94 |
1 | ||
| 42321 - GASKET, REAR AXLE SHAFT | ||||
| 42321-36040 |
BU6#,70,8#,94 |
2 | ||
| 42323 - WASHER, CONE (FOR REAR AXLE SHAFT) | ||||
| 42323-36010 |
BU66..TS;BU66..ST;BU66..T2;BU66..4FC;BU60,61,70,83,84..ARL,GEN,SA |
12 | ||
| 42403 - DRUM SUB-ASSY, REAR BRAKE | ||||
| 43512-36020 |
BU60,61,66,70..ST |
2 | ||
| 42403B - BOLT, SET (FOR REAR BRAKE DRUM SETTING) | ||||
| 90113-10035 |
BU60,61,66,70..ST |
2 | ||
| 42411D - BEARING, TAPERED ROLLER (FOR REAR AXLE OUTER BEARING) | ||||
| 90368-52043 |
BU6#,70,8#,94 |
2 | ||
| 42419 - SCREW, REAR AXLE BEARING LOCK NUT | ||||
| 93311-16012 |
BU6#,70,8#,94 |
4 | ||
| 42420 - HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, RH | ||||
| 42420-36050 |
BU60,61,66,70..ST |
1 | ||
| 42427 - NUT, REAR AXLE BEARING LOCK | ||||
| 42427-36030 |
BU6#,70,8#,94 |
2 | ||
| 42428 - PLATE, REAR AXLE LOCK NUT | ||||
| 42428-36020 |
BU6#,70,8#,94 |
2 | ||
| 42430 - HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, LH | ||||
| 42430-36050 |
BU60,61,66,70..ST |
1 | ||
| Common parts | ||||
| 90179-10067 | ||||
| Linked diagrams | ||||
| 4103 | ||||
