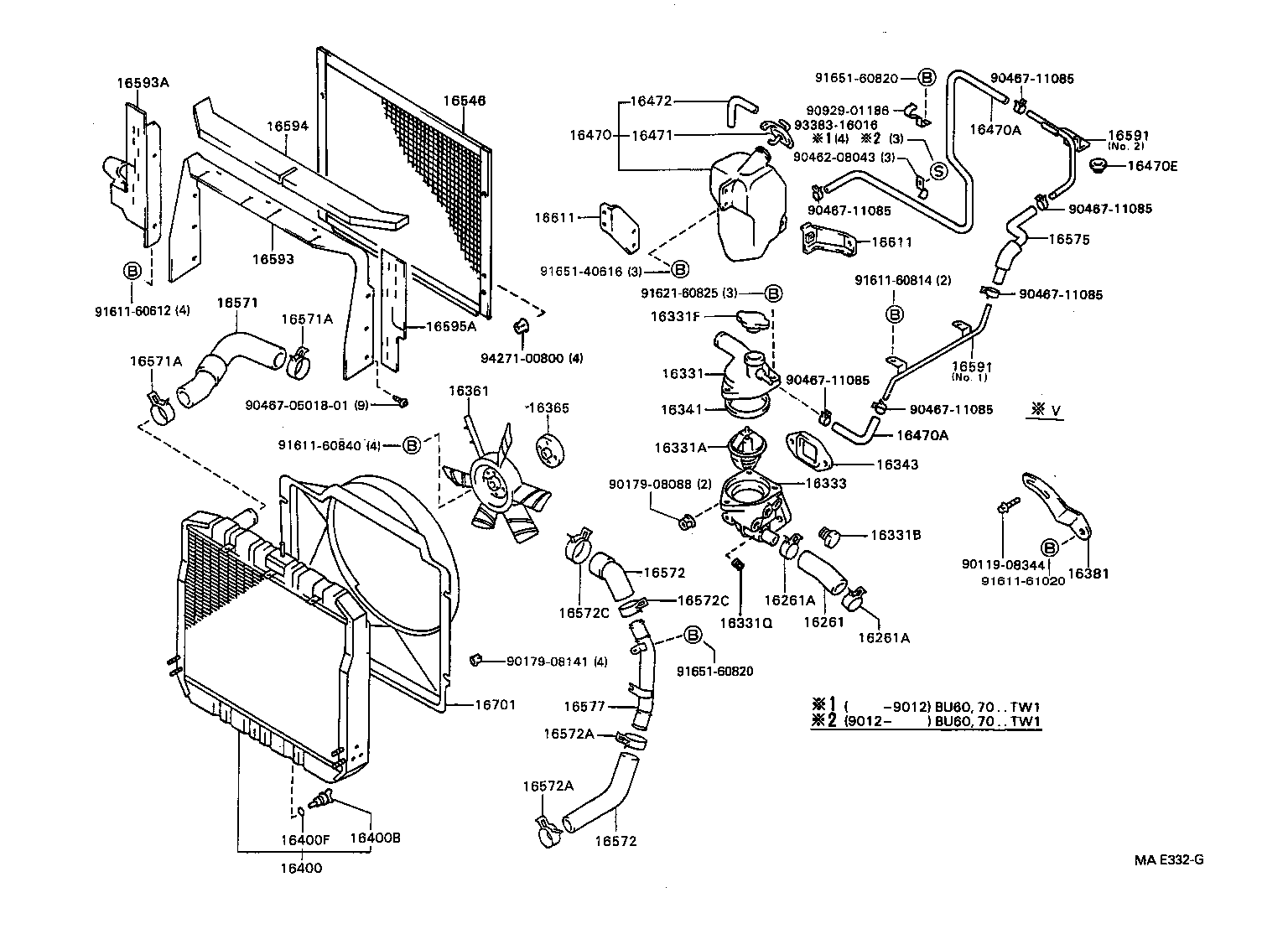

BU70LB-MD (1988)
Toyota Dyna 200
(8808-9505)B..BU70 ; (8808-9505)B..BU60..TW1
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-56012 |
B,11B,14B#..BU6#,70,8#,9# |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-28004 |
B,11B,14B..BU6#,70,8#,9# |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-28004 |
B,11B,14B..BU6#,70,8#,9# |
2 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-56040 |
B,11B,14B..BU6#,70,83,84,87 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03077 |
B,11B,14B#..BU60,61,65,66,70,8#,9# *WAX 82-95 |
1 | ||
| 90916-03077 |
B,11B,14B#..BU6#,70,8#,9# *WAX 82-95 |
1 | ||
| 16331B - PLUG(FOR WATER OUTLET) | ||||
| 90341-12006 |
B,11B,14B..BU6#,70,8#,9# |
1 | ||
| 16331F - CAP SUB-ASSY(FOR WATER OUTLET) | ||||
| 16401-71010 |
14BT..BU91,96;B,11B,14B..BU6#,70,83,84,87 |
1 | ||
| 16331Q - PLUG(FOR WATER OUTLET) | ||||
| 90345-54005 |
11B..BU65..GEN..CBU;14B..BU66..T3..TB..GEN;B,11B,14B..BU60,61,67,70,8#,9#..GEN,GHD |
1 | ||
| 16333 - HOUSING, WATER OUTLET | ||||
| 16333-56070 |
B,11B,14B..BU6#,70,8#,9# |
1 | ||
| 16333-56071 |
B,11B,14B..BU6#,70,8#,9# |
1 | ||
| 16333-56072 |
B,11B,14B..BU6#,70,8#,9# |
1 | ||
| 16333-56072 |
B,11B,14B#..BU6#,70,8#,9# |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-56030 |
B,11B,14B#..BU6#,70,8#,9# |
1 | ||
| 16343 - GASKET, WATER OUTLET HOUSING | ||||
| 16343-56022 |
B,11B,14B#..BU6#,70,8#,9# |
1 | ||
| 16343-56021 |
B,11B,14B..BU6#,70,8#,9# |
1 | ||
| 16361 - FAN | ||||
| 16361-56040 |
11B..BU61,65..GEN..(CBU,IV3);B,11B,14B..BU60,66,70,83,84..5F |
1 | ||
| 16361-56040 |
B,11B..BU60,70,83,84;11B..BU61,65..GEN..(CBU,IV3) |
1 | ||
| 16361-56040 |
B,11B..BU60,61,65,70,83,84..(GEN,GHD,SA)..(CBU,IV3) |
1 | ||
| 16365 - SPACER, FAN | ||||
| 16365-56021 |
11B..BU61..GEN..(CBU,IV3);11B,14B..BU65,88,91..GEN,SA;B,11B,14B..BU60,66,70,83,84,94,96..5F |
1 | ||
| 16365-56021 |
11B..BU61..GEN..(CBU,IV3);11B,14B..BU65,88,91..GEN,SA;B,11B,14B..BU60,70,83,84,94,96 |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-56070 |
11B..BU65..CBU;B,11B,14B#..BU60,61,66,67,70,8#,9# |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-56161 |
11B..BU61..ARL;11B..BU61..IV1;B,11B,14B..BU60,65,70,83,87 |
1 | ||
| 16400-56161 |
11B..BU65;11B..BU61..IV1;11B,14B..BU61,66..ARL;B,14B..BU60,70,83,87..GEN,GHD |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-24051 |
11B..BU61..IV1;11B,14B..BU61,66..ARL;11B,14B..BU65,88,91..CBU,IV3;B,14B..BU60,70,83,87,96..GEN,GHD,SA |
1 | ||
| 16417-24051 |
11B..BU61..ARL;11B..BU61..IV1;B,11B,14B..BU60,65,70,83,87,88,91,96..CBU,IV3 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-24051 |
14B..BU88..CBU,IV3;B,11B,14B..BU6#,70,83,84,87,91,96 |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-56130 |
B..BU70;B..BU60..TW1 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90447-12087 |
B..BU70;B..BU60..TW1 L=945,TANK TO PIPE |
1 | ||
| 90910-05174 |
B,11B,14B..BU6#,70,83,84,87 L=420 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90447-12087 |
B..BU70;B..BU60..TW1 L=945,TANK TO PIPE |
1 | ||
| 90910-05174 |
B,11B,14B..BU6#,70,83,84,87 L=420 |
1 | ||
| 16470E - GROMMET, RADIATOR RESERVE TANK HOSE | ||||
| 90480-16015 |
B..BU70;B..BU60..TW1 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-56060 |
B..BU70;B..BU60..TW1 |
1 | ||
| 16472 - HOSE, BREATHER | ||||
| 16472-56130 |
B..BU70;B..BU60..TW1 |
1 | ||
| 16546 - PROTECTOR, RADIATOR | ||||
| 16546-56010 |
11B..BU61..IV1;11B..BU65..GEN..CBU;B,14B..BU60,70,83,87..GEN,GHD |
1 | ||
| 16546-56010 |
11B..BU61..IV1;B,11B,14B..BU60,65,70,83,87..GEN,GHD |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-56060 |
B,11B,14B..BU6#,70,83,84,87 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-42001 |
B,11B,14B#..BU6#,70,8#,9# |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-42001 |
B,11B,14B#..BU6#,70,8#,9# |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-56090 |
B,11B,14B#..BU6#,70,8#,9# WATER PUMP SIDE |
1 | ||
| 16572-56091 |
B,11B,14B#..BU6#,70,8#,9# WATER PUMP SIDE |
1 | ||
| 16573-56050 |
B,11B,14B..BU6#,70,83,84,87 RADIATOR SIDE |
1 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-56090 |
B,11B,14B#..BU6#,70,8#,9# WATER PUMP SIDE |
1 | ||
| 16572-56091 |
B,11B,14B#..BU6#,70,8#,9# WATER PUMP SIDE |
1 | ||
| 16573-56050 |
B,11B,14B..BU6#,70,83,84,87 RADIATOR SIDE |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10510 |
B,11B,14B#..BU6#,70,8#,9# |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10510 |
B,11B,14B#..BU6#,70,8#,9# |
2 | ||
| 16572C - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.2) | ||||
| 96111-10510 |
B,11B,14B#..BU6#,70,8#,9# PIPE SIDE |
1 | ||
| 96111-10570 |
B,11B,14B#..BU6#,70,8#,9# WATER PUMP SIDE |
1 | ||
| 16572C - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.2) | ||||
| 96111-10510 |
B,11B,14B#..BU6#,70,8#,9# PIPE SIDE |
1 | ||
| 96111-10570 |
B,11B,14B#..BU6#,70,8#,9# WATER PUMP SIDE |
1 | ||
| 16575 - HOSE, RADIATOR, NO.5 | ||||
| 16575-56020 |
B..BU70;B..BU60..TW1 |
1 | ||
| 16577 - PIPE, RADIATOR, NO.7 | ||||
| 16577-56050 |
B,11B,14B#..BU6#,70,8#,9# |
1 | ||
| 16591 - PIPE, RADIATOR | ||||
| 16591-56060 |
B..BU70;B..BU60..TW1 NO.2 |
1 | ||
| 16591-56060 |
B..BU70;B..BU60..TW1 NO.2 |
1 | ||
| 16591-56070 |
B,11B,14B..BU6#,70,83,84,87 NO.1 |
1 | ||
| 16591-56070 |
B,11B,14B..BU6#,70,83,84,87 NO.1 |
1 | ||
| 16591 - PIPE, RADIATOR | ||||
| 16591-56060 |
B..BU70;B..BU60..TW1 NO.2 |
1 | ||
| 16591-56060 |
B..BU70;B..BU60..TW1 NO.2 |
1 | ||
| 16591-56070 |
B,11B,14B..BU6#,70,83,84,87 NO.1 |
1 | ||
| 16591-56070 |
B,11B,14B..BU6#,70,83,84,87 NO.1 |
1 | ||
| 16593 - GUIDE, RADIATOR AIR, NO.1 | ||||
| 16593-56030 |
B,11B,14B..BU6#,70,83,84,87 |
1 | ||
| 16593A - GUIDE, RADIATOR AIR, NO.1 RH | ||||
| 16593-56040 |
B,11B,14B..BU6#,70,83,84,87 |
1 | ||
| 16594 - GUIDE, RADIATOR AIR, NO.2 | ||||
| 16594-56020 |
B,11B,14B..BU6#,70,83,84,87 |
1 | ||
| 16595A - GUIDE, RADIATOR AIR, NO.1 LH | ||||
| 16595-56020 |
B,11B,14B..BU6#,70,83,84,87 |
1 | ||
| 16611 - BRACKET, RADIATOR RESERVE TANK | ||||
| 16611-56090 |
B..BU70;B..BU60..TW1 RR |
1 | ||
| 16611-56080 |
B..BU70;B..BU60..TW1 FR |
1 | ||
| 16611 - BRACKET, RADIATOR RESERVE TANK | ||||
| 16611-56090 |
B..BU70;B..BU60..TW1 RR |
1 | ||
| 16611-56080 |
B..BU70;B..BU60..TW1 FR |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16701-56281 |
11B..BU61..IV1;11B..BU65..GEN;B,14B..BU60,70,83,87 |
1 | ||
| 16701-56281 |
11B..BU61..IV1;B,11B,14B..BU60,65,70,83,87..GEN,GHD |
1 | ||
| Common parts | ||||
| 90119-08344 | ||||
| 90179-08088 | ||||
| 90179-08141 | ||||
| 90462-08043 | ||||
| 90467-0501801 | ||||
| 90467-11085 | ||||
| 90929-01186 | ||||
| 91611-60612 | ||||
| 91611-60814 | ||||
| 91611-60840 | ||||
| 91611-61020 | ||||
| 91621-60825 | ||||
| 91651-40616 | ||||
| 91651-60820 | ||||
| 93383-16016 | ||||
| 94271-00800 | ||||
