BU70LB-MD (1987)

Toyota Dyna 200

Production Aug 1987 - Aug 1988
Engine B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

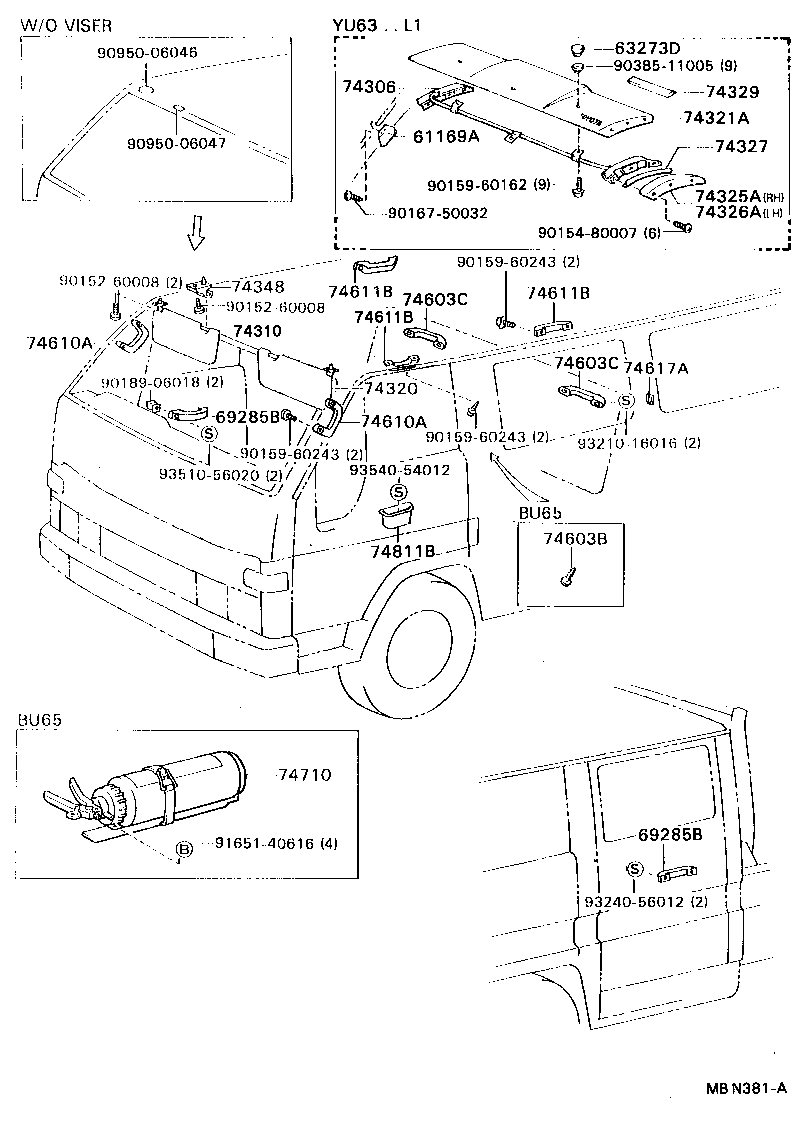

Click highlighted areas on diagram

diagram 61169A 63273D 69285B 69285B 74306 74310 74320 74321A 74325A 74326A 74327 74329 74348 74603B 74603C 74603C 74610A 74610A 74611B 74611B 74611B 74617A 74710 74811B 9015260008 9015260008 9015480007 9015960162 9015960243 9015960243 9015960243 9016750032 9018906018 9038511005 9095006046 9095006047 9165140616 9321016016 9324056012 9351056020 9354054012
Part # Description Qty Price
69285B - HANDLE, PULL
69285-9540406

BU85..TW1;BU61,65,85..GEN..(CBU,IV3);BU60,62,70,80,81,82,86..5F

BROWN,TRIM4#

 2
69285B - HANDLE, PULL
69285-9540406

BU85..TW1;BU61,65,85..GEN..(CBU,IV3);BU60,62,70,80,81,82,86..5F

BROWN,TRIM4#

 2
74310 - VISOR ASSY, RH
74310-9543006

BU70..BUS

BROWN,TRIM4#

 1
74320 - VISOR ASSY, LH
74320-9541806

BU70..BUS

BROWN,TRIM4#

 1
74348 - HOLDER, VISOR
74348-1201025

BU65..GEN..CBU;BU60,61,62,70,8#..(GEN,GHD,SA)..(CBU,IV3)

BEIGE,TRIM4#

 1
74348-1201025

BU70..BUS

BEIGE,TRIM4#

 2
74603C - GRIP SUB-ASSY, ASSIST
74603-95A04

BU70..BUS

 6
74603C - GRIP SUB-ASSY, ASSIST
74603-95A04

BU70..BUS

 6
74610A - GRIP SUB-ASSY, ASSIST
74610-9540306

BU6#,70,8#,93

BROWN,TRIM4#

 2
74610A - GRIP SUB-ASSY, ASSIST
74610-9540306

BU6#,70,8#,93

BROWN,TRIM4#

 2
74611B - GRIP, ASSIST
74611-9260106

BU70..BUS

BROWN,TRIM4#

 2
74611B - GRIP, ASSIST
74611-9260106

BU70..BUS

BROWN,TRIM4#

 2
74611B - GRIP, ASSIST
74611-9260106

BU70..BUS

BROWN,TRIM4#

 2
74617A - PLUG, ASSIST GRIP
74617-95A04

BU70..BUS

 12
Common parts
90152-60008
90154-80007
90159-60162
90159-60243
90167-50032
90189-06018
90385-11005
90950-06046
90950-06047
91651-40616
93210-16016
93240-56012
93510-56020
93540-54012
