BU70LB-MD (1987)
Toyota Dyna 200
Production
Aug 1987
-
Aug 1988
Engine
B
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8708- )

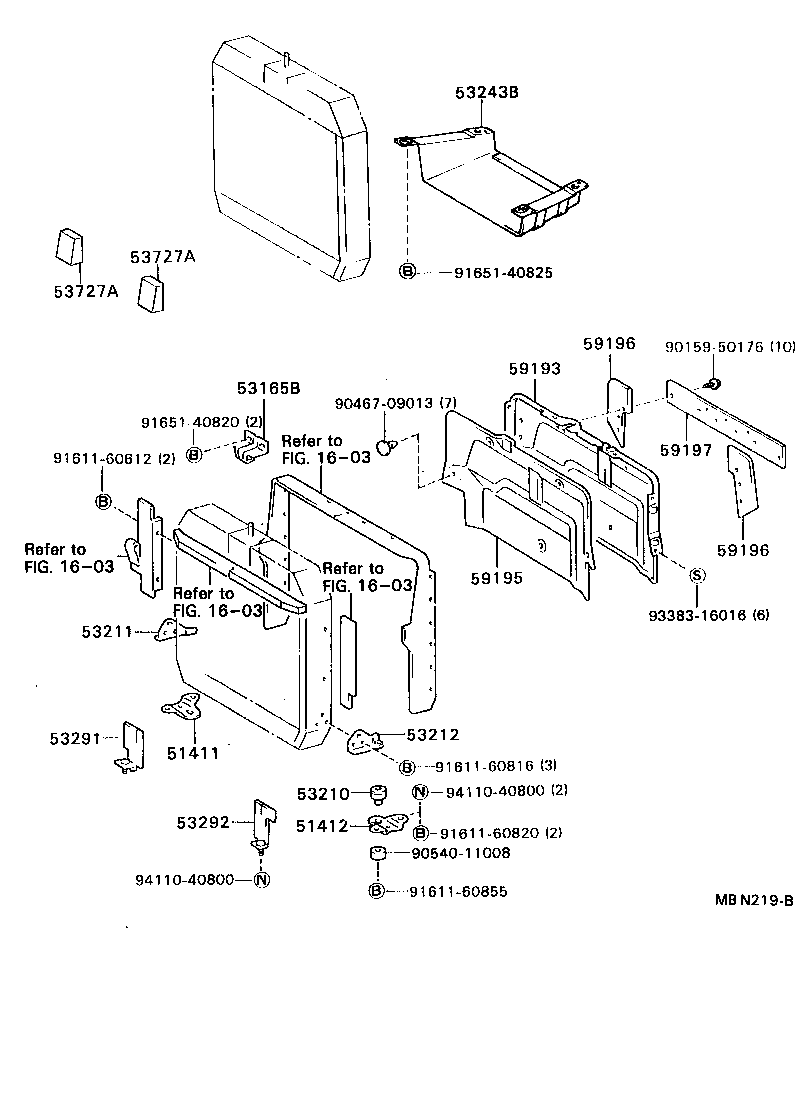

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51411 - BRACKET, RADIATOR SUPPORT, RH | ||||
| 51411-36120 |
BU60,61,62,70,80,81,82 |
1 | ||
| 51412 - BRACKET, RADIATOR SUPPORT, LH | ||||
| 51412-36090 |
BU60,61,62,70,80,81,82 |
1 | ||
| 53165B - SUPPORT, RADIATOR, CENTER | ||||
| 53165-36040 |
BU6#,70,80,81,82 |
1 | ||
| 53210 - SUPPORT ASSY, RADIATOR | ||||
| 53210-36010 |
BU6#,70,8#,93 |
2 | ||
| 53211 - SUPPORT, RADIATOR, RH | ||||
| 53211-36060 |
BU60,61,62,70,80,81,82 |
1 | ||
| 53212 - SUPPORT, RADIATOR, LH | ||||
| 53212-36020 |
BU6#,70,8# |
1 | ||
| 53212-36020 |
BU6#,70,8#,93 |
1 | ||
| 53243B - GUIDE, LOWER WIND | ||||
| 53243-36070 |
BU60,61,62,70,80,81,82..GEN,GHD |
1 | ||
| 53291 - SEAL, RADIATOR SUPPORT TO FRAME, RH | ||||
| 53291-36030 |
BU70,80;BU60,62..TS |
1 | ||
| 53292 - SEAL, RADIATOR SUPPORT TO FRAME, LH | ||||
| 53292-36060 |
BU70,80;BU60,62..TS |
1 | ||
| 53727A - SHUTTER, HOT AIR SIDE | ||||
| 53727-95401 |
BU70,80;BU60,62..TS |
2 | ||
| 53727A - SHUTTER, HOT AIR SIDE | ||||
| 53727-95401 |
BU70,80;BU60,62..TS |
2 | ||
| Common parts | ||||
| 90159-50176 | ||||
| 90467-09013 | ||||
| 90540-11008 | ||||
| 91611-60612 | ||||
| 91611-60816 | ||||
| 91611-60820 | ||||
| 91611-60855 | ||||
| 91651-40820 | ||||
| 91651-40825 | ||||
| 93383-16016 | ||||
| 94110-40800 | ||||
| Linked diagrams | ||||
| 1603 | ||||
(8708- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51411 - BRACKET, RADIATOR SUPPORT, RH | ||||
| 51411-36120 |
BU60,61,62,70,80,81,82 |
1 | ||
| 51412 - BRACKET, RADIATOR SUPPORT, LH | ||||
| 51412-36090 |
BU60,61,62,70,80,81,82 |
1 | ||
| 53165B - SUPPORT, RADIATOR, CENTER | ||||
| 53165-36040 |
BU6#,70,80,81,82 |
1 | ||
| 53210 - SUPPORT ASSY, RADIATOR | ||||
| 53210-36010 |
BU6#,70,8#,93 |
2 | ||
| 53211 - SUPPORT, RADIATOR, RH | ||||
| 53211-36060 |
BU60,61,62,70,80,81,82 |
1 | ||
| 53212 - SUPPORT, RADIATOR, LH | ||||
| 53212-36020 |
BU6#,70,8# |
1 | ||
| 53212-36020 |
BU6#,70,8#,93 |
1 | ||
| 53243B - GUIDE, LOWER WIND | ||||
| 53243-36070 |
BU60,61,62,70,80,81,82..GEN,GHD |
1 | ||
| 53291 - SEAL, RADIATOR SUPPORT TO FRAME, RH | ||||
| 53291-36030 |
BU70,80;BU60,62..TS |
1 | ||
| 53292 - SEAL, RADIATOR SUPPORT TO FRAME, LH | ||||
| 53292-36060 |
BU70,80;BU60,62..TS |
1 | ||
| 53727A - SHUTTER, HOT AIR SIDE | ||||
| 53727-95401 |
BU70,80;BU60,62..TS |
2 | ||
| 53727A - SHUTTER, HOT AIR SIDE | ||||
| 53727-95401 |
BU70,80;BU60,62..TS |
2 | ||
| Common parts | ||||
| 90159-50176 | ||||
| 90467-09013 | ||||
| 90540-11008 | ||||
| 91611-60612 | ||||
| 91611-60816 | ||||
| 91611-60820 | ||||
| 91611-60855 | ||||
| 91651-40820 | ||||
| 91651-40825 | ||||
| 93383-16016 | ||||
| 94110-40800 | ||||
| Linked diagrams | ||||
| 1603 | ||||
