BU66R-PDBTQ3 (1988)
Toyota Dyna 200
(8808- )BU60,61,65,66,83,84..RHD

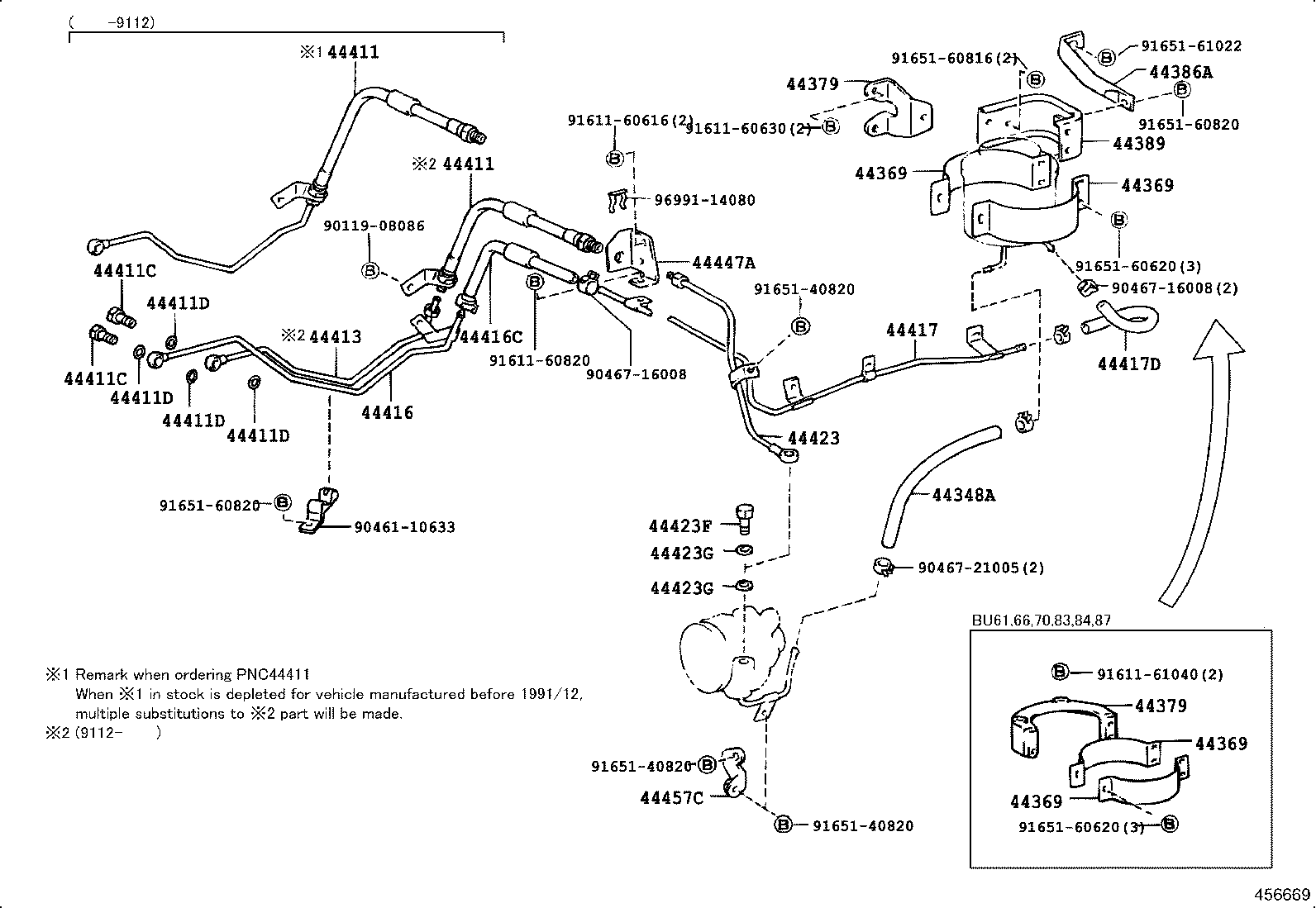

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1 | ||||
| 44348-36170 |
BU60..T3;BU65..ARL;BU61,66,67,83,84,88,91,96..(ARL,GEN,GHD)..(CBU,IV3) |
1 | ||
| 44369 - BRACKET, OIL RESERVOIR, NO.1 | ||||
| 44369-36010 |
BU65..ARL;BU61,66,67,84,88,91,96..(ARL,GEN)..(CBU,IV3) |
2 | ||
| 44369-36010 |
BU65..ARL;BU61,66,84,88,91,96..(T1,T3)..(ARL,GEN)..(CBU,IV3) |
2 | ||
| 44369 - BRACKET, OIL RESERVOIR, NO.1 | ||||
| 44369-36010 |
BU65..ARL;BU61,66,67,84,88,91,96..(ARL,GEN)..(CBU,IV3) |
2 | ||
| 44369-36010 |
BU65..ARL;BU61,66,84,88,91,96..(T1,T3)..(ARL,GEN)..(CBU,IV3) |
2 | ||
| 44369 - BRACKET, OIL RESERVOIR, NO.1 | ||||
| 44369-36010 |
BU65..ARL;BU61,66,67,84,88,91,96..(ARL,GEN)..(CBU,IV3) |
2 | ||
| 44369-36010 |
BU65..ARL;BU61,66,84,88,91,96..(T1,T3)..(ARL,GEN)..(CBU,IV3) |
2 | ||
| 44369 - BRACKET, OIL RESERVOIR, NO.1 | ||||
| 44369-36010 |
BU65..ARL;BU61,66,67,84,88,91,96..(ARL,GEN)..(CBU,IV3) |
2 | ||
| 44369-36010 |
BU65..ARL;BU61,66,84,88,91,96..(T1,T3)..(ARL,GEN)..(CBU,IV3) |
2 | ||
| 44379 - BRACKET, OIL RESERVOIR, NO.2 | ||||
| 44379-36090 |
BU65..ARL;BU61,66,84,88,91,96..(T1,T3)..(ARL,GEN)..(CBU,IV3) |
1 | ||
| 44379-36090 |
BU65..ARL;BU61,66,67,84,88,91,96..(ARL,GEN)..(CBU,IV3) |
1 | ||
| 44379 - BRACKET, OIL RESERVOIR, NO.2 | ||||
| 44379-36090 |
BU65..ARL;BU61,66,84,88,91,96..(T1,T3)..(ARL,GEN)..(CBU,IV3) |
1 | ||
| 44379-36090 |
BU65..ARL;BU61,66,67,84,88,91,96..(ARL,GEN)..(CBU,IV3) |
1 | ||
| 44411 - HOSE, PRESSURE FEED | ||||
| 44411-36300 |
BU65,66..ARL;BU60,61,83,84..RHD..(T1,T3)..(ARL,GEN,GHD)..(CBU,IV3) |
1 | ||
| 44411 - HOSE, PRESSURE FEED | ||||
| 44411-36300 |
BU65,66..ARL;BU60,61,83,84..RHD..(T1,T3)..(ARL,GEN,GHD)..(CBU,IV3) |
1 | ||
| 44411C - BOLT, UNION(FOR PRESSURE FEED HOSE) | ||||
| 90401-14003 |
BU60..T3;BU65..ARL;BU61,66,67,83,84,88,91,96..(ARL,GEN,GHD)..(CBU,IV3) |
2 | ||
| 44411C - BOLT, UNION(FOR PRESSURE FEED HOSE) | ||||
| 90401-14003 |
BU60..T3;BU65..ARL;BU61,66,67,83,84,88,91,96..(ARL,GEN,GHD)..(CBU,IV3) |
2 | ||
| 44411D - GASKET(FOR PRESSURE FEED HOSE) | ||||
| 90430-14235 |
BU60..T3;BU65..ARL;BU61,66,67,83,84,88,91,96..(ARL,GEN,GHD)..(CBU,IV3) |
4 | ||
| 44411D - GASKET(FOR PRESSURE FEED HOSE) | ||||
| 90430-14235 |
BU60..T3;BU65..ARL;BU61,66,67,83,84,88,91,96..(ARL,GEN,GHD)..(CBU,IV3) |
4 | ||
| 44411D - GASKET(FOR PRESSURE FEED HOSE) | ||||
| 90430-14235 |
BU60..T3;BU65..ARL;BU61,66,67,83,84,88,91,96..(ARL,GEN,GHD)..(CBU,IV3) |
4 | ||
| 44411D - GASKET(FOR PRESSURE FEED HOSE) | ||||
| 90430-14235 |
BU60..T3;BU65..ARL;BU61,66,67,83,84,88,91,96..(ARL,GEN,GHD)..(CBU,IV3) |
4 | ||
| 44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET) | ||||
| 44416-36130 |
BU65,66..ARL;BU60,61,83,84..RHD..(T1,T3)..(ARL,GEN,GHD)..(CBU,IV3) |
1 | ||
| 44416C - HOSE(FOR RETURN TUBE TO RESERVIOR) | ||||
| 90447-18038 |
BU60..T3;BU65..ARL;BU61,66,67,83,84..(ARL,GEN,GHD)..(CBU,IV3) |
1 | ||
| 44417 - TUBE, RETURN, NO.2 | ||||
| 44417-36130 |
BU66..ARL |
1 | ||
| 44417-36131 |
BU66..ARL |
1 | ||
| 44417D - HOSE(FOR RETURN TUBE TO RESERVOIR) | ||||
| 90447-18037 |
BU66..ARL |
1 | ||
| 90447-18037 |
BU66..ARL;BU88,91,96..(ARL,GEN)..(CBU,IV3) |
1 | ||
| 44423 - TUBE, OIL PUMP TO GEAR BOX | ||||
| 44423-36180 |
BU60..T3;BU65..ARL;BU61,66,67,83,84,88,91,96..(ARL,GEN,GHD)..(CBU,IV3) |
1 | ||
| 44423F - BOLT, UNION | ||||
| 90401-16004 |
BU60..T3;BU65..ARL;BU61,66,67,83,84,88,91,96..DSL..(ARL,GEN,GHD)..(CBU,IV3) |
1 | ||
| 44423G - GASKET, UNION BOLT | ||||
| 90430-16168 |
BU60..T3;BU65..ARL;BU61,66,67,83,84,88,91,96..(ARL,GEN,GHD)..(CBU,IV3) |
2 | ||
| 44423G - GASKET, UNION BOLT | ||||
| 90430-16168 |
BU60..T3;BU65..ARL;BU61,66,67,83,84,88,91,96..(ARL,GEN,GHD)..(CBU,IV3) |
2 | ||
| 44447A - BRACKET, HOSE SUPPORT, NO.1 | ||||
| 44447-36161 |
BU60..T3;BU65..ARL;BU61,66,67,83,84,88,91,96..(ARL,GEN,GHD)..(CBU,IV3) |
1 | ||
| 44447-36160 |
BU60..T3;BU65..ARL;BU61,66,83,84,88,91,96..(ARL,GEN,GHD)..(CBU,IV3) |
1 | ||
| 44457C - BRACKET, POWER STEERING TUBE SUPPORT, NO.1 | ||||
| 44457-36040 |
BU60..T3;BU65..ARL;BU61,66,67,83,84,88,91,96..(ARL,GEN,GHD)..(CBU,IV3) |
1 | ||
| Common parts | ||||
| 90119-08086 | ||||
| 90461-10633 | ||||
| 90467-16008 | ||||
| 90467-21005 | ||||
| 91611-60616 | ||||
| 91611-60630 | ||||
| 91611-60820 | ||||
| 91611-61040 | ||||
| 91651-40820 | ||||
| 91651-60620 | ||||
| 91651-60816 | ||||
| 91651-60820 | ||||
| 91651-61022 | ||||
| 96991-14080 | ||||
