BU66LH-MDDHT3 (1988)

Toyota Dyna 200

Production Aug 1988 - May 1995
Engine 14B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )B,11B,14B..BU6#,83,84,87..WT

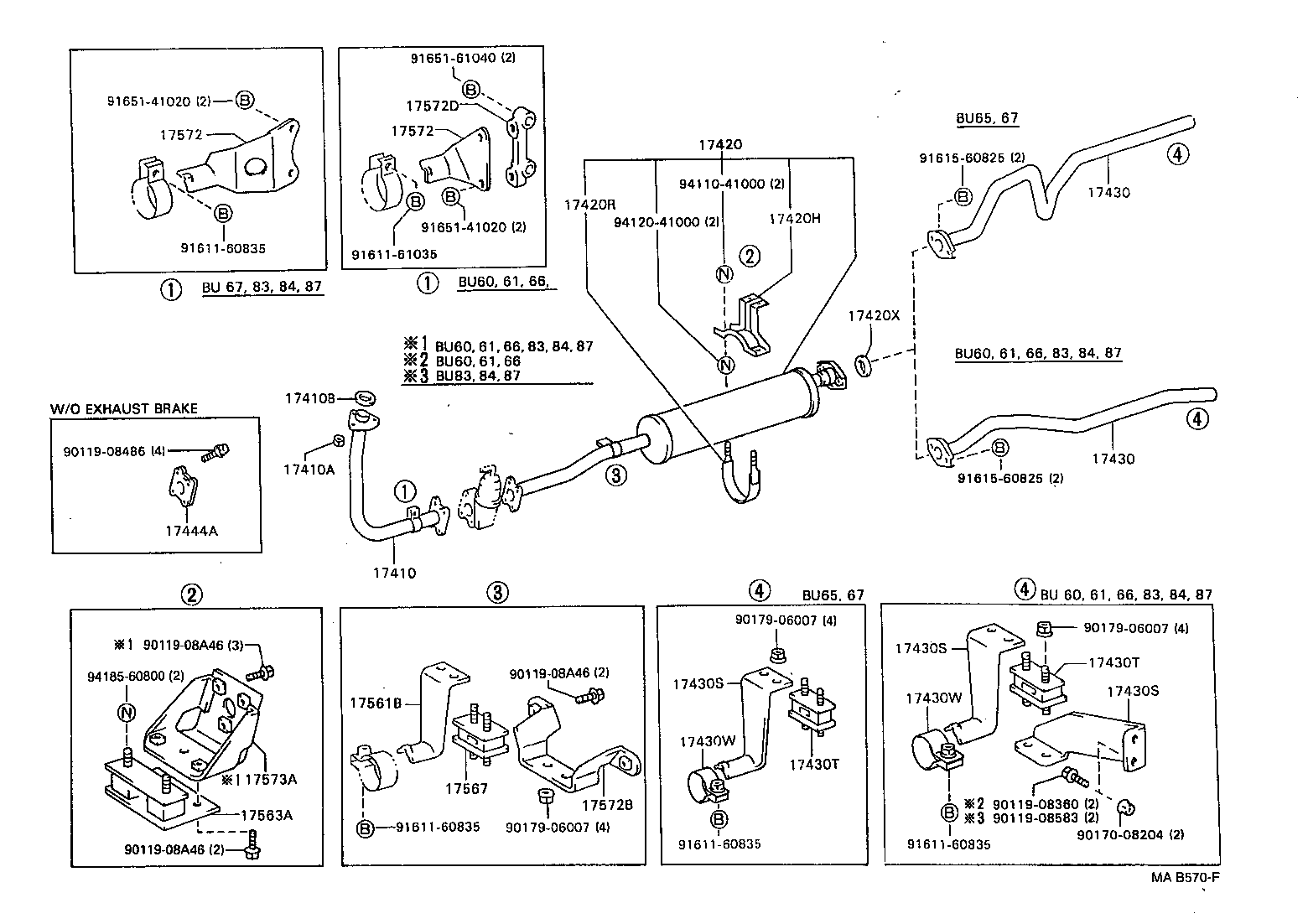

Click highlighted areas on diagram

diagram 17410 17410A 17410B 17420 17420H 17420R 17420X 17430 17430 17430S 17430S 17430S 17430T 17430T 17430W 17430W 17444A 17561B 17563A 17572 17572 17572B 17572D 17573A 9011908360 9011908486 9011908583 9011908A46 9011908A46 9011908A46 9017008204 9017906007 9017906007 9017906007 9161160835 9161160835 9161160835 9161160835 9161161035 9161560825 9161560825 9165141020 9165141020 9165161040 9411041000 9412041000 9418560800
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17401-58171

B,11B,14B..BU6#,70,83,84,87

 1
17401-58171

B,11B,14B..BU6#,70,83,84,87..GEN,GHD,SA

 1
17401-58170

B,11B,14B..BU6#,70,83,84,87..GEN,GHD,SA

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

B,11B,14B#..BU6#,70,8#,9#

 3
17410B - GASKET, EXHAUST PIPE
90917-06034

B,11B,14B#..BU6#,70,8#,9#

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17420-58360

B,11B,14B..BU60,61,66..T3..WT..GEN

 1
17420H - CLAMP NO.1, EXHAUST PIPE CENTER, CENTER
17576-58020

14B..BU66..GEN;14B..BU66..4FC;B,11B,14B..BU60,61,65,67,70,83,84,87

 1
17420R - CLAMP NO.2, EXHAUST PIPE CENTER, CENTER
17504-58010

14B..BU66..GEN;14B..BU66..4FC;B,11B,14B..BU60,61,65,67,70,83,84,87

 1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06005

B,11B,14B#..BU6#,70,8#,9#

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17405-58310

B,11B,14B..BU60,61,66..T3..WT

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17405-58310

B,11B,14B..BU60,61,66..T3..WT

 1
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17574-58040

14B#..BU88,91..GEN,SA;B,11B,14B#..BU60,61,66,83,84,87,94,96..WT

BODY SIDE

 1
17561-47010

14B..BU88..T3;B,11B,14B#..BU60,61,66,70,83,84,87,9#

PIPE SIDE

 1
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17574-58040

14B#..BU88,91..GEN,SA;B,11B,14B#..BU60,61,66,83,84,87,94,96..WT

BODY SIDE

 1
17561-47010

14B..BU88..T3;B,11B,14B#..BU60,61,66,70,83,84,87,9#

PIPE SIDE

 1
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17574-58040

14B#..BU88,91..GEN,SA;B,11B,14B#..BU60,61,66,83,84,87,94,96..WT

BODY SIDE

 1
17561-47010

14B..BU88..T3;B,11B,14B#..BU60,61,66,70,83,84,87,9#

PIPE SIDE

 1
17430T - CUSHION, EXHAUST TAIL PIPE (FOR REAR)
17567-61030

14B..BU88..T3;B,11B,14B#..BU6#,70,83,84,87,9#

 1
17430T - CUSHION, EXHAUST TAIL PIPE (FOR REAR)
17567-61030

14B..BU88..T3;B,11B,14B#..BU6#,70,83,84,87,9#

 1
17430W - CLAMP NO.2, EXHAUST TAIL PIPE (FOR REAR)
90461-32007

14B#..BU88,91..GEN,SA;B,11B,14B#..BU6#,70,83,84,87,94,96

 1
17430W - CLAMP NO.2, EXHAUST TAIL PIPE (FOR REAR)
90461-32007

14B#..BU88,91..GEN,SA;B,11B,14B#..BU6#,70,83,84,87,94,96

 1
17444A - SPACER, EXHAUST FRONT PIPE
17404-58030

14B..BU88..GEN..(CBU,IV3);B,11B,14B..BU6#,70,83,84,87..ARL,GEN,GHD

 1
17563A - SUPPORT, EXHAUST PIPE, NO.3
17563-58010

B,11B,14B..BU60,61,66,70,83,84,87

 1
17572 - BRACKET, EXHAUST PIPE NO.1 SUPPORT
17571-58270

B,11B,14B..BU60,61,66,70..5F

 1
17572 - BRACKET, EXHAUST PIPE NO.1 SUPPORT
17571-58270

B,11B,14B..BU60,61,66,70..5F

 1
17572D - BRACKET, EXHAUST PIPE SUPPORT, NO.1
17579-73010

B,11B,14B..BU60,61,66,70..5F

 1
17573A - BRACKET, EXHAUST PIPE SUPPORT, NO.3
17573-58040

B,11B,14B..BU60,61,66,83,84,87..WT

 1
Common parts
90119-08360
90119-08486
90119-08583
90119-08A46
90170-08204
90179-06007
91611-60835
91611-61035
91615-60825
91651-41020
91651-61040
94110-41000
94120-41000
94185-60800
