BU66L-MDD3 (1988)

Toyota Dyna 200

Production Aug 1988 - May 1995
Engine 14B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

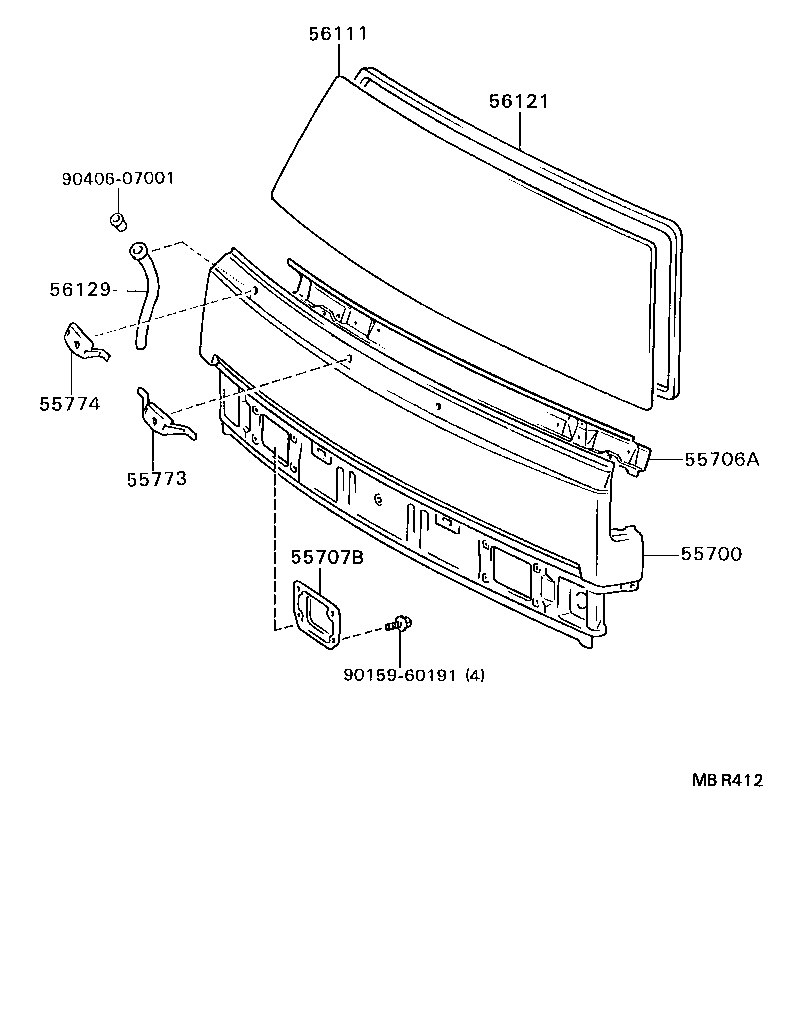

Click highlighted areas on diagram

diagram 55700 55706A 55707B 55773 55774 56111 56121 56129 9015960191 9040607001
Part # Description Qty Price
55700 - PANEL ASSY, FRONT
55701-95445

BU6#,70,83,84..LHD

 1
55701-95444

BU6#,70,83,84..LHD

 1
55706A - REINFORCEMENT SUB-ASSY, FRONT PANEL, UPPER
55706-95406

BU6#,70,83,84..LHD

 1
55707B - SHUTTER SUB-ASSY, FRONT AIR
55707-95404

BU61..ST..IV3;BU61,84..ARL,SA;BU61,84..CBU,IV1;BU61,84..LHD..IV3;BU60,65,66,67,70,83,87

 1
55707-95404

BU61..CBU,IV1;BU61..ST..IV3;BU61..LHD..IV3;BU84..RHD..CBU;BU61,84..ARL,SA;BU60,65,66,67,70,83,87

 1
55707-95404

BU84..RHD;BU6#,70,83,87

 1
55773 - RETAINER, WIPER SHAFT, CENTER
55773-95406

BU6#,70,83,84,87

 1
55774 - RETAINER, WIPER SHAFT SIDE
55774-95403

BU6#,70,83,84..LHD

 1
56111 - GLASS, WINDSHIELD
56111-95416

BU65..GEN..CBU;BU60,61,66,70,83,84,87..GEN,GHD

*LAM,T=5.3

 1
56111-37010

BU65,84..RHD..GEN;BU60,61,66,70,83,87..GEN,GHD

*TL,T=5.7

 1
56111-95417

BU65..GEN..CBU;BU60,61,66,70,83,84,87..GEN,GHD

*LAM,T=5.3,W(TOP SHADE)

 1
56111-37010

BU61..CBU,IV1;BU61..ST..IV3;BU61..LHD..IV3;BU84..RHD..GEN;BU60,66,83,87..GEN,GHD

*TL,T=5.7

 1
56111-95415

BU65..GEN..CBU;BU60,61,66,70,83,84,87..GEN,GHD

*ZT,T=5.0

 1
56111-37010

BU6#,70,83,84..CBU,IV3

*TL,T=5.7

 1
56111-37010

BU61..CBU,IV1;BU61..ST..IV3;BU61..LHD..IV3;BU84..RHD..GEN;BU60,66,70,83,87..GEN,GHD

*TL,T=5.7

 1
56111-37020

BU65..GEN..CBU;BU66..T3..TB..GEN;BU60,61,83,84,87..(T1,T3)..(GEN,GHD)

*LAM,T=5.7,BRONZE,W(TOP SHADE)

 1
56111-95415

BU65..GEN..CBU;BU60,61,66,83,84,87..GEN,GHD

*ZT,T=5.0

 1
56121 - WEATHERSTRIP, WINDSHIELD
56121-95A06

BU6#,70,83,84,87

 1
56129 - HOSE, WINDSHIELD DRAIN
56129-95400

BU6#,70,8#,9#

 2
Common parts
90159-60191
90406-07001
